Create a raster layer from a raster image service.
Use case
Accessing a raster image from an online service can be useful for analyzing the most up-to-date data available for an area. For example, retrieving recent results of bathymetry surveys within a shipping channel monitored for its sediment build-up would allow planners to assess dredging needs.
How to use the sample

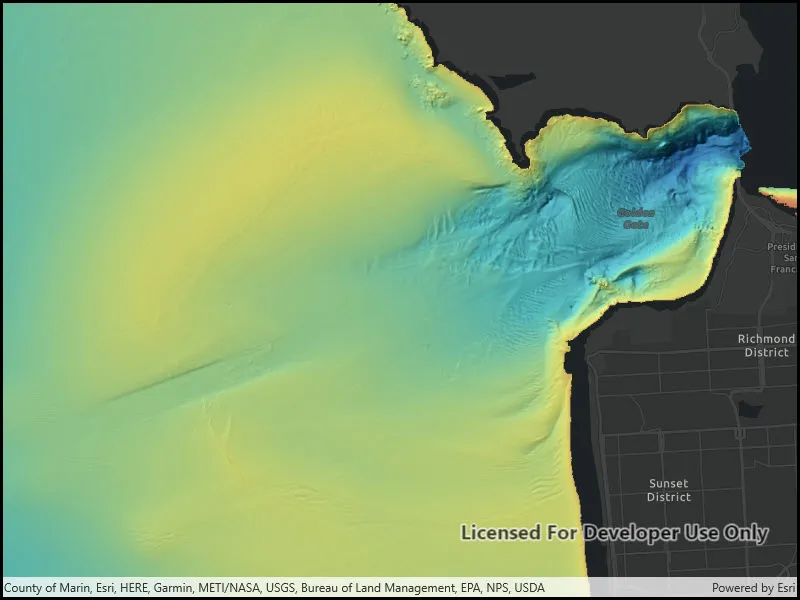

Simply launch the sample to see a raster from an image service being used on a map.
How it works
Create an ImageServiceRaster using the service's URL.
Create a RasterLayer from the image service raster.
Add the raster layer the the map.
Relevant API
ImageServiceRaster
RasterLayer
About the data
This sample uses a NOAA raster image service. The service computes a hillshade image from the depth (in meters) of U.S. coastal waters.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
// Copyright 2017 Esri.//// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0//// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific// language governing permissions and limitations under the License.using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Rasters;
using System;
namespaceArcGIS.WinUI.Samples.RasterLayerImageServiceRaster{
[ArcGIS.Samples.Shared.Attributes.Sample(
name: "Raster layer (service)",
category: "Layers",
description: "Create a raster layer from a raster image service.",
instructions: "Simply launch the sample to see a raster from an image service being used on a map.",
tags: new[] { "image service", "raster" })]
publicpartialclassRasterLayerImageServiceRaster {
publicRasterLayerImageServiceRaster() {
InitializeComponent();
Initialize();
}
privatevoidInitialize() {
// Create new map with the dark gray canvas basemap. Map myMap = new Map(BasemapStyle.ArcGISDarkGray);
// Create a Uri to the image service raster. Uri myUri = new Uri("https://gis.ngdc.noaa.gov/arcgis/rest/services/bag_hillshades_subsets/ImageServer");
// Create new image service raster from the Uri. ImageServiceRaster myImageServiceRaster = new ImageServiceRaster(myUri);
// Create a new raster layer from the image service raster. RasterLayer myRasterLayer = new RasterLayer(myImageServiceRaster);
// Add the raster layer to the maps layer collection. myMap.OperationalLayers.Add(myRasterLayer);
// Assign the map to the map view. MyMapView.Map = myMap;
// Zoom in to the San Francisco Bay. MyMapView.SetViewpointCenterAsync(new MapPoint(-13643095.660131, 4550009.846004, SpatialReferences.WebMercator), 100000);
}
}
}
