Display annotation

View inWPFWinUIMAUIUWPView on GitHub

Display annotation from a feature service URL.

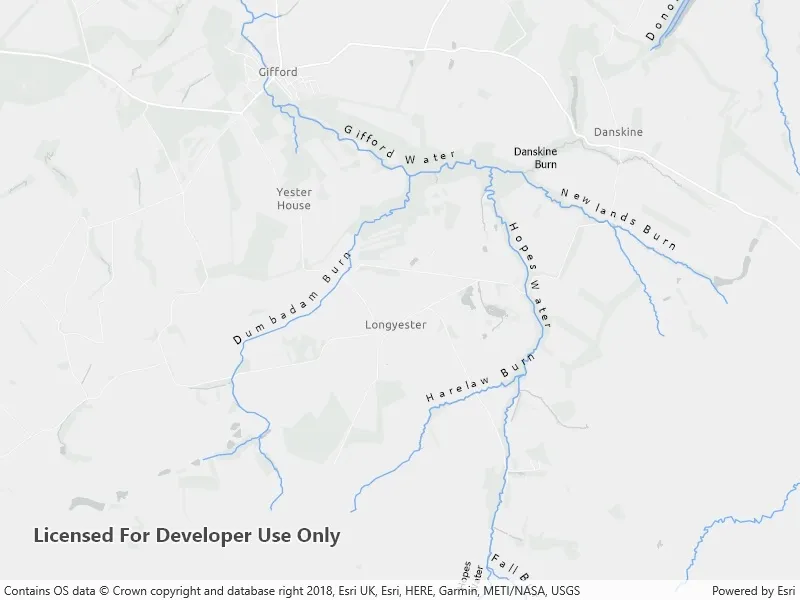

Image of display annotation

Use case

Annotation is useful for displaying text that you don't want to move or resize when the map is panned or zoomed (unlike labels which will move and resize). You can use annotation to place text at a fixed size, position, orientation, font, and so on. You may choose to do this for cartographic reasons or because the exact placement of the text is important.

How to use the sample

Pan and zoom to see names of waters and burns in a small region of Scotland.

How it works

  1. Create a Map with a light gray canvas and a viewpoint near the data.
  2. Create an AnnotationLayer from a feature service URL.
  3. Add both layers to the operational layers of the map and add it to a MapView.

Relevant API

  • AnnotationLayer
  • FeatureLayer

About the data

Data derived from the OS Open Rivers dataset from Ordnance Survey . Contains OS data © Crown copyright and database right 2018.

The annotation layer contains two sublayers of rivers in East Lothian, Scotland, which were set by the author to only be visible within the following scale ranges:

  • Water (1:50,000 - 1:100,000) - A large stream, as defined in the Scots language
  • Burn (1:25,000 - 1:75,000) - A brook or small stream, as defined in the Scots language

Additional information

Annotation is only supported from feature services hosted on ArcGIS Enterprise.


annotation, cartography, labels, placement, reference scale, text, utility

Sample Code

Use dark colors for code blocksCopy
<UserControl x:Class="ArcGIS.WinUI.Samples.DisplayAnnotation.DisplayAnnotation"
        <esriUI:MapView x:Name="MyMapView" />
