Create and share a mobile geodatabase.

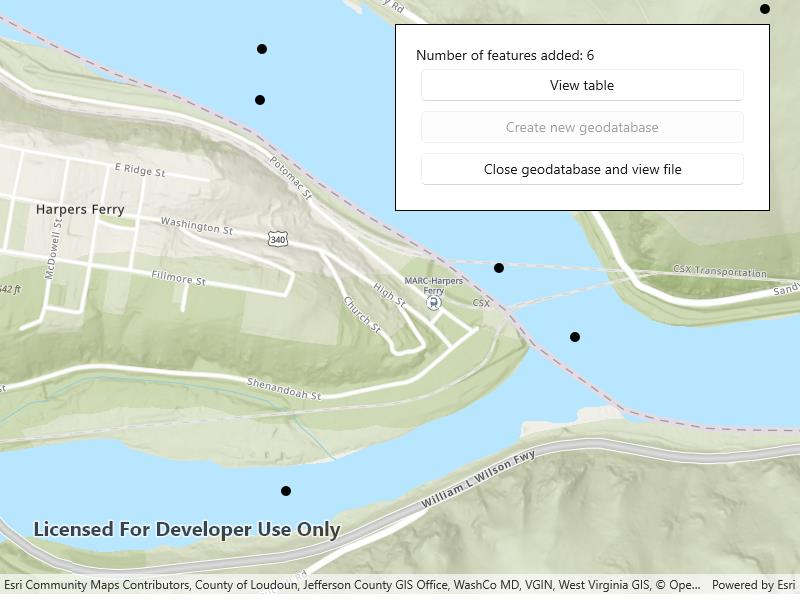

Create mobile geodatabase sample

Use case

A mobile geodatabase is a collection of various types of GIS datasets contained in a single file (.geodatabase) on disk that can store, query, and manage spatial and nonspatial data. Mobile geodatabases are stored in a SQLite database and can contain up to 2 TB of portable data. Users can create, edit and share mobile geodatabases across ArcGIS Pro, ArcGIS Maps SDK for Native Apps, or any SQL software. These mobile geodatabases support both viewing and editing and enable new offline editing workflows that don't require a feature service.

For example, a user would like to track the location of their device at various intervals to generate a heat map of the most visited locations. The user can add each location as a feature to a table and generate a mobile geodatabase. The user can then instantly share the mobile geodatabase to ArcGIS Pro to generate a heat map using the recorded locations stored as a geodatabase feature table.

How to use the sample

Tap on the map to add a feature symbolizing the user's location. Tap "View table" to view the contents of the geodatabase feature table. Once you have added the location points to the map, click the "Close" button to retrieve the .geodatabase file which can then be imported into ArcGIS Pro or opened in an ArcGIS application. Click the "Create" button to make another geodatabase.

How it works

  1. Create the Geodatabase from the mobile geodatabase location on file.
  2. Create a new TableDescription and add the FieldDescriptions to the table description.
  3. Create a GeodatabaseFeatureTable in the geodatabase from the TableDescription using Geodatabase.CreateTableAsync().
  4. Create a feature on the selected map point using GeodatabaseFeatureTable.CreateFeature(featureAttributes, mapPoint).
  5. Add the feature to the table using GeodatabaseFeatureTable.AddFeatureAsync(feature).
  6. Each feature added to the GeodatabaseFeatureTable is committed to the mobile geodatabase file.
  7. Close the mobile geodatabase to safely share the ".geodatabase" file using Geodatabase.close()

Relevant API

  • ArcGISFeature
  • FeatureLayer
  • FeatureTable
  • FieldDescription
  • Geodatabase
  • GeodatabaseFeatureTable
  • TableDescription

Additional information

Learn more about mobile geodatabases and how to utilize them on the ArcGIS Pro documentation page. The following mobile geodatabase behaviors are supported in ArcGIS Maps SDK for .NET: annotation, attachments, attribute rules, contingent values, dimensions, domains, feature-linked annotation, subtypes, utility network and relationship classes.

Learn more about the types of fields supported with mobile geodatabases on the ArcGIS Pro documentation page.

Tags

arcgis pro, database, feature, feature table, geodatabase, mobile geodatabase, sqlite

Sample Code

CreateMobileGeodatabase.xaml.csCreateMobileGeodatabase.xaml.csCreateMobileGeodatabase.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.UI.Controls;
using Microsoft.UI.Xaml;
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.IO;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.CreateMobileGeodatabase
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Create mobile geodatabase",
        category: "Data",
        description: "Create and share a mobile geodatabase.",
        instructions: "Tap on the map to add a feature symbolizing the user's location. Tap \"View table\" to view the contents of the geodatabase feature table. Once you have added the location points to the map, click the \"Close\" button to retrieve the `.geodatabase` file which can then be imported into ArcGIS Pro or opened in an ArcGIS application. Click the \"Create\" button to make another geodatabase.",
        tags: new[] { "arcgis pro", "database", "feature", "feature table", "geodatabase", "mobile geodatabase", "sqlite" })]
    public partial class CreateMobileGeodatabase
    {
        private GeodatabaseFeatureTable _featureTable;
        private Geodatabase _geodatabase;

        private string _gdbPath;
        private string _directoryPath;

        public CreateMobileGeodatabase()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Create a map.
            MyMapView.Map = new Map(BasemapStyle.ArcGISTopographic);
            MyMapView.SetViewpoint(new Viewpoint(39.323845, -77.733201, 10000.0));

            await CreateGeodatabase();

            Unloaded += SampleUnloaded;
        }

        private async Task CreateGeodatabase()
        {
            try
            {
                // Create a new randomly named directory for the geodatabase.
                _directoryPath = Path.Combine(Environment.ExpandEnvironmentVariables("%TEMP%"), "CreateMobileGeodatabase", Guid.NewGuid().ToString());
                if (!Directory.Exists(_directoryPath))
                {
                    Directory.CreateDirectory(_directoryPath);
                }

                // Create the geodatabase file.
                _gdbPath = Path.Combine(_directoryPath, "LocationHistory.geodatabase");

                // Delete existing file if present from previous sample run.
                if (File.Exists(_gdbPath))
                {
                    File.Delete(_gdbPath);
                }

                _geodatabase = await Geodatabase.CreateAsync(_gdbPath);

                // Construct a table description which stores features as points on a map.
                var tableDescription = new TableDescription("LocationHistory", SpatialReferences.Wgs84, GeometryType.Point)
                {
                    HasAttachments = false,
                    HasM = false,
                    HasZ = false
                };

                // Set up the fields for the table:
                // FieldType.OID is the primary key of the SQLite table.
                // FieldType.Date is a date column used to store a Calendar date.
                // FieldDescriptions can be a SHORT, INTEGER, GUID, FLOAT, DOUBLE, DATE, TEXT, OID, GLOBALID, BLOB, GEOMETRY, RASTER, or XML.
                tableDescription.FieldDescriptions.Add(new FieldDescription("oid", FieldType.OID));
                tableDescription.FieldDescriptions.Add(new FieldDescription("collection_timestamp", FieldType.Date));

                // Add a new table to the geodatabase by creating one from the table description.
                _featureTable = await _geodatabase.CreateTableAsync(tableDescription);

                // Refresh the UI for the new empty table.
                await UpdateTable();

                // Create a feature layer for the map.
                FeatureLayer featureLayer = new FeatureLayer(_featureTable);
                MyMapView.Map.OperationalLayers.Add(featureLayer);

                // Add an event handler for new feature taps.
                MyMapView.GeoViewTapped += MyMapView_GeoViewTapped;
            }
            catch (Exception ex)
            {
                await new MessageDialog2(ex.Message, "Error").ShowAsync();
            }
        }

        private void MyMapView_GeoViewTapped(object sender, GeoViewInputEventArgs e)
        {
            _ = AddFeature(e.Location);
        }

        private async Task AddFeature(MapPoint location)
        {
            // Create an attributes dictionary for the feature.
            var attributes = new Dictionary<string, object>();

            // Add a timestamp of when the feature was created.
            attributes["collection_timestamp"] = DateTime.Now;

            // Create the feature.
            Feature feature = _featureTable.CreateFeature(attributes, location);
            try
            {
                // Add the feature to the feature table.
                await _featureTable.AddFeatureAsync(feature);

                // Update the UI.
                await UpdateTable();
                FeaturesLabel.Text = $"Number of features added: {_featureTable.NumberOfFeatures}";
            }
            catch (Exception ex)
            {
                await new MessageDialog2(ex.Message, "Error").ShowAsync();
            }
        }

        private async Task UpdateTable()
        {
            // Query all of the features in the feature table.
            FeatureQueryResult queryFeatureResult = await _featureTable.QueryFeaturesAsync(new QueryParameters());

            // Set the items source for the data grid with the updated query result.
            TableDataGrid.ItemsSource = queryFeatureResult;
        }

        private void ViewTable(object sender, RoutedEventArgs e)
        {
            TableBorder.Visibility = Visibility.Visible;
        }

        private void CloseTable(object sender, RoutedEventArgs e)
        {
            TableBorder.Visibility = Visibility.Collapsed;
        }

        private void CloseGeodatabaseClick(object sender, RoutedEventArgs e)
        {
            try
            {
                // Clear the UI.
                MyMapView.GeoViewTapped -= MyMapView_GeoViewTapped;
                CloseGdbButton.IsEnabled = false;
                CreateGdbButton.IsEnabled = true;
                MyMapView.Map.OperationalLayers.Clear();
                TableDataGrid.ItemsSource = null;
                FeaturesLabel.Text = $"Number of features added:";

                // Close the geodatabase.
                _geodatabase.Close();

                // Open the file explorer to the directory containing the geodatabase.
                Process.Start("explorer.exe", _directoryPath);
            }
            catch (Exception ex)
            {
                _ = new MessageDialog2(ex.Message, "Error").ShowAsync();
            }
        }

        private void CreateGdbButton_Click(object sender, RoutedEventArgs e)
        {
            _ = CreateGeodatabase();
            CloseGdbButton.IsEnabled = true;
            CreateGdbButton.IsEnabled = false;
        }

        private void SampleUnloaded(object sender, RoutedEventArgs e)
        {
            // Close the geodatabase.
            _geodatabase?.Close();
        }
    }
}
