Set basemap

View in

MAUI

WPF

WinUI

View on GitHub

Change a map's basemap.

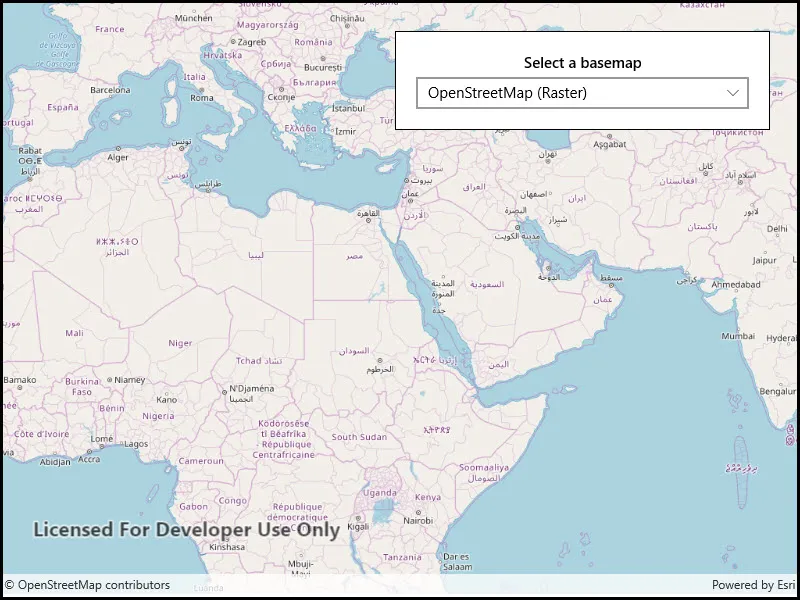

Image of Set basemap sample

Use case

A basemap draws beneath all layers on a Map or Scene and is used to provide visual reference for the operational layers. Basemaps should be selected contextually. For example, in maritime applications, it would be more appropriate to use a basemap of the world's oceans as opposed to a basemap of the world's streets.

How to use the sample

Use the drop down menu to select the active basemap from the list of available basemaps.

How it works

Create an Map object.
Set the map to the MapView object.
Create a BasemapGallery using the toolkit.
Bind the Geomodel property from the BasemapGallery object to the MapView map.

Relevant API

BasemapGallery
BasemapStyle
Map
MapView

Additional information

Organizational basemaps are a Portal feature allowing organizations to specify basemaps for use throughout the organization. Customers expect that they will have access to their organization's standard basemap set when they connect to a Portal. Organizational basemaps are useful when certain basemaps are particularly relevant to the organization, or if the organization wants to make premium basemap content available to their workers.

This samples uses the BasemapGallery toolkit component, which requires the ArcGIS Maps SDK for Swift Toolkit. The BasemapGallery toolkit component supports selecting 2D and 3D basemaps from ArcGIS Online, a user-defined portal, or an array of Basemaps.

See Customize basemaps in the Portal for ArcGIS documentation to learn about customizing the organization's basemap list in a portal.

Sample Code

SetBasemap.xaml.cs

SetBasemap.xaml

Use dark colors for code blocksCopy
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Mapping;
using Microsoft.UI.Xaml.Controls;
using System.Collections.Generic;

namespace ArcGIS.WinUI.Samples.SetBasemap
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Set basemap",
        category: "Map",
        description: "Change a map's basemap.",
        instructions: "Use the drop down menu to select the active basemap from the list of available basemaps.",
        tags: new[] { "basemap", "basemap gallery", "basemap style", "map", "toolkit" })]
    public partial class SetBasemap
    {
        // Dictionary that associates names with basemaps.
        private readonly Dictionary<string, Basemap> _basemapOptions = new Dictionary<string, Basemap>()
        {
            {"Streets", new Basemap(BasemapStyle.ArcGISStreets)},
            {"Streets - Night", new Basemap(BasemapStyle.ArcGISStreetsNight)},
            {"Imagery", new Basemap(BasemapStyle.ArcGISImageryStandard)},
            {"Imagery with Labels", new Basemap(BasemapStyle.ArcGISImagery)},
            {"Dark Gray Canvas", new Basemap(BasemapStyle.ArcGISDarkGray)},
            {"Light Gray Canvas", new Basemap(BasemapStyle.ArcGISLightGray)},
            {"Navigation", new Basemap(BasemapStyle.ArcGISNavigation)},
            {"OpenStreetMap", new Basemap(BasemapStyle.OSMStandard)}
        };

        public SetBasemap()
        {
            InitializeComponent();

            // Setup the control references and execute initialization
            Initialize();
        }

        private void Initialize()
        {
            // Create new Map
            Map myMap = new Map();

            // Assign the map to the MapView
            MyMapView.Map = myMap;

            // Set titles as an items source and choose the first item
            BasemapChooser.ItemsSource = _basemapOptions.Keys;
            BasemapChooser.SelectedIndex = 0;
        }

        private void OnBasemapListSelectionChanged(object sender, SelectionChangedEventArgs e)
        {
            // Get the title of the selected basemap
            string selectedBasemapTitle = e.AddedItems[0].ToString();

            // Retrieve the basemap from the dictionary
            MyMapView.Map.Basemap = _basemapOptions[selectedBasemapTitle];
        }
    }
}
