Add, remove, and reorder operational layers in a map.
Use case
Operational layers display the primary content of the map and usually provide dynamic content for the user to interact with (as opposed to basemap layers that provide context).
The order of operational layers in a map determines the visual hierarchy of layers in the view. You can bring attention to a specific layer by rendering above other layers.
How to use the sample

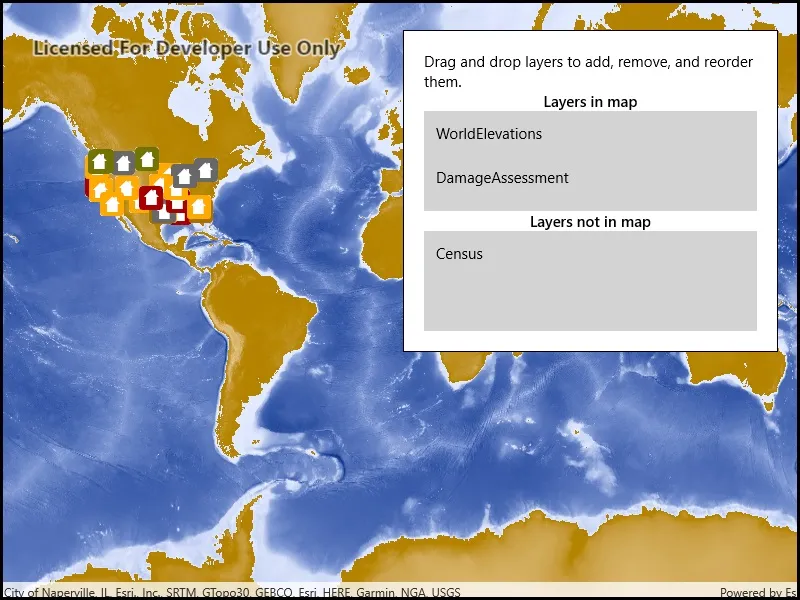

When the app starts, a list displays the operational layers that are currently displayed in the map. Right-click on the list item to remove the layer, or left-click to move it to the top. The map will be updated automatically.
The second list shows layers that have been removed from the map. Click one to add it to the map.
How it works
Get the operational layers from the map using map.OperationalLayers.
Add or remove layers using layerList.Add(layer) and layerList.Remove(layer) respectively. The last layer in the list will be rendered on top.
Relevant API
ArcGISMapImageLayer
Map
MapView
MapView.OperationalLayers
Additional information
You cannot add the same layer to the map multiple times or add the same layer to multiple maps. Instead, create a new layer using the FeatureTable.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
// Copyright 2019 Esri.//// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0//// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific// language governing permissions and limitations under the License.using Esri.ArcGISRuntime.Mapping;
using Microsoft.UI.Xaml;
using Microsoft.UI.Xaml.Controls;
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using Windows.ApplicationModel.DataTransfer;
namespaceArcGIS.WinUI.Samples.ManageOperationalLayers{
[ArcGIS.Samples.Shared.Attributes.Sample(
name: "Manage operational layers",
category: "Map",
description: "Add, remove, and reorder operational layers in a map.",
instructions: "When the app starts, a list displays the operational layers that are currently displayed in the map. Right-click on the list item to remove the layer, or left-click to move it to the top. The map will be updated automatically.",
tags: new[] { "add", "delete", "layer", "map", "remove" })]
publicpartialclassManageOperationalLayers {
// The view model manages the data for the sample.private MapViewModel _viewModel;
// Hold a reference to the originating listview when dragging and dropping.private ListView _originListView;
// Some URLs of layers to add to the map.privatereadonlystring[] _layerUrls = new[]
{
"http://sampleserver5.arcgisonline.com/arcgis/rest/services/Elevation/WorldElevations/MapServer",
"http://sampleserver5.arcgisonline.com/arcgis/rest/services/Census/MapServer",
"http://sampleserver5.arcgisonline.com/arcgis/rest/services/DamageAssessment/MapServer" };
publicManageOperationalLayers() {
InitializeComponent();
Initialize();
}
privatevoidInitialize() {
_viewModel = new MapViewModel(new Map(BasemapStyle.ArcGISStreets));
// Configure the bindings to point to the view model.this.DataContext = _viewModel;
// Add the layers.foreach (string layerUrl in _layerUrls)
{
_viewModel.AddLayerFromUrl(layerUrl);
}
}
privatevoidListBox_OnDragOver(object sender, DragEventArgs e) {
// Specify that the listview accepts dropping and that the operation is a move (rather than a copy or link) e.AcceptedOperation = DataPackageOperation.Move;
}
privatevoidListBox_OnDrop(object sender, DragEventArgs e) {
// If the item being dropped is a layer...if (e.DataView != null && e.DataView.Properties != null && e.DataView.Properties.Any(x => x.Key == "item" && x.Value is Layer))
{
try {
// Start doing work for the drop. DragOperationDeferral deferral = e.GetDeferral();
// Get the layer that is being moved. KeyValuePair<string, object> draggedItem = e.Data.Properties.FirstOrDefault(x => x.Key == "item");
Layer draggedLayer = draggedItem.Value as Layer;
// Find the source and destination views. ListView destinationList = sender as ListView;
ListView sourceList = _originListView;
// Remove the layer and re-add it. ((LayerCollection)sourceList.ItemsSource).Remove(draggedLayer);
((LayerCollection)destinationList.ItemsSource).Add(draggedLayer);
// Finish the drop. deferral.Complete();
}
catch (Exception ex)
{
Debug.WriteLine(ex.ToString());
}
}
else {
// Don't allow other things to be dropped (e.g. files from the desktop). e.AcceptedOperation = DataPackageOperation.None;
}
}
privatevoidListBox_OnDragItemsStarting(object sender, DragItemsStartingEventArgs e) {
// Store the originating list view for the drag operation. _originListView = sender as ListView;
// Specify the type of drag and drop. e.Data.RequestedOperation = DataPackageOperation.Move;
if (e.Items != null && e.Items.Any())
{
// Store the layer in the data package. e.Data.Properties.Add("item", e.Items.FirstOrDefault());
}
}
}
internalclassMapViewModel {
public Map Map { get; }
public LayerCollection IncludedLayers => Map.OperationalLayers;
public LayerCollection ExcludedLayers { get; } = new LayerCollection();
publicMapViewModel(Map map) {
Map = map;
}
publicvoidAddLayerFromUrl(string layerUrl) {
ArcGISMapImageLayer layer = new ArcGISMapImageLayer(new Uri(layerUrl));
Map.OperationalLayers.Add(layer);
}
}
}
