Cloning Content

Introduction

One request the Python API team has heard repeatedly from Web GIS administrators: What's the best way to move my content from a development Enterprise or organization to staging to production?

This Guide provides one possible roadmap for how to get content from one Web GIS to another - a template for demonstrating basic software concepts when transferring content so the workflow can be modified for other types of content and tailored for an administrator's particular need. So, first question to answer is: What does it mean to clone? Merriam-Webster defines clone as the action of "propagat[ing] a clone from." (Didn't I hear my 2nd grade teacher - and every teacher after that for that matter - say it's unhelpful to use the word you are defining in its definition?...) Diving further into the definition of a "clone", it reads "the aggregate of genetically identical cells or organisms asexually produced by or from a single progenitor cell or organism." Okay, not exactly the context we're working in when discussing a Web GIS. Further along the definition we get to something more along the lines of what we're thinking: "one that appears to be a copy of an original form." BINGO!

Leveraging the Python API to clone content from one Web GIS to another can be thought of as "propagating content that appears to be a copy of the original content.". Given all the different content and item types, possible Enterprise configurations, potential ArcGIS Online Organization arrangements, security considerations, and item dependencies the clone_items() function aims to propagate an exact duplicate of one item with all its uses and functionality from an original portal to a second portal, but there may be circumstances that lead the clone to come close but not quite produce an identical copy. In addition, the variety of means for publishing items creates varying possibilities for supported, related, or source items created during the publishing process. The relationship between any supported, related, or source items must be considered when cloning an item. For example, the overwrite functionality will not be available on cloned hosted feature layer items, because they do not have a source document from which they were published. The FAQ here provides important information regarding source items in ArcGIS Online. However, given our education on cloning, we now know that cloning an item produces a second item which appears - but may not be identical to the original. It's important to temper expectations when thinking about the Python API clone_items() function. There may be times items will not migrate as expected.

When talking about cloning items, let's establish some basic terminology. Cloning can refer to all kinds of transfer, from ArcGIS Enterprise to ArcGIS Online, Enterprise to Enterprise, or ArcGIS Online to Enterprise. (The GIS Community less frequently discusses the need to clone between two distinct ArcGIS Online Organizations, but that is possible as well.) Rather than tangling ourselves up when trying to distinguish between these portal types while writing about them, we'll refer to the portal or organization where the content originates as the source regardless of portal type. We'll consider the portal or organization to which we'll clone content as the target. Onward we go!

This document illustrates the workflow of gathering source items using a source administrator account, and cloning them into a target administrator account. More specifically, this guide walks through an approach of cloning data services known as hosted feature layers that are used as building blocks for other Web GIS items, namely web maps. Web Maps consume these data services as operational layer building blocks. We'll then clone an ArcGIS Dashboard and a Web Mapping Application that each consume a web map as part of their definition. For information on each of these item types, please click the hyperlinks for each type.

This is an administrator workflow. Using administrator accounts guarantees all necessary privileges within the source to access the item and any dependencies and within the target to create the services and items. The target administrator subsequently can create user accounts and reassign item ownership and/or group membership according to need. This might also be the simplest workflow when the portal has users managed by an external identity store.

NOTE: Cloning relies on the sharing model to determine the items any particular user can clone. If a user can access an item, that user can clone it. However, that user can't create anything in the target portal they don't have the appropriate privileges to create.

Any content in any portal must be owned by a user, so at least one user must exist in the target. If you don't plan on using the administrator accounts in a workflow such as this, you may want to investigate the Clone Portal users, groups and content sample notebook on how to define functions that can copy user objects and then clone content using those accounts.

As originally written, Python API developers designed the clone_items() function for transferring the following item types:

  • Hosted Web Applications built with Web AppBuilder or shared using Configurable App Templates
  • Web Maps
  • Hosted Feature Layers
  • Hosted Feature Layer Views
  • Feature Collections
  • Survey123 Forms
  • Workforce Projects
  • Story Maps (classic)
  • Operation Views
  • Dashboards
  • QuickCapture Projects
  • ArcGIS Notebooks
  • Simple Types
    • Those items with a download option (see Data files for items that may be in a Web GIS and available for download), including zipped file geodatabases and shapefiles, code samples, zip files, and packages amongst others.

clone_items() clones the dependencies for the more complex items listed above. For example, cloning an existing web application, clones the web map and all hosted feature layers referenced in the map.

clone_items() will not clone map services and image services. Since these services can be published to servers other than the hosted server in a configuration, it's impossible for the function to determine where to publish them in the target. As a result, these items will copy over, but will continue to point back to the original source URL.

Let's work through examples of cloning individual items and inspect the results.

First, let's import the necessary libraries and connect to our source and target GIS:

Import libraries

from pathlib import Path
import sys

from arcgis.gis import GIS, Item
from arcgis.env import active_gis
from arcgis.features import FeatureLayerCollection
from arcgis.mapping import WebMap

Connect to source and target portals

Let's start from a discovery position as an administrator. We'll simulate an administrator who's been testing and developing using an on-premise ArcGIS Enterprise system as a development environment and wants to clone user data into an ArcGIS Online environment for further development.

source = GIS(profile="your_ent_admin_profile", verify_cert=False)
print(source)
GIS @ https://pythonapi.playground.esri.com/portal version:7.1
#target = GIS(profile="your_online_admin_profile", verify_cert=False)
target = GIS(profile="cloning_admin", verify_cert=False)
print(target)
GIS @ https://geosaurus.maps.arcgis.com version:8.1

Get started with cloning

Let's start with an immediate demonstration of what clone_items() can do. We're logged in as an administrator and we'll get() a specific hosted feature layer item owned by one of the users in the source. We'll then clone it into the target while utilizing the owner parameter to specify a particular User in the target to own the cloned content. We can quickly examine the resulting url of the cloned feature layer to confirm the new item.

hosted_flyr = source.content.get("07b60a9efa0342efb66704dfc5aff5c9")
hosted_flyr
Hospitals in Arkansas
Hospitals in Arkansas in the United States.Feature Layer Collection by api_cloner
Last Modified: May 19, 2020
0 comments, 2 views
hosted_flyr.url
'https://pythonapi.playground.esri.com/server/rest/services/Hosted/Hospitals_in_Arkansas/FeatureServer'
cloned_flyr = target.content.clone_items(items=[hosted_flyr],
                                        owner="api_data_owner")
cloned_flyr[0]
Hospitals in Arkansas
Hospitals in Arkansas in the United States.Feature Layer Collection by api_data_owner
Last Modified: May 19, 2020
0 comments, 0 views
cloned_flyr[0].url
'https://services7.arcgis.com/JEwYeAy2cc8qOe3o/arcgis/rest/services/Hospitals_in_Arkansas/FeatureServer'

We can see that the clone_items() function returns a list containing the cloned items. Indexing the list we can see the operation created a new hosted feature layer in the target organization owned by the api_data_owner user we entered as the owner argument.

Cloning multiple items simultaneously

We demonstrated above passing one item in the items parameter list. Now let's see how clone_items() will clone every item in the list. First let's search() the source function for items owned by a particular user and clone the list items into our target all at the same time.

tester_content = source.content.search("owner:api_tester")
tester_content
[<Item title:"Earthquakes Above Magnitude 7 Since 1970" type:CSV owner:api_tester>,
 <Item title:"Earthquakes Above Magnitude 7 Since 1970" type:Feature Layer Collection owner:api_tester>,
 <Item title:"Configuring Apps for Mobile Use" type:Microsoft Word owner:api_tester>]
cloned_items = target.content.clone_items(items=tester_content)
cloned_items
[<Item title:"Earthquakes Above Magnitude 7 Since 1970" type:CSV owner:clonerator>,
 <Item title:"Configuring Apps for Mobile Use" type:Microsoft Word owner:clonerator>,
 <Item title:"Earthquakes Above Magnitude 7 Since 1970" type:Feature Layer Collection owner:clonerator>]

We can see that the clone_items() function cloned all the items in the list we passed to the items argument. Looking at the output above, we can see all the items in our list were cloned. We can also see that by not passing in an owner argument, the items are owned by the logged in user that ran clone_items().

target.users.me.username
'clonerator'

There's a quick demonstration of how the clone_items() function replicates items from a source to a target. Now let's move onto iterating through a list of hosted feature layers and working with some additonal parameters to clone information products that consume them.

Helper functions

Let's write a set of helper functions we can reuse throughout the notebook.

Since we're working in two different portals during the notebook, we'll create a variable called active_gis to refer to either of these Web GIS systems. We'll use that variable inside our functions, so we can run them inside each portal.

active_gis = source

Next, we'll create a function that takes a User object and a GIS object as input and returns a dictionary with a unique item_type as the key and a list of all the items of that type owned by the user as the value. Since this notebook is geared towards an administrator user, the administrator can retrieve the inventory of any user within the portal

def get_user_items(user, active_gis):
    user_inventory = {}
    user_items = active_gis.content.search(query=f"* AND owner:{user.username}",
                                           max_items=500)
    for item in user_items:
        if item.type not in user_inventory:
            user_inventory[item.type] = [i
                                         for i in user_items
                                         if i.type == item.type]
    return user_inventory

Next, we'll define a function to print the output from the get_user_items() function we previously created and prints it in a format to give us a quick glimpse at any user's item inventory.

def print_user_inventory(inventory):
    for itype, ilist in inventory.items():
        try:
            print(f"{itype}\n{'-'*50}")
            for i in ilist:
                print(f"{' ':3}{i.title:50}")
            print("\n")
        except Exception as e:
            print(f"\t\tOperation failed on: {i.title}")
            print(f"\t\tException: {sys.exc_info()[1]}")
            continue

Next, we'll create a function that will take a feature service item type from the item inventory we create with get_user_items() and return any Web Map object within the inventory that consumes that feature service. This can help us make sure web maps contain the appropriate layers between source and target.

def get_fs_webmaps(fs, inv):
    fs_webmap_inventory = {}
    fs_inv = []
    try:
        for wm in inv['Web Map']:
            if fs.id in get_layer_item_ids(wm):
                if not wm in fs_inv:
                    fs_inv.append(wm)
        fs_webmap_inventory[fs.title] = fs_inv
        return fs_webmap_inventory
    except KeyError as ke:
        pass

We'll also create a function that inspects a web map and returns all the unique item id (click the hyperlink to read a blog on the importance of the item id) values consumed in that web map. When cloning the set of feature services from our inventory, we'll create a mapping of source feature service to corresponding target feature service cloned from the source. Then when we subsequently clone a web map, we can use the get_layer_item_ids() function to compare the item id values serving as layers in the web map to the dictionary of source/target feature service ids we already cloned. If there are any matches between the two, we can create a dictionary to use as a parameter for the clone_items() function to ensure the function knows which id to match to which when swizzling the ids in the cloned map. We'll demonstrate this later in the notebook.

def get_layer_item_ids(wm):
    wmo = WebMap(wm)
    wm_id_list = []
    for layer in wmo.layers:
        try:
            fsvc = FeatureLayerCollection(layer['url'][:-1], active_gis)
            if not fsvc.properties['serviceItemId'] in wm_id_list:
                wm_id_list.append(fsvc.properties['serviceItemId'])
        except Exception as e:
            pass
    return wm_id_list

We'll create a function to return a list of any web map items consumed in a dashboard. If we know the item id of the web map, and we've alreay cloned it, we can then map the source web map to the target web map in a parameter of the clone_items() function to ensure correct swizzling of values.

def get_dash_wm(dash):
    return [active_gis.content.get(widget['itemId'])
            for widget in dash.get_data()['widgets']
            if widget['type'] == "mapWidget"]

Ok, so we've created some helper functions. Now let's inventory the items owned by the source administrator and then print out the inventory to get an idea of what items the administrator owns.

source_admin_inventory = get_user_items(source.users.me, source)
print_user_inventory(source_admin_inventory)
Map Service
--------------------------------------------------
   Jordan
   Toronto Greenspace and Community Housing


Dashboard
--------------------------------------------------
   New Orleans Service Calls


Web Map
--------------------------------------------------
   Elephant Corridors and Ranges
   Kenya Administrative Boundaries
   New Orleans Service Calls per Police District 2011-2019


Feature Service
--------------------------------------------------
   KEN Waterways
   Airport_locations
   Nairobi County Boundaries
   NOLA_Police_District_Subzone_Boundaries
   Botswana Power Plants
   New_Orleans_Boundary_gax
   NOLA_Police_District_Boundaries
   NOLA_ServiceCallTypes_by_PoliceDistrict
   KEN_Administrative_Level_Boundaries
   tlh_houshold_data_blkgrp
   KEN Wetlands
   KEN Protected Areas


Shapefile
--------------------------------------------------
   Botswana Power Plants
   New_Orleans_Boundary_gax
   NOLA_Police_Districts
   Airport_locations


File Geodatabase
--------------------------------------------------
   KEN_Administrative_Level_Boundaries


Service Definition
--------------------------------------------------
   tlh_houshold_data_blkgrp
   Jordan


Web Mapping Application
--------------------------------------------------
   Elephant Habitat and Relationship to Water


The cloning process

Two very important parameters in the clone_items() function signature impact its output:

  • search_existing_items - The possible values are True or False.

    The default value is True. Let's describe what happens when the value is set to True. When any source item is cloned into the target, the clone_items() function assigns the cloned item all the essential item type typeKeywords (See hyperlink for typeKeywordsautomatically assigned to items) plus an additional typeKeyword of source-<source_item_id_value>. For example, if clone_items() clones source item with item id d879c7d972b1d989b97d037c7a7737d6, the function assigns the target hosted feature layer item the typeKeyword of source-d879c7d972b1d989b97d037c7a7737d6 in addition to all the essential typeKeywords. Before any actual clone, clone_items() searches the target for any item with a typeKeyword matching that pattern and if it finds one uses the existing target item.

  • item_mapping - This is a dictionary defined as {'source_item_id' : 'target_item_id'}

    The item_mapping parameter can instruct the clone_items() function to user a target item as the result of a clone for any existing source item if target items already exist that you know you already have. For example, let's say you want to clone a web map to the target. portal, You know you already have a Feature Layer used by the source web map published in the target that you want to use. You accomplish this with the item_mapping parameter, which is a dictionary with the key as the source item id and the value as the matching target item id. Passing this mapping object guides the clone_items function for every reference to the source Feature Layer to use the specified target Feature Layer. This provides for cloning the Web Map on top of the Feature Layeralready created in the target portal.

We can return lists of specific item_types from our inventory. First, let's print a list of the disctinct item types avaiable for this user:

for item_type in list(source_admin_inventory.keys()):
    print(item_type)
Map Service
Dashboard
Web Map
Feature Service
Shapefile
File Geodatabase
Service Definition
Web Mapping Application

We can create a list of the hosted feature services using the typeKeywords property for items on our Feature Services:

Feature Layers

Each item in a Web GIS has a typeKeywords property. The property returns a list of descriptions based on its primary type. For items of type Feature Service, if the service is hosted on the active Web GIS, the item will have a Hosted Service typeKeyword that can be used to filter out hosted items from referenced items.

hosted_fsvc = [fs
               for fs in source_admin_inventory["Feature Service"]
               if 'Hosted Service' in fs.typeKeywords]

Note: This result includes hosted feature layer views created from hosted feature layers. Use the typeKeywords 'View Service' to isolate views.

Let's print out all the feature services for the administrator. We'll also account for any folders in the portal, and also use our previously defined get_fs_webmaps() function to print any web map that consumes the feature service:

print(f"{'Feature Layer':<33}{'Folder ID':<35}{'Folder Name':15}{'Item ID'}\n"
      f"{'-'*28:<30}{'-'*33:<35}{'-'*13:<15}{'-'*37}")
for hosted_fs in hosted_fsvc:
    fs_wm_maps = get_fs_webmaps(hosted_fs, source_admin_inventory)[hosted_fs.title]
    if not hosted_fs.ownerFolder:
        print(f"{hosted_fs.title[:30]:33}{' ':35}{'Root Folder':15}{hosted_fs.id}")
        if fs_wm_maps:
            for wm in fs_wm_maps:
                print(f"{' '*2}...consumed in {wm.title} web map")
        else:
            pass
    else:
        print(f"{hosted_fs.title[:30]:33}{hosted_fs.ownerFolder:35}"
              f"""{next(f['title'] for f in source.users.me.folders
                   if f['id'] == hosted_fs.ownerFolder):15}"""
              f"{hosted_fs.id}")
        if fs_wm_maps:
            for wm in fs_wm_maps:
                print(f"{' '*2}...consumed in {wm.title} web map")
        else:
            pass
    print("\n")
Feature Layer                    Folder ID                          Folder Name    Item ID
----------------------------  ---------------------------------  -------------  -------------------------------------
Airport_locations                e576014b6a8a46f1a04ba2db6de51ff1   Airports       bb61578ed24c4d068a8bf521d758f6f9


Nairobi County Boundaries        9da120268eab46048b61364fa4c01723   Kenya          f6829ace38e14375a4b0640968a5bcec


NOLA_Police_District_Subzone_B   27d3016208e14e40887d9b3800f5a761   New Orleans    42874776bf8e4e7f842773d2bf5d6704


Botswana Power Plants                                               Root Folder    46712cf2cc814014b314d3c77a41a7d4


New_Orleans_Boundary_gax         27d3016208e14e40887d9b3800f5a761   New Orleans    3b659cafd4dd4eb4acd09c161b307871
  ...consumed in New Orleans Service Calls per Police District 2011-2019 web map


NOLA_Police_District_Boundarie   27d3016208e14e40887d9b3800f5a761   New Orleans    7bb9efeffe8847e7bec6515ac66376a8
  ...consumed in New Orleans Service Calls per Police District 2011-2019 web map


NOLA_ServiceCallTypes_by_Polic   27d3016208e14e40887d9b3800f5a761   New Orleans    7c89adbcc6e648eda313fe9ededddf44
  ...consumed in New Orleans Service Calls per Police District 2011-2019 web map


KEN_Administrative_Level_Bound   9da120268eab46048b61364fa4c01723   Kenya          7b4a28846f0a40efb231e800840b72ec
  ...consumed in Elephant Corridors and Ranges web map
  ...consumed in Kenya Administrative Boundaries web map


tlh_houshold_data_blkgrp         7f47934ce3e5451095da4ed889f84697   Tallahassee    e454a494c95542168bd4fbcd13ec3641


Now let's clone this small set of hosted feature services, alloting for any failed cloning, and replicating the source folder structure as well. We will not explicitly set the search_extisting_items parameter because we know the default value is True.

We also are not going to use the item_mapping parameter because we're cloning into a target staging portal that we have not yet populated with any items.

for hfs in hosted_fsvc:
    try:
        if hfs.ownerFolder:
            folder = next((f['title']
                          for f in source.users.me.folders
                          if f['id'] == hfs.ownerFolder))
            if not folder in [fld['title']
                              for fld in target.users.me.folders]:
                target.content.create_folder(folder=folder)
            print(f"Cloning {hfs.title}...")
            clone_fs = target.content.clone_items([hfs], folder=folder)
            print(f"...completed")
        else:
            print(f"Cloning {hfs.title}...")
            cloned_fs = target.content.clone_items([hfs])
            if not cloned_fs:
                print(f"{hfs.title} not cloned")
            else:
                print(f"...completed")
    except Exception as e:
        print(f"...Failed to Clone {hfs.title}...")
        print(f"\tException Type: {sys.exc_info()[0]}")
        print(f"\tException Value: {sys.exc_info()[1]}")
        print(f"\tException Traceback line: {sys.exc_info()[2].tb_lineno}")
        print(f"\tException Traceback instruction: {sys.exc_info()[2].tb_lasti}")
        continue
Cloning Airport_locations...
...completed
Cloning Nairobi County Boundaries...
...completed
Cloning NOLA_Police_District_Subzone_Boundaries...
...completed
Cloning Botswana Power Plants...
...completed
Cloning New_Orleans_Boundary_gax...
...completed
Cloning NOLA_Police_District_Boundaries...
...completed
Cloning NOLA_ServiceCallTypes_by_PoliceDistrict...
...completed
Cloning KEN_Administrative_Level_Boundaries...
...completed
Cloning tlh_houshold_data_blkgrp...
...completed

Let's now query the target to inspect the results of cloning our feature services.

First, we'll use our helper function to create the current item inventory for our target admin and print that out. Then we'll query the cloned target item typeKeywords property for a keyword matching the source-<item_id> pattern. We can then look for content in the source that has that item id just to verify the cloning operation.

target_admin_inventory = get_user_items(target.users.me, target)
print_user_inventory(target_admin_inventory)
Feature Service
--------------------------------------------------
   Airport_locations
   NOLA_ServiceCallTypes_by_PoliceDistrict
   New_Orleans_Boundary_gax
   Nairobi County Boundaries
   tlh_houshold_data_blkgrp
   NOLA_Police_District_Subzone_Boundaries
   KEN_Administrative_Level_Boundaries
   Botswana Power Plants
   NOLA_Police_District_Boundaries


target_to_source = {}
for targ_fsvc_item in target_admin_inventory['Feature Service']:
    for keyword in targ_fsvc_item.typeKeywords:
        if 'source' in keyword:
            source_id = keyword.split('-')[1]
            try:
                flyr = source.content.get(source_id)
                target_to_source[targ_fsvc_item.title] = (keyword,
                                                          flyr.title,
                                                          flyr.id)
            except Exception as e:
                pass
for trg_item, src_item in target_to_source.items():
    print(f"Target Item: {trg_item:45}{src_item[0]}\n{' '*2}"
          f"Source Item: {src_item[1]:45}{src_item[2]}")
    print("\n")
Target Item: Airport_locations                            source-bb61578ed24c4d068a8bf521d758f6f9
  Source Item: Airport_locations                            bb61578ed24c4d068a8bf521d758f6f9


Target Item: NOLA_ServiceCallTypes_by_PoliceDistrict      source-7c89adbcc6e648eda313fe9ededddf44
  Source Item: NOLA_ServiceCallTypes_by_PoliceDistrict      7c89adbcc6e648eda313fe9ededddf44


Target Item: New_Orleans_Boundary_gax                     source-3b659cafd4dd4eb4acd09c161b307871
  Source Item: New_Orleans_Boundary_gax                     3b659cafd4dd4eb4acd09c161b307871


Target Item: Nairobi County Boundaries                    source-f6829ace38e14375a4b0640968a5bcec
  Source Item: Nairobi County Boundaries                    f6829ace38e14375a4b0640968a5bcec


Target Item: tlh_houshold_data_blkgrp                     source-e454a494c95542168bd4fbcd13ec3641
  Source Item: tlh_houshold_data_blkgrp                     e454a494c95542168bd4fbcd13ec3641


Target Item: NOLA_Police_District_Subzone_Boundaries      source-42874776bf8e4e7f842773d2bf5d6704
  Source Item: NOLA_Police_District_Subzone_Boundaries      42874776bf8e4e7f842773d2bf5d6704


Target Item: KEN_Administrative_Level_Boundaries          source-7b4a28846f0a40efb231e800840b72ec
  Source Item: KEN_Administrative_Level_Boundaries          7b4a28846f0a40efb231e800840b72ec


Target Item: Botswana Power Plants                        source-46712cf2cc814014b314d3c77a41a7d4
  Source Item: Botswana Power Plants                        46712cf2cc814014b314d3c77a41a7d4


Target Item: NOLA_Police_District_Boundaries              source-7bb9efeffe8847e7bec6515ac66376a8
  Source Item: NOLA_Police_District_Boundaries              7bb9efeffe8847e7bec6515ac66376a8


We can see that we have the same nine hosted feature services in both source and target Web GIS systems, and we also have a typeKeyword in the target item that contains the source item id from which it was cloned.

Let's examine the target feature services to see that we also recreated the folder structure:

target_hosted_fsvc = [fs
               for fs in target_admin_inventory["Feature Service"]
               if 'Hosted Service' in fs.typeKeywords]
active_gis = target
print(f"{'Feature Layer':<33}{'Folder ID':<35}{'Folder Name':15}{'Item ID'}\n"
      f"{'-'*28:<30}{'-'*33:<35}{'-'*13:<15}{'-'*37}")
for hosted_fs in target_hosted_fsvc:
    try:
        fs_wm_maps = get_fs_webmaps(hosted_fs, target_admin_inventory)[hosted_fs.title]
    except TypeError as te:
        pass
        continue
    finally:
        if not hosted_fs.ownerFolder:
            print(f"{hosted_fs.title[:30]:33}{' ':35}{'Root Folder':15}{hosted_fs.id}")
            if fs_wm_maps:
                for wm in fs_wm_maps:
                    print(f"{' '*2}...consumed in {wm.title} web map")
            else:
                pass
        else:
            print(f"{hosted_fs.title[:30]:33}{hosted_fs.ownerFolder:35}"
                  f"""{next(f['title'] for f in target.users.me.folders
                   if f['id'] == hosted_fs.ownerFolder):15}"""
                  f"{hosted_fs.id}")
            if fs_wm_maps:
                for wm in fs_wm_maps:
                    print(f"{' '*2}...consumed in {wm.title} web map")
            else:
                pass
        print("\n")
Feature Layer                    Folder ID                          Folder Name    Item ID
----------------------------  ---------------------------------  -------------  -------------------------------------
Airport_locations                8e6711c43be04965a7819806dea87825   Airports       6842108a48104b6285b893470cf0b67c


NOLA_ServiceCallTypes_by_Polic   0054dacb91594193be317145eaf946cc   New Orleans    efb953a5bc824b3a966fd08efd13066f


New_Orleans_Boundary_gax         0054dacb91594193be317145eaf946cc   New Orleans    422324e7cf65467493f721fda132b6f7


Nairobi County Boundaries        4706de0f89144dba87dcf25e062416d4   Kenya          60a7720bb4164f14a6738fb630ee7a7e


tlh_houshold_data_blkgrp         6da389baae1c48b9a0dacbf747404991   Tallahassee    6fa12b4241aa43e2a4b86c569d8a07ea


NOLA_Police_District_Subzone_B   0054dacb91594193be317145eaf946cc   New Orleans    8977c4536ab546f7bfa65258e68dfc21


KEN_Administrative_Level_Bound   4706de0f89144dba87dcf25e062416d4   Kenya          be66aefdb6544d3386903cbec0309ad8


Botswana Power Plants                                               Root Folder    4b185d9cb2a8469da6e90d9715ceb99b


NOLA_Police_District_Boundarie   0054dacb91594193be317145eaf946cc   New Orleans    cc4d594a0a0f43bfb470275f8415c8e3


We can see that all the feature services now exist in the target with the same Folder structure and new item ids. No Web Maps consume the feature services at this point because we haven't yet cloned any into the target.

Web Maps

Now, let's look at the Web Maps in our source organization and clone them to the target. We'll revisit the source administator's get_user_inventory results to examine the Web Maps:

for wm in source_admin_inventory['Web Map']:
    wm_obj = WebMap(wm)
    print(wm_obj.item.title)
Elephant Corridors and Ranges
Kenya Administrative Boundaries
New Orleans Service Calls per Police District 2011-2019

Let's inspect what layers are in each Web Map.

We've defined a couple helper functions. One to determine wheter an item is hosted in a portal, and a second to print the layers in a webmap

def is_hosted(item):
    return [keyword for keyword in item.typeKeywords if "Hosted" in keyword]
def print_webmap_inventory(wm):
    wm_obj = WebMap(wm)
    print(f"{wm_obj.item.title}\n{'-'*100}")
    for wm_layer in wm_obj.layers:
        try:
            if is_hosted(Item(active_gis, wm_layer['itemId'])):
                print(f"{' '*2}{wm_layer['title']:40}HOSTED{' ':5}"
                      f"{wm_layer['layerType']:20}{dict(wm_layer)['itemId']}")
            else:
                print(f"{' '*2}{wm_layer['title']:40}other{' ':6}"
                      f"{wm_layer['layerType']:20}{wm_layer.id}")
        except:
            print(f"{' '*2}{wm_layer['title']:40}other{' ':6}"
                  f"{wm_layer['layerType']:20}{wm_layer.id}")
    print("\n")
# remember to set the active_gis variable when using the helper functions
active_gis = source
for wm in source_admin_inventory['Web Map']:
    print_webmap_inventory(wm)
Elephant Corridors and Ranges
----------------------------------------------------------------------------------------------------
  Elephant Natural Corridors              other      ArcGISFeatureLayer  Elephant_Natural_Corridors_1302
  Elephant Ranges                         other      ArcGISFeatureLayer  Elephant_Ranges_256
  KEN National Boundary                   HOSTED     ArcGISFeatureLayer  7b4a28846f0a40efb231e800840b72ec
  KEN Wetlands                            other      ArcGISFeatureLayer  Kenya_Protected_Areas_and_Wetlands_7235
  KEN Waterways                           other      ArcGISFeatureLayer  Kenya_8543
  KEN Protected Areas                     other      ArcGISFeatureLayer  Kenya_Protected_Areas_and_Wetlands_9906
  KEN County Boundaries                   HOSTED     ArcGISFeatureLayer  7b4a28846f0a40efb231e800840b72ec


Kenya Administrative Boundaries
----------------------------------------------------------------------------------------------------
  Ken County Boundaries                   HOSTED     ArcGISFeatureLayer  7b4a28846f0a40efb231e800840b72ec
  KEN Constituency Boundaries             HOSTED     ArcGISFeatureLayer  7b4a28846f0a40efb231e800840b72ec
  KEN National Boundary                   HOSTED     ArcGISFeatureLayer  7b4a28846f0a40efb231e800840b72ec


New Orleans Service Calls per Police District 2011-2019
----------------------------------------------------------------------------------------------------
  New Orleans City Boundary               HOSTED     ArcGISFeatureLayer  3b659cafd4dd4eb4acd09c161b307871
  NOLA_Police_District_Boundaries         HOSTED     ArcGISFeatureLayer  7bb9efeffe8847e7bec6515ac66376a8
  NOLA_ServiceCallTypes_by_PoliceDistrict HOSTED     ArcGISFeatureLayer  7c89adbcc6e648eda313fe9ededddf44


Let's use one of the helper functions we wrote earlier in the notebook to return a list of the unique itemId values consumed in each web map:

for wm in source_admin_inventory['Web Map']:
    print(f"{wm.title}\n{'-'*80}")
    for item_id in get_layer_item_ids(wm):
        print(f"{' '*2}{item_id}")
    print("\n")
Elephant Corridors and Ranges
--------------------------------------------------------------------------------
  a42b8e67641149b7918ec50b657cf91f
  85297d9812b441afbbd26609b9a8a561
  7b4a28846f0a40efb231e800840b72ec
  a535e2ba4fcd4fdbb252f70d5483ef5e
  c48149de475c4e5499243a26739932d9


Kenya Administrative Boundaries
--------------------------------------------------------------------------------
  7b4a28846f0a40efb231e800840b72ec


New Orleans Service Calls per Police District 2011-2019
--------------------------------------------------------------------------------
  3b659cafd4dd4eb4acd09c161b307871
  7bb9efeffe8847e7bec6515ac66376a8
  7c89adbcc6e648eda313fe9ededddf44


We're going to rely on the search_existing_items parameter to handle all the items consumed in our web maps. Given what we've learned about this parameter, we can rely on it to detect whether any of the item ids consumed in our web maps match any of the typeKeywords already existing in our target. If the function finds an existing item in the target, it will swizzle the appropriate values in the new web map definition. If the function does not find an existing item based on the typeKeyword, it will clone the item. For non-hosted items, it will recreate those items in the resulting web map.

wm_map = {}
for wm in source_admin_inventory['Web Map']:
    wm_obj = WebMap(wm)
    print(f"{wm_obj.item.title}\n{'-'*50}")
    if wm_obj.item.ownerFolder:
        folder_name = [f['title'] for f in source.users.me.folders
                       if f['id'] == wm_obj.item.ownerFolder][0]
        try:
            print(f"...cloning {wm_obj.item.title}")
            cloned_wm = target.content.clone_items(items=[wm_obj.item],
                                              folder=folder_name)
            wm_map[wm.id] = cloned_wm[0].id
            print(f"...completed")
            print(f"\n")
        except Exception as e:
            print(f"....failed to clone {wm_obj.item.title}")
            print(str(e))
            print(f"\n")
Elephant Corridors and Ranges
--------------------------------------------------
...cloning Elephant Corridors and Ranges
...completed


Kenya Administrative Boundaries
--------------------------------------------------
...cloning Kenya Administrative Boundaries
...completed


New Orleans Service Calls per Police District 2011-2019
--------------------------------------------------
...cloning New Orleans Service Calls per Police District 2011-2019
...completed


Let's examine the resulting Web Map items in the target:

target_admin_inventory = get_user_items(target.users.me, target)
active_gis = target
for wm in target_admin_inventory['Web Map']:
    print_webmap_inventory(wm)
Elephant Corridors and Ranges
----------------------------------------------------------------------------------------------------
  Elephant Natural Corridors              other      ArcGISFeatureLayer  Elephant_Natural_Corridors_1302
  Elephant Ranges                         other      ArcGISFeatureLayer  Elephant_Ranges_256
  KEN National Boundary                   HOSTED     ArcGISFeatureLayer  be66aefdb6544d3386903cbec0309ad8
  KEN Wetlands                            other      ArcGISFeatureLayer  Kenya_Protected_Areas_and_Wetlands_7235
  KEN Waterways                           other      ArcGISFeatureLayer  Kenya_8543
  KEN Protected Areas                     other      ArcGISFeatureLayer  Kenya_Protected_Areas_and_Wetlands_9906
  KEN County Boundaries                   HOSTED     ArcGISFeatureLayer  be66aefdb6544d3386903cbec0309ad8


New Orleans Service Calls per Police District 2011-2019
----------------------------------------------------------------------------------------------------
  New Orleans City Boundary               HOSTED     ArcGISFeatureLayer  422324e7cf65467493f721fda132b6f7
  NOLA_Police_District_Boundaries         HOSTED     ArcGISFeatureLayer  cc4d594a0a0f43bfb470275f8415c8e3
  NOLA_ServiceCallTypes_by_PoliceDistrict HOSTED     ArcGISFeatureLayer  efb953a5bc824b3a966fd08efd13066f


Kenya Administrative Boundaries
----------------------------------------------------------------------------------------------------
  Ken County Boundaries                   HOSTED     ArcGISFeatureLayer  be66aefdb6544d3386903cbec0309ad8
  KEN Constituency Boundaries             HOSTED     ArcGISFeatureLayer  be66aefdb6544d3386903cbec0309ad8
  KEN National Boundary                   HOSTED     ArcGISFeatureLayer  be66aefdb6544d3386903cbec0309ad8


We can see that clone_items() successfully recreated the web maps and swizzled the layer contents to use the item ids of the cloned feature services. The search_existing_items parameter allowed the function to avoid copying content that had already been cloned into the target and simply rewired the web map definitions based on the typeKeyword added during the clone. For those items that were not hosted feature layers, the function recreates them in the web map, but does not create Feature Layer (non-hosted) items in the Web GIS unless the Save Layer context menu option is used from within the target Web Map.

We also created a dictionary with the source web map id as the key and the cloned target web map id as the value. As we described earlier, the item_mapping instructs the clone_items() function to use an item already existing in the target rather than recreating it. With items that consume web maps, such as dashboards and web mapping applications, the clone_items() function does not automatically go deep into the item and clone the web map. However, we can use the item_mapping parameter to swizzle the web map used in an application from the source to the target with the wm_map mapping we created while cloning the source web maps.

Let's examine our wm)_map dictionary to see that we indeed have a dictionary mapping that has ids as both keys and values.

wm_map
{'485ec5def2b14e89b95d03fcfa7537d6': 'cbca10bf6d824bfc8a9c164452932b80',
 '89abb46264f34953ae782748cf89e7da': 'd04f97e5645248bcafc72010522177a7',
 '5dfbd0b244a440d2ac097c4bf9b381a2': 'b365110bedfe4396947d43a522fc9c2e'}

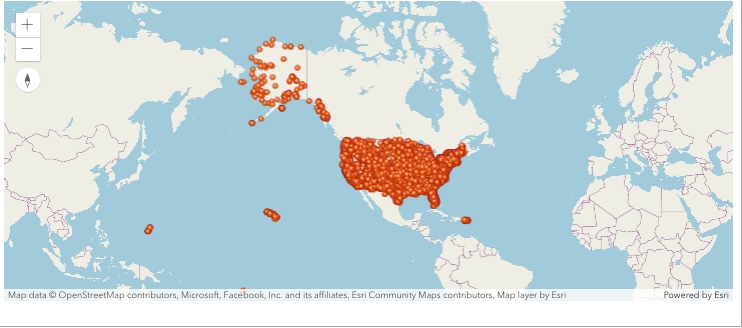

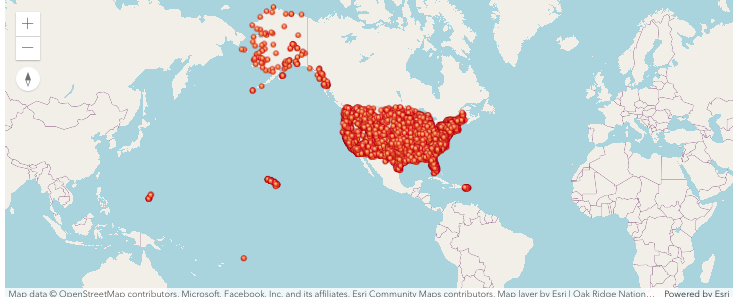

Let's visually compare our webmaps:

source

source_webmap = WebMap(source.content.get(list(wm_map.keys())[1]))
source_webmap

target

target_webmap = WebMap(target.content.get(list(wm_map.values())[1]))
target_webmap

We can see visually that the maps appear to contain the same layers. You can repeat this process for any other web map source/target pair from the wm_map dictionary to make a visual comparison.

ArcGIS Dashboards

ArcGIS Dashboards use intuitive and interactive data visualizations to provide insights into your data. When you use a Web Map as a map element in the dashboard the web map's operational layers can serve as data sources for other elements, providing visual and analytical insight into your data.

Let's examine the process of cloning a Dashboard by revisiting our source administrators item inventory and look into any dashboard items.

ops_dash = source_admin_inventory['Dashboard'][0]
ops_dash
New Orleans Service Calls
Aggregation of yearly service calls in New Orleans, Louisiana in the United States between 2011 an 2018.Dashboard by arcgispyapibot
Last Modified: April 27, 2020
0 comments, 7 views
active_gis = source
dash_wm = get_dash_wm(ops_dash)[0]
dash_wm
New Orleans Service Calls per Police District 2011-2019
Summary of types of service calls in each police district in New Orleans between 2011-2019Web Map by arcgispyapibot
Last Modified: April 27, 2020
0 comments, 129 views

Let's visualize the web map so we can make a quick comparison to the results in our clone.

WebMap(dash_wm)
dash_wm.id
'5dfbd0b244a440d2ac097c4bf9b381a2'
print_webmap_inventory(dash_wm)
New Orleans Service Calls per Police District 2011-2019
----------------------------------------------------------------------------------------------------
  New Orleans City Boundary               HOSTED     ArcGISFeatureLayer  3b659cafd4dd4eb4acd09c161b307871
  NOLA_Police_District_Boundaries         HOSTED     ArcGISFeatureLayer  7bb9efeffe8847e7bec6515ac66376a8
  NOLA_ServiceCallTypes_by_PoliceDistrict HOSTED     ArcGISFeatureLayer  7c89adbcc6e648eda313fe9ededddf44


We used our helper functions to get a dashboard and examine the layers within the web map consumed in the dashboard.

Let's query the wm_map object we created to see if this Web Map id was cloned.

wm_item_mapping = {src_wm:trg_wm for src_wm,trg_wm in wm_map.items()
                  if dash_wm.id == src_wm}
wm_item_mapping
{'5dfbd0b244a440d2ac097c4bf9b381a2': 'b365110bedfe4396947d43a522fc9c2e'}

We cloned the web map used in this dashboard in our previous step of cloning web maps. We can use the wm_item_mapping we just created as the item_mapping parameter when cloning the dashboard to ensure the cloned dashboard consumed the cloned web map in the target instead of staying wired up to the source web map.

And since we're keeping the search_existing_items parameter with the default value of True, any items consumed in the web map will not get duplicated because of the clone_items() function using the typeKeywords search to use any source item id value to map to any cloned item with that id in its typeKeywords list.

target.content.clone_items(items=[ops_dash],
                           folder="New Orleans",
                           item_mapping=wm_item_mapping)
[<Item title:"New Orleans Service Calls" type:Dashboard owner:clonerator>]

We now investigate our target for the dashboard we just cloned.

target_admin_inventory = get_user_items(target.users.me, target)
cloned_dash = target_admin_inventory['Dashboard'][0]
cloned_dash
New Orleans Service Calls
Aggregation of yearly service calls in New Orleans, Louisiana in the United States between 2011 an 2018.Dashboard by clonerator
Last Modified: May 10, 2020
0 comments, 0 views
active_gis = target
cloned_dash_webmap = get_dash_wm(cloned_dash)[0]
cloned_dash_webmap
New Orleans Service Calls per Police District 2011-2019
Summary of types of service calls in each police district in New Orleans between 2011-2019Web Map by clonerator
Last Modified: May 10, 2020
0 comments, 1 views
WebMap(cloned_dash_webmap)
cloned_dash_webmap.id
'b365110bedfe4396947d43a522fc9c2e'
print_webmap_inventory(cloned_dash_webmap)
New Orleans Service Calls per Police District 2011-2019
----------------------------------------------------------------------------------------------------
  New Orleans City Boundary               HOSTED     ArcGISFeatureLayer  422324e7cf65467493f721fda132b6f7
  NOLA_Police_District_Boundaries         HOSTED     ArcGISFeatureLayer  cc4d594a0a0f43bfb470275f8415c8e3
  NOLA_ServiceCallTypes_by_PoliceDistrict HOSTED     ArcGISFeatureLayer  efb953a5bc824b3a966fd08efd13066f


The web map cloned from the source dashboard visually appears identical, and matches the id value from our wm_map object.

Story Maps

ArcGIS StoryMaps

As of version 1.8, the Python API does not yet support cloning ArcGIS StoryMaps. Stay tuned for announcements as to future capability.

Classic Story Maps

Classic story maps are stored in the portals as Web Mapping Application items, so let's use them as an example of cloning a web application item.

active_gis = source
wma = source_admin_inventory['Web Mapping Application'][0]
wma
Elephant Habitat and Relationship to Water
Story map showing elephant habitat and navigation pathways in relations to water and protected areas.Web Mapping Application by arcgispyapibot
Last Modified: April 27, 2020
0 comments, 23 views
wma_webmap = source.content.get(wma.get_data()['values']['webmap'])
wma_webmap
Elephant Corridors and Ranges
Map of natural elephant corridors and ranges in the Great Rift Valley.Web Map by arcgispyapibot
Last Modified: April 28, 2020
0 comments, 211 views

For a quick visualization of the web map:

WebMap(wma_webmap))
wma_webmap.id
'485ec5def2b14e89b95d03fcfa7537d6'
print_webmap_inventory(wma_webmap)
Elephant Corridors and Ranges
----------------------------------------------------------------------------------------------------
  Elephant Natural Corridors              other      ArcGISFeatureLayer  Elephant_Natural_Corridors_1302
  Elephant Ranges                         other      ArcGISFeatureLayer  Elephant_Ranges_256
  KEN National Boundary                   HOSTED     ArcGISFeatureLayer  7b4a28846f0a40efb231e800840b72ec
  KEN Wetlands                            other      ArcGISFeatureLayer  Kenya_Protected_Areas_and_Wetlands_7235
  KEN Waterways                           other      ArcGISFeatureLayer  Kenya_8543
  KEN Protected Areas                     other      ArcGISFeatureLayer  Kenya_Protected_Areas_and_Wetlands_9906
  KEN County Boundaries                   HOSTED     ArcGISFeatureLayer  7b4a28846f0a40efb231e800840b72ec


Let's again query the source \ target dictionary we created when cloning the source web maps to see if we've previously cloned the webmap consumed by the Story Map application.

wm_item_mapping = {src_wm:trg_wm for src_wm,trg_wm in wm_map.items()
                  if wma_webmap.id == src_wm}
wm_item_mapping
{'485ec5def2b14e89b95d03fcfa7537d6': 'cbca10bf6d824bfc8a9c164452932b80'}

The original Web Map contained 7 operational layers. 2 from a hosted Feature Layer in the Web GIS, and 5 Feature Layers items sourced from ArcGIS Online Feature Layers. Let's use the clone_items() function, accepting the default values for the copy_data and search_existing_items parameters (both True) and utilizing the existing item wm_item_mapping object to wire the application's web map. We'll then examine the results.

target.content.clone_items(items=[wma],
                           folder="Kenya",
                           item_mapping=wm_item_mapping)
[<Item title:"Elephant Habitat and Relationship to Water" type:Web Mapping Application owner:clonerator>]

We can see that cloning output of the Web Mapping Application lists the application. Let's further examine the cloned application for the items it consumes.

We'll query the target administrator inventory for the Web Mapping Applications now owned by the target admin, and then examine the web map it consumes.

active_gis = target
target_admin_inventory = get_user_items(target.users.me, target)
target_wma = target_admin_inventory['Web Mapping Application'][0]
target_wma
Elephant Habitat and Relationship to Water
Story map showing elephant habitat and navigation pathways in relations to water and protected areas.Web Mapping Application by clonerator
Last Modified: May 10, 2020
0 comments, 0 views
cloned_wma_webmap = target.content.get(target_wma.get_data()['values']['webmap'])
cloned_wma_webmap
Elephant Corridors and Ranges
Map of natural elephant corridors and ranges in the Great Rift Valley.Web Map by clonerator
Last Modified: May 10, 2020
0 comments, 0 views

To compare, the visualization of our cloned web map appears like our original source.

WebMap(cloned_wma_webmap))
cloned_wma_webmap.id
'cbca10bf6d824bfc8a9c164452932b80'
print_webmap_inventory(cloned_wma_webmap)
Elephant Corridors and Ranges
----------------------------------------------------------------------------------------------------
  Elephant Natural Corridors              other      ArcGISFeatureLayer  Elephant_Natural_Corridors_1302
  Elephant Ranges                         other      ArcGISFeatureLayer  Elephant_Ranges_256
  KEN National Boundary                   HOSTED     ArcGISFeatureLayer  be66aefdb6544d3386903cbec0309ad8
  KEN Wetlands                            other      ArcGISFeatureLayer  Kenya_Protected_Areas_and_Wetlands_7235
  KEN Waterways                           other      ArcGISFeatureLayer  Kenya_8543
  KEN Protected Areas                     other      ArcGISFeatureLayer  Kenya_Protected_Areas_and_Wetlands_9906
  KEN County Boundaries                   HOSTED     ArcGISFeatureLayer  be66aefdb6544d3386903cbec0309ad8


We can see that the item_mapping parameter ensured the cloned Story Map Web Mapping Application used the newly cloned web map. Examining the list of layers in the web map shows it has the same set of layers, including wiring up the layers to the correct newly cloned hosted feature services.

Conclusion

This guide demonstrated one workflow for cloning items between a source Web GIS and a target Web GIS. We connected to each GIS as an administrator and cloned a set of items using a bottom-up approach: first cloning the data services - feature services that comprise other items such as web maps. We examined how the search_existing_items parameter allows us to ensure against needless copying of data if we have already cloned items into our target.

After cloning the data building blocks, we cloned the web maps, again seeing how the search_existing_items parameter automatically mapped any items consumed in the web map from source to a matching item in the target if it exists. We then show how the web maps serve as building blocks for web mapping applications and dashboards, showing how the item_mapping parameter can serve to ensure the cloned target item consumes the correct item or data services it consumed in the source.

The clone_items() function provides the means to migrate maps, apps, web layers and more complex items between Web GIS systems. For items that consume other items (such as a web map item consuming a set of web layer items), the function provides parameters to control how those get migrated

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
