Part 3 - Where to enrich? (what are Named Statistical Areas?)

Input
# Import Libraries
from arcgis.gis import GIS
from arcgis.geoenrichment import Country
Input
# Create a GIS Connection
gis = GIS(profile='your_online_profile')

Exploring Named Statistical Areas

Each country has several named statistical areas in a hierarchy of geography levels (such as states, counties, zip codes, etc). The Country class can be used to discover the data collections, sub-geographies and available reports for a country. When working with a particular country, you will find it convenient to get a reference to it using the Country.get() method. This method accepts the country name or its 2 letter abbreviation or ISO3 code and returns an instance of that country.

Let's look into some countries and explore their subgeographies.

Explore subgeographies (State, County, Tract and Zip Code) for U.S.

Geographic level: Country

Input
# Get US as a country
usa = Country.get('US')
type(usa)
Output
arcgis.geoenrichment.enrichment.Country

Now that we have a country, let's look at different levels of geographies available for U.S.

Input
us_levels = [level for level in usa.levels]
us_levels
Output
[{'id': 'US.WholeUSA',
  'name': 'Entire Country',
  'isWholeCountry': True,
  'adminLevel': 'Admin1',
  'singularName': 'United States of America',
  'pluralName': 'United States of America'},
 {'id': 'US.States',
  'name': 'States',
  'isWholeCountry': False,
  'adminLevel': 'Admin2',
  'singularName': 'State',
  'pluralName': 'States'},
 {'id': 'US.DMA',
  'name': 'DMAs',
  'isWholeCountry': False,
  'adminLevel': '',
  'singularName': 'DMA',
  'pluralName': 'DMAs',
  'description': 'A Designated Market Area (DMA), also referred to as a media market, is a region of the United States that is used to define television and radio markets. DMAs are determined by the Nielsen Company and are usually defined based on metropolitan areas, with suburbs often being combined within. Esri creates these boundaries by dissolving the TIGER 2020 Block Groups with Esri modified Shoreline.'},
 {'id': 'US.CD',
  'name': 'Congressional Districts',
  'isWholeCountry': False,
  'adminLevel': '',
  'singularName': 'Congressional District',
  'pluralName': 'Congressional Districts'},
 {'id': 'US.CBSA',
  'name': 'CBSAs',
  'isWholeCountry': False,
  'adminLevel': '',
  'singularName': 'CBSA',
  'pluralName': 'CBSAs',
  'description': 'Core-Based Statistical Areas (CBSAs) are comprised of Metropolitan and Micropolitan Statistical Areas. Metropolitan statistical areas have at least one urbanized area of 50,000 or more population and Micropolitan statistical areas have at least one urban cluster of at least 10,000 but less than 50,000 population. CBSAs are defined by the Office of Management and Budget (OMB) and are comprised of whole counties and Esri created these boundaries by dissolving the TIGER 2020 County Boundaries with Esri modified shoreline.'},
 {'id': 'US.Counties',
  'name': 'Counties',
  'isWholeCountry': False,
  'adminLevel': 'Admin3',
  'singularName': 'County',
  'pluralName': 'Counties'},
 {'id': 'US.CSD',
  'name': 'County Subdivisions',
  'isWholeCountry': False,
  'adminLevel': '',
  'singularName': 'County Subdivision',
  'pluralName': 'County Subdivisions'},
 {'id': 'US.ZIP5',
  'name': 'ZIP Codes',
  'isWholeCountry': False,
  'adminLevel': 'Admin4',
  'singularName': 'ZIP Code',
  'pluralName': 'ZIP Codes'},
 {'id': 'US.Places',
  'name': 'Cities and Towns (Places)',
  'isWholeCountry': False,
  'adminLevel': '',
  'singularName': 'Place',
  'pluralName': 'Places'},
 {'id': 'US.Tracts',
  'name': 'Census Tracts',
  'isWholeCountry': False,
  'adminLevel': '',
  'singularName': 'Census Tract',
  'pluralName': 'Census Tracts'},
 {'id': 'US.BlockGroups',
  'name': 'Block Groups',
  'isWholeCountry': False,
  'adminLevel': '',
  'singularName': 'Block Group',
  'pluralName': 'Block Groups'}]

We can see various levels of subgeographies for the U.S. such as states, counties, cities, places being returned as a dictionary object, and the key-value pair of the dictionary includes id, name, adminLevel etc.

The subgeographies property of a country can be used to discover these standard geographic/statistical areas within that country.

This information is available through a heirarchy of dynamic properties (like states, counties, tracts, zip-codes,...). Each such dynamic property reflects the geographical levels within that country, with subgeographies grouped logically under the higher levels of geographies. The properties are dictionaries containing the names of the standard geographic places and their values are instances of NamedArea class. The NamedArea objects can be used as study areas in the enrich() method.

Note: Setting the `IPCompleter.greedy=True` configuration option in Jupyter notebook enables you to dynamically discover the various levels of subgeographies using intellisense, as in the example below:
Input
%config IPCompleter.greedy=True

Geographic level: State

usa.subgeographies.states returns a dictionary of different state names along with their details. To view all states and their details you may use usa.subgeographies.states in the code cell. We will only look at the first few records.

Input
us_states = [state for state in usa.subgeographies.states.items()][:5]
us_states
Output
[('Alabama',
  <NamedArea name:"Alabama" area_id="01", level="US.States", country="United States">),
 ('Alaska',
  <NamedArea name:"Alaska" area_id="02", level="US.States", country="United States">),
 ('Arizona',
  <NamedArea name:"Arizona" area_id="04", level="US.States", country="United States">),
 ('Arkansas',
  <NamedArea name:"Arkansas" area_id="05", level="US.States", country="United States">),
 ('California',
  <NamedArea name:"California" area_id="06", level="US.States", country="United States">)]

We see that various states are listed along with the "NamedArea" object that contains different properties such as name, area_id, level etc. Let's select a state and further explore its subgeographies.

Input
# Select a state
us_state = usa.subgeographies.states['California']
us_state
Output
<NamedArea name:"California" area_id="06", level="US.States", country="United States">

Visualize on a map

Input
# Create a map
state_map = gis.map('California')
state_map
Input
# Plot on a map
state_map.draw(us_state.geometry)

Geographic level: County

Let's look at different counties in California. Following a similar pattern as above, we will look at the first few counties. To look at all counties you may use usa.subgeographies.states['California'].counties.

Input
ca_counties = [county for county in usa.subgeographies.states['California'].counties.items()][:5]
ca_counties
Output
[('Alameda_County',
  <NamedArea name:"Alameda County" area_id="06001", level="US.Counties", country="United States">),
 ('Alpine_County',
  <NamedArea name:"Alpine County" area_id="06003", level="US.Counties", country="United States">),
 ('Amador_County',
  <NamedArea name:"Amador County" area_id="06005", level="US.Counties", country="United States">),
 ('Butte_County',
  <NamedArea name:"Butte County" area_id="06007", level="US.Counties", country="United States">),
 ('Calaveras_County',
  <NamedArea name:"Calaveras County" area_id="06009", level="US.Counties", country="United States">)]

Let's select a county in California. Notice how a county can be selected using its key i.e. Alameda_County or San_Bernardino_County.

Input
sb_county = usa.subgeographies.states['California'].counties['San_Bernardino_County']
sb_county
Output
<NamedArea name:"San Bernardino County" area_id="06071", level="US.Counties", country="United States">

Visualize on a map

Input
# Create a map
county_map = gis.map('California',6)
county_map
Input
# Plot on a map
county_map.draw(sb_county.geometry)

Geographic level: Tract

Let's select a county and look at different tracts in the county. We will look at the first few tracts in San Bernardino county. To look at all tracts you may use usa.subgeographies.states['California'].counties['San_Bernardino_County'].tracts.

Input
sb_tracts = [tract for tract in usa.subgeographies.states['California'].counties
             ['San_Bernardino_County'].tracts.items()][:5]
sb_tracts
Output
[('060710002.03',
  <NamedArea name:"060710002.03" area_id="06071000203", level="US.Tracts", country="United States">),
 ('060710002.05',
  <NamedArea name:"060710002.05" area_id="06071000205", level="US.Tracts", country="United States">),
 ('060710002.07',
  <NamedArea name:"060710002.07" area_id="06071000207", level="US.Tracts", country="United States">),
 ('060710002.08',
  <NamedArea name:"060710002.08" area_id="06071000208", level="US.Tracts", country="United States">),
 ('060710004.01',
  <NamedArea name:"060710004.01" area_id="06071000401", level="US.Tracts", country="United States">)]

Now, let's select a particular tract using its key.

Input
usa.subgeographies.states['California'].counties['San_Bernardino_County'].tracts['060710002.03']
Output
<NamedArea name:"060710002.03" area_id="06071000203", level="US.Tracts", country="United States">

Geographic level: Cities and Towns

Cities and Towns in a state can be accessed using Places subgeography. We will look at the first few places in California. To view all places, you may use usa.subgeographies.states['California'].places.

Input
ca_places = [place for place in usa.subgeographies.states['California'].places.items()][:5]
ca_places
Output
[('Acalanes_Ridge_CDP',
  <NamedArea name:"Acalanes Ridge CDP" area_id="0600135", level="US.Places", country="United States">),
 ('Acampo_CDP',
  <NamedArea name:"Acampo CDP" area_id="0600156", level="US.Places", country="United States">),
 ('Acton_CDP',
  <NamedArea name:"Acton CDP" area_id="0600212", level="US.Places", country="United States">),
 ('Adelanto_city',
  <NamedArea name:"Adelanto city" area_id="0600296", level="US.Places", country="United States">),
 ('Adin_CDP',
  <NamedArea name:"Adin CDP" area_id="0600310", level="US.Places", country="United States">)]

A particular city or town can be selected using its key. So we can use census Acalanes_Ridge_CDP key to get the details.

CDP here stands for census designated places. Census designated places (CDPs) are statistical geographic entities representing closely settled, unincorporated communities that are locally recognized and identified by name. They are the statistical equivalents of incorporated places, with the primary differences being the lack of a legally defined boundary and an active, functioning governmental structure.

Input
usa.subgeographies.states['California'].places['Fontana_city']
Output
<NamedArea name:"Fontana city" area_id="0624680", level="US.Places", country="United States">

Geographic level: Zip Code

Zip codes can be accessed at both the state and county levels. zip5 is used to select a zip code subgeography. Let's look at how zip codes can be selected.

Let's view a few zip codes for California and then select one.

Input
zip_ca = [zip_code for zip_code in usa.subgeographies.states['California'].zip5.items()][:5]
zip_ca
Output
[('90001',
  <NamedArea name:"Los Angeles" area_id="90001", level="US.ZIP5", country="United States">),
 ('90002',
  <NamedArea name:"Los Angeles" area_id="90002", level="US.ZIP5", country="United States">),
 ('90003',
  <NamedArea name:"Los Angeles" area_id="90003", level="US.ZIP5", country="United States">),
 ('90004',
  <NamedArea name:"Los Angeles" area_id="90004", level="US.ZIP5", country="United States">),
 ('90005',
  <NamedArea name:"Los Angeles" area_id="90005", level="US.ZIP5", country="United States">)]
Input
zip_92373 = usa.subgeographies.states['California'].zip5['92373']
zip_92373
Output
<NamedArea name:"Redlands" area_id="92373", level="US.ZIP5", country="United States">

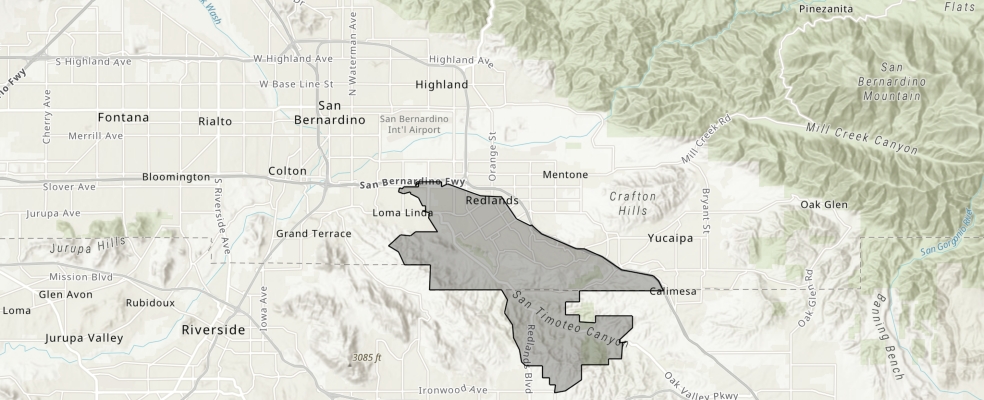

Visualize on a map

Input
# Create a map
zip_map = gis.map('Redlands, CA')
zip_map
Input
# Plot on a map
zip_map.draw(zip_92373.geometry)

Now let's view a few zip codes for San Bernardino county and then select one.

Input
zip_sb = [zip_code for zip_code in usa.subgeographies.states['California'].
          counties['San_Bernardino_County'].zip5.items()][:5]
zip_sb
Output
[('91708',
  <NamedArea name:"Chino" area_id="91708", level="US.ZIP5", country="United States">),
 ('91709',
  <NamedArea name:"Chino Hills" area_id="91709", level="US.ZIP5", country="United States">),
 ('91739',
  <NamedArea name:"Rancho Cucamonga" area_id="91739", level="US.ZIP5", country="United States">),
 ('91759',
  <NamedArea name:"Mt Baldy" area_id="91759", level="US.ZIP5", country="United States">),
 ('91761',
  <NamedArea name:"Ontario" area_id="91761", level="US.ZIP5", country="United States">)]
Input
zip_92336 = usa.subgeographies.states['California'].counties['San_Bernardino_County'].zip5['92336']
zip_92336
Output
<NamedArea name:"Fontana" area_id="92336", level="US.ZIP5", country="United States">

Explore subgeographies for another country

The subgeography levels and their hierarchies are different for each country, and can also be different for the different datasets (which can be set using the Country.dataset property).

Geographic level: Country

Input
india = Country.get('India')

Look at the different levels of subgeographies for India

Input
india.levels
Output
[{'id': 'IN.Country',
  'name': 'Country',
  'isWholeCountry': True,
  'adminLevel': 'Admin1',
  'singularName': 'Country',
  'pluralName': 'Country'},
 {'id': 'IN.States',
  'name': 'States',
  'isWholeCountry': False,
  'adminLevel': 'Admin2',
  'singularName': 'State',
  'pluralName': 'States'},
 {'id': 'IN.Districts',
  'name': 'Districts',
  'isWholeCountry': False,
  'adminLevel': 'Admin3',
  'singularName': 'District',
  'pluralName': 'Districts'},
 {'id': 'IN.Subdistricts',
  'name': 'Subdistricts',
  'isWholeCountry': False,
  'adminLevel': 'Admin4',
  'singularName': 'Subdistrict',
  'pluralName': 'Subdistricts'}]

Here we see that subgeographies in India are different from those in U.S. India has districts and sub-districts instead of counties and tracts. Let's inspect a few states. Following a similar pattern of exploration as above, all states can be viewed using india.subgeographies.states.

Geographic level: State

Input
in_states = [state for state in india.subgeographies.states.items()][:5]
in_states
Output
[('Jammu_&_Kashmir',
  <NamedArea name:"Jammu & Kashmir" area_id="01", level="IN.States", country="India">),
 ('Himachal_Pradesh',
  <NamedArea name:"Himachal Pradesh" area_id="02", level="IN.States", country="India">),
 ('Punjab',
  <NamedArea name:"Punjab" area_id="03", level="IN.States", country="India">),
 ('Chandigarh',
  <NamedArea name:"Chandigarh" area_id="04", level="IN.States", country="India">),
 ('Uttarakhand',
  <NamedArea name:"Uttarakhand" area_id="05", level="IN.States", country="India">)]

We see that various states are listed along with their properties such as name, area_id, level etc. Let's select a state and further explore its subgeographies.

Input
state = india.subgeographies.states['Uttar_Pradesh']
Input
state.geometry.type
Output
'Polygon'

Geographic level: District

Let's look at different districts in the state of Uttar Pradesh. Following a similar pattern as above, we will look at the first few districts. To look at all districts you may use usa.subgeographies.states['Uttar_Pradesh'].districts.

Input
in_districts = [district for district in india.subgeographies.states['Uttar_Pradesh'].districts.items()][:5]
in_districts
Output
[('Saharanpur',
  <NamedArea name:"Saharanpur" area_id="09132", level="IN.Districts", country="India">),
 ('Muzaffarnagar',
  <NamedArea name:"Muzaffarnagar" area_id="09133", level="IN.Districts", country="India">),
 ('Bijnor',
  <NamedArea name:"Bijnor" area_id="09134", level="IN.Districts", country="India">),
 ('Moradabad',
  <NamedArea name:"Moradabad" area_id="09135", level="IN.Districts", country="India">),
 ('Rampur',
  <NamedArea name:"Rampur" area_id="09136", level="IN.Districts", country="India">)]
Input

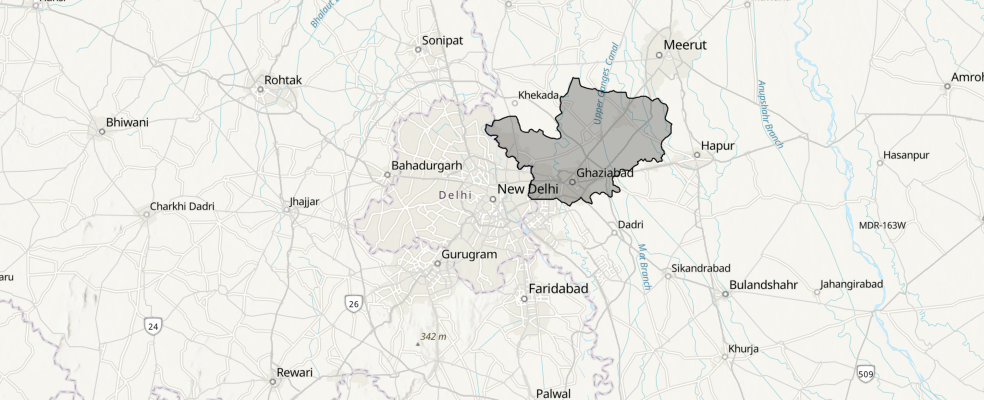

district = india.subgeographies.states['Uttar_Pradesh'].districts['Ghaziabad']

Visualize on a map

Input
# Create a map
district_map = gis.map('Uttar Pradesh, India', 7)
district_map
Input
# Plot on a map
district_map.draw(district.geometry)

Geographic level: Subdistrict

Let's select a district and look at different subdistricts in it. We will look at the first few subdistricts in Baghpat district. To look at all subdistricts you may use india.subgeographies.states['Uttar_Pradesh'].districts['Ghaziabad'].subdistricts.

Input
in_subdistrict = [sub for sub in india.subgeographies.states['Uttar_Pradesh'].
                 districts['Ghaziabad'].subdistricts.items()][:5]
in_subdistrict
Output
[('Modinagar',
  <NamedArea name:"Modinagar" area_id="0914000738", level="IN.Subdistricts", country="India">),
 ('Ghaziabad',
  <NamedArea name:"Ghaziabad" area_id="0914000739", level="IN.Subdistricts", country="India">),
 ('Loni',
  <NamedArea name:"Loni" area_id="0914090000", level="IN.Subdistricts", country="India">)]

Now, let's select a particular subdistrict.

Input
india.subgeographies.states['Uttar_Pradesh'].districts['Ghaziabad'].subdistricts['Modinagar']
Output
<NamedArea name:"Modinagar" area_id="0914000738", level="IN.Subdistricts", country="India">

Searching for named areas within a country

Named statistical areas can also be searched within a country. Let's search for areas named Riverside in the U.S.

Input
riversides_in_usa = usa.search('Riverside')
print("number of riversides in the US: " + str(len(riversides_in_usa)))

# list a few of them
riversides_in_usa[:10]
number of riversides in the US: 81
Output
[<NamedArea name:"Riverside" area_id="147435", level="Cities", country="United States">,
 <NamedArea name:"Riverside" area_id="147436", level="Cities", country="United States">,
 <NamedArea name:"Riverside" area_id="147437", level="Cities", country="United States">,
 <NamedArea name:"Riverside" area_id="147438", level="Cities", country="United States">,
 <NamedArea name:"Riverside" area_id="147439", level="Cities", country="United States">,
 <NamedArea name:"Riverside" area_id="147440", level="Cities", country="United States">,
 <NamedArea name:"Riverside" area_id="147441", level="Cities", country="United States">,
 <NamedArea name:"Riverside" area_id="147442", level="Cities", country="United States">,
 <NamedArea name:"Riverside" area_id="147443", level="Cities", country="United States">,
 <NamedArea name:"Riverside" area_id="147444", level="Cities", country="United States">]

The named areas can also be drawn on a map, as they include a geometry property

For instance, you can make a map of all the riversides in the US

Input
usamap = gis.map('United States', zoomlevel=4)
usamap

img: riversides in the us

Input
for riverside in riversides_in_usa:
    usamap.draw(riverside.geometry)

Conclusion

In this part of the arcgis.geoenrichment module guide series, you explored several named statistical areas in a hierarchy of geography levels. You saw, in detail, how different geography levels can be queried so it can then be used for enrichment. You were introduced to Country class and Country.get() method which can be used to discover sub-geographies, data collections and available reports for a country.

In the subsequent pages, you will learn about Data Collections and GeoEnrichment coverage, Generating Reports and Standard Geography Queries.

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
