Classification of SfM-derived point clouds using deep learning

  • 🥠 Deep Learning
  • ☁️ SfM-derived Point Cloud
  • 🛰️ Remote Sensing

Introduction

Historically, point clouds have been created by active remote sensing scanners, such as radar and laser scanners (LiDAR), that can be used on aerial, mobile, and terrestrial platforms. With the advancement in computer vision algorithms, point clouds can now also be created using Semi-Global Matching (SGM) and Structure from Motion (SfM) methods. These techniques are also based on overlapping imagery, just like 'manual stereo compilation', which is a photogrammetric method for creating point clouds. However, SfM and SGM methods both give far better and more detailed results and are less time consuming than the photogrammetric method [1].

There are many technical terms that are loosely interchanged for such point clouds, such as SfM-derived point clouds, photogrammetric point clouds, synthetic point clouds, UAV point clouds, etc. In this sample notebook, we will be using the term: 'SfM-derived point clouds' with context to describe point clouds generated from ESRI's Site Scan for ArcGIS and ArcGIS Drone2Map.

SfM derived point clouds and LiDAR point clouds cannot be treated as the same. Some of the key differences between them are:

  • Only the visible surface is modeled ('first returns') for SfM, SGM, or traditional photogrammetry methods [1].
  • Photo quality (exposure, shadows, etc.) and photo processing both have a significant impact on the quality of the generated point clouds in non-LiDAR approaches [1].
  • The SfM-derived point clouds can be enriched with the information for other imagery bands, like NIR. Even an NDVI band can be easily added as an additional attribute to the dataset [1].
  • The geometry of the objects in SfM point clouds can have distorted/soft edges. This usually depends upon the quality of GCPs, variation in flying height of the drone, redundancies in overlapping imagery for a particular region, etc.
  • In many cases, LiDAR-based data acquisition is costlier and requires more planning than drone imagery acquisition that generates point clouds using the SfM technique.

For these reasons, many of the traditional non-'deep learning' methods developed for LiDAR point clouds fall flat when it comes to SfM-derived point clouds. Fortunately, deep learning can fill this processing gap and help in the point cloud classification of these datasets.

Point clouds generated by Site Scan for ArcGIS are first labeled with the 'objects of interest' to create the training data. Next, deep learning capabilities in 'ArcGIS API for Python' are utilized for the classification of these SfM-derived point clouds.

Further details on the PointCNN implementation in the API (working principle, architecture, best practices, etc.), can be found in the PointCNN guide, along with instructions on how to set up the Python environment. Additional sample notebooks related to PointCNN can be found in the sample notebook section on the website.

Before proceeding through this notebook, it is advised that you go through the API reference for PointCNN (prepare_data(), Transform3d(), and PointCNN()), along with the resources and tool references for point cloud classification using deep learning in ArcGIS Pro, found here.

Objective:

  1. Classify points representing cars in SfM-derived point clouds using the API's PointCNN model. A model is trained for two classes, 'cars' and 'background'. Apart from the geometric information in the data, additional attributes (Red, Blue, and Green), are also used for model training.

  2. Area of interest and pre-processing

    Any SfM-derived point clouds and areas of interest can be used, but for this sample, we are using point clouds generated by Site Scan for ArcGIS, using drone imagery of some parking lots in the United States. The dataset already has points labeled for 'cars', represented by classcode '18', and 'background', represented by classcode '0'.

    Pre-processing steps:

    • Split the .las files into three unique sets, one for training, one for validation, and one for testing. Create LAS datasets for all three sets using the 'Create LAS Dataset' tool. There is no fixed rule, but generally, the validation data for point clouds in .las format should be at least 5-10 % (by size) of the total data available, with appropriate diversity within the validation dataset. (For ease in splitting the big .las files into the appropriate ratios, ArcGIS Pro's 'Tile LAS' tool can be used.)
    • Alternatively, polygons can also be used to define regions of interest that should be considered as training or validation datasets. These polygons can be used later in the export tool. If the dataset is very large, then the 'Build LAS Dataset Pyramid' tool can be leveraged for faster rendering/visualization of the data, which will also help in exploring and splitting the dataset.
    • If there is a pre-trained imagery model for the object of interest, then that model can help in creating the training dataset. The pre-trained imagery model can be used on the data from which the SfM-derived point cloud was created. Later, the 'Set LAS Class Codes Using Raster' tool or the 'Set LAS Class Codes Using Features' tool can be used to classify point cloud datasets using vector or raster labels obtained from the imagery pre-trained model. For example, in this sample notebook, the objects of interest are 'car'(s), and overlapping drone imagery is used to generate the point clouds. As such, ESRI's Car Detection - USA model can be used on the orthophoto to generate car footprint polygons that can later be used to classify cars in the point cloud. Also, as the point cloud is derived from the imagery, moving objects, like a 'car', will not change positions, which can happen when using LiDAR data.

    Data preparation

    Imports:

    from arcgis.learn import prepare_data, Transform3d, PointCNN
    from arcgis.gis import GIS
    gis = GIS()

    Note: The data used in this sample notebook can be downloaded as a zip file, from here. It contains both 'training data' and 'test data', where the 'test data' is used for inferencing. It can also be accessed via its itemId, as shown below.

    training_data = gis.content.get('cae020a8e7f24fedb1359d114ca3abf1')
    training_data
    Classification_of_sfm_derived_point_clouds_using_deep_learning
    Training and test LAS files for PointCNN sample notebook: `Classification of SfM-derived point clouds using deep learning.`Image Collection by api_data_owner
    Last Modified: August 06, 2021
    0 comments, 0 views

    Exporting the data:

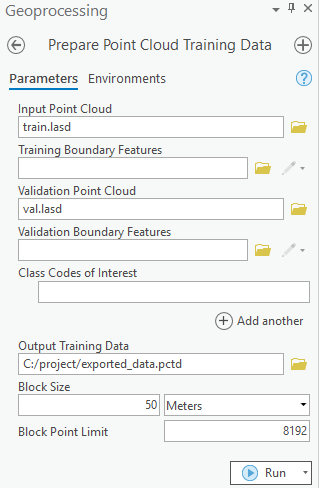

    In this step, .las files are converted to a 'HDF5 binary data format'. For this step of exporting the data into an intermediate format, use the Prepare Point Cloud Training Data tool in the 3D Analyst extension, available from ArcGIS Pro 2.8 onwards (as shown in figure 1).

    The tool needs two LAS datasets, one for the training data and one for the validation data or regions of interest defined by polygons. Next, the block size is set to '50 meters', as our objects of interest will mostly be smaller than that, and the default value of '8192' is used for block point limit.

    Figure 1.

    Prepare Point Cloud Training Data

    tool.

    Here, all the additional attributes are included in the exported data. Later, a subset of additional attributes like intensity, number of returns, etc. can be selected that will be considered for training.

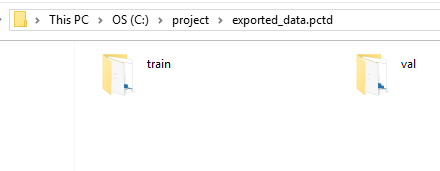

    After the export is completed at the provided output path, the folder structure of the exported data will have two folders, each with converted HDF files in them (as shown in figure 2). The exported training and validation folders will also contain histograms of the distributions of data that provide additional understanding and can help in tweaking the parameters that are being used in the workflow.

    Figure 2. Exported data.

    Preparing the data:

    For prepare_data(), deciding the value of batch_size will depend on either the available RAM or VRAM, depending upon whether CPU or GPU is being used. transforms can also be used for introducing rotation, jitter, etc. to make the dataset more robust. data.classes can be used to verify what classes the model will be learning about.

    The classes_of_interest and min_points parameters can be used to filter out less relevant blocks. These parameters are useful when training a model for SfM-derived or mobile/terrestrial point clouds. In specific scenarios when the 'training data' is not small, usage of these features can result in speeding up the 'training time', improving the convergence during training, and addressing the class imbalance up to some extent.

    In this sample notebook X, Y, Z, Red, Blue, and Green are considered for training the model, so all three attributes, 'Red', 'Blue', and 'Green', are selected as extra_features. The names of the classes are also defined using class_mapping and will be saved inside the model for future reference.

    output_path = r'C:\project\exported_data.pctd'
    colormap = {'0':[255,69,0], '18':[253,247,83]}
    data = prepare_data(output_path,
                        dataset_type='PointCloud',
                        batch_size=2,
                        min_points=800,
                        transforms=None,
                        color_mapping=colormap,
                        extra_features=['red', 'blue', 'green'],
                        class_mapping={'18':'car','0':"background"})
    data.classes

    Visualization of prepared data

    show_batch() helps in visualizing the exported data. Navigation tools available in the graph can be used to zoom and pan to the area of interest.

    data.show_batch(rows=1)

    Figure 3. Visualization of batch.

    Training the model

    First, the PointCNN model object is created, utilizing the prepared data.

    pc = PointCNN(data)

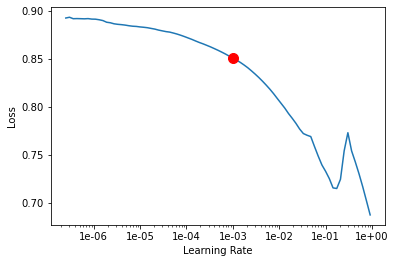

    Next, the lr_find() function is used to find the optimal learning rate that controls the rate at which existing information will be overwritten by newly acquired information throughout the training process. If no value is specified, the optimal learning rate will be extracted from the learning curve during the training process.

    pc.lr_find()
    <Figure size 432x288 with 1 Axes>
    0.001

    The fit() method is used to train the model, either applying a new 'optimum learning rate' or the previously computed 'optimum learning rate' (any other user-defined learning rate can also be used.).

    If early_stopping is set to 'True', then the model training will stop when the model is no longer improving, regardless of the epochs parameter value specified. The best model is selected based on the metric selected in the monitor parameter. A list of monitor's available metrics can be generated using the available_metrics property.

    An 'epoch' means the dataset will be passed forward and backward through the neural network one time, and if Iters_per_epoch is used, a subset of data is passed per epoch. To track information like gradients, losses, metrics, etc. while the model training is in progress, tensorboard can be set to 'True'.

    pc.available_metrics
    ['valid_loss', 'accuracy', 'precision', 'recall', 'f1']
    pc.fit(20, 0.001, monitor='f1', tensorboard=True, early_stopping=True)
    Monitor training on Tensorboard using the following command: 'tensorboard --host=DEMOPC01 --logdir="C:\project\exported_data.pctd\training_log",'

    14.00% [7/50 6:18:22<38:44:16]
    epochtrain_lossvalid_lossaccuracyprecisionrecallf1time
    00.0366720.0391470.9832950.8690970.7888230.81129954:08
    10.0356410.0366350.9857430.8772120.8116480.83286453:52
    20.0357470.0362690.9855900.8639600.7996480.82043554:08
    30.0355320.0364430.9853350.8523690.7942950.81329553:56
    40.0354540.0378290.9846800.8599830.7945130.81383854:05
    50.0345910.0403120.9825580.8665610.7899680.81145053:44
    60.0334190.0406150.9825020.8623250.7886210.81004454:26

    100.00% [264/264 07:17<00:00]
    Epoch 7: early stopping


    Visualization of results in notebook

    show_results() will visualize the results of the model for the same scene as the ground truth. Navigation tools available in the graph can be used to zoom and pan to the area of interest.

    The compute_precision_recall() method can be used to compute per-class performance metrics, which are calculated against the validation dataset.

    pc.show_results(rows=1)

    Figure 4. Visualization of results.

    Saving the trained model

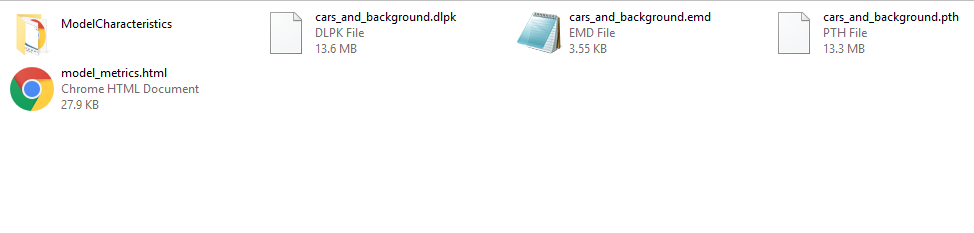

    The last step related to training is to save the model using the save() method. Along with the model files, this method also saves performance metrics, a graph of training loss vs validation loss, sample results, etc. (as shown in figure 5).

    Figure 5. Saved model.

    pc.save('cars_and_background')
    WindowsPath('models/cars_and_background')

    Classification using the trained model

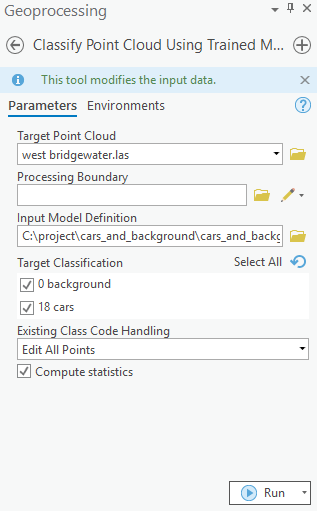

    For inferencing, Classify Points Using Trained Model tool in the 3D Analyst extension, available from ArcGIS Pro 2.8 onwards, can be used (as shown in figure 6).

    Figure 6.

    Classify Points Using Trained Model

    tool.

    Additional features, like target classification and class preservation in input data, are also available. After the prediction, LAS files will have 'car points', with the class code '18', and the rest of the points will have the class code '0' (referred to as 'Background' in this sample). To visualize the results after the process is completed, the 'Symbology' can be changed to 'class' from the 'Appearance' tab, if not done initially.

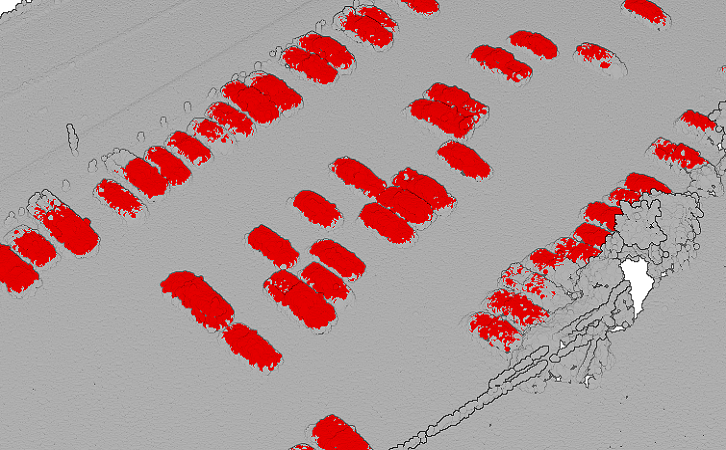

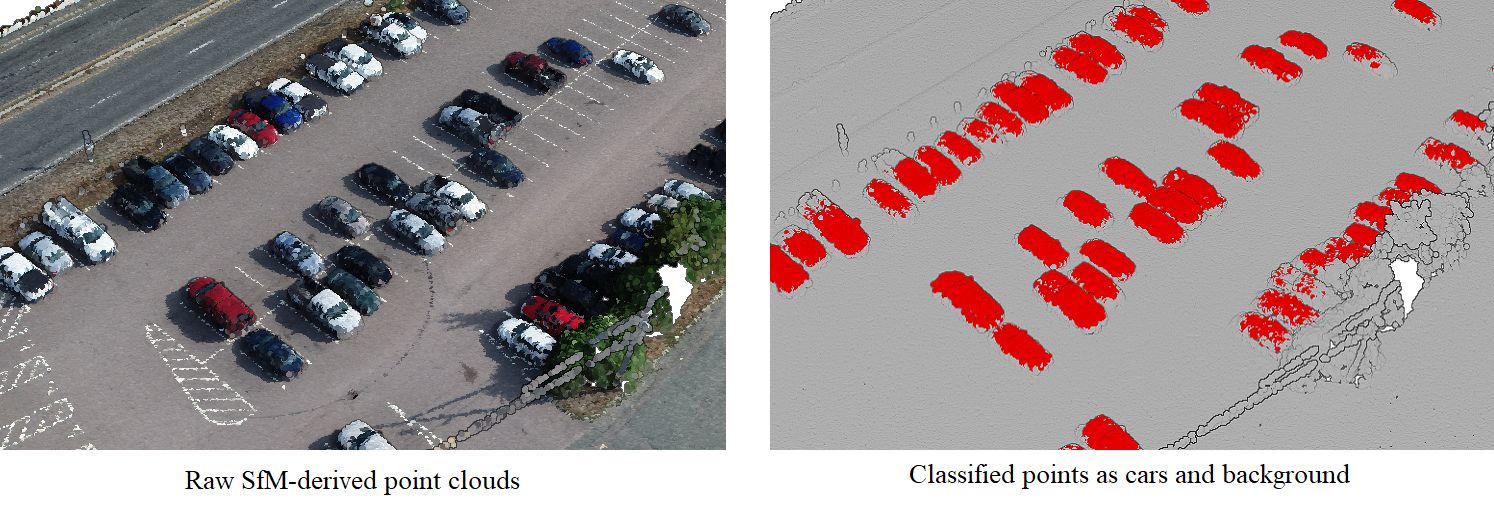

    Visualization of results in ArcGIS Pro

    Figure 7. Visualization of results in ArcGIS Pro.

    This web scene has the final outputs related to the illustrated test data in this notebook. It can also be accessed via its itemId, as shown below.

    results = gis.content.get('6a50627e143c47fe9f040a4b5eb5a86e')
    results
    Classification of SfM-derived point clouds using deep learning
    Results for "Classification of SfM-derived point clouds using deep learning" sample notebook.Web Scene by api_data_owner
    Last Modified: August 06, 2021
    0 comments, 9 views

    Conclusion

    This notebook has demonstrated the workflow for training a deep learning model for the classification of points representing 'cars' in SfM-derived point clouds, using additional attributes, like Red, Blue, and Green bands. A similar approach can be applied to classify other objects of interest, like trees, buildings, ground, etc.

    References
