Add items to portal

View inQMLC++
View on GitHub
Sample viewer app

This sample demonstrates how to add and delete items in a user's portal.

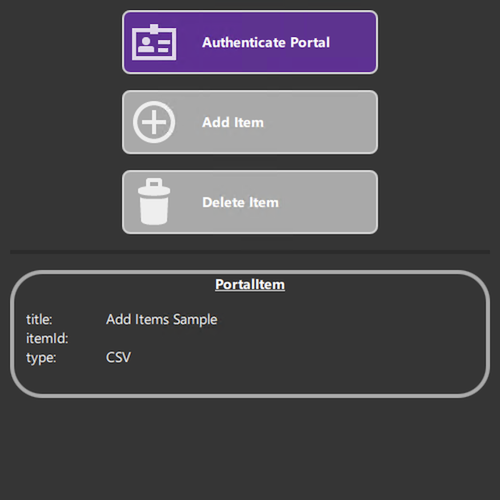

screenshot

Use case

Portals allow you to share and publish data with others. For example, you may create or collect some data on your device and want to upload that to a cloud storage location to share with others or simply save for later use. In this case, a CSV file is created and uploaded to ArcGIS Online.

How to use the sample

  1. Press the Authenticate Portal button and sign into your ArcGIS Online account.
  2. Press the Add Item button, and this will add the CSV to your Portal.
  3. Press the Delete Item button, and this will delete that same item from your Portal.

How it works

  1. A Portal is created with a Credential using OAuthModeUser. The Portal instance is loaded and the OAuth sign in page is displayed. The user must now provide credentials.
  2. Once the sign-in process is complete, a PortalItem of type CSV is created using this Portal instance.
  3. When the portal is successfully loaded, the PortalUser object is obtained from the Portal.
  4. When the "Add Item" button is clicked, the item is added via the PortalUser's addPortalItemWithUrl method. The PortalItem and the local URL of the CSV file are supplied as parameters.
  5. When the item has been successfully added, it is loaded in order to retrieve online properties such as the itemId.'
  6. When the "Delete Item" button is clicked, the item is passed as a parameter for the portalUser's deleteItem method.

Relevant API

  • Portal
  • PortalItem
  • PortalUser::addPortalItemWithUrl
  • PortalUser::deleteItem

Tags

add item, cloud, portal

Sample Code

AddItemsToPortal.qmlAddItemsToPortal.cppAddItemsToPortal.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
// [WriteFile Name=AddItemsToPortal, Category=CloudAndPortal]
// [Legal]
// Copyright 2016 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick 2.6
import QtQuick.Controls 2.2
import Esri.Samples 1.0
import Esri.ArcGISRuntime.Toolkit 100.12

AddItemsToPortalSample {
    id: rootRectangle
    clip: true
    width: 800
    height: 600

    onPortalItemTitleChanged: portalItemModel.setProperty(0, "value", portalItemTitle);
    onPortalItemIdChanged: portalItemModel.setProperty(1, "value", portalItemId);
    onPortalItemTypeNameChanged: portalItemModel.setProperty(2, "value", portalItemTypeName);

    Flickable {
        anchors.fill: parent
        interactive: true
        boundsBehavior: Flickable.StopAtBounds
        contentHeight: parent.height * 1.5
        contentWidth: parent.width
        Column {
            anchors {
                fill: parent
                margins: 16
            }
            spacing: 16

            Rectangle {
                id: authenticationButton
                anchors.horizontalCenter: parent.horizontalCenter
                height: 64
                width: Math.min(256, parent.width)
                color: enabled ? "darkblue" : "darkgrey"
                border{
                    color: "lightgrey"
                    width: 2
                }
                radius: 8
                enabled: !portalLoaded

                Row {
                    anchors.fill: parent
                    spacing: 16

                    Image {
                        anchors.verticalCenter: parent.verticalCenter
                        source: !portalLoaded ?
                                    "qrc:/Samples/CloudAndPortal/AddItemsToPortal/ic_menu_account_dark.png" :
                                    "qrc:/Samples/CloudAndPortal/AddItemsToPortal/ic_menu_checkedcircled_dark.png"
                        fillMode: Image.PreserveAspectFit
                        height: 64
                        width: height
                    }

                    Text {
                        anchors.verticalCenter: parent.verticalCenter
                        text: "Authenticate Portal"
                        font.bold: true
                        color: "white"
                    }
                }

                MouseArea {
                    anchors.fill: parent
                    onClicked: {
                        authenticatePortal();
                        authenticationButton.border.width = 4;
                    }
                }
            }

            Rectangle {
                id: addItemButton
                anchors.horizontalCenter: parent.horizontalCenter
                height: authenticationButton.height
                width: authenticationButton.width
                color: enabled ? "darkblue" : "darkgrey"
                border{
                    color: authenticationButton.border.color
                    width: 2
                }
                radius: authenticationButton.radius
                enabled: !portalItemLoaded && portalLoaded

                Row {
                    anchors.fill: parent
                    spacing: 16

                    Image {
                        anchors.verticalCenter: parent.verticalCenter
                        source: portalItemLoaded ?
                                    "qrc:/Samples/CloudAndPortal/AddItemsToPortal/ic_menu_checkedcircled_dark.png" :
                                    "qrc:/Samples/CloudAndPortal/AddItemsToPortal/ic_menu_addencircled_dark.png"

                        fillMode: Image.PreserveAspectFit
                        height: 64
                        width: height
                    }

                    Text {
                        anchors.verticalCenter: parent.verticalCenter
                        text: "Add Item"
                        font.bold: true
                        color: "white"
                    }
                }

                MouseArea {
                    anchors.fill: parent
                    onClicked: {
                        addItemButton.border.width = 4
                        addItem();
                    }
                }
            }

            Rectangle {
                id: deleteItemButton
                anchors.horizontalCenter: parent.horizontalCenter
                height: authenticationButton.height
                width: authenticationButton.width
                color: enabled ? "darkblue" : "darkgrey"
                border {
                    color: authenticationButton.border.color
                    width: 2
                }
                radius: authenticationButton.radius
                enabled: portalItemLoaded && !itemDeleted

                Row {
                    anchors.fill: parent
                    spacing: 16

                    Image {
                        anchors.verticalCenter: parent.verticalCenter
                        source: !itemDeleted ?
                                    "qrc:/Samples/CloudAndPortal/AddItemsToPortal/ic_menu_trash_dark.png" :
                                    "qrc:/Samples/CloudAndPortal/AddItemsToPortal/ic_menu_checkedcircled_dark.png"

                        fillMode: Image.PreserveAspectFit
                        height: 64
                        width: height
                    }

                    Text {
                        anchors.verticalCenter: parent.verticalCenter
                        text: "Delete Item"
                        font.bold: true
                        color: "white"
                    }
                }

                MouseArea {
                    anchors.fill: parent
                    onClicked: {
                        deleteItemButton.border.width = 2
                        deleteItem();
                    }
                }
            }

            Rectangle {
                anchors {
                    left: parent.left
                    right: parent.right
                }
                height: 4
                color: "lightgrey"
            }

            Rectangle {
                id: itemView
                anchors {
                    left: parent.left
                    right: parent.right
                }
                height: 128
                color: "lightsteelblue"
                border {
                    color: "darkgrey"
                    width: 4
                }
                radius: 32
                clip: true

                Text {
                    id: portalItemLabel
                    anchors{
                        top: parent.top
                        horizontalCenter: parent.horizontalCenter
                        margins: 4
                    }
                    color: "white"
                    font.bold: true
                    text: "PortalItem"
                    font.underline: true
                    horizontalAlignment: Text.AlignHCenter
                }

                ListModel {
                    id: portalItemModel

                    Component.onCompleted: {
                        append({"label": "title", "value": portalItemTitle });
                        append({"label": "itemId", "value": portalItemId});
                        append({"label": "type", "value": portalItemTypeName});
                    }
                }

                ListView {
                    anchors {
                        top: portalItemLabel.bottom
                        left: parent.left
                        right: parent.right
                        bottom: parent.bottom
                        margins: 16
                    }
                    clip: true
                    model: portalItemModel
                    delegate: Text {
                        color: "white"
                        text: label + ":\t" + value
                        wrapMode: Text.Wrap
                        elide: Text.ElideRight
                    }
                }
            }

            Text {
                id: statusBar
                anchors{
                    left: parent.left
                    right: parent.right
                }
                wrapMode: Text.Wrap
                elide: Text.ElideRight
                text: statusText
            }
        }
    }

    /* Uncomment this section when running as standalone application
    AuthenticationView {
        anchors.fill: parent
    }
    */

    BusyIndicator {
        anchors.centerIn: parent
        running: busy
    }
}
