Access portal user info

View on GitHub
Sample viewer app

Retrieve a user's details via a Portal.

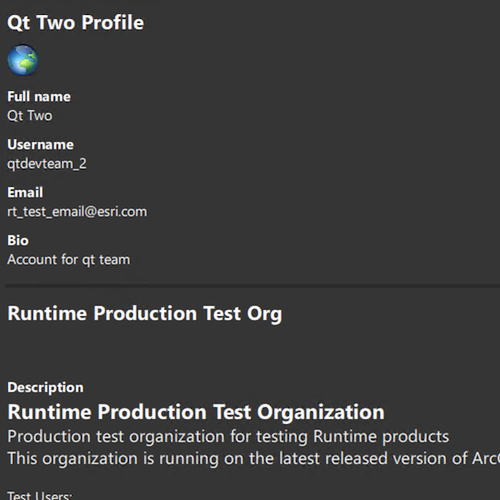

screenshot

Use case

This portal information can be used to provide a customized UI experience for the user. For example, you can show a thumbnail next to their username in the header of an application to indicate that they are currently logged in. Additionally, apps such as Collector and Explorer use this functionality to integrate with Portal.

How to use the sample

When prompted, enter your ArcGIS Online credentials.

How it works

  1. A Portal is created, and supplied a Credential which uses OAuth in user mode.
  2. When the app launches, the portal is loaded, which triggers an authentication challenge.
  3. An AuthenticationView listens to the challenge and displays a login screen to allow user credentials to be entered.
  4. If the portal is successfully loaded, the portalUser property is used to populate a series of fields including:
    • fullName
    • username
    • email
    • description
    • access
  5. Similarly, the portalInfo property is used to populate:
    • organizationName
    • organizationDescription
    • thumbnailUrl
    • canSearchPublic
    • canSharePublic

Relevant API

  • AuthenticationManager
  • AuthenticationView
  • Credential
  • PortalInfo
  • PortalUser

About the data

This sample signs into your ArcGIS online account and displays the user's profile information.

Tags

account, avatar, bio, cloud and portal, email, login, picture, profile, user, username

Sample Code

PortalUserInfo.cppPortalUserInfo.cppPortalUserInfo.hPortalUserInfo.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
// [WriteFile Name=PortalUserInfo, Category=CloudAndPortal]
// [Legal]
// Copyright 2016 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "PortalUserInfo.h"

#include "AuthenticationManager.h"
#include "Credential.h"
#include "CredentialCache.h"
#include "Portal.h"
#include "PortalUser.h"
#include <QUrl>

using namespace Esri::ArcGISRuntime;

const QString PortalUserInfo::UNKNOWN = "Unknown";

PortalUserInfo::PortalUserInfo(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent),
  m_credential(new Credential(OAuthClientInfo("iLkGIj0nX8A4EJda", OAuthMode::User), this)),
  m_portal(new Portal(m_credential, this))
{
  connect(m_portal, &Portal::loadStatusChanged, this, &PortalUserInfo::onPortalLoadStatusChanged);
  connect(m_portal, &Portal::doneLoading, this, &PortalUserInfo::loadErrorMessageChanged);
  AuthenticationManager::instance()->setCredentialCacheEnabled(false);
}

PortalUserInfo::~PortalUserInfo() = default;
void PortalUserInfo::init()
{
  qmlRegisterType<PortalUserInfo>("Esri.Samples", 1, 0, "PortalUserInfoSample");
}

void PortalUserInfo::componentComplete()
{
  QQuickItem::componentComplete();
  load();
}

void PortalUserInfo::load()
{
  if (!m_portal || !m_credential)
    return;

  if (m_portal->loadStatus() == LoadStatus::NotLoaded)
    m_portal->load();
  else if (m_portal->loadStatus() == LoadStatus::FailedToLoad)
    m_portal->retryLoad();
}

QString PortalUserInfo::username() const
{
  if (m_user)
    return m_user->username();

  return UNKNOWN;
}

bool PortalUserInfo::loaded()
{
  if (m_portal)
    return m_portal->loadStatus() == LoadStatus::Loaded;

  return false;
}

QString PortalUserInfo::fullName() const
{
  if (m_user)
    return m_user->fullName();

  return UNKNOWN;
}

QString PortalUserInfo::email() const
{
  if (m_user)
    return m_user->email();

  return UNKNOWN;
}

QString PortalUserInfo::bio() const
{
  if (m_user)
    return m_user->userDescription();

  return UNKNOWN;
}

QString PortalUserInfo::access() const
{
  if (!m_user)
    return UNKNOWN;

  switch (m_user->access())
  {
    return UNKNOWN;
  case PortalAccess::Organization:
    return "Organization";
  case PortalAccess::Private:
    return "Only you";
  case PortalAccess::Public:
    return "Everyone";
  case PortalAccess::Shared:
    return "Shared Groups";
  default:
    return UNKNOWN;
  }
}

QUrl PortalUserInfo::thumbnailUrl() const
{
  if (m_user && !m_user->thumbnailUrl().isEmpty())
    return m_user->thumbnailUrl();

  return QUrl("qrc:/Samples/CloudAndPortal/PortalUserInfo/placeholder_img.png");
}

QString PortalUserInfo::orgTitle() const
{
    if (m_portal && m_portal->portalInfo())
        return m_portal->portalInfo()->organizationName();

    return "";
}

QString PortalUserInfo::orgDescription() const
{
    if (m_portal && m_portal->portalInfo())
        return m_portal->portalInfo()->organizationDescription();

    return "";
}

QUrl PortalUserInfo::orgThumbnailUrl() const
{
    if (m_portal && m_portal->portalInfo())
        return m_portal->portalInfo()->thumbnailUrl();

    return QUrl();
}

QString PortalUserInfo::canSearchPublic() const
{
    if (m_portal && m_portal->portalInfo())
        return m_portal->portalInfo()->isCanSearchPublic() ? "True" : "False";

    return "";
}

QString PortalUserInfo::canSharePublic() const
{
    if (m_portal && m_portal->portalInfo())
        return m_portal->portalInfo()->isCanSharePublic() ? "True" : "False";

    return "";
}

QString PortalUserInfo::loadErrorMessage() const
{
  if (m_portal)
    return m_portal->loadError().message();

  return "";
}

void PortalUserInfo::onPortalLoadStatusChanged(LoadStatus loadStatus)
{
    switch (loadStatus) {
    case LoadStatus::Loaded:
        if (m_portal)
        {
            m_user = m_portal->portalUser();
            connect(m_user, &PortalUser::thumbnailUrlChanged, this, &PortalUserInfo::thumbnailUrlChanged);
        }
        emit fullNameChanged();
        emit usernameChanged();
        emit emailChanged();
        emit bioChanged();
        emit accessChanged();
        emit thumbnailUrlChanged();
        break;
    case LoadStatus::Loading:
        break;
    case LoadStatus::FailedToLoad:
        if (m_portal)
            m_portal->retryLoad();
        break;
    case LoadStatus::NotLoaded:
        break;
    case LoadStatus::Unknown:
        break;
    default:
        break;
  }

  emit loadedChanged();
}
