Control annotation sublayer visibility

View inQMLC++
View on GitHub
Sample viewer app

Use annotation sublayers to gain finer control of annotation layer subtypes.

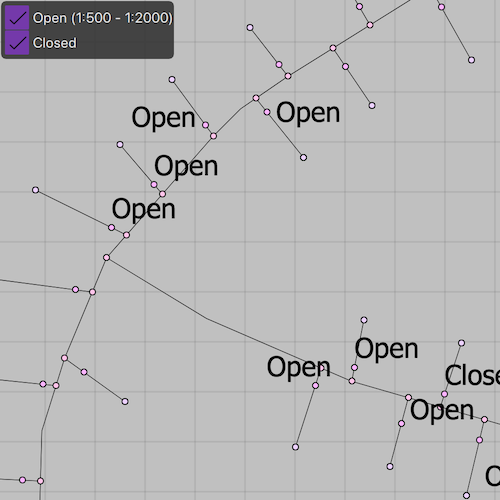

screenshot

Use case

Annotation, which differs from labels by having a fixed place and size, is typically only relevant at particular scales. Annotation sublayers allow for finer control of annotation by allowing properties (like visibility in the map and legend) to be set and others to be read (like name) on subtypes of an annotation layer.

An annotation dataset which marks valves as "Opened" or "Closed", might be set to display the "Closed" valves over a broader range of scales than the "Opened" valves, if the "Closed" data is considered more relevant by the map's author. Regardless, the user can be given a manual option to set visibility of annotation sublayers on and off, if required.

How to use the sample

Start the sample and take note of the visibility of the annotation. Zoom in and out to see the annotation turn on and off based on scale ranges set on the data.

Use the checkboxes to manually set "Open" and "Closed" annotation sublayers visibility to on or off.

How it works

  1. Load a MobileMapPackage that contains AnnotationSublayer.
  2. Get the sublayers from the map package's layers by calling sublayer::subLayerContents()[i].
  3. You can toggle the visibility of each sublayer manually using sublayer::setVisible().
  4. To determine if a sublayer is visible at the current scale of the MapView, use sublayer::isVisibleAtScale(), by passing in the map's current scale.

Relevant API

  • AnnotationLayer
  • AnnotationSublayer
  • LayerContent

Offline Data

Read more about how to set up the sample's offline data here.

Link Local Location
Gas Device Anno Mobile Map Package <userhome>/ArcGIS/Runtime/Data/mmpk/GasDeviceAnno.mmpk

About the data

The scale ranges were set by the map's author using ArcGIS Pro:

  • The "Open" annotation sublayer has its maximum scale set to 1:500 and its minimum scale set to 1:2000.
  • The "Closed" annotation sublayer has no minimum or maximum scales set, so will be drawn at all scales.

Tags

annotation, scale, text, utilities, visualization

Sample Code

ControlAnnotationSublayerVisibility.cppControlAnnotationSublayerVisibility.cppControlAnnotationSublayerVisibility.hControlAnnotationSublayerVisibility.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
// [WriteFile Name=ControlAnnotationSublayerVisibility, Category=DisplayInformation]
// [Legal]
// Copyright 2019 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "ControlAnnotationSublayerVisibility.h"

#include "Map.h"
#include "MapQuickView.h"
#include "MobileMapPackage.h"
#include "AnnotationLayer.h"
#include "AnnotationSublayer.h"

#include <QDir>
#include <QtCore/qglobal.h>

#ifdef Q_OS_IOS
#include <QStandardPaths>
#endif // Q_OS_IOS

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
QString defaultDataPath()
{
  QString dataPath;

#ifdef Q_OS_ANDROID
  dataPath = "/sdcard";
#elif defined Q_OS_IOS
  dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
  dataPath = QDir::homePath();
#endif

  return dataPath;
}

// sample MMPK location
const QString sampleFileAnno {"/ArcGIS/Runtime/Data/mmpk/GasDeviceAnno.mmpk"};

} // namespace

ControlAnnotationSublayerVisibility::ControlAnnotationSublayerVisibility(QObject* parent /* = nullptr */):
  QObject(parent)
{
  const QString dataPath = defaultDataPath() + sampleFileAnno;

  // connect to the Mobile Map Package instance to know when errors occur
  connect(MobileMapPackage::instance(), &MobileMapPackage::errorOccurred,
          [](Error error)
  {
    if (error.isEmpty())
      return;

    qDebug() << QString("Error: %1 %2").arg(error.message(), error.additionalMessage());
  });

  // Load the MMPK
  createMapPackage(dataPath);
}

ControlAnnotationSublayerVisibility::~ControlAnnotationSublayerVisibility() = default;

void ControlAnnotationSublayerVisibility::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ControlAnnotationSublayerVisibility>("Esri.Samples", 1, 0, "ControlAnnotationSublayerVisibilitySample");
}

MapQuickView* ControlAnnotationSublayerVisibility::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void ControlAnnotationSublayerVisibility::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  connect(m_mapView, &MapQuickView::mapScaleChanged, this, [this]()
  {
    m_mapScale = m_mapView->mapScale();
    emit mapScaleChanged();

    if (!m_annotationSubLayerOpen)
      return;

    m_visibleAtCurrentExtent = m_annotationSubLayerOpen->isVisibleAtScale(m_mapScale);
    emit visibleAtCurrentExtentChanged();
  });

  emit mapViewChanged();
}

// create map package
void ControlAnnotationSublayerVisibility::createMapPackage(const QString& path)
{
  //! [open mobile map package cpp snippet]
  // instatiate a mobile map package
  m_mobileMapPackage = new MobileMapPackage(path, this);

  // wait for the mobile map package to load
  connect(m_mobileMapPackage, &MobileMapPackage::doneLoading, this, [this](Error error)
  {
    if (!error.isEmpty())
    {
      qDebug() << QString("Package load error: %1 %2").arg(error.message(), error.additionalMessage());
      return;
    }

    if (!m_mobileMapPackage || !m_mapView || m_mobileMapPackage->maps().isEmpty())
      return;

    // The package contains a list of maps that could be shown in the UI for selection.
    // For simplicity, obtain the first map in the list of maps.
    // set the map on the map view to display
    m_mapView->setMap(m_mobileMapPackage->maps().at(0));

    m_layerListModel = mapView()->map()->operationalLayers();
    for (Layer* layer : *m_layerListModel)
    {
      if (layer->layerType() == LayerType::AnnotationLayer)
      {
        m_annoLayer = layer;
        connect(m_annoLayer, &Layer::doneLoading, this, [this](Error error)
        {
          if (!error.isEmpty())
          {
            qDebug() << QString("Package load error: %1 %2").arg(error.message(), error.additionalMessage());
            return;
          }

          const auto contents = m_annoLayer->subLayerContents();
          m_annotationSubLayerClosed = dynamic_cast<AnnotationSublayer*>(contents[0]);
          m_annotationSubLayerOpen = dynamic_cast<AnnotationSublayer*>(contents[1]);
          m_closedLayerText = m_annotationSubLayerClosed->name();
          m_openLayerText = QString("%1 (1:%2 - 1:%3)").arg(m_annotationSubLayerOpen->name()).arg(m_annotationSubLayerOpen->maxScale()).arg(m_annotationSubLayerOpen->minScale());
          emit openLayerTextChanged();
          emit closedLayerTextChanged();
        });
        layer->load();
      }
    }
  });

  m_mobileMapPackage->load();
  //! [open mobile map package cpp snippet]
}

void ControlAnnotationSublayerVisibility::openLayerVisible()
{
  if (!m_annotationSubLayerOpen)
    return;

  m_annotationSubLayerOpen->setVisible(!m_annotationSubLayerOpen->isVisible());
}

void ControlAnnotationSublayerVisibility::closedLayerVisible()
{
  if (!m_annotationSubLayerClosed)
    return;

  m_annotationSubLayerClosed->setVisible(!m_annotationSubLayerClosed->isVisible());
}
