Add graphics with symbols

View inQMLC++
View on GitHub
Sample viewer app

Use a symbol style to display a graphic on a graphics overlay.

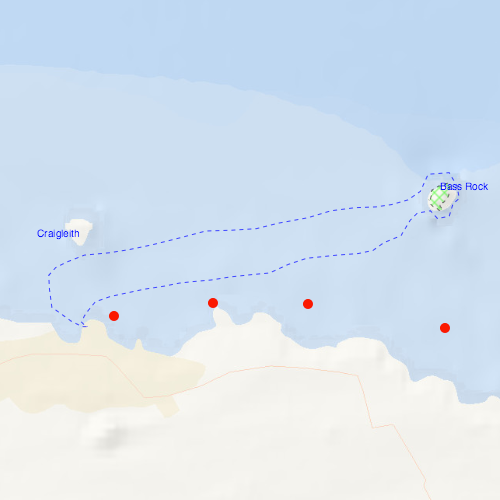

screenshot

Use case

Allows you to customize a graphic by assigning a unique symbol. For example, you may wish to display individual graphics for different landmarks across a region, and to style each one with a unique symbol.

How to use the sample

Pan and zoom around the map. Observe the graphics on the map.

How it works

  1. Create a GraphicsOverlay and add it to the MapView.
  2. Create a Symbol such as SimpleMarkerSymbol, SimpleLineSymbol or SimpleFillSymbol.
  3. Create a Graphic, specifying a Geometry and a Symbol.
  4. Add the Graphic to the GraphicsOverlay.

Relevant API

  • Geometry
  • Graphic
  • GraphicsOverlay
  • SimpleFillSymbol
  • SimpleLineSymbol
  • SimpleMarkerSymbol

Additional information

To set a symbol style across a number of graphics (e.g. showing trees as graphics sharing a symbol in a park), see the "Add graphics with renderer" sample.

Tags

display, fill, graphics, line, marker, overlay, point, symbol

Sample Code

GOSymbols.cppGOSymbols.cppGOSymbols.hGOSymbols.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
// [WriteFile Name=GOSymbols, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "GOSymbols.h"

#include "Map.h"
#include "MapQuickView.h"
#include "SpatialReference.h"
#include "Point.h"
#include "PolylineBuilder.h"
#include "Polyline.h"
#include "PolygonBuilder.h"
#include "Polygon.h"
#include "Graphic.h"
#include "GraphicsOverlay.h"
#include "SimpleMarkerSymbol.h"
#include "SimpleLineSymbol.h"
#include "SimpleFillSymbol.h"
#include "TextSymbol.h"
#include "SimpleRenderer.h"
#include <QList>

using namespace Esri::ArcGISRuntime;

GOSymbols::GOSymbols(QQuickItem* parent) :
  QQuickItem(parent)
{
}

GOSymbols::~GOSymbols() = default;

void GOSymbols::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<GOSymbols>("Esri.Samples", 1, 0, "GOSymbolsSample");
}

void GOSymbols::componentComplete()
{
  //! [GOSymbols create graphics overlay]
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");

  // Create a map using the oceans basemap
  constexpr double lat = 56.075844;
  constexpr double lon = -2.681572;
  constexpr double scale = 288895.277144;
  m_map = new Map(BasemapStyle::ArcGISOceans, this);
  m_map->setInitialViewpoint(Viewpoint(lat, lon, scale));
  // set map on the map view
  m_mapView->setMap(m_map);

  // create a new graphics overlay
  GraphicsOverlay* graphicsOverlay = new GraphicsOverlay(this);

  // add the overlay to the mapview
  m_mapView->graphicsOverlays()->append(graphicsOverlay);
  //! [GOSymbols create graphics overlay]

  //! [GOSymbols add all graphics]
  // add graphics to the graphics overlays
  //  add point graphics
  addBuoyPoints(graphicsOverlay);

  // add line graphics
  addBoatTrip(graphicsOverlay);

  // add polygon graphics
  addNestingGround(graphicsOverlay);

  // add text
  addText(graphicsOverlay);
  //! [GOSymbols add all graphics]
}

//! [GOSymbols addBuoyPoints]
void GOSymbols::addBuoyPoints(GraphicsOverlay* graphicsOverlay)
{
  // create a list of points
  const QList<Point> pointsList { Point(-2.712642647560347, 56.062812566811544, SpatialReference::wgs84())
                                , Point(-2.6908416959572303, 56.06444173689877, SpatialReference::wgs84())
                                , Point(-2.6697273884990937, 56.064250073402874, SpatialReference::wgs84())
                                , Point(-2.6395150461199726, 56.06127916736989, SpatialReference::wgs84())
                          };

  // create the symbology for the points
  constexpr float size = 10.0f;
  SimpleMarkerSymbol* sms = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Circle, QColor("red"), size, this);

  // create a graphic and add each of them to the overlay
  for (const Point& buoyPoint : pointsList)
  {
    Graphic* graphic = new Graphic(buoyPoint, this);
    graphic->setSymbol(sms);
    graphicsOverlay->graphics()->append(graphic);
  }
}
//! [GOSymbols addBuoyPoints]

//! [GOSymbols addBoatTrip]
void GOSymbols::addBoatTrip(GraphicsOverlay* graphicsOverlay)
{
  constexpr float width = 1.0f;
  SimpleLineSymbol* sls = new SimpleLineSymbol(SimpleLineSymbolStyle::Dash, QColor(0, 0, 255, 180), width, this);

  // json for the polyline
  QString polylineJson = "{\"paths\":[[[-2.7184791227926772,56.06147084563517],"
                         "[-2.7196807500463924,56.06147084563517],"
                         "[-2.722084004553823,56.062141712059706],"
                         "[-2.726375530459948,56.06386674355254],"
                         "[-2.726890513568683,56.0660708381432],"
                         "[-2.7270621746049275,56.06779569383808],"
                         "[-2.7255172252787228,56.068753913653914],"
                         "[-2.723113970771293,56.069424653352335],"
                         "[-2.719165766937657,56.07028701581465],"
                         "[-2.713672613777817,56.070574465681325],"
                         "[-2.7093810878716917,56.07095772883556],"
                         "[-2.7044029178205866,56.07153261642126],"
                         "[-2.698223120515766,56.072394931722265],"
                         "[-2.6923866452834355,56.07325722773041],"
                         "[-2.68672183108735,56.07335303720707],"
                         "[-2.6812286779275096,56.07354465544585],"
                         "[-2.6764221689126497,56.074215311778964],"
                         "[-2.6698990495353394,56.07488595644139],"
                         "[-2.6647492184479886,56.075748196715914],"
                         "[-2.659427726324393,56.076131408423215],"
                         "[-2.654792878345778,56.07622721075461],"
                         "[-2.651359657620878,56.076514616319784],"
                         "[-2.6477547758597324,56.07708942101955],"
                         "[-2.6450081992798125,56.07814320736718],"
                         "[-2.6432915889173625,56.08025069360931],"
                         "[-2.638656740938747,56.08044227755186],"
                         "[-2.636940130576297,56.078813783674946],"
                         "[-2.636425147467562,56.07728102068079],"
                         "[-2.637798435757522,56.076610417698504],"
                         "[-2.638656740938747,56.07507756705851],"
                         "[-2.641231656482422,56.07479015077557],"
                         "[-2.6427766058086277,56.075748196715914],"
                         "[-2.6456948434247924,56.07546078543464],"
                         "[-2.647239792750997,56.074598538729404],"
                         "[-2.6492997251859376,56.072682365868616],"
                         "[-2.6530762679833284,56.0718200569986],"
                         "[-2.655479522490758,56.070861913404286],"
                         "[-2.6587410821794135,56.07047864929729],"
                         "[-2.6633759301580286,56.07028701581465],"
                         "[-2.666637489846684,56.07009538137926],"
                         "[-2.670070710571584,56.06990374599109],"
                         "[-2.6741905754414645,56.069137194910745],"
                         "[-2.678310440311345,56.06808316228391],"
                         "[-2.682086983108735,56.06789151689155],"
                         "[-2.6868934921235956,56.06760404701653],"
                         "[-2.6911850180297208,56.06722075051504],"
                         "[-2.695133221863356,56.06702910083509],"
                         "[-2.698223120515766,56.066837450202335],"
                         "[-2.7016563412406667,56.06645414607839],"
                         "[-2.7061195281830366,56.0660708381432],"
                         "[-2.7100677320166717,56.065591697864576],"
                         "[-2.713329291705327,56.06520838135397],"
                         "[-2.7167625124302273,56.06453756828941],"
                         "[-2.718307461756433,56.06348340989081],"
                         "[-2.719165766937657,56.062812566811544],"
                         "[-2.7198524110826376,56.06204587471371],"
                         "[-2.719165766937657,56.06166252294756],"
                         "[-2.718307461756433,56.06147084563517]]],"
                         "\"spatialReference\":{\"wkid\":4326}}";

  // create a polyline from the json
  Esri::ArcGISRuntime::Polyline polyline = Polyline::fromJson(polylineJson);
  // create a new graphic using the polyline geometry
  Graphic* graphic = new Graphic(polyline, this);
  // set the symbology for the graphic
  graphic->setSymbol(sls);
  // add the graphic to the graphics overlay
  graphicsOverlay->graphics()->append(graphic);
}
//! [GOSymbols addBoatTrip]

//! [GOSymbols addNestingGround]
void GOSymbols::addNestingGround(GraphicsOverlay* graphicsOverlay)
{
  // outline for the polygon
  constexpr float width = 1.0f;
  SimpleLineSymbol* outline = new SimpleLineSymbol(SimpleLineSymbolStyle::Dash, QColor(0, 0, 0, 128), width, this);
  // create a fill symbol for a polygon
  SimpleFillSymbol* sfs = new SimpleFillSymbol(SimpleFillSymbolStyle::DiagonalCross, QColor(0, 255, 0, 128), outline, this);

  // create a graphic using polygon as the geometry
  Graphic* graphic = new Graphic(createNestingGround(), this);
  // set the symbology for the graphic
  graphic->setSymbol(sfs);
  // add the graphic to the overlay
  graphicsOverlay->graphics()->append(graphic);
}
//! [GOSymbols addNestingGround]

//! [GOSymbols addText]
void GOSymbols::addText(GraphicsOverlay* graphicsOverlay)
{
  // text symbol
  const float size = 10.0f;
  TextSymbol* textSymbolBassRock = new TextSymbol(QString("Bass Rock"), QColor("blue"), size, HorizontalAlignment::Left, VerticalAlignment::Bottom, this);
  TextSymbol* textSymbolCraigleith = new TextSymbol(QString("Craigleith"), QColor("blue"), size, HorizontalAlignment::Right, VerticalAlignment::Top, this);

  // geometry for the graphics
  Point bassRock(-2.640631, 56.078083, SpatialReference::wgs84());
  Point craigleith(-2.720324, 56.073569, SpatialReference::wgs84());

  // create the graphics and set their symbology
  Graphic* graphicBass = new Graphic(bassRock, this);
  graphicBass->setSymbol(textSymbolBassRock);

  Graphic* graphicCraig = new Graphic(craigleith, this);
  graphicCraig->setSymbol(textSymbolCraigleith);

  // add the graphics to the overlay
  graphicsOverlay->graphics()->append(graphicBass);
  graphicsOverlay->graphics()->append(graphicCraig);
}
//! [GOSymbols addText]

//! [GOSymbols createNestingGround]
// create the polygon geometry
Geometry GOSymbols::createNestingGround()
{
  PolygonBuilder nestingGroundPolygonBuilder(SpatialReference::wgs84());

  // create the polygon using the builder class
  nestingGroundPolygonBuilder.addPoint(-2.643077012566659, 56.077125346044475);
  nestingGroundPolygonBuilder.addPoint(-2.6428195210159444, 56.07717324600376);
  nestingGroundPolygonBuilder.addPoint(-2.6425405718360033, 56.07774804087097);
  nestingGroundPolygonBuilder.addPoint(-2.6427122328698127, 56.077927662508635);
  nestingGroundPolygonBuilder.addPoint(-2.642454741319098, 56.07829887790651);
  nestingGroundPolygonBuilder.addPoint(-2.641853927700763, 56.078526395253725);
  nestingGroundPolygonBuilder.addPoint(-2.6409741649024867, 56.078801809192434);
  nestingGroundPolygonBuilder.addPoint(-2.6399871139580795, 56.07881378366685);
  nestingGroundPolygonBuilder.addPoint(-2.6394077579689705, 56.07908919555142);
  nestingGroundPolygonBuilder.addPoint(-2.638764029092183, 56.07917301616904);
  nestingGroundPolygonBuilder.addPoint(-2.638485079912242, 56.07896945149566);
  nestingGroundPolygonBuilder.addPoint(-2.638570910429147, 56.078203080726844);
  nestingGroundPolygonBuilder.addPoint(-2.63878548672141, 56.077568418396);
  nestingGroundPolygonBuilder.addPoint(-2.6391931816767085, 56.077197195961084);
  nestingGroundPolygonBuilder.addPoint(-2.6399441986996273, 56.07675411934114);
  nestingGroundPolygonBuilder.addPoint(-2.6406523004640934, 56.076730169108444);
  nestingGroundPolygonBuilder.addPoint(-2.6406737580933193, 56.07632301287509);
  nestingGroundPolygonBuilder.addPoint(-2.6401802326211157, 56.075999679860494);
  nestingGroundPolygonBuilder.addPoint(-2.6402446055087943, 56.075844000034046);
  nestingGroundPolygonBuilder.addPoint(-2.640416266542604, 56.07578412301025);
  nestingGroundPolygonBuilder.addPoint(-2.6408883343855822, 56.075808073830935);
  nestingGroundPolygonBuilder.addPoint(-2.6417680971838577, 56.076239186057734);
  nestingGroundPolygonBuilder.addPoint(-2.642197249768383, 56.076251161328514);
  nestingGroundPolygonBuilder.addPoint(-2.6428409786451708, 56.07661041772168);
  nestingGroundPolygonBuilder.addPoint(-2.643077012566659, 56.077125346044475);

  return nestingGroundPolygonBuilder.toGeometry();
}
//! [GOSymbols createNestingGround]

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
