Custom dictionary style

View inQMLC++
View on GitHub
Sample viewer app

Use a custom dictionary style created from a web style or local style file (.stylx) to symbolize features using a variety of attribute values.

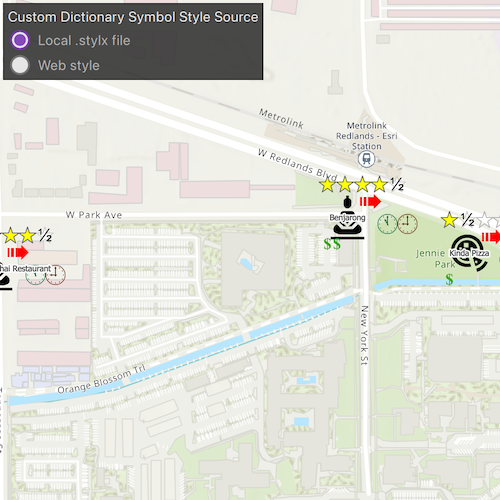

screenshot

Use case

When symbolizing geoelements in your map, you may need to convey several pieces of information with a single symbol. You could try to symbolize such data using a unique value renderer, but as the number of fields and values increases, that approach becomes impractical. With a dictionary renderer you can build each symbol on-the-fly, driven by one or more attribute values, and handle a nearly infinite number of unique combinations.

How to use the sample

Use the radio buttons to toggle between the dictionary symbols from the web style and style file. Pan and zoom around the map to see the symbology from the chosen dictionary symbol style. The web style and style file are slightly different to each other to give a visual indication of the switch between the two.

How it works

  1. Create a PortalItem, referring to a Portal and the item ID of the web style.
  2. Based on the style selected:
    • If the web style toggle has been selected, create a new DictionarySymbolStyle from the portal item using new DictionarySymbolStyle(PortalItem *portalItem), and load it
    • If the file style toggle has been selected, create a new DictionarySymbolStyle using DictionarySymbolStyle::createFromFile(const QString &styleFilePath)
  3. Create a new DictionaryRenderer, providing the dictionary symbol style.
  4. Apply the dictionary renderer to a feature layer using FeatureLayer::setRenderer(Renderer *renderer).
  5. Add the feature layer to the map's operational layers using Map::OperationalLayers::append(Layer* layer).

Relevant API

  • DictionaryRenderer
  • DictionarySymbolStyle
  • Portal
  • PortalItem

About the data

Data used in this sample are from a feature layer showing a subset of restaurants in Redlands, CA hosted as a feature service with attributes for rating, style, health score, and open hours.

The feature layer is symbolized using a dictionary renderer that displays a single symbol for all of these variables. The renderer uses symbols from a custom restaurant dictionary style created from a stylx file and a web style, available as items from ArcGIS Online, to show unique symbols based on several feature attributes. The symbols it contains were created using ArcGIS Pro. The logic used to apply the symbols comes from an Arcade script embedded in the stylx file (which is a SQLite database), along with a JSON string that defines expected attribute names and configuration properties.

Additional information

For information about creating your own custom dictionary style, see the open source dictionary renderer toolkit on GitHub.

Tags

dictionary, military, portal, portal item, renderer, style, stylx, unique value, visualization

Sample Code

CustomDictionaryStyle.cppCustomDictionaryStyle.cppCustomDictionaryStyle.hCustomDictionaryStyle.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
// [WriteFile Name=CustomDictionaryStyle, Category=DisplayInformation]
// [Legal]
// Copyright 2019 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "CustomDictionaryStyle.h"

#include "DictionaryRenderer.h"
#include "DictionarySymbolStyle.h"
#include "FeatureLayer.h"
#include "Map.h"
#include "MapQuickView.h"
#include "ServiceFeatureTable.h"
#include "Viewpoint.h"
#include "PortalItem.h"

#include <QDir>
#include <QtCore/qglobal.h>

#ifdef Q_OS_IOS
#include <QStandardPaths>
#endif // Q_OS_IOS

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
QString defaultDataPath()
{
  QString dataPath;

#ifdef Q_OS_ANDROID
  dataPath = "/sdcard";
#elif defined Q_OS_IOS
  dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
  dataPath = QDir::homePath();
#endif

  return dataPath;
}
} // namespace

CustomDictionaryStyle::CustomDictionaryStyle(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISTopographic, this))
{
  // Set an initial viewpoint
  Viewpoint viewpoint(Point(-13'046'305, 4'036'698, SpatialReference(3857)), 5000);
  m_map->setInitialViewpoint(viewpoint);

  // Create a feature layer from a feature service and it to the map
  ServiceFeatureTable* featureTable = new ServiceFeatureTable(QUrl("https://services2.arcgis.com/ZQgQTuoyBrtmoGdP/arcgis/rest/services/Redlands_Restaurants/FeatureServer/0"), this);
  m_featureLayer = new FeatureLayer(featureTable, this);
  m_map->operationalLayers()->append(m_featureLayer);

  // Create a DictionaryRenderer using the local .stylx file
  DictionarySymbolStyle* localDictionaryStyle = DictionarySymbolStyle::createFromFile(defaultDataPath() + "/ArcGIS/Runtime/Data/styles/arcade_style/Restaurant.stylx", this);
  m_localDictionaryRenderer = new DictionaryRenderer(localDictionaryStyle, this);

  // Set initial FeatureLayer renderer to the local DictionaryRenderer
  m_featureLayer->setRenderer(m_localDictionaryRenderer);

  // Create a DictionarySymbolStyle from a portal item, using the default arcgis.com path
  PortalItem* portalItem = new PortalItem("adee951477014ec68d7cf0ea0579c800", this);
  DictionarySymbolStyle* dictSymbStyleFromPortal = new DictionarySymbolStyle(portalItem, this);

  // The source feature layer fields do not match those of the the DictionarySymbolStyle so we create a fieldMap to correct this
  QMap<QString, QString> fieldMap;
  // With the following override, the feature layer's "inspection" field will be mapped to the dictionary symbol style's "healthgrade" field
  fieldMap["healthgrade"] = "inspection";
  m_webDictionaryRenderer = new DictionaryRenderer(dictSymbStyleFromPortal, fieldMap, fieldMap, this);
}

void CustomDictionaryStyle::changeDictionarySymbolStyleSource()
{
  m_featureLayer->setRenderer(m_featureLayer->renderer() == m_webDictionaryRenderer ? m_localDictionaryRenderer : m_webDictionaryRenderer);
}

CustomDictionaryStyle::~CustomDictionaryStyle() = default;

void CustomDictionaryStyle::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<CustomDictionaryStyle>("Esri.Samples", 1, 0, "CustomDictionaryStyleSample");
}

MapQuickView* CustomDictionaryStyle::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void CustomDictionaryStyle::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  emit mapViewChanged();
}
