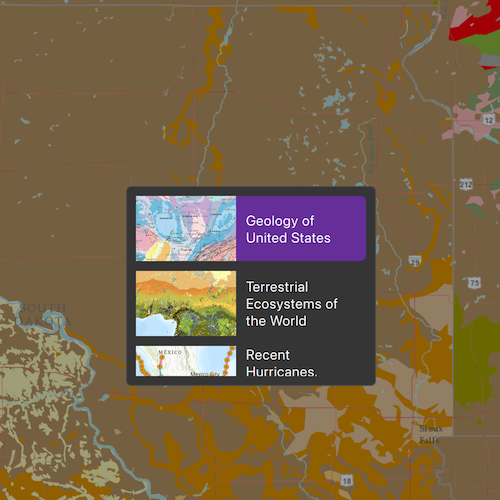

Display a web map.

screenshot

Use case

For displaying web maps stored on ArcGIS Online (e.g. soil survey results, as demonstrated in this sample).

How to use the sample

A web map can be selected from the drop-down list. On selection the web map displays in the map view.

How it works

  1. Create a URL comprised of the Organization's Portal URL and the webmap of interest.
  2. Create a Map using the URL.
  3. Set the map to the MapView.

Relevant API

  • Map
  • MapView

Additional information

Mobile map packages can also include address locators and geometric networks. For an example of this, see the "Mobile Map Search and Route Sample".

Tags

portal item, web map

Sample Code

OpenMapUrl.qmlOpenMapUrl.cppOpenMapUrl.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
// [WriteFile Name=OpenMapUrl, Category=Maps]
// [Legal]
// Copyright 2016 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick 2.6
import QtQuick.Controls 2.2
import QtGraphicalEffects 1.0
import Esri.Samples 1.0

OpenMapUrlSample {
    id: openMapUrlSample
    width: 800
    height: 600

    // add a mapView component
    MapView {
        id: mapView
        anchors.fill: parent
        objectName: "mapView"
    }

    // Create a list model with information about different webmaps
    ListModel {
       id: webmapsListModel
       ListElement { itemTitle: "Population Pressure"; imageUrl: "qrc:/Samples/Maps/OpenMapUrl/population.png"; itemId: "392451c381ad4109bf04f7bd442bc038"}
       ListElement { itemTitle: "USA Tapestry Segmentation"; imageUrl: "qrc:/Samples/Maps/OpenMapUrl/Tapestry.png"; itemId: "01f052c8995e4b9e889d73c3e210ebe3"}
       ListElement { itemTitle: "Geology of United States"; imageUrl: "qrc:/Samples/Maps/OpenMapUrl/geology.jpg"; itemId: "92ad152b9da94dee89b9e387dfe21acd"}
    }

    // Create a delegate for how the webmaps display in the view
    Component {
       id: webmapsDelegate
       Item {
           width: parent.width
           height: 65

           Row {
               spacing: 10
               Image {
                   source: imageUrl
                   width: 100
                   height: 65
               }
               Row {
                   anchors.verticalCenter: parent.verticalCenter
                   Text {
                       width: 100
                       text: itemTitle
                       wrapMode: Text.WordWrap
                   }
               }
           }
           MouseArea {
               anchors.fill: parent
               // When an item in the list view is clicked
               onClicked: {
                    webmapsListView.currentIndex = index;
                   // Call C++ invokable function to open the map from a webmap Url using this item id
                    openMap(itemId);
                    mapPickerWindow.visible = false;
               }
           }
       }
    }

    // Create a window to display the different webmaps that can be selected
    Rectangle {
       id: mapPickerWindow
       anchors.fill: parent
       color: "transparent"

       RadialGradient {
           anchors.fill: parent
           opacity: 0.7
           gradient: Gradient {
               GradientStop { position: 0.0; color: "lightgrey" }
               GradientStop { position: 0.7; color: "black" }
           }
       }

       MouseArea {
           anchors.fill: parent
           onClicked: mouse.accepted = true
           onWheel: wheel.accepted = true
       }

       Rectangle {
           anchors.centerIn: parent
           width: 250
           height: 200
           color: "lightgrey"
           opacity: .8
           radius: 5
           border {
               color: "#4D4D4D"
               width: 1
           }

           // Create a list view to display the items
           ListView {
               id: webmapsListView
               anchors {
                   fill: parent
                   margins: 10
               }
               // Assign the model to the list model of webmaps
               model: webmapsListModel
               // Assign the delegate to the delegate created above
               delegate: webmapsDelegate
               spacing: 10
               clip: true
               highlightFollowsCurrentItem: true
               highlight: Rectangle { color: "lightsteelblue"; radius: 5 }
               focus: true
           }
       }
    }

    // Create a button to show the map picker window
    Rectangle {
       id: switchButton
       property bool pressed: false
       visible: !mapPickerWindow.visible
       anchors {
           right: parent.right
           bottom: parent.bottom
           rightMargin: 20
           bottomMargin: 40
       }

       width: 45
       height: width
       color: pressed ? "#959595" : "#D6D6D6"
       radius: 100
       border {
           color: "#585858"
           width: 1
       }

       Image {
           anchors.centerIn: parent
           width: 35
           height: width
           source: "qrc:/Samples/Maps/OpenMapUrl/SwitchMap.png"
       }

       MouseArea {
           anchors.fill: parent
           onPressed: switchButton.pressed = true
           onReleased: switchButton.pressed = false
           onClicked: {
               // Show the add window when it is clicked
               mapPickerWindow.visible = true;
           }
       }
    }
}
