View point cloud data offline

View inQMLC++
View on GitHub
Sample viewer app

Display local 3D point cloud data.

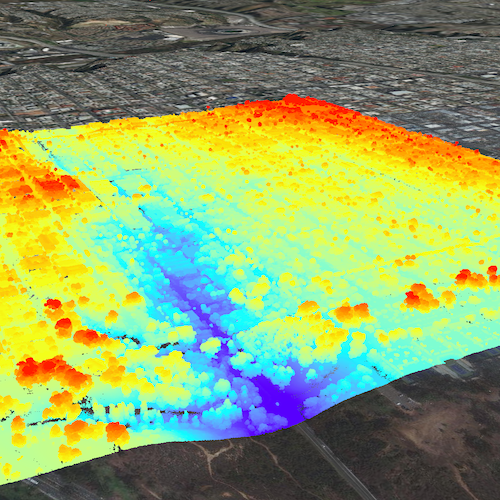

screenshot

Use case

Point clouds are often used to visualize massive sets of sensor data such as lidar. The point locations indicate where the sensor data was measured spatially, and the color or size of the points indicate the measured/derived value of the sensor reading. In the case of lidar, the color of the visualized point could be the color of the reflected light, so that the point cloud forms a true color 3D image of the area.

Point clouds can be loaded offline from scene layer packages (.slpk).

How to use the sample

The sample starts with a point cloud layer loaded and draped on top of a scene. Pan and zoom to explore the scene and see the detail of the point cloud layer.

How it works

  1. Create a PointCloudLayer with the path to a local .slpk file containing a point cloud layer.
  2. Add the layer to a scene's operational layers collection.

Relevant API

  • PointCloudLayer

About the data

This point cloud data comes from Balboa Park in San Diego, California. Created and provided by USGS.

Offline data

Read more about how to set up the sample's offline data here.

Link Local Location
San Diego Point Cloud SLPK <userhome>/ArcGIS/Runtime/Data/slpk/sandiego-north-balboa-pointcloud.slpk

Tags

3D, point cloud, lidar

Sample Code

ViewPointCloudDataOffline.cppViewPointCloudDataOffline.cppViewPointCloudDataOffline.hViewPointCloudDataOffline.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
// [WriteFile Name=ViewPointCloudDataOffline, Category=Scenes]
// [Legal]
// Copyright 2018 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "ViewPointCloudDataOffline.h"

#include "ArcGISTiledElevationSource.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "PointCloudLayer.h"

#include <QDir>
#include <QtCore/qglobal.h>

#ifdef Q_OS_IOS
#include <QStandardPaths>
#endif // Q_OS_IOS

using namespace Esri::ArcGISRuntime;

ViewPointCloudDataOffline::ViewPointCloudDataOffline(QObject* parent /* = nullptr */):
  QObject(parent),
  m_scene(new Scene(BasemapStyle::ArcGISImageryStandard, this))
{
  // create a new elevation source from Terrain3D service
  ArcGISTiledElevationSource* elevationSource = new ArcGISTiledElevationSource(
        QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"), this);

  // add the elevation source to the scene to display elevation
  m_scene->baseSurface()->elevationSources()->append(elevationSource);
}

ViewPointCloudDataOffline::~ViewPointCloudDataOffline() = default;

void ViewPointCloudDataOffline::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<ViewPointCloudDataOffline>("Esri.Samples", 1, 0, "ViewPointCloudDataOfflineSample");
}
SceneQuickView* ViewPointCloudDataOffline::sceneView() const
{
  return m_sceneView;
}

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

  #ifdef Q_OS_ANDROID
    dataPath = "/sdcard";
  #elif defined Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
  #else
    dataPath = QDir::homePath();
  #endif

    return dataPath;
  }
}

// Set the view (created in QML)
void ViewPointCloudDataOffline::setSceneView(SceneQuickView* sceneView)
{
  if (!sceneView || sceneView == m_sceneView)
  {
    return;
  }

  m_sceneView = sceneView;
  m_sceneView->setArcGISScene(m_scene);

  // create the point cloud layer
  const QUrl pointCloudLyrUrl(defaultDataPath() + "/ArcGIS/Runtime/Data/slpk/sandiego-north-balboa-pointcloud.slpk");
  PointCloudLayer* pointCloudLyr = new PointCloudLayer(pointCloudLyrUrl, this);

  // zoom to layer once loaded
  connect(pointCloudLyr, &PointCloudLayer::doneLoading, this, [this, pointCloudLyr](Error e)
  {
    if (!e.isEmpty())
      return;

    m_sceneView->setViewpoint(Viewpoint(pointCloudLyr->fullExtent()));
  });

  // add the layer to the scene
  m_scene->operationalLayers()->append(pointCloudLyr);

  emit sceneViewChanged();
}
