Sync map and scene views

View inQMLC++
View on GitHub
Sample viewer app

Keep the viewpoints of two views (e.g. MapView and SceneView) synchronized with each other.

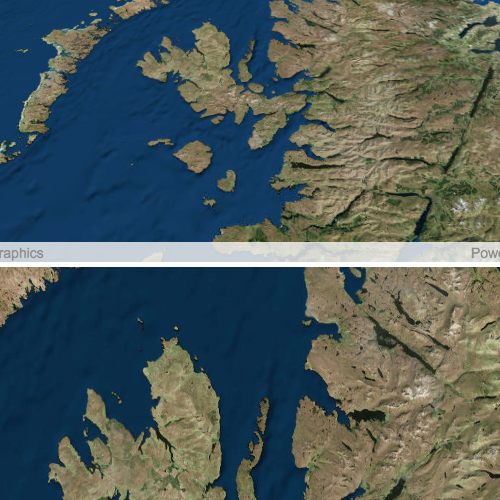

screenshot

Use case

You might need to synchronize GeoView viewpoints if you had two map views in one application - a main map and an inset. An inset map view could display all the layers at their full extent and contain a hollow rectangular graphic that represents the visible extent of the main map view. As you zoom or pan in the main map view, the extent graphic in the inset map would adjust accordingly.

How to use the sample

Interact with the MapView or SceneView by zooming or panning. The other MapView or SceneView will automatically focus on the same viewpoint.

How it works

  1. Wire up both SceneQuickView::viewpointChanged and MapQuickView::viewpointChanged signals for both geo views.
  2. In each slot, get the current viewpoint from the geo view that is being interacted with and then set the viewpoint of the other geo view to the same value.
  3. Note: The reason for setting the viewpoints in multiple slots is to account for different types of interactions that can occur (ie. single click pan -vs- continuous pan, single click zoom in -vs- mouse scroll wheel zoom, etc.).

Relevant API

  • currentViewpoint
  • GeoView
  • MapView
  • SceneView
  • setViewpoint
  • viewpointChanged

About the data

This application provides two different perspectives of the Imagery basemap. A 2D MapView as well as a 3D SceneView, displayed side by side.

Tags

3D, automatic refresh, event, event handler, events, extent, interaction, interactions, pan, sync, synchronize, zoom

Sample Code

SyncMapViewSceneView.cppSyncMapViewSceneView.cppSyncMapViewSceneView.hSyncMapViewSceneView.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
// [WriteFile Name=SyncMapViewSceneView, Category=Scenes]
// [Legal]
// Copyright 2018 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "SyncMapViewSceneView.h"

#include "ArcGISTiledElevationSource.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "Map.h"
#include "MapQuickView.h"

using namespace Esri::ArcGISRuntime;

SyncMapViewSceneView::SyncMapViewSceneView(QObject* parent /* = nullptr */):
  QObject(parent),
  m_scene(new Scene(BasemapStyle::ArcGISImageryStandard, this)),
  m_map(new Map(BasemapStyle::ArcGISImageryStandard, this))
{
}

SyncMapViewSceneView::~SyncMapViewSceneView() = default;

void SyncMapViewSceneView::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<SyncMapViewSceneView>("Esri.Samples", 1, 0, "SyncMapViewSceneViewSample");
}

SceneQuickView* SyncMapViewSceneView::sceneView() const
{
  return m_sceneView;
}

// Set the view (created in QML)
void SyncMapViewSceneView::setSceneView(SceneQuickView* sceneView)
{
  if (!sceneView || sceneView == m_sceneView)
  {
    return;
  }

  m_sceneView = sceneView;
  m_sceneView->setArcGISScene(m_scene);

  connect(m_sceneView, &SceneQuickView::viewpointChanged, this,
          [this]
  {
    if (m_mapView && m_sceneView->isNavigating())
      m_mapView->setViewpoint(m_sceneView->currentViewpoint(ViewpointType::CenterAndScale), 0);

  });

  emit sceneViewChanged();
}

MapQuickView* SyncMapViewSceneView::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void SyncMapViewSceneView::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
  {
    return;
  }

  m_mapView = mapView;
  m_mapView->setMap(m_map);
  m_mapView->setRotationByPinchingEnabled(true);

  connect(m_mapView, &MapQuickView::viewpointChanged, this,
          [this]
  {
    if (m_sceneView && m_mapView->isNavigating())
      m_sceneView->setViewpoint(m_mapView->currentViewpoint(ViewpointType::CenterAndScale), 0);

  },
  Qt::UniqueConnection); // lambda-unique-connection: Finds usages of Qt::UniqueConnection when the slot is a functor, lambda or non-member function. That connect() overload does not support Qt::UniqueConnection.

  emit mapViewChanged();
}
