Create terrain surface from a local tile package

View inQMLC++
View on GitHub
Sample viewer app

Set the terrain surface with elevation described by a local tile package.

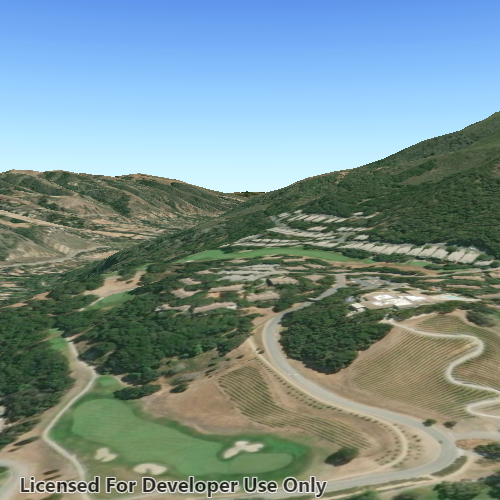

screenshot

Use case

In a scene view, the terrain surface is what the basemap, operational layers, and graphics are draped onto. For example, when viewing a scene in a mountainous region, applying a terrain surface to the scene will help in recognizing the slopes, valleys, and elevated areas.

How to use the sample

When loaded, the sample will show a scene with a terrain surface applied. Pan and zoom to explore the scene and observe how the terrain surface allows visualizing elevation differences.

How it works

  1. Create a Scene and add it to a SceneView.
  2. Create an ArcGISTiledElevationSource from a local tile package (.tpkx)
  3. Add this source to the scene's base surface: Scene::baseSurface::elevationSources::append(tileElevationSource)

Relevant API

  • ArcGISTiledElevationSource
  • Surface

Offline data

This sample uses the Monterey Elevation tile package, using CompactV2 storage format (.tpkx).

Read more about how to set up the sample's offline data here.

The tile package must be a LERC (limited error raster compression) encoded TPK/TPKX. Details on can be found in the topic Share a tile package in the ArcGIS Pro documentation.

Additional information

See the ArcGIS Pro Tile Package documentation (since Esri.ArcGISRuntime 100.1) for information on tile packages

Tags

3D, elevation, LERC, surface, terrain, tile cache

Sample Code

CreateTerrainSurfaceFromLocalTilePackage.cppCreateTerrainSurfaceFromLocalTilePackage.cppCreateTerrainSurfaceFromLocalTilePackage.hCreateTerrainSurfaceFromLocalTilePackage.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
// [WriteFile Name=CreateTerrainSurfaceFromLocalTilePackage, Category=Scenes]
// [Legal]
// Copyright 2019 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "CreateTerrainSurfaceFromLocalTilePackage.h"

#include "ArcGISTiledElevationSource.h"
#include "Scene.h"
#include "SceneQuickView.h"

#include <QDir>
#include <QUrl>

#ifdef Q_OS_IOS
#include <QStandardPaths>
#endif

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

    #ifdef Q_OS_ANDROID
      dataPath = "/sdcard";
    #elif defined Q_OS_IOS
      dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
    #else
      dataPath = QDir::homePath();
    #endif

    return dataPath;
  }
}

using namespace Esri::ArcGISRuntime;

CreateTerrainSurfaceFromLocalTilePackage::CreateTerrainSurfaceFromLocalTilePackage(QObject* parent /* = nullptr */):
  QObject(parent),
  m_scene(new Scene(BasemapStyle::ArcGISImageryStandard, this))
{
  // create the MontereyElevation data path
  // data is downloaded automatically by the sample viewer app. Instructions to download
  // separately are specified in the readme.
  const QString montereyTileElevationPath = QString{defaultDataPath() + "/ArcGIS/Runtime/Data/tpkx/MontereyElevation.tpkx"};

  // Before attempting to add any layers, check that the file for the elevation source exists at all.
  const bool srcElevationFileExists = QFileInfo::exists(montereyTileElevationPath);

  if(srcElevationFileExists)
  {
    // Create the elevation source from the local raster(s). RasterElevationSource can take multiple files as inputs, but in this case only takes one.
    ArcGISTiledElevationSource* elevationSrc = new ArcGISTiledElevationSource{montereyTileElevationPath, this};

    // When the elevation source is finished loading, call the elevationSrcFinishedLoading callback, so we can tell if it loaded succesfully.
    connect(elevationSrc, &ArcGISTiledElevationSource::doneLoading, this, &CreateTerrainSurfaceFromLocalTilePackage::elevationSrcFinishedLoading);

    // add the elevation source to the scene to display elevation
    m_scene->baseSurface()->elevationSources()->append(elevationSrc);
  }
  else
  {
    qDebug() << "Could not find file at : " << montereyTileElevationPath << ". Elevation source not set.";
  }
}

void CreateTerrainSurfaceFromLocalTilePackage::elevationSrcFinishedLoading(Esri::ArcGISRuntime::Error loadError)
{
  if(loadError.isEmpty())
  {
    // Succesful load
    qDebug() << "Loaded tile elevation source succesfully";
  }
  else {
    // Log failure to load
    qDebug() << "Error loading elevation source : " << loadError.message();
  }
}

CreateTerrainSurfaceFromLocalTilePackage::~CreateTerrainSurfaceFromLocalTilePackage() = default;

void CreateTerrainSurfaceFromLocalTilePackage::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<CreateTerrainSurfaceFromLocalTilePackage>("Esri.Samples", 1, 0, "CreateTerrainSurfaceFromLocalTilePackageSample");
}

SceneQuickView* CreateTerrainSurfaceFromLocalTilePackage::sceneView() const
{
  return m_sceneView;
}

// Set the view (created in QML)
void CreateTerrainSurfaceFromLocalTilePackage::setSceneView(SceneQuickView* sceneView)
{
  if (!sceneView || sceneView == m_sceneView)
  {
    return;
  }

  m_sceneView = sceneView;
  m_sceneView->setArcGISScene(m_scene);

  // Create a camera, looking at Monterey, California.
  constexpr double latitude = 36.51;
  constexpr double longitude = -121.80;
  constexpr double altitude = 300.0;
  constexpr double heading = 0.0;
  constexpr double pitch = 70.0;
  constexpr double roll = 0.0;
  Camera camera{latitude, longitude, altitude, heading, pitch, roll};

  // Set the sceneview to use above camera, waits for load so scene is immediately displayed in appropriate place.
  m_sceneView->setViewpointCameraAndWait(camera);

  emit sceneViewChanged();
}
