Use pictures for markers.

screenshot

Use case

When marking geoelements on a map, using custom, unique symbols can be helpful for highlighting and differentiating between locations. For example, a tourism office may use pictures of landmarks as symbols on an online map or app, to help prospective visitors to orient themselves more easily around a city.

How to use the sample

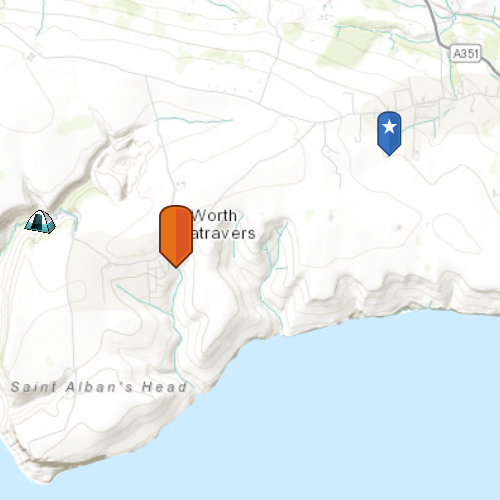

When launched, this sample displays a map with three picture marker symbols. Pan and zoom to explore the map.

How it works

  1. Create a PictureMarkerSymbol using the URL to an online or local image.
  2. Create a Graphic and set its symbol to the picture marker symbol.

Relevant API

  • PictureMarkerSymbol

Offline Data

To set up the sample's offline data, see the Use offline data in the samples section of the Qt Samples repository overview.

Link Local Location
orange_symbol Png File <userhome>/ArcGIS/Runtime/Data/symbol/orange_symbol.png

About the data

The picture marker symbols in this sample are all constructed from different types of resources:

  • Campsite symbol constructed from a URL
  • Blue pin with a star stored in the resource folder that comes with the application
  • Orange pin created from a file path on disk (which is written to disk when the app starts and cleaned up when the app closes).

Tags

graphics, marker, picture, symbol, visualization

Sample Code

Picture_Marker_Symbol.cppPicture_Marker_Symbol.cppPicture_Marker_Symbol.hPicture_Marker_Symbol.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
// [WriteFile Name=Picture_Marker_Symbol, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "Picture_Marker_Symbol.h"

#include "Map.h"
#include "Point.h"
#include "Graphic.h"
#include "Basemap.h"
#include "Viewpoint.h"
#include "MapQuickView.h"
#include "GraphicsOverlay.h"
#include "SpatialReference.h"
#include "PictureMarkerSymbol.h"

#include <QUrl>
#include <QString>
#include <QDir>
#include <QtCore/qglobal.h>

#ifdef Q_OS_IOS
#include <QStandardPaths>
#endif // Q_OS_IOS

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

  #ifdef Q_OS_ANDROID
    dataPath = "/sdcard";
  #elif defined Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
  #else
    dataPath = QDir::homePath();
  #endif

    return dataPath;
  }
} // namespace

Picture_Marker_Symbol::Picture_Marker_Symbol(QQuickItem* parent) :
  QQuickItem(parent),
  m_dataPath(defaultDataPath() + "/ArcGIS/Runtime/Data")
{
}

Picture_Marker_Symbol::~Picture_Marker_Symbol() = default;

void Picture_Marker_Symbol::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<Picture_Marker_Symbol>("Esri.Samples", 1, 0, "Picture_Marker_SymbolSample");
}

void Picture_Marker_Symbol::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");
  m_mapView->setWrapAroundMode(WrapAroundMode::Disabled);

  // Create a map using the topographic basemap
  m_map = new Map(BasemapStyle::ArcGISTopographic, this);

  // Set map to map view
  m_mapView->setMap(m_map);

  // set initial viewpoint
  m_map->setInitialViewpoint(Viewpoint(Envelope(-229100, 6550700, -223300, 6552100, SpatialReference::webMercator())));

  // create graphics overlay
  m_graphicsOverlay = new GraphicsOverlay(this);

  // create a campsite symbol from a URL
  PictureMarkerSymbol* campSymbol = new PictureMarkerSymbol(QUrl("https://sampleserver6.arcgisonline.com/arcgis/rest/services/Recreation/FeatureServer/0/images/e82f744ebb069bb35b234b3fea46deae"), this);
  setWidthAndHeight(campSymbol, 38.0f);
  Point campPoint(-228835, 6550763, SpatialReference::webMercator());
  addGraphic(campPoint, campSymbol);

  // create a blue symbol from a local resource
  PictureMarkerSymbol* blueSymbol = new PictureMarkerSymbol(QUrl("qrc:/Samples/DisplayInformation/Picture_Marker_Symbol/blue_symbol.png"), this);
  setWidthAndHeight(blueSymbol, 80.0f);
  Point blueSymbolPoint(-223560, 6552021, SpatialReference::webMercator());
  addGraphic(blueSymbolPoint, blueSymbol);

  // create an orange symbol from a file path
  PictureMarkerSymbol* orangeSymbol = new PictureMarkerSymbol(QUrl(m_dataPath + "/symbol/orange_symbol.png"), this);
  setWidthAndHeight(orangeSymbol, 64.0f);
  Point orangeSymbolPoint(-226773, 6550477, SpatialReference::webMercator());
  addGraphic(orangeSymbolPoint, orangeSymbol);

  // add GraphicsOverlay to MapView
  m_mapView->graphicsOverlays()->append(m_graphicsOverlay);
}

void Picture_Marker_Symbol::addGraphic(Point &point, PictureMarkerSymbol* symbol)
{
  // create graphic
  Graphic* graphic = new Graphic(point, symbol, this);
  // append to graphicsoverlay
  m_graphicsOverlay->graphics()->append(graphic);
}

void Picture_Marker_Symbol::setWidthAndHeight(PictureMarkerSymbol* symbol, float size)
{
  symbol->setWidth(size);
  symbol->setHeight(size);
}
