Analyze hotspots

View inQMLC++
View on GitHub
Sample viewer app

Use a geoprocessing service and a set of features to identify statistically significant hot spots and cold spots.

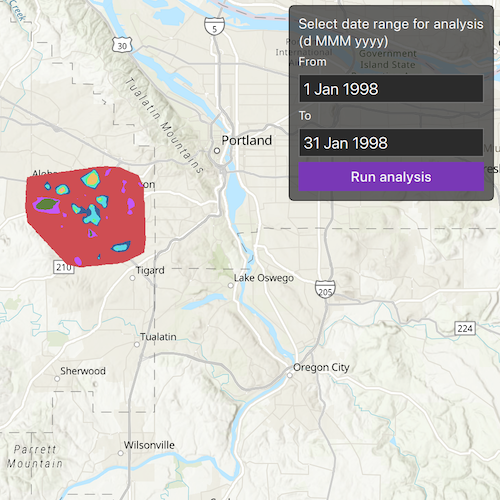

screenshot

Use case

This tool identifies statistically significant spatial clusters of high values (hot spots) and low values (cold spots). For example, a hotspot analysis based on the frequency of 911 calls within a set region.

How to use the sample

Select a date range (between 1998-01-01 and 1998-05-31) from the dialog and tap on Analyze. The results will be shown on the map upon successful completion of the GeoprocessingJob.

How it works

  1. Create a GeoprocessingTask with the URL set to the endpoint of a geoprocessing service.
  2. Create a query string with the date range as an input of GeoprocessingParameters.
  3. Use the GeoprocessingTask to create a GeoprocessingJob with the GeoprocessingParameters instance.
  4. Start the GeoprocessingJob and wait for it to complete and return a GeoprocessingResult.
  5. Get the resulting ArcGISMapImageLayer using GeoprocessingResult.getMapImageLayer.
  6. Add the layer to the map's operational layers.

Relevant API

  • GeoprocessingJob
  • GeoprocessingParameters
  • GeoprocessingResult
  • GeoprocessingTask

Tags

analysis, density, geoprocessing, hot spots, hotspots

Sample Code

AnalyzeHotspots.qmlAnalyzeHotspots.cppAnalyzeHotspots.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
// [WriteFile Name=AnalyzeHotspots, Category=Analysis]
// [Legal]
// Copyright 2017 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick 2.6
import QtQuick.Controls 2.2
import Qt.labs.calendar 1.0
import QtGraphicalEffects 1.0
import QtQuick.Layouts 1.3
import Esri.Samples 1.0

AnalyzeHotspotsSample {
    id: rootRectangle
    clip: true
    width: 800
    height: 600

    property date fromThisDate : Date.fromLocaleDateString(Qt.locale(), "98/01/01", "yy/MM/dd")
    property date toThisDate : Date.fromLocaleDateString(Qt.locale(), "98/01/31", "yy/MM/dd")

    // Declare the MapView
    MapView {
        anchors.fill: parent
        objectName: "mapView"
    }

    onDisplayErrorDialog: {
        messageDialog.title = "Error";
        messageDialog.text = titleText;
        messageDialog.detailedText = detailedText;
        messageDialog.open();
    }

    // Create the settings rectangle to set dates and execute the task
    Rectangle {
        anchors {
            margins: -10
            fill: settingsColumn
        }
        color: "lightgrey"
        radius: 5
        border.color: "black"
        opacity: 0.75
    }

    Column {
        id: settingsColumn
        anchors {
            right: parent.right
            top: parent.top
            margins: 20
        }
        spacing: 5

        Text {
            anchors.horizontalCenter: parent.horizontalCenter
            text: "Select date range for analysis"
            font.pixelSize: 14
        }

        Text {
            text: "From"
            font.pixelSize: 12
        }

        TextField {
            id: fromDate
            width: parent.width
            text: fromThisDate.toLocaleString(Qt.locale(), "d MMM yyyy")
            selectByMouse: true

            Image {
                anchors {
                    verticalCenter: parent.verticalCenter
                    right: parent.right
                    margins: 5
                }
                source: "qrc:/Samples/Analysis/AnalyzeHotspots/calendar.png"
                width: 22
                height: width

                MouseArea {
                    anchors.fill: parent
                    onClicked: {
                        calendar.selectedDate = new Date(fromThisDate);
                        calendarOverlay.toOrFromDate = "from";
                        calendarOverlay.visible = true;
                    }
                }
            }
        }

        Text {
            text: "To"
            font.pixelSize: 12
        }

        TextField {
            id: toDate
            width: parent.width
            text: toThisDate.toLocaleString(Qt.locale(), "d MMM yyyy")
            selectByMouse: true

            Image {
                anchors {
                    verticalCenter: parent.verticalCenter
                    right: parent.right
                    margins: 5
                }
                source: "qrc:/Samples/Analysis/AnalyzeHotspots/calendar.png"
                width: 22
                height: width

                MouseArea {
                    anchors.fill: parent
                    onClicked: {
                        calendar.selectedDate = new Date(toThisDate);
                        calendarOverlay.toOrFromDate = "to";
                        calendarOverlay.visible = true;
                    }
                }
            }
        }

        Button {
            width: parent.width
            anchors.horizontalCenter: parent.horizontalCenter
            text: "Run analysis"
            enabled: !jobInProgress && validateDates(fromThisDate, toThisDate)

            onClicked: {
                const fromString = fromThisDate.toLocaleString(Qt.locale(), "yyyy-MM-dd");
                const toString = toThisDate.toLocaleString(Qt.locale(), "yyyy-MM-dd");
                // Run the task
                executeTaskWithDates(fromString, toString);
            }
        }

        Row {
            spacing: 15
            visible: jobInProgress

            BusyIndicator {
                anchors.verticalCenter: parent.verticalCenter
                width: 24
                height: width
            }

            Text {
                anchors.verticalCenter: parent.verticalCenter
                text: statusText
                font.pixelSize: 14
            }
        }
    }

    // Calendar overlay for selecting the date ranges
    Rectangle {
        id: calendarOverlay
        anchors.fill: parent
        color: "transparent"
        visible: false

        property string toOrFromDate

        RadialGradient {
            anchors.fill: parent
            opacity: 0.7
            gradient: Gradient {
                GradientStop { position: 0.0; color: "lightgrey" }
                GradientStop { position: 0.7; color: "black" }
            }
        }

        MouseArea {
            anchors.fill: parent
            onClicked: mouse.accepted = true
            onWheel: wheel.accepted = true
        }


        GridLayout {
            id: calendarGrid
            anchors.centerIn: parent
            columns: 3

            Button {
                text: "<"
                onClicked: {
                    calendar.month -= 1;
                }
                enabled: calendar.month > calendar.minDate.getMonth()
                Layout.column: 0
                Layout.row: 0
            }

            Text {
                text: calendar.title
                horizontalAlignment: Text.AlignHCenter
                Layout.column: 1
                Layout.row: 0
                Layout.fillWidth: true
            }

            Button {
                text: ">"
                onClicked: {
                    calendar.month += 1;
                }
                enabled: calendar.month < (calendar.maxDate.getMonth() - 1)
                Layout.column: 2
                Layout.row: 0
            }

            DayOfWeekRow {
                locale: calendar.locale

                Layout.column: 1
                Layout.row: 1
                Layout.fillWidth: true
            }

            MonthGrid {
                id: calendar
                month: Calendar.January
                year: 1998
                Layout.row: 2
                Layout.column: 1
                Layout.fillWidth: true
                Layout.fillHeight: true

                property date minDate: new Date(1998,0,1)
                property date maxDate: new Date(1998,4,31)
                property date selectedDate: new Date(1998,4,31)

                delegate: Text {
                    horizontalAlignment: Text.AlignHCenter
                    verticalAlignment: Text.AlignVCenter
                    opacity: model.month !== calendar.month ? 0 : 1;
                    text: model.day
                    font.bold: calendar.selectedDate.getTime() === model.date.getTime();
                }

                onClicked: {
                    if (date.getMonth() !== calendar.month)
                        return;

                    if (calendarOverlay.toOrFromDate === "from")
                        fromThisDate = date;
                    else if (calendarOverlay.toOrFromDate === "to")
                        toThisDate = date;
                    calendarOverlay.visible = false;
                }
            }
        }
    }

    Dialog {
        id: messageDialog
        modal: true
        x: Math.round(parent.width - width) / 2
        y: Math.round(parent.height - height) / 2
        standardButtons: Dialog.Ok
        title: "Error"
        property alias text : textLabel.text
        property alias detailedText : detailsLabel.text
        ColumnLayout {
            Text {
                id: textLabel
            }
            Text {
                id: detailsLabel
            }
        }
    }

    // function to validate the date ranges provided
    function validateDates(_fromDate, _toDate) {
        // check if each date is within the period
        if (_fromDate > calendar.maxDate || _toDate < calendar.minDate) {
            return false;
        }

        if (_fromDate < calendar.minDate || _toDate > calendar.maxDate) {
            return false;
        }

        // check that the to date is after the from date
        if (_fromDate > _toDate) {
            return false;
        }

        // check that there is at least one day in between the from and to date
        const oneDayMilliseconds = 86400000;
        if ((_toDate - _fromDate) < oneDayMilliseconds) {
            return false;
        }

        return true;
    }
}
