Statistical query (group & sort)

View inC++QMLView on GitHubSample viewer app

Query a feature table for statistics, grouping and sorting by different fields.

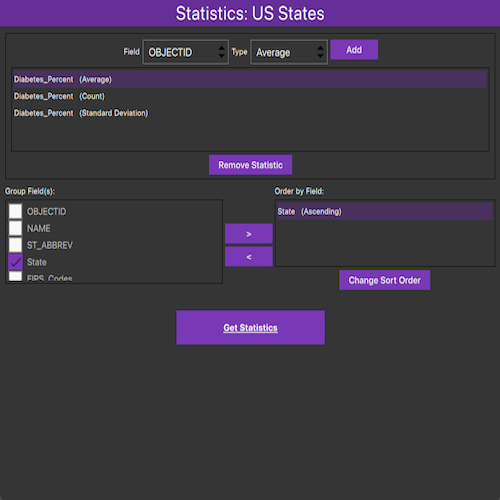

screenshot

Use case

You can use statistical queries, grouping and sorting to process large amounts of data saved in feature tables. This is helpful for identifying trends and relationships within the data, which can be used to support further interpretations and decisions. For example, a health agency can use information on medical conditions occurring throughout a country to identify at-risk areas or demographics, and decide on further action and preventive measures.

How to use the sample

The sample will start with some default options selected. You can immediately click the "Get Statistics" button to see the results for these options. There are several ways to customize your queries:

  • You can add statistic definitions to the top-left table using the combo boxes and "Add" button. Select a table row and click "Remove" to remove a definition.
  • To change the Group-by fields, check the box by the field you want to group by in the bottom-left list view.
  • To change the Order-by fields, select a Group-by field (it must be checked) and click the ">>" button to add it to the Order-by table. To remove a field from the Order-by table, select it and click the "<<" button. To change the sort order of the Order-by field, the cells of the "Sort Order" column are combo-boxes that may be either ASCENDING or DESCENDING.

How it works

  1. Create a ServiceFeatureTable using the URL of a feature service and load the table.
  2. Get the feature tables field names list with featureTable::getFields().
  3. Create StatisticDefinitions specifying the field to compute statistics on and the StatisticType to compute.
  4. Create StatisticsQueryParameters passing in the list of statistic definitions.
  5. To have the results grouped by fields, add the field names to the query parameters' groupByFieldNames collection.
  6. To have the results ordered by fields, create OrderBys, specifying the field name and SortOrder. Pass these OrderBys to the parameters' orderByFields collection.
  7. To execute the query, call featureTable::queryStatisticsAsync(queryParameters).
  8. Get the StatisticQueryResult. From this, you can get an iterator of StatisticRecords to loop through and display.

Relevant API

  • Field
  • OrderBy
  • QueryParameters
  • ServiceFeatureTable
  • StatisticDefinition
  • StatisticRecord
  • StatisticsQueryParameters
  • StatisticsQueryResult
  • StatisticType

About the data

This sample uses a Diabetes, Obesity, and Inactivity by US County feature layer hosted on ArcGIS Online.

Tags

correlation, data, fields, filter, group, sort, statistics, table

Sample Code

StatisticalQueryGroupSort.cppStatisticalQueryGroupSort.cppStatisticalQueryGroupSort.hOptionsPage.qmlResultsPage.qmlStatisticResultListModel.cppStatisticResultListModel.hStatisticalQueryGroupSort.qml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
// [WriteFile Name=StatisticalQueryGroupSort, Category=Analysis]
// [Legal]
// Copyright 2017 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "StatisticalQueryGroupSort.h"
#include "ServiceFeatureTable.h"
#include "StatisticDefinition.h"
#include "StatisticRecord.h"
#include "StatisticRecordIterator.h"
#include "StatisticsQueryParameters.h"
#include "StatisticsQueryResult.h"
#include "Field.h"
#include "StatisticResultListModel.h"
#include "Error.h"
#include "OrderBy.h"
#include "CoreTypes.h"

#include <QFuture>
#include <QUuid>
#include <QStringList>
#include <QVariantList>
#include <QList>
#include <memory>

using namespace Esri::ArcGISRuntime;

StatisticalQueryGroupSort::StatisticalQueryGroupSort(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent),
  m_resultsModel(new StatisticResultListModel(this))
{
}

void StatisticalQueryGroupSort::init()
{
  qmlRegisterType<StatisticalQueryGroupSort>("Esri.Samples", 1, 0, "StatisticalQueryGroupSortSample");
}

void StatisticalQueryGroupSort::componentComplete()
{
  QQuickItem::componentComplete();

  // Create the Service Feature Table
  m_featureTable = new ServiceFeatureTable(QUrl("https://services.arcgis.com/jIL9msH9OI208GCb/arcgis/rest/services/Counties_Obesity_Inactivity_Diabetes_2013/FeatureServer/0"), this);
  connectSignals();
  m_featureTable->load();

  // Setup default values for the Options page
  addStatisticDefinition("Diabetes_Percent", "Average");
  addStatisticDefinition("Diabetes_Percent", "Count");
  addStatisticDefinition("Diabetes_Percent", "Standard Deviation");
  addOrderBy("State", "Ascending");
  m_statisticTypes << "Average" << "Count" << "Maximum" << "Minimum"
                   << "Standard Deviation" << "Sum" << "Variance";
  emit statisticTypesChanged();
}

void StatisticalQueryGroupSort::connectSignals()
{
  connect(m_featureTable, &ServiceFeatureTable::doneLoading, this, [this](const Error& error)
  {
    if (!error.isEmpty())
      return;

    const auto fields = m_featureTable->fields();
    for (const Field& field : fields)
    {
      m_fields << field.name();
    }
    emit fieldsChanged();
  });

  connect(m_featureTable, &ServiceFeatureTable::errorOccurred, this, [this](const Error& error)
  {
    if (error.isEmpty())
      return;

    m_resultsModel->clear();
    addResultToModel("", QString("Error. %1").arg(error.message()));
  });
}

void StatisticalQueryGroupSort::onQueryStatisticsCompleted_(StatisticsQueryResult* rawResult)
{
  // Delete rawResult when we leave local scope.
  auto result = std::unique_ptr<StatisticsQueryResult>(rawResult);

  if (!result)
    return;

  // clear previous results
  m_resultsModel->clear();

  // iterate the results and add to a model
  StatisticRecordIterator iter = result->iterator();
  while (iter.hasNext())
  {
    // get the statistic record
    StatisticRecord* record = iter.next();

    // get the group string
    QStringList sectionStrings;
    const QVariantMap& groupsMap = record->group();
    for (auto it = groupsMap.cbegin(); it != groupsMap.cend(); ++it)
    {
      sectionStrings << QString("\"%1\":\"%2\"").arg(it.key(), it.value().toString());
    }
    const QString sectionString = sectionStrings.join(',');

    // obtain the statistics
    const QVariantMap& statsMap = record->statistics();
    for (auto it = statsMap.cbegin(); it != statsMap.cend(); ++it)
    {
      const QString statString = QString("%1: %2").arg(it.key(), it.value().toString());
      addResultToModel(sectionString, statString);
    }
  }
}

void StatisticalQueryGroupSort::queryStatistics()
{
  // create the parameter object
  StatisticsQueryParameters params;

  // add the statistic definitions
  QList<StatisticDefinition> statisticDefinitionList;
  for (const QVariant& def : qAsConst(m_statisticDefinitions))
  {
    QVariantMap definitionMap = def.toMap();
    StatisticDefinition statisticDefinition;
    statisticDefinition.setOnFieldName(definitionMap["field"].toString());
    statisticDefinition.setStatisticType(statisticStringToEnum(definitionMap["statistic"].toString()));
    statisticDefinitionList.append(statisticDefinition);
  }
  params.setStatisticDefinitions(statisticDefinitionList);

  // set the grouping fields
  params.setGroupByFieldNames(m_groupingFields);

  // add the order by objects
  QList<OrderBy> orderByList;
  for (const QVariant& ob : qAsConst(m_orderBys))
  {
    QVariantMap orderByMap = ob.toMap();
    OrderBy orderBy;
    orderBy.setFieldName(orderByMap["field"].toString());
    orderBy.setSortOrder(orderStringToEnum(orderByMap["order"].toString()));
    orderByList.append(orderBy);
  }
  params.setOrderByFields(orderByList);

  // ignore counties with missing data
  params.setWhereClause("\"State\" IS NOT NULL");

  // execute the query
  m_featureTable->queryStatisticsAsync(params).then(this, [this](StatisticsQueryResult* rawResult)
  {
    onQueryStatisticsCompleted_(rawResult);
  });
}

void StatisticalQueryGroupSort::addStatisticDefinition(const QString& field, const QString& statistic)
{
  // only add if the definition does not already exist
  for (const QVariant& def : qAsConst(m_statisticDefinitions))
  {
    QVariantMap definitionMap = def.toMap();
    if (field == definitionMap["field"].toString())
    {
      if (statistic == definitionMap["statistic"].toString())
        return;
    }
  }

  // add the definition to the list
  QVariantMap statisticDefinition;
  statisticDefinition["field"] = field;
  statisticDefinition["statistic"] = statistic;
  m_statisticDefinitions.append(statisticDefinition);
  emit statisticDefinitionsChanged();
}

void StatisticalQueryGroupSort::removeStatisticDefinition(int index)
{
  if (!m_statisticDefinitions.empty())
  {
    m_statisticDefinitions.removeAt(index);
    emit statisticDefinitionsChanged();
  }
}

void StatisticalQueryGroupSort::addOrderBy(const QString& field, const QString& order)
{
  // only add if the orderby is not in the list
  for (const QVariant& orderBy : qAsConst(m_orderBys))
  {
    QVariantMap orderByMap = orderBy.toMap();
    if (field == orderByMap["field"].toString())
    {
      if (order == orderByMap["order"].toString())
      {
        emit orderBysChanged();
        return;
      }
    }
  }

  // add the order by to the list
  QVariantMap orderBy;
  orderBy["field"] = field;
  orderBy["order"] = order;
  m_orderBys.append(orderBy);
  emit orderBysChanged();
}

void StatisticalQueryGroupSort::removeOrderBy(const QString& field)
{
  // remove the order by if it exists in the list
  for (int i = 0; i < m_orderBys.size(); i++)
  {
    QVariantMap orderByMap = m_orderBys.at(i).toMap();
    if (field == orderByMap["field"].toString())
    {
      m_orderBys.removeAt(i);
      emit orderBysChanged();
      return;
    }
  }
}

void StatisticalQueryGroupSort::removeOrderBy(int index)
{
  // remove the order by at a given index
  if (!m_orderBys.empty())
  {
    m_orderBys.removeAt(index);
    emit orderBysChanged();
  }
}

void StatisticalQueryGroupSort::updateOrder(int index)
{
  if (m_orderBys.empty())
    return;

  // get the existing values
  QVariantMap orderByMap;
  orderByMap["field"] = m_orderBys.at(index).toMap()["field"].toString();
  const QString currentOrder = m_orderBys.at(index).toMap()["order"].toString();

  // update the order text
  if (currentOrder == "Ascending")
    orderByMap["order"] = "Descending";
  else
    orderByMap["order"] = "Ascending";

  // update the variant list with the new value
  m_orderBys.removeAt(index);
  m_orderBys.insert(index, orderByMap);

  emit orderBysChanged();
}

void StatisticalQueryGroupSort::addGroupingField(const QString& field)
{
  // add a new grouping field
  if (!m_groupingFields.contains(field))
  {
    m_groupingFields.append(field);
    emit groupingFieldsChanged();
  }
}

void StatisticalQueryGroupSort::removeGroupingField(const QString& field)
{
  // remove a grouping field
  if (m_groupingFields.contains(field))
  {
    int i = m_groupingFields.indexOf(field);
    m_groupingFields.removeAt(i);
    emit groupingFieldsChanged();

    // also update the orderby list
    removeOrderBy(field);
  }
}

// helper to convert from statistic type string to enum
StatisticType StatisticalQueryGroupSort::statisticStringToEnum(const QString& statistic) const
{
  if (statistic == "Average")
    return StatisticType::Average;
  else if (statistic == "Count")
    return StatisticType::Count;
  else if (statistic == "Maximum")
    return StatisticType::Maximum;
  else if (statistic == "Minimum")
    return StatisticType::Minimum;
  else if (statistic == "Standard Deviation")
    return StatisticType::StandardDeviation;
  else if (statistic == "Sum")
    return StatisticType::Sum;
  else
    return StatisticType::Variance;
}

// helper to convert from sort order string to enum
SortOrder StatisticalQueryGroupSort::orderStringToEnum(const QString& order) const
{
  if (order == "Ascending")
    return SortOrder::Ascending;
  else
    return SortOrder::Descending;
}

void StatisticalQueryGroupSort::addResultToModel(const QString& section, const QString& resultString)
{
  m_resultsModel->addStatisticResult(section, resultString);
  emit resultsModelChanged();
}

QAbstractListModel* StatisticalQueryGroupSort::resultsModel() const
{
  return m_resultsModel;
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
