Edit KML ground overlay

View inQMLC++
View on GitHub
Sample viewer app

Edit the values of a KML ground overlay.

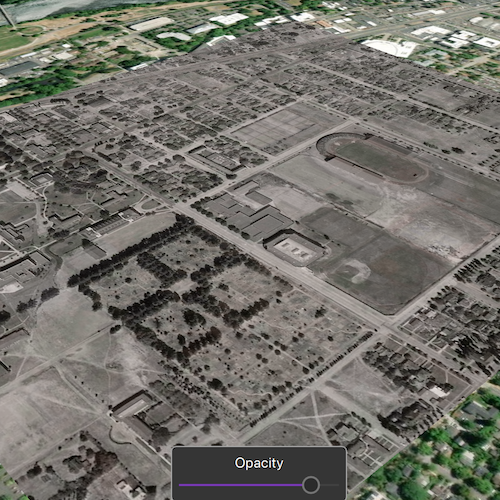

screenshot

Use case

KML ground overlays are used for showing aerial imagery, symbology, or other images draped over a scene. Changing the geometry, rotation, and other attributes of a ground overlay after it has been loaded allows for live editing. For example, editing the geometry and opacity of a historical image draped over present day satellite imagery makes it possible to view change over time.

How to use the sample

Use the slider to adjust the opacity of the ground overlay.

How it works

  1. Create an Envelope defining the geometry of the overlay.
  2. Create a KmlIcon using a Url linking to an image.
  3. Create a KmlGroundOverlay using the envelope and icon.
  4. Set the value ofKmlGroundOverlay::rotation.
  5. Create a KmlDataset using the ground overlay.
  6. Create a KmlLayer using the dataset.
  7. Add the KML layer to the scene.
  8. Listen for changes to the opacity slider and change the KmlGroundOverlay::color value appropriately.

Relevant API

  • KmlDataset
  • KmlGroundOverlay
  • KmlIcon
  • KmlLayer

About the data

The image used in this sample is an aerial view of the campus of the University of Oregon. This imagery was taken in 1944 by the U.S. Army Corps of Engineers. It is publicly available as Online Aerial Imagery hosted by Oregon University Library. It is also available as a Portal item on ArcGIS Online as University of Oregon Campus Aerial Imagery - 1944.

Tags

imagery, keyhole, KML, KMZ, OGC

Sample Code

EditKmlGroundOverlay.cppEditKmlGroundOverlay.cppEditKmlGroundOverlay.hEditKmlGroundOverlay.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
// [WriteFile Name=EditKmlGroundOverlay, Category=EditData]
// [Legal]
// Copyright 2019 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "EditKmlGroundOverlay.h"

#include "Scene.h"
#include "SceneQuickView.h"
#include "KmlLayer.h"
#include "KmlGroundOverlay.h"
#include "KmlDataset.h"
#include "KmlIcon.h"
#include "Envelope.h"
#include "Camera.h"

#include <QDir>
#include <QtCore/qglobal.h>

#ifdef Q_OS_IOS
#include <QStandardPaths>
#endif // Q_OS_IOS

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

  #ifdef Q_OS_ANDROID
    dataPath = "/sdcard";
  #elif defined Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
  #else
    dataPath = QDir::homePath();
  #endif

    return dataPath;
  }
} // namespace

EditKmlGroundOverlay::EditKmlGroundOverlay(QObject* parent /* = nullptr */):
  QObject(parent),
  m_scene(new Scene(BasemapStyle::ArcGISImageryStandard, this))
{
  // Create Geometry
  const Envelope env(-123.066227926904, 44.04736963555683,
                     -123.0796942287304, 44.03878298600624,
                     SpatialReference(4326));

  // Create KML Icon
  KmlIcon* kmlIcon = new KmlIcon(QUrl(defaultDataPath() + "/ArcGIS/Runtime/Data/raster/1944.jpg"), this);

  // Create Ground Overlay
  m_groundOverlay = new KmlGroundOverlay(env, kmlIcon, this);
  m_groundOverlay->setRotation(-3.046024799346924);

  // Create Dataset
  KmlDataset* kmlDataset = new KmlDataset(m_groundOverlay, this);

  // Create Layer
  KmlLayer* kmlLayer = new KmlLayer(kmlDataset, this);

  // Connect to know when the layer loads
  connect(kmlLayer, &KmlLayer::doneLoading, this, [this, env](Error e)
  {
    if (!e.isEmpty() || !m_sceneView)
      return;

    const Camera camera(env.center(), 1250, 45, 60, 0);
    m_sceneView->setViewpointCamera(camera);
  });
  m_scene->operationalLayers()->append(kmlLayer);
}

EditKmlGroundOverlay::~EditKmlGroundOverlay() = default;

void EditKmlGroundOverlay::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<EditKmlGroundOverlay>("Esri.Samples", 1, 0, "EditKmlGroundOverlaySample");
}

void EditKmlGroundOverlay::setOpacity(int opacity)
{
  if (!m_groundOverlay)
    return;

  m_groundOverlay->setColor(QColor(0, 0, 0, opacity));
}

SceneQuickView* EditKmlGroundOverlay::sceneView() const
{
  return m_sceneView;
}

// Set the view (created in QML)
void EditKmlGroundOverlay::setSceneView(SceneQuickView* sceneView)
{
  if (!sceneView || sceneView == m_sceneView)
    return;

  m_sceneView = sceneView;
  m_sceneView->setArcGISScene(m_scene);

  emit sceneViewChanged();
}
