Map rotation

View inQMLC++
View on GitHub
Sample viewer app

Rotate a map.

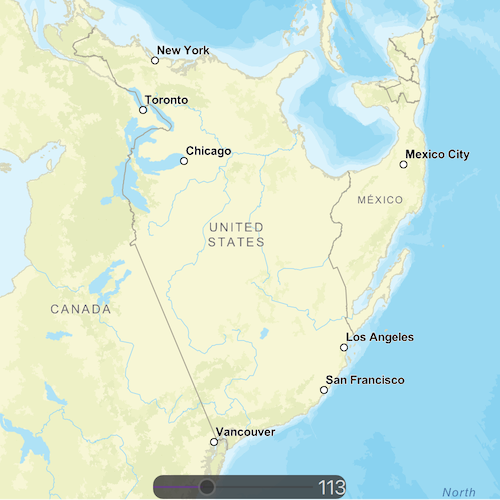

screenshot

Use case

A user may wish to view the map in an orientation other than north-facing.

How to use the sample

Use the slider to rotate the map.

How it works

  1. Create a Map object.
  2. Set the map to a MapView object.
  3. Use setViewpointRotation to indicate the rotation angle.

Relevant API

  • Map
  • MapView

Tags

rotate, rotation, viewpoint

Sample Code

MapRotation.cppMapRotation.cppMapRotation.hMapRotation.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
// [WriteFile Name=MapRotation, Category=Maps]
// [Legal]
// Copyright 2016 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "MapRotation.h"

#include "Map.h"
#include "MapQuickView.h"
#include "Basemap.h"
#include "Viewpoint.h"
#include "Point.h"
#include "SpatialReference.h"

using namespace Esri::ArcGISRuntime;

MapRotation::MapRotation(QQuickItem* parent) :
    QQuickItem(parent)
{
}

MapRotation::~MapRotation() = default;

void MapRotation::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<MapRotation>("Esri.Samples", 1, 0, "MapRotationSample");
}

void MapRotation::componentComplete()
{
    QQuickItem::componentComplete();

    // find QML MapView component
    m_mapView = findChild<MapQuickView*>("mapView");

    // create a new basemap instance
    Basemap* basemap = new Basemap(BasemapStyle::ArcGISStreets, this);
    // create a new map instance and set the initial viewpoint
    m_map = new Map(basemap, this);
    Viewpoint initialViewpoint(Point(-11070722, 4658720, SpatialReference(102100)), 55151630);
    m_map->setInitialViewpoint(initialViewpoint);
    // set map on the map view
    m_mapView->setMap(m_map);
}

void MapRotation::setMapViewRotation(double degrees)
{
    m_mapView->setViewpointRotation(degrees);
}
