Read a GeoPackage

View inQMLC++
View on GitHub
Sample viewer app

Add rasters and feature tables from a GeoPackage to a map.

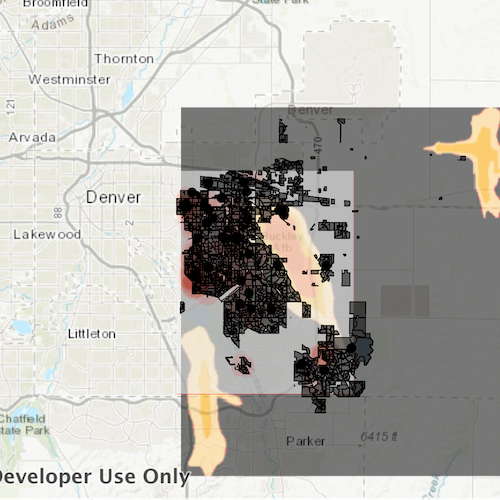

screenshot

Use case

The OGC GeoPackage specification defines an open standard for sharing raster and vector data. You may want to use GeoPackage files to support file-based sharing of geographic data.

How to use the sample

When the sample loads, the feature tables and rasters from the GeoPackage will be shown on the map.

How it works

  1. Create a GeoPackage object using the path the local geoPackage.
  2. Connect to the GeoPackage::doneLoading signal.
  3. Load the geoPackage geoPackage::load(), then iterate through the available rasters, exposed by geopackage::geoPackageRasters.
    • For each raster, create a raster layer using new Rasterlayer(geopackageRaster), then add it to the map.
  4. Iterate through available feature tables, exposed by geopackage::geoPackageFeatureTables.
    • For each feature table, create a feature layer using new FeatureLayer(geopackageFeatureTable), then add it to the map.

Relevant API

  • GeoPackage
  • GeoPackage::doneLoading
  • GeoPackage::geoPackageFeatureTables
  • GeoPackage::geoPackageRasters
  • GeoPackageFeatureTable
  • GeoPackageRaster

Offline data

Read more about how to set up the sample's offline data here.

Link Local Location
AuroraCO.gpkg <userhome>/ArcGIS/Runtime/Data/gpkg/AuroraCO.gpkg

About the data

This sample features a GeoPackage with datasets that cover Aurora, Colorado: Public art (points), Bike trails (lines), Subdivisions (polygons), Airport noise (raster), and liquour license density (raster).

Additional information

GeoPackage uses a single SQLite file (.gpkg) that conforms to the OGC GeoPackage Standard. You can create a GeoPackage file (.gpkg) from your own data using the create a SQLite Database tool in ArcGIS Pro.

Tags

container, GeoPackage, layer, map, OGC, package, raster, table

Sample Code

ReadGeoPackage.cppReadGeoPackage.hReadGeoPackage.qml
Use dark colors for code blocks

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
// [WriteFile Name=ReadGeoPackage, Category=Maps]
// [Legal]
// Copyright 2018 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "ReadGeoPackage.h"

#include "Map.h"
#include "Layer.h"
#include "GeoPackage.h"
#include "RasterLayer.h"
#include "MapQuickView.h"
#include "FeatureTable.h"
#include "FeatureLayer.h"
#include "GeoPackageRaster.h"
#include "GeoPackageFeatureTable.h"

#include <QDir>
#include <QtCore/qglobal.h>

#ifdef Q_OS_IOS
#include <QStandardPaths>
#endif // Q_OS_IOS

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

  #ifdef Q_OS_ANDROID
    dataPath = "/sdcard";
  #elif defined Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
  #else
    dataPath = QDir::homePath();
  #endif

    return dataPath;
  }
} // namespace

ReadGeoPackage::ReadGeoPackage(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent),
  m_dataPath(defaultDataPath() + "/ArcGIS/Runtime/Data")
{
}

void ReadGeoPackage::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ReadGeoPackage>("Esri.Samples", 1, 0, "ReadGeoPackageSample");
}

void ReadGeoPackage::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");

  // Create a map using the topographic basemap
  m_map = new Map(BasemapStyle::ArcGISTopographic, this);

  // Set map to map view
  m_mapView->setMap(m_map);

  // Create the initial view area
  const Viewpoint initialViewpoint(39.7294, -104.8319, 500000);
  m_mapView->setViewpoint(initialViewpoint);

  // Initialize the read operation
  readGeoPackage();
}

// Read the GeoPackage and create lists for the names and layer data
void ReadGeoPackage::readGeoPackage()
{
  // Load the GeoPackage at the beginning
  GeoPackage* auroraGpkg = new GeoPackage(m_dataPath + "/gpkg/AuroraCO.gpkg", this);

  // Make sure there are no errors in loading the GeoPackage before interacting with it
  connect(auroraGpkg, &GeoPackage::doneLoading, this, [auroraGpkg, this](Error error)
  {
    if (error.isEmpty())
    {
      // For each raster, create a raster layer and add the layer to the map
      const auto rasters = auroraGpkg->geoPackageRasters();
      for (GeoPackageRaster* rasterItm : rasters)
      {
        RasterLayer* rasterLyr = new RasterLayer(rasterItm, this);
        rasterLyr->setOpacity(0.55f);
        m_map->operationalLayers()->append(rasterLyr);
      }

      // For each feature table, create a feature layer and add the layer to the map
      const auto tables = auroraGpkg->geoPackageFeatureTables();
      for (GeoPackageFeatureTable* featureTbl : tables)
      {
        FeatureLayer* layer = new FeatureLayer(featureTbl, this);
        m_map->operationalLayers()->append(layer);
      }
    }
  });

  auroraGpkg->load();
}
