Show location history

View inQMLC++
View on GitHub
Sample viewer app

Display your location history on the map.

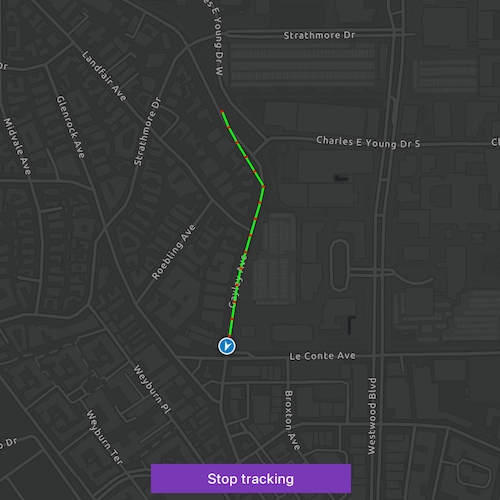

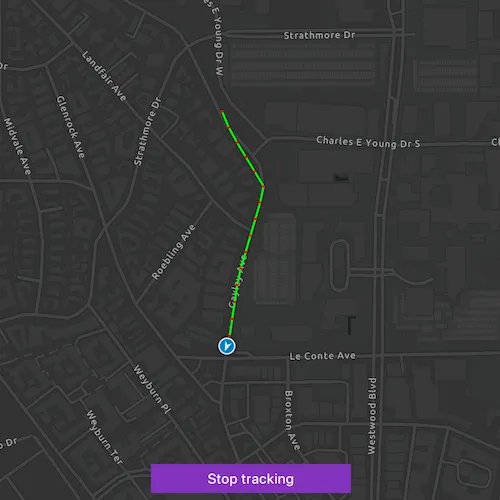

screenshot

Use case

You can track device location history and display it as lines and points on the map. The history can be used to visualize how the user moved through the world, to retrace their steps, or to create new feature geometry. An unmapped trail, for example, could be added to the map using this technique.

How to use the sample

Click 'Start tracking' to start tracking your location, which will appear as points on the map. A line will connect the points for easier visualization. Click 'Stop tracking' to stop updating the location history. This sample uses a simulated data source to allow the sample to be useful on desktop/non-mobile devices. To track a user's real position, use the DefaultLocationDataSource instead.

How it works

  1. If necessary, request location permission from the operating system.
  2. Create a graphics overlay to show each point and another graphics overlay for displaying the route line.
  3. Create a SimulatedLocationDataSource and initialize it with a polyline. Start the SimulatedLocationDataSource to begin receiving location updates.
    • NOTE: To track a user's real position, use DefaultLocationDataSource instead.
  4. Connect to the LocationDisplay's LocationChanged signal to handle location updates.
  5. Every time the location updates, store that location, display a point on the map, and re-create the route line.

Relevant API

  • Location::position
  • LocationDisplay::autoPanMode
  • LocationDisplay::dataSource
  • LocationDisplay::locationChanged
  • MapView::locationDisplay
  • SimulatedLocationDataSource

About the data

A custom set of points is used to create a Polyline and initialize a SimulatedLocationDataSource. This simulated location data source enables easier testing and allows the sample to be used on devices without an actively updating GPS signal.

Tags

bread crumb, breadcrumb, GPS, history, movement, navigation, real-time, trace, track, trail

Sample Code

ShowLocationHistory.cppShowLocationHistory.cppShowLocationHistory.hShowLocationHistory.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
// [WriteFile Name=ShowLocationHistory, Category=Maps]
// [Legal]
// Copyright 2020 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "ShowLocationHistory.h"

#include "GeometryEngine.h"
#include "Graphic.h"
#include "GraphicsOverlay.h"
#include "Location.h"
#include "Map.h"
#include "MapQuickView.h"
#include "Polyline.h"
#include "PolylineBuilder.h"
#include "SimpleLineSymbol.h"
#include "SimpleMarkerSymbol.h"
#include "SimpleRenderer.h"
#include "SimulatedLocationDataSource.h"
#include "SimulationParameters.h"

using namespace Esri::ArcGISRuntime;

namespace
{
constexpr int initialZoomScale = 8000;
const Point initialCenter(-13185535.98, 4037766.28);
const QString polylineJson("{\"paths\":[[[-13185646.046666779,4037971.5966668758],[-13185586.780000051,4037827.6633333955],"
                           "[-13185514.813333312,4037709.1299999417],[-13185569.846666701,4037522.8633330846],"
                           "[-13185591.01333339,4037378.9299996048],[-13185629.113333428,4037283.6799995075],"
                           "[-13185770.93000024,4037425.4966663187],[-13185821.730000293,4037546.146666442],"
                           "[-13185880.996667018,4037704.8966666036],[-13185948.730000421,4037874.2300001099],"
                           "[-13185974.130000448,4037946.1966668498],[-13186120.180000596,4037958.896666863],"
                           "[-13186264.113334076,4037984.296666889],[-13186336.080000836,4038001.2300002342],"
                           "[-13186314.91333415,4037757.8133333195],[-13186272.580000773,4037560.9633331187],"
                           "[-13186187.913334005,4037463.59666635],[-13186431.33000092,4037404.3299996229],"
                           "[-13186676.863334503,4037290.0299995062],[-13187625.130002158,4038589.6633341513],"
                           "[-13187333.030001862,4038756.8800009824],[-13187091.730001617,4038617.1800008402],"
                           "[-13186791.163334643,4038805.5633343654],[-13186721.313334571,4038801.3300010278],"
                           "[-13186833.49666802,4038195.9633337436],[-13186977.677439401,4037699.8176972247],"
                           "[-13186784.921301765,4037820.4541915278],[-13186749.517113185,4038150.8932846226],"
                           "[-13186649.860878762,4038288.5762400767],[-13186556.760975549,4038323.9804286221],"
                           "[-13186472.839936033,4038481.3323777127],[-13186373.183701571,4038489.1999751539],"
                           "[-13186344.335844241,4038242.6819215398],[-13186126.665647998,4038308.245233661],"
                           "[-13185814.584282301,4038358.0733508728],[-13185651.987268206,4038116.8003622484],"
                           "[-13185203.534213299,4038048.6145176427],[-13184576.748949422,4038150.8932845518],"
                           "[-13184251.55492135,4037833.5668537691],[-13184146.653621957,4037524.1080205571],"
                           "[-13183949.963685593,4037621.1417224966],[-13183687.71043711,4037781.1162040718],"
                           "[-13183480.530370807,4037875.5273735262],[-13182307.629999243,4037859.7460188437],"
                           "[-13181376.039484169,4037820.9297473822],[-13180716.162869323,4038364.3575478429],"
                           "[-13180182.439136729,4038810.7446696493],[-13178474.523192419,4040237.2426458625],"
                           "[-13178321.134040033,4039740.6894803117],[-13177958.020228144,4039140.1550991111],"
                           "[-13177073.512224896,4037459.5898928214],[-13177757.842101147,4037589.9384406791],"
                           "[-13178386.308314031,4037799.427178307],[-13180095.012208173,4037811.6550856642],"
                           "[-13180126.165447287,4036845.9046731163],[-13179806.844746364,4036324.0879179495],"
                           "[-13180928.361354485,4035887.9425703473],[-13181598.155995468,4035428.432293402],"
                           "[-13182984.47513606,4034447.105261297],[-13182229.264383668,4033222.8051626245],"
                           "[-13182058.735615831,4033339.8690072047],[-13181939.035180708,4033691.2477038498],"
                           "[-13182116.65518121,4033861.1450956347],[-13181792.305615077,4034085.1007484416],"
                           "[-13182027.845180977,4034467.3698799671],[-13181877.254310986,4034644.9898804692],"
                           "[-13181630.130832028,4034517.5668366305],[-13181386.868657427,4034424.8955320208],"
                           "[-13181228.555178719,4034652.7124891868],[-13181379.14604871,4034942.3103160923],"
                           "[-13181267.168222306,4035189.4337950516],[-13181074.103004368,4035015.6750989081],"
                           "[-13180807.673003616,4034934.5877073747],[-13180618.469090037,4034814.8872722536],"
                           "[-13180599.162568243,4035374.7764042714],[-13181047.073873857,4035494.476839392],"
                           "[-13181317.365178969,4035413.3894478586],[-13180765.198655669,4035143.0981427468],"
                           "[-13180328.871263131,4034892.1133594285],[-13180270.951697765,4035258.9372735149],"
                           "[-13180325.009958787,4035718.4324922049],[-13180707.279090302,4035695.2646660525],"
                           "[-13181413.897788007,4035536.9511873648],[-13181618.54691902,4035807.2424924765],"
                           "[-13181884.976919774,4036065.949884512],[-13182159.129529245,4035861.3007534989],"
                           "[-13182174.57474668,4035668.2355355616],[-13182417.83692128,4035664.374231203],"
                           "[-13182784.660835361,4035409.5281435261],[-13182997.032575091,4035255.0759691764],"
                           "[-13182618.624747934,4034679.7416197238]]],"
                           "\"spatialReference\":{\"wkid\":102100,\"latestWkid\":3857}}");
}

ShowLocationHistory::ShowLocationHistory(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISDarkGray, this)),
  m_locationHistoryOverlay(new GraphicsOverlay(this)),
  m_locationHistoryLineOverlay(new GraphicsOverlay(this))
{
  // graphics overlay for displaying the trail
  SimpleLineSymbol* locationLineSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, Qt::green, 2, this);
  m_locationHistoryLineOverlay->setRenderer(new SimpleRenderer(locationLineSymbol, this));
  m_locationHistoryLineGraphic = new Graphic(this);
  m_locationHistoryLineOverlay->graphics()->append(m_locationHistoryLineGraphic);

  // graphics overlay for showing points
  SimpleMarkerSymbol* locationPointSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Circle, Qt::red, 3, this);
  m_locationHistoryOverlay->setRenderer(new SimpleRenderer(locationPointSymbol, this));

  m_polylineBuilder = new PolylineBuilder(SpatialReference::webMercator(), this);
  m_simulatedLocationDataSource = new SimulatedLocationDataSource(this);
}

void ShowLocationHistory::handleLocationChanges()
{
  SimulationParameters* simulationParameters = new SimulationParameters(QDateTime::currentDateTime(), 30.0, 0.0, 0.0, this); // set speed

  m_simulatedLocationDataSource->setLocationsWithPolyline(Polyline::fromJson(polylineJson), simulationParameters);

  m_mapView->locationDisplay()->setDataSource(m_simulatedLocationDataSource);
  m_mapView->locationDisplay()->setAutoPanMode(LocationDisplayAutoPanMode::Recenter);
  m_mapView->locationDisplay()->setInitialZoomScale(initialZoomScale);
  m_mapView->locationDisplay()->start();

  m_simulatedLocationDataSource->start();

  // if tracking is enabled then show location history
  connect(m_mapView->locationDisplay(), &LocationDisplay::locationChanged, this, [this](const Location& location)
  {
    if (!m_trackingEnabled)
    {
      return;
    }

    // clear old route
    m_locationHistoryLineGraphic->setGeometry(Geometry());

    if (m_lastPosition.isValid())
    {
      m_polylineBuilder->addPoint(m_lastPosition);
      m_locationHistoryOverlay->graphics()->append(new Graphic(m_lastPosition, this));
    }

    // store the current position
    m_lastPosition = location.position();

    // update the polyline
    m_locationHistoryLineGraphic->setGeometry(m_polylineBuilder->toGeometry());
  });
}

ShowLocationHistory::~ShowLocationHistory() = default;

void ShowLocationHistory::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ShowLocationHistory>("Esri.Samples", 1, 0, "ShowLocationHistorySample");
}

MapQuickView* ShowLocationHistory::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void ShowLocationHistory::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  // set initial viewpoint near UCLA, Los Angeles
  m_mapView->setViewpointCenter(initialCenter, initialZoomScale);

  m_mapView->graphicsOverlays()->append(m_locationHistoryLineOverlay);
  m_mapView->graphicsOverlays()->append(m_locationHistoryOverlay);

  handleLocationChanges();

  emit mapViewChanged();
}
