Reverse geocode

View inQMLC++
View on GitHub
Sample viewer app

Use an online service to find the address for a tapped point.

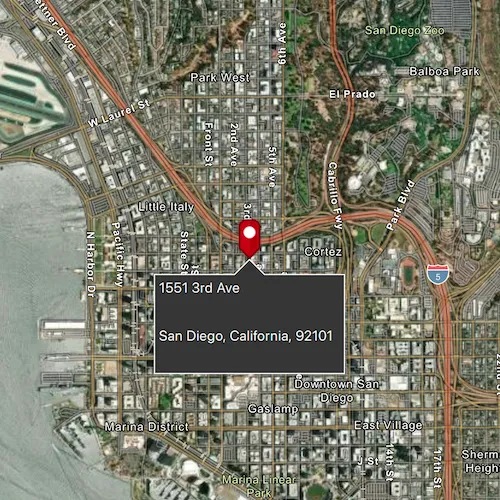

screenshot

Use case

You might use a geocoder to find a customer's delivery address based on the location returned by their device's GPS.

How to use the sample

Tap the map to see the nearest address displayed in a callout.

How it works

  1. Create the Map with a Basemap.
  2. Create a LocatorTask using a URL.
  3. Set the ReverseGeocodeParameters for the LocatorTask and specify the geocode's attributes.
  4. Get the matching results from the GeocodeResult using ReverseGeocodeWithParameters
  5. Change the attributes of the MapView's CalloutData and display the location using a Callout

Relevant API

  • GeocodeParameters
  • LocatorTask
  • ReverseGeocodeParameters

Offline data

Read more about how to set up the sample's offline data here.

Link Local Location
pin PNG file <userhome>/ArcGIS/Runtime/Data/symbol/pin.png

About the data

This sample uses the World Geocoding Service.

Tags

address, geocode, locate, reverse geocode, search

Sample Code

ReverseGeocodeOnline.cppReverseGeocodeOnline.cppReverseGeocodeOnline.hReverseGeocodeOnline.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
// [WriteFile Name=ReverseGeocodeOnline, Category=Search]
// [Legal]
// Copyright 2020 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "ReverseGeocodeOnline.h"

#include "CalloutData.h"
#include "Graphic.h"
#include "GraphicsOverlay.h"
#include "LocatorTask.h"
#include "Map.h"
#include "MapQuickView.h"
#include "PictureMarkerSymbol.h"
#include "SimpleRenderer.h"

#include <QDir>
#include <QUrl>

using namespace Esri::ArcGISRuntime;

namespace
{
// An ArcGIS Developer API key is required to utilize the world geocoding service
const QUrl url("https://geocode-api.arcgis.com/arcgis/rest/services/World/GeocodeServer");
const QUrl pinUrl("qrc:/Samples/Search/ReverseGeocodeOnline/pin_circle_red.png");
} // namespace

ReverseGeocodeOnline::ReverseGeocodeOnline(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISImagery, this))
{
  m_graphicsOverlay = new GraphicsOverlay(this);
  m_locatorTask = new LocatorTask(url, this);
}

ReverseGeocodeOnline::~ReverseGeocodeOnline() = default;

void ReverseGeocodeOnline::configureGraphic()
{
  PictureMarkerSymbol* pinSymbol = new PictureMarkerSymbol(pinUrl, this);
  pinSymbol->setHeight(40);
  pinSymbol->setWidth(40);
  pinSymbol->setOffsetY(pinSymbol->height() / 2);
  SimpleRenderer* simpleRenderer = new SimpleRenderer(pinSymbol, this);

  m_graphicsOverlay->setRenderer(simpleRenderer);
  m_graphicsOverlay->graphics()->append(new Graphic(this));
  m_graphic = m_graphicsOverlay->graphics()->at(0);
}

void ReverseGeocodeOnline::getAddress()
{
  connect(m_mapView, &MapQuickView::mouseClicked, this, [this](QMouseEvent& e)
  {
    e.accept();
    const Point clickedLocation = m_mapView->screenToLocation(e.x(), e.y());
    ReverseGeocodeParameters reverseGeocodeParameters;
    reverseGeocodeParameters.setOutputSpatialReference(m_mapView->spatialReference());
    m_locatorTask->reverseGeocodeWithParameters(clickedLocation, reverseGeocodeParameters);
  });

  connect(m_locatorTask, &LocatorTask::geocodeCompleted, this, [this](QUuid, const QList<GeocodeResult>& geocodeResults)
  {
    if (geocodeResults.empty())
      return;

    GeocodeResult geocode = geocodeResults.at(0);
    const Point location = geocode.displayLocation();
    m_mapView->setViewpointCenter(location);

    const QString address = geocode.label();
    const int splitIndex = address.indexOf(",");

    m_mapView->calloutData()->setTitle(address.left(splitIndex).trimmed());
    m_mapView->calloutData()->setDetail(address.mid(splitIndex + 1).trimmed());
    m_mapView->calloutData()->setLocation(location);
    m_mapView->calloutData()->setVisible(true);

    m_graphic->setGeometry(geocode.displayLocation());
    m_graphic->attributes()->setAttributesMap(geocode.attributes());
    constexpr double scale = 8000.0;
    m_mapView->setViewpointCenter(geocode.extent().center(), scale);
    m_graphic->setVisible(true);
  });
}

void ReverseGeocodeOnline::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ReverseGeocodeOnline>("Esri.Samples", 1, 0, "ReverseGeocodeOnlineSample");
  qmlRegisterUncreatableType<CalloutData>("Esri.Samples", 1, 0, "CalloutData", "CalloutData is an uncreatable type");
}

MapQuickView* ReverseGeocodeOnline::mapView() const
{
  return m_mapView;
}

CalloutData* ReverseGeocodeOnline::calloutData() const
{
  return m_calloutData;
}

// Set the view (created in QML)
void ReverseGeocodeOnline::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  // center map in San Diego
  const Point center(-13042254.715252, 3857970.236806, SpatialReference(3857));
  m_mapView->setViewpointCenter(center, 30000);

  configureGraphic();
  m_mapView->graphicsOverlays()->append(m_graphicsOverlay);

  getAddress();

  emit mapViewChanged();
}
