Display content of utility network container

View inQMLC++
View on GitHub
Sample viewer app

A utility network container allows a dense collection of features to be represented by a single feature, which can be used to reduce map clutter.

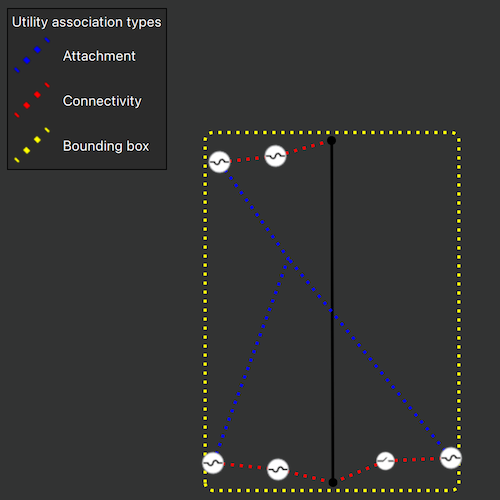

screenshot

Use case

Offering a container view for features aids in the review for valid structural attachment and containment relationships and helps determine if a dataset has an association role set. Container views often model a cluster of electrical devices on a pole top or inside a cabinet or vault.

How to use the sample

Select a container feature to show all features inside the container. The container is shown as a polygon graphic with the content features contained within. The viewpoint and scale of the map are also changed to the container's extent. Connectivity and attachment associations inside the container are shown as red and blue dotted lines respectively.

How it works

  1. Load a web map that includes ArcGIS Pro Subtype Group Layers with only container features visible (i.e. fuse bank, switch bank, transformer bank, hand hole and junction box).
  2. Create and load a UtilityNetwork with the same feature service URL as the layers in the Map.
  3. Add a GraphicsOverlay for displaying a container view.
  4. Create a connection to MapQuickView::mouseClicked.
  5. Identify a feature with MapView::identifyLayers and create a UtilityElement from it.
  6. Get the associations for this element using UtilityNetwork::associations(UtilityElement *element, UtilityAssociationType::Containment).
  7. Turn-off the visibility of all OperationalLayers.
  8. Get the features for the UtilityElement(s) from the associations using UtilityNetwork::featuresForElements(const QList<UtilityElement *> &elements)
  9. Add a Graphic with the geometry and symbol of each feature to the GraphicsOverlay.
  10. Get associations for the extent of the GraphicsOverlay using UtilityNetwork::associations(const Envelope &extent)
  11. Add a Graphic to represent the association geometry between container features using a symbol that distinguishes between Attachment and Connectivity association type.
  12. Add another Graphic that represents this extent and zoom to this extent with some buffer.

Relevant API

  • SubtypeFeatureLayer
  • UtilityAssociation
  • UtilityAssociationType
  • UtilityElement
  • UtilityNetwork

About the data

The Naperville electric network feature service, hosted on ArcGIS Online (authentication required: this is handled within the sample code), contains a utility network used to find associations shown in this sample and a web map portal item, Naperville electric containers, that use the same feature service endpoint and displays only container features.

Additional information

Using utility network on ArcGIS Enterprise 10.8 requires an ArcGIS Enterprise member account licensed with the Utility Network user type extension. Please refer to the utility network services documentation.

Tags

associations, connectivity association, containment association, structural attachment associations, utility network

Sample Code

DisplayContentOfUtilityNetworkContainer.cppDisplayContentOfUtilityNetworkContainer.cppDisplayContentOfUtilityNetworkContainer.hSymbolImageProvider.cppSymbolImageProvider.hDisplayContentOfUtilityNetworkContainer.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
// [WriteFile Name=DisplayContentOfUtilityNetworkContainer, Category=UtilityNetwork]
// [Legal]
// Copyright 2021 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "DisplayContentOfUtilityNetworkContainer.h"
#include "SymbolImageProvider.h"

#include "ArcGISFeatureListModel.h"
#include "ArcGISFeatureTable.h"
#include "AuthenticationManager.h"
#include "GeometryEngine.h"
#include "Map.h"
#include "MapQuickView.h"
#include "SimpleLineSymbol.h"
#include "SubtypeFeatureLayer.h"
#include "UtilityAssetType.h"
#include "UtilityAssociation.h"
#include "UtilityElement.h"
#include "UtilityNetwork.h"
#include "UtilityNetworkListModel.h"
#include "UtilityNetworkTypes.h"

#include <QImage>
#include <QQmlContext>

using namespace Esri::ArcGISRuntime;

DisplayContentOfUtilityNetworkContainer::DisplayContentOfUtilityNetworkContainer(QObject* parent /* = nullptr */):
  QObject(parent),
  m_cred(new Credential("viewer01", "I68VGU^nMurF", this))
{
  connect(AuthenticationManager::instance(), &AuthenticationManager::authenticationChallenge, this, [this](AuthenticationChallenge* challenge)
  {
    challenge->continueWithCredential(m_cred);
  });

  // Load a web map that includes ArcGIS Pro Subtype Group Layers with only container features visible (i.e. fuse bank, switch bank, transformer bank, hand hole and junction box)
  m_map = new Map(QUrl("https://sampleserver7.arcgisonline.com/portal/home/item.html?id=813eda749a9444e4a9d833a4db19e1c8"), this);

  // Create and load a UtilityNetwork with the same feature service URL as the layers in the Map
  m_utilityNetwork = new UtilityNetwork(QUrl("https://sampleserver7.arcgisonline.com/server/rest/services/UtilityNetwork/NapervilleElectric/FeatureServer"), this);
  m_utilityNetwork->load();
}

DisplayContentOfUtilityNetworkContainer::~DisplayContentOfUtilityNetworkContainer() = default;

void DisplayContentOfUtilityNetworkContainer::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<DisplayContentOfUtilityNetworkContainer>("Esri.Samples", 1, 0, "DisplayContentOfUtilityNetworkContainerSample");
}

MapQuickView* DisplayContentOfUtilityNetworkContainer::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void DisplayContentOfUtilityNetworkContainer::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  // Add a GraphicsOverlay for displaying a container view.
  m_containerGraphicsOverlay = new GraphicsOverlay(this);
  m_mapView->graphicsOverlays()->append(m_containerGraphicsOverlay);

  createConnections();
  createLegend();

  emit mapViewChanged();
}

void DisplayContentOfUtilityNetworkContainer::createConnections()
{
  connect(m_mapView, &MapQuickView::mouseClicked, this, &DisplayContentOfUtilityNetworkContainer::identifyFeaturesAtMouseClick);
  connect(m_mapView, &MapQuickView::identifyLayersCompleted, this, &DisplayContentOfUtilityNetworkContainer::getUtilityAssociationsOfFeature);
  connect(m_utilityNetwork, &UtilityNetwork::featuresForElementsCompleted, this, &DisplayContentOfUtilityNetworkContainer::displayFeaturesAndGetAssociations);

  connect(m_utilityNetwork, &UtilityNetwork::associationsCompleted, this, [this](QUuid, QList<UtilityAssociation*> containmentAssociations)
  {
    if (!m_showContainerView)
      getFeaturesForElementsOfUtilityAssociations(containmentAssociations);

    else
      showAttachmentAndConnectivitySymbols(containmentAssociations);
  });

  // Connect error signals to message box
  connect(m_map, &Map::errorOccurred, this, [this](Error e)
  {
    setMessageBoxText("Map error: " + e.message() + " " + e.additionalMessage());
  });

  connect(m_mapView, &MapQuickView::errorOccurred, this, [this](Error e)
  {
    setMessageBoxText("MapView error: " + e.message() + " " + e.additionalMessage());
  });

  connect(m_utilityNetwork, &UtilityNetwork::errorOccurred, this, [this](Error e)
  {
    setMessageBoxText("Utility Network error occured: " + e.message() + " " + e.additionalMessage());
  });
}

void DisplayContentOfUtilityNetworkContainer::identifyFeaturesAtMouseClick(QMouseEvent& mouseEvent)
{
  if (m_map->loadStatus() != LoadStatus::Loaded || m_utilityNetwork->loadStatus() != LoadStatus::Loaded || !m_taskWatcher.isDone())
    return;

  constexpr double tolerance = 5;
  constexpr bool returnPopupsOnly = false;

  m_mapView->identifyLayers(mouseEvent.x(), mouseEvent.y(), tolerance, returnPopupsOnly);
}

void DisplayContentOfUtilityNetworkContainer::getUtilityAssociationsOfFeature(QUuid, QList<IdentifyLayerResult*> identifyResults)
{
  if (identifyResults.isEmpty())
    return;

  if (m_containerElement)
  {
    delete m_containerElement;
    m_containerElement = nullptr;
  }

  // Identify a feature and create a UtilityElement from it.
  for (IdentifyLayerResult* layerResult : identifyResults)
  {
    if (!m_containerElement && dynamic_cast<SubtypeFeatureLayer*>(layerResult->layerContent()))
    {
      const auto results = layerResult->sublayerResults();
      for (const IdentifyLayerResult* sublayerResult : results)
      {
        const auto elements = sublayerResult->geoElements();
        for (GeoElement* geoElement : elements)
        {
          if (ArcGISFeature* feature = dynamic_cast<ArcGISFeature*>(geoElement))
          {
            m_containerElement = m_utilityNetwork->createElementWithArcGISFeature(feature);
            if (m_containerElement)
            {
              // Queries for a list of all UtilityAssociation objects of containment association types present in the geodatabase for the m_containerElement.
              m_taskWatcher = m_utilityNetwork->associations(m_containerElement, UtilityAssociationType::Containment);
              return;
            }
          }
        }
      }
    }
  }
}

void DisplayContentOfUtilityNetworkContainer::getFeaturesForElementsOfUtilityAssociations(QList<UtilityAssociation*> containmentAssociations)
{
  // Create a list of elements representing the participants in the containment associations
  QList<UtilityElement*> contentElements;
  for (UtilityAssociation* association : containmentAssociations)
  {
    UtilityElement* otherElement = association->fromElement()->objectId() == m_containerElement->objectId() ? association->toElement() : association->fromElement();
    contentElements.append(otherElement);
  }

  if (!contentElements.isEmpty())
  {
    // Set visibility of all `OperationalLayers` to `false`
    setShowContainerView(true);

    // Get the features for the UtilityElements
    m_taskWatcher = m_utilityNetwork->featuresForElements(contentElements);
  }
}

void DisplayContentOfUtilityNetworkContainer::displayFeaturesAndGetAssociations(QUuid)
{
  // Display the features on the graphics overlay
  const QList<Feature*> contentFeatures = m_utilityNetwork->featuresForElementsResult()->features();
  for (Feature* content : contentFeatures)
  {
    Symbol* symbol = dynamic_cast<ArcGISFeatureTable*>(content->featureTable())->layerInfo().drawingInfo().renderer(this)->symbol(content);
    m_containerGraphicsOverlay->graphics()->append(new Graphic(content->geometry(), symbol, this));
  }

  // Get the associations for each feature within the graphics overlay extent
  m_taskWatcher = m_utilityNetwork->associations(m_containerGraphicsOverlay->extent());
}

void DisplayContentOfUtilityNetworkContainer::showAttachmentAndConnectivitySymbols(QList<UtilityAssociation*> containmentAssociations)
{
  // Display the association lines on the graphics overlay
  for (UtilityAssociation* association : containmentAssociations)
  {
    Symbol* symbol = association->associationType() == UtilityAssociationType::Attachment ? m_attachmentSymbol : m_connectivitySymbol;
    m_containerGraphicsOverlay->graphics()->append(new Graphic(association->geometry(), symbol, this));
  }

  // If there are no associations, create a bounding box graphic using the viewpoint, otherwise use the extent of the graphics overlay
  if (m_containerGraphicsOverlay->graphics()->size() == 1 && m_containerGraphicsOverlay->graphics()->first()->geometry().geometryType() == GeometryType::Point)
  {
    m_mapView->setViewpointAndWait(Viewpoint(Point(m_containerGraphicsOverlay->graphics()->first()->geometry()), m_containerElement->assetType()->containerViewScale()));
    m_boundingBox = m_mapView->currentViewpoint(ViewpointType::BoundingGeometry).targetGeometry();
    m_mapView->setViewpointAndWait(m_previousViewpoint);

    setMessageBoxText("This feature contains no associations");
  }
  else
  {
    m_boundingBox = GeometryEngine::buffer(m_containerGraphicsOverlay->extent(), 0.05);
  }

  m_containerGraphicsOverlay->graphics()->append(new Graphic(m_boundingBox, m_boundingBoxSymbol, this));
  m_taskWatcher = m_mapView->setViewpointGeometry(m_containerGraphicsOverlay->extent(), 100);
}

bool DisplayContentOfUtilityNetworkContainer::showContainerView() const
{
  return m_showContainerView;
}

void DisplayContentOfUtilityNetworkContainer::setShowContainerView(bool showContainerView)
{
  m_showContainerView = showContainerView;

  if (m_showContainerView)
  {
    m_previousViewpoint = m_mapView->currentViewpoint(ViewpointType::BoundingGeometry);
    for (Layer* layer : *m_mapView->map()->operationalLayers())
    {
      layer->setVisible(false);
    }
  }
  else
  {
    m_mapView->setViewpoint(m_previousViewpoint, 0.5);
    m_containerGraphicsOverlay->graphics()->clear();

    for (Layer* layer : *m_mapView->map()->operationalLayers())
    {
      layer->setVisible(true);
    }
  }

  emit showContainerViewChanged();
}

QString DisplayContentOfUtilityNetworkContainer::messageBoxText() const
{
  return m_messageBoxText;
}

void DisplayContentOfUtilityNetworkContainer::setMessageBoxText(const QString& message)
{
  m_messageBoxText = message;
  emit messageBoxTextChanged();
}

// Create attachment, connectivity, and bounding box legend
void DisplayContentOfUtilityNetworkContainer::createLegend()
{
  QQmlEngine* engine = QQmlEngine::contextForObject(this)->engine();
  m_symbolImageProvider = new SymbolImageProvider();
  engine->addImageProvider(SymbolImageProvider::imageProviderId(), m_symbolImageProvider);

  m_attachmentSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle::Dot, Qt::blue, 3, this);
  m_connectivitySymbol = new SimpleLineSymbol(SimpleLineSymbolStyle::Dot, Qt::red, 3, this);
  m_boundingBoxSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle::Dot, Qt::yellow, 3, this);

  connect(m_attachmentSymbol, &Symbol::createSwatchCompleted, this, [this](QUuid id, QImage image)
  {
    if (!m_symbolImageProvider)
      return;

    // convert the QUuid into a QString
    const QString imageId = id.toString().remove("{").remove("}");

    // add the image to the provider
    m_symbolImageProvider->addImage(imageId, image);

    // update the URL with the unique id
    m_attachmentSymbolUrl = QString("image://%1/%2").arg(SymbolImageProvider::imageProviderId(), imageId);

    // emit the signal to trigger the QML Image to update
    emit attachmentSymbolUrlChanged();
  });

  connect(m_connectivitySymbol, &Symbol::createSwatchCompleted, this, [this](QUuid id, QImage image)
  {
    if (!m_symbolImageProvider)
      return;

    // convert the QUuid into a QString
    const QString imageId = id.toString().remove("{").remove("}");

    // add the image to the provider
    m_symbolImageProvider->addImage(imageId, image);

    // update the URL with the unique id
    m_connectivitySymbolUrl = QString("image://%1/%2").arg(SymbolImageProvider::imageProviderId(), imageId);

    // emit the signal to trigger the QML Image to update
    emit connectivitySymbolUrlChanged();
  });

  connect(m_boundingBoxSymbol, &Symbol::createSwatchCompleted, this, [this](QUuid id, QImage image)
  {
    if (!m_symbolImageProvider)
      return;

    // convert the QUuid into a QString
    const QString imageId = id.toString().remove("{").remove("}");

    // add the image to the provider
    m_symbolImageProvider->addImage(imageId, image);

    // update the URL with the unique id
    m_boundingBoxSymbolUrl = QString("image://%1/%2").arg(SymbolImageProvider::imageProviderId(), imageId);

    // emit the signal to trigger the QML Image to update
    emit boundingBoxSymbolUrlChanged();
  });

  m_attachmentSymbol->createSwatch();
  m_connectivitySymbol->createSwatch();
  m_boundingBoxSymbol->createSwatch();
}

QString DisplayContentOfUtilityNetworkContainer::attachmentSymbolUrl() const
{
  return m_attachmentSymbolUrl;
}

QString DisplayContentOfUtilityNetworkContainer::connectivitySymbolUrl() const
{
  return m_connectivitySymbolUrl;
}

QString DisplayContentOfUtilityNetworkContainer::boundingBoxSymbolUrl() const
{
  return m_boundingBoxSymbolUrl;
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
