Play a KML tour

View inQMLC++
View on GitHub
Sample viewer app

Play tours in KML files.

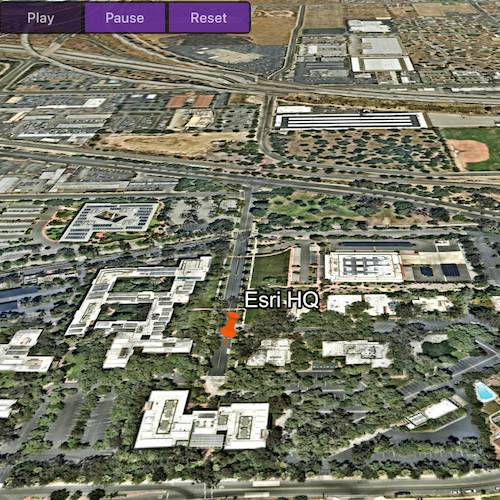

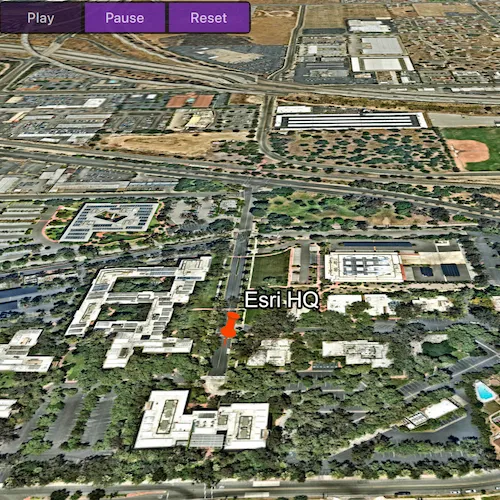

screenshot

Use case

KML, the file format used by Google Earth, supports creating tours, which can control the viewpoint of the scene, hide and show content, and play audio. Tours allow you to easily share tours of geographic locations, which can be augmented with rich multimedia. Runtime allows you to consume these tours using a simple API.

How to use the sample

The sample will load the KMZ file automatically. When a tour is found, the Play button will be enabled. Use Play and Pause to control the tour. When you're ready to show the tour, use the reset button to return the tour to the unplayed state.

How it works

  1. Load the KML dataset and add it to a layer.
  2. Create the KML tour controller. Wire up the buttons to the play(), pause(), and reset() methods.
  3. Use a method to explore the tree of KML content and find the first KML tour. Once a tour is found, provide it to the KML tour controller.
  4. Enable the buttons to allow the user to play, pause, and reset the tour.

Relevant API

  • KmlTour
  • KmlTourController

Offline data

Read more about how to set up the sample's offline data here.

Link Local Location
Esri tour KMZ <userhome>/ArcGIS/Runtime/Data/kml/Esri_tour.kmz

About the data

This sample uses a custom tour created by a member of the ArcGIS Runtime SDK samples team. When you play the tour, you'll see a narrated journey through some of Esri's offices.

Additional information

See Google's documentation for information about authoring KML tours.

Tags

animation, interactive, KML, narration, pause, play, story, tour

Sample Code

PlayAKmlTour.cppPlayAKmlTour.cppPlayAKmlTour.hPlayAKmlTour.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
// [WriteFile Name=PlayAKmlTour, Category=Layers]
// [Legal]
// Copyright 2019 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "PlayAKmlTour.h"

#include "ArcGISTiledElevationSource.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "KmlTour.h"
#include "KmlTourController.h"
#include "KmlLayer.h"
#include "KmlContainer.h"
#include "KmlNodeListModel.h"

#include <QDir>
#include <QtCore/qglobal.h>

#ifdef Q_OS_IOS
#include <QStandardPaths>
#endif // Q_OS_IOS

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

  #ifdef Q_OS_ANDROID
    dataPath = "/sdcard";
  #elif defined Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
  #else
    dataPath = QDir::homePath();
  #endif

    return dataPath;
  }
} // namespace

PlayAKmlTour::PlayAKmlTour(QObject* parent /* = nullptr */):
  QObject(parent),
  m_scene(new Scene(BasemapStyle::ArcGISImageryStandard, this)),
  m_dataPath(defaultDataPath() + "/ArcGIS/Runtime/Data")
{
  // create a new elevation source from Terrain3D REST service
  ArcGISTiledElevationSource* elevationSource = new ArcGISTiledElevationSource(
        QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"), this);

  // add the elevation source to the scene to display elevation
  m_scene->baseSurface()->elevationSources()->append(elevationSource);

  m_kmlDataset = new KmlDataset(QUrl::fromLocalFile(m_dataPath + "/kml/Esri_tour.kmz"), this);
  m_kmlLayer = new KmlLayer(m_kmlDataset, this);

  connect(m_kmlLayer, &KmlLayer::doneLoading, this, [this](Error e)
  {
    if (!e.isEmpty())
    {
      qDebug() << e.message();
      return;
    }

    m_scene->operationalLayers()->append(m_kmlLayer);

    m_kmlTour = findFirstKMLTour(m_kmlDataset->rootNodes());
    m_kmlTourController = new KmlTourController(this);

    if (m_kmlTour)
    {
      connect(m_kmlTour, &KmlTour::tourStatusChanged, this, [this](KmlTourStatus tourStatus)
      {
        switch (tourStatus) {
          case KmlTourStatus::Completed:
          case KmlTourStatus::Initialized:
            m_playButtonEnabled = true;
            m_pauseButtonEnabled = false;
            m_resetButtonEnabled = true;
            break;
          case KmlTourStatus::Playing:
            m_playButtonEnabled = false;
            m_pauseButtonEnabled = true;
            m_resetButtonEnabled = true;
            break;
          case KmlTourStatus::Paused:
            m_playButtonEnabled = true;
            m_pauseButtonEnabled = false;
            m_resetButtonEnabled = true;
            break;
          case KmlTourStatus::Initializing:
          case KmlTourStatus::NotInitialized:
            break;
        }

        emit playButtonEnabledChanged();
        emit pauseButtonEnabledChanged();
        emit resetButtonEnabledChanged();
      });

      m_kmlTourController->setTour(m_kmlTour);
    }
  });

  m_kmlLayer->load();
}

PlayAKmlTour::~PlayAKmlTour() = default;

void PlayAKmlTour::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<PlayAKmlTour>("Esri.Samples", 1, 0, "PlayAKmlTourSample");
}

SceneQuickView* PlayAKmlTour::sceneView() const
{
  return m_sceneView;
}

// Set the view (created in QML)
void PlayAKmlTour::setSceneView(SceneQuickView* sceneView)
{
  if (!sceneView || sceneView == m_sceneView)
    return;

  m_sceneView = sceneView;
  m_sceneView->setArcGISScene(m_scene);

  emit sceneViewChanged();
}

void PlayAKmlTour::playKmlTour()
{
  m_kmlTourController->play();
}
void PlayAKmlTour::pauseKmlTour()
{
  m_kmlTourController->pause();
}
void PlayAKmlTour::resetKmlTour()
{
  m_kmlTourController->reset();
}

KmlTour* PlayAKmlTour::findFirstKMLTour(const QList<KmlNode*>& nodes)
{
  for (KmlNode* node : nodes)
  {
    if (node->kmlNodeType() == KmlNodeType::KmlTour)
      return dynamic_cast<KmlTour*>(node);
    else if ((node->kmlNodeType() == KmlNodeType::KmlDocument) || (node->kmlNodeType() == KmlNodeType::KmlFolder))
      return findFirstKMLTourFromListModel(*dynamic_cast<KmlContainer*>(node)->childNodesListModel());
  }
  return nullptr;
}

KmlTour* PlayAKmlTour::findFirstKMLTourFromListModel(const KmlNodeListModel& nodes)
{
  for (KmlNode* node : nodes)
  {
    if (node->kmlNodeType() == KmlNodeType::KmlTour)
      return dynamic_cast<KmlTour*>(node);
    else if ((node->kmlNodeType() == KmlNodeType::KmlDocument) || (node->kmlNodeType() == KmlNodeType::KmlFolder))
      return findFirstKMLTourFromListModel(*dynamic_cast<KmlContainer*>(node)->childNodesListModel());
  }
  return nullptr;
}
