Distance measurement analysis

View on GitHubSample viewer app

Measure distances between two points in 3D.

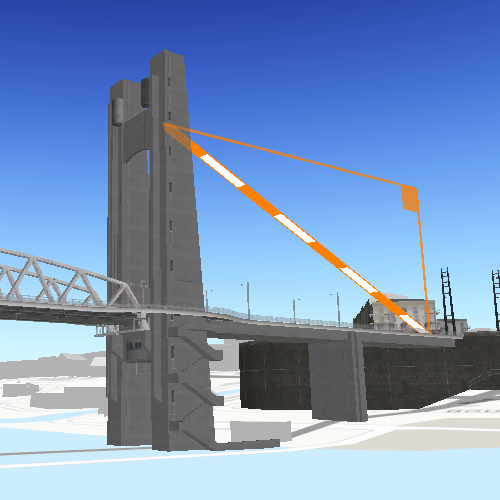

screenshot

Use case

The distance measurement analysis allows you to add to your app the same interactive measuring experience found in ArcGIS Pro, City Engine, and the ArcGIS API for JavaScript. You can set the unit system of measurement (metric or imperial). The units automatically switch to one appropriate for the current scale.

How to use the sample

Choose a unit system for the measurement. Click any location in the scene to start measuring. Move the mouse to an end location, and click to complete the measurement. Click a new location to clear and start a new measurement.

How it works

  1. Create an AnalysisOverlay object and add it to the analysis overlay collection of the SceneView object.
  2. Specify the start location and end location to create a LocationDistanceMeasurement object. Initially, the start and end locations can be the same point.
  3. Add the location distance measurement analysis to the analysis overlay.
  4. The measurementChanged signal will trigger if the distances change. You can get the new values for the directDistance, horizontalDistance, and verticalDistance from the MeasurementChanged object returned by the signal.

Relevant API

  • AnalysisOverlay
  • LocationDistanceMeasurement
  • MeasurementChanged

Additional information

The LocationDistanceMeasurement analysis only performs planar distance calculations. This may not be appropriate for large distances where the Earth's curvature must be considered.

Tags

3D, analysis, distance, measure

Sample Code

DistanceMeasurementAnalysis.cppDistanceMeasurementAnalysis.cppDistanceMeasurementAnalysis.hDistanceMeasurementAnalysis.qml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
