Stretch renderer

View inQMLC++
View on GitHub
Sample viewer app

Use a stretch renderer to enhance the visual contrast of raster data for analysis.

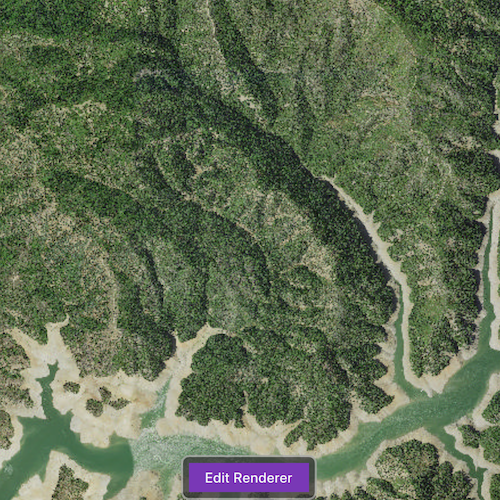

screenshot

Use case

An appropriate stretch renderer can enhance the contrast of raster imagery, allowing the user to control how their data is displayed for efficient imagery analysis.

How to use the sample

Click 'Edit Renderer' to open the stretch renderer options. Choose one of the stretch parameter types:

  • Standard deviation - a linear stretch defined by the standard deviation of the pixel values
  • Min-max - a linear stretch based on minimum and maximum pixel values
  • Percent clip - a linear stretch between the defined percent clip minimum and percent clip maximum pixel values

Then configure the parameters and click 'Render'.

How it works

  1. Create a Raster from a raster file.
  2. Create a RasterLayer from the Raster.
  3. Add the layer to the map.
  4. Create a StretchRenderer, specifying the stretch parameters and other properties.
  5. Set the Renderer on the RasterLayer with rasterLayer::setRenderer(renderer).

Relevant API

  • ColorRamp
  • MinMaxStretchParameters
  • PercentClipStretchParameters
  • Raster
  • RasterLayer
  • StandardDeviationStretchParameters
  • StretchParameters
  • StretchRenderer

Offline Data

Read more about how to set up the sample's offline data here.

Link Local Location
Shasta.tif raster <userhome>/ArcGIS/Runtime/Data/raster/Shasta.tif

About the data

This sample uses a raster imagery tile of an area of forested mountainous terrain and rivers.

Additional information

See Stretch function in the ArcMap documentation for more information about the types of stretches that can be performed.

Tags

analysis, deviation, histogram, imagery, interpretation, min-max, percent clip, pixel, raster, stretch, symbology, visualization

Sample Code

RasterStretchRenderer.qmlInputWithLabel.qmlRasterStretchRenderer.cppRasterStretchRenderer.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
// [WriteFile Name=RasterStretchRenderer, Category=Layers]
// [Legal]
// Copyright 2017 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick 2.6
import QtQuick.Controls 2.2
import Esri.Samples 1.0

RasterStretchRendererSample {
    id: rootRectangle
    clip: true
    width: 800
    height: 600

    readonly property string minMax: "Min Max"
    readonly property string percentClip: "Percent Clip"
    readonly property string stdDeviation: "Standard Deviation"
    readonly property var stretchTypes: [minMax, percentClip, stdDeviation]
    property bool editingRenderer: false

    // add a mapView component
    MapView {
        anchors.fill: parent
        objectName: "mapView"
    }

    Rectangle {
        visible: editButton.visible
        anchors.centerIn: editButton
        radius: 8
        height: editButton.height + (16)
        width: editButton.width + (16)
        color: "lightgrey"
        border.color: "darkgrey"
        border.width: 2
        opacity: 0.75
    }

    Button {
        id: editButton
        anchors {
            bottom: parent.bottom
            horizontalCenter: parent.horizontalCenter
            margins: 32
        }
        visible: rendererBox.width === 0
        text: "Edit Renderer"
        onClicked: editingRenderer = true;
    }

    Rectangle {
        id: rendererBox
        clip: true
        anchors {
            right: parent.right
            top: parent.top
            bottom: parent.bottom
        }

        color: "white"
        opacity: 0.75
        width: editingRenderer ? parent.width : 0

        Column {
            anchors {
                top: parent.top
                bottom: parent.bottom
                margins: 24
            }
            width: parent.width
            spacing: 16

            ComboBox {
                id: stretchTypeCombo
                anchors.horizontalCenter: parent.horizontalCenter
                model: stretchTypes
                property int modelWidth: 0
                width: modelWidth + leftPadding + rightPadding + indicator.width
                Component.onCompleted : {
                    for (let i = 0; i < model.length; ++i) {
                        metrics.text = model[i];
                        modelWidth = Math.max(modelWidth, metrics.width);
                    }
                }
                TextMetrics {
                    id: metrics
                    font: stretchTypeCombo.font
                }
            }

            InputWithLabel {
                id: minMaxMin
                visible: stretchTypeCombo.currentText === minMax
                spacing: 8
                label: "min value"
                maxRange: 255
                value: 0
            }

            InputWithLabel {
                id: minMaxMax
                visible: stretchTypeCombo.currentText === minMax
                spacing: 8
                label: "max value"
                maxRange: 255
                value: 255
            }

            InputWithLabel {
                id: percentClipMin
                visible: stretchTypeCombo.currentText === percentClip
                spacing: 8
                label: "min value"
                maxRange: 100
                value: 0
            }

            InputWithLabel {
                id: percentClipMax
                visible: stretchTypeCombo.currentText === percentClip
                spacing: 8
                label: "max value"
                maxRange: 100
                value: 100
            }

            InputWithLabel {
                id: sdFactor
                visible: stretchTypeCombo.currentText === stdDeviation
                spacing: 8
                label: "factor"
                maxRange: 25
                value: 0
            }

            Button {
                text: "Render"
                anchors.horizontalCenter: parent.horizontalCenter
                onClicked: {
                    editingRenderer = false;
                    applyRendererSettings();
                }
            }
        }

        Behavior on width { PropertyAnimation { duration: 500 } }
    }

    function applyRendererSettings(){
        if (stretchTypeCombo.currentText === minMax){
            applyMinMax(minMaxMin.value, minMaxMax.value);
        }
        else if (stretchTypeCombo.currentText === percentClip){
            applyPercentClip(percentClipMin.value, 100 - percentClipMax.value);
        }
        else if (stretchTypeCombo.currentText === stdDeviation){
            applyStandardDeviation(sdFactor.value);
        }
    }
}
