Apply mosaic rule to rasters

View inQMLC++
View on GitHub
Sample viewer app

Apply mosaic rule to a mosaic dataset of rasters.

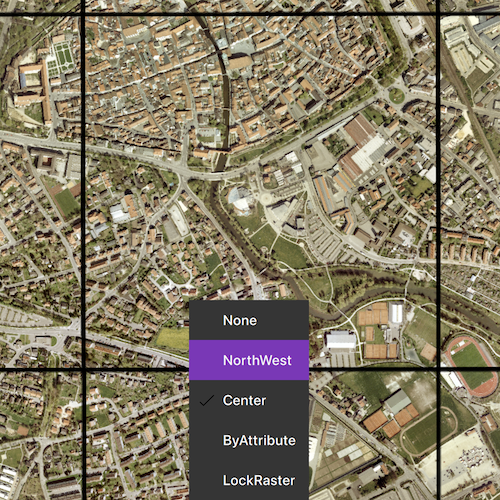

screenshot

Use case

An image service can use a mosaic rule to mosaic multiple rasters on-the-fly. A mosaic rule can specify which rasters are selected, and how the selected rasters are z-ordered. It can also specify how overlapping pixels from different rasters at the same location are resolved.

For example, when using the "By Attribute" mosaic method, the values in an attribute field are used to sort the images, and when using the "Center" method, the image closest to the center of the display is positioned as the top image in the mosaic. Additionally, the mosaic operator allows you to define how to resolve the overlapping cells, such as choosing a blending operation.

Specifying mosaic rules is useful for viewing overlapping rasters. For example, using the "ByAttribute" mosaic method to sort the rasters based on their acquisition date allows the newest image to be on top. Using "mean" mosaic operation makes the overlapping areas contain the mean cell values from all the overlapping rasters.

How to use the sample

When the rasters are loaded, choose from a list of preset mosaic rules to apply to the rasters.

How it works

  1. Create an ImageServiceRaster using the service's URL.
  2. Create a RasterLayer from the image service raster and add it to the map.
  3. Create a MosaicRule object and set it to the mosaicRule property of the image service raster.
  4. Use MosaicRule::setMosaicMethod, MosaicRule::setMosaicOperation and other functions of the mosaic rule object accordingly to specify the rule on the raster dataset.

Relevant API

  • ImageServiceRaster
  • MosaicRule
  • MosaicRule::setMosaicMethod
  • MosaicRule::setMosaicOperation

About the data

This sample uses a raster image service hosted on ArcGIS Online that shows aerial images of Amberg, Germany.

Additional information

For more information, see Understanding the mosaicking rules from ArcGIS Desktop documentation. To learn more about how to define certain mosaic rules, see Mosaic rule objects from ArcGIS for Developers.

Tags

image service, mosaic method, mosaic rule, raster

Sample Code

ApplyMosaicRuleToRasters.cppApplyMosaicRuleToRasters.cppApplyMosaicRuleToRasters.hApplyMosaicRuleToRasters.qml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
// [WriteFile Name=ApplyMosaicRuleToRasters, Category=Layers]
// [Legal]
// Copyright 2020 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

#include "ApplyMosaicRuleToRasters.h"

#include "ImageServiceRaster.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MosaicRule.h"
#include "RasterLayer.h"

using namespace Esri::ArcGISRuntime;

ApplyMosaicRuleToRasters::ApplyMosaicRuleToRasters(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISTopographic, this)),
  m_mosaicRule(new MosaicRule(this))
{
}

ApplyMosaicRuleToRasters::~ApplyMosaicRuleToRasters() = default;

void ApplyMosaicRuleToRasters::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ApplyMosaicRuleToRasters>("Esri.Samples", 1, 0, "ApplyMosaicRuleToRastersSample");
}

MapQuickView* ApplyMosaicRuleToRasters::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void ApplyMosaicRuleToRasters::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  // Create image service raster from image server
  m_imageServiceRaster = new ImageServiceRaster(QUrl("https://sampleserver7.arcgisonline.com/server/rest/services/amberg_germany/ImageServer"), this);

  // Set Mosaic Rule if none exists on the image service raster
  if (!m_imageServiceRaster->mosaicRule())
    m_imageServiceRaster->setMosaicRule(m_mosaicRule);

  // Create a raster layer form the image service raster
  m_rasterLayer = new RasterLayer(m_imageServiceRaster, this);

  // Once loaded change the viewpoint the the center of the raster layers full extent
  connect(m_rasterLayer, &RasterLayer::doneLoading, this, [this](Error e)
  {
    if (e.isEmpty())
    {
      m_rasterLoaded = true;
      emit rasterLoadedChanged();
      m_mapView->setViewpointCenter(m_rasterLayer->fullExtent().center(), 25000.0);
    }
  });

  m_map->operationalLayers()->append(m_rasterLayer);
  emit mapViewChanged();
}

void ApplyMosaicRuleToRasters::applyRasterRule(const QString& ruleString)
{
  // Reset to clear previous mosaic rule parameters
  ApplyMosaicRuleToRasters::resetMosaicRule();

  if (ruleString == "None")
  {
    m_mosaicRule->setMosaicMethod(MosaicMethod::None);
  }
  else if (ruleString == "NorthWest")
  {
    m_mosaicRule->setMosaicMethod(MosaicMethod::Northwest);
    m_mosaicRule->setMosaicOperation(MosaicOperation::First);
  }
  else if (ruleString == "Center")
  {
    m_mosaicRule->setMosaicMethod(MosaicMethod::Center);
    m_mosaicRule->setMosaicOperation(MosaicOperation::Blend);
  }
  else if (ruleString == "ByAttribute")
  {
    m_mosaicRule->setMosaicMethod(MosaicMethod::Attribute);
    m_mosaicRule->setSortField("OBJECTID");

  }
  else if (ruleString  == "LockRaster")
  {
    m_mosaicRule->setMosaicMethod(MosaicMethod::LockRaster);
    m_mosaicRule->setLockRasterIds(QList<qint64>{1,7,12});
  }
  m_imageServiceRaster->setMosaicRule(m_mosaicRule);
}

// Helper function to reset the mosaic rule
void ApplyMosaicRuleToRasters::resetMosaicRule()
{
  delete m_mosaicRule;
  m_mosaicRule = new MosaicRule(this);
}
