Configure subnetwork trace

// [WriteFile Name=ConfigureSubnetworkTrace, Category=UtilityNetwork]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ConfigureSubnetworkTrace.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"
#include "Authentication/AuthenticationManager.h"
#include "Authentication/ArcGISAuthenticationChallenge.h"
#include "Authentication/TokenCredential.h"
#include "CodedValueDomain.h"
#include "Error.h"
#include "ErrorException.h"
#include "ServiceGeodatabase.h"
#include "UtilityAssetGroup.h"
#include "UtilityAssetType.h"
#include "UtilityCategory.h"
#include "UtilityCategoryComparison.h"
#include "UtilityDomainNetwork.h"
#include "UtilityElement.h"
#include "UtilityElementTraceResult.h"
#include "UtilityNetwork.h"
#include "UtilityNetworkDefinition.h"
#include "UtilityNetworkSource.h"
#include "UtilityNetworkTypes.h"
#include "UtilityTerminal.h"
#include "UtilityTerminalConfiguration.h"
#include "UtilityTier.h"
#include "UtilityTraceAndCondition.h"
#include "UtilityTraceConfiguration.h"
#include "UtilityTraceOrCondition.h"
#include "UtilityTraceParameters.h"
#include "UtilityTraceResultListModel.h"
#include "UtilityTraversability.h"

// Qt headers
#include <QFuture>
#include <QQmlEngine>

// STL headers
#include <algorithm>

using namespace Esri::ArcGISRuntime;
using namespace Esri::ArcGISRuntime::Authentication;

ConfigureSubnetworkTrace::ConfigureSubnetworkTrace(QObject* parent /* = nullptr */):
  ArcGISAuthenticationChallengeHandler(parent)
{
  ArcGISRuntimeEnvironment::authenticationManager()->setArcGISAuthenticationChallengeHandler(this);
  m_utilityNetwork = new UtilityNetwork(new ServiceGeodatabase(m_featureLayerUrl, this), this);

  connect(m_utilityNetwork, &UtilityNetwork::doneLoading, this, &ConfigureSubnetworkTrace::onUtilityNetworkLoaded);

  m_utilityNetwork->load();
}

QString ConfigureSubnetworkTrace::expressionToString(UtilityTraceConditionalExpression* expression)
{
  switch (expression->traceConditionType())
  {
    case UtilityTraceConditionType::UtilityNetworkAttributeComparison:
    {
      const UtilityNetworkAttributeComparison* attributeExpression = static_cast<UtilityNetworkAttributeComparison*>(expression);
      const UtilityNetworkAttribute* networkAttribute = attributeExpression->networkAttribute();
      const UtilityNetworkAttribute* otherNetworkAttribute = attributeExpression->otherNetworkAttribute();
      const Domain networkDomain = networkAttribute->domain();
      const QString operatorAsString = comparisonOperatorToString(attributeExpression->comparisonOperator());

      // check if attribute domain is a coded value domain.
      if (!networkDomain.isEmpty() && (networkDomain.domainType() == DomainType::CodedValueDomain))
      {
        const CodedValueDomain codedValueDomain = static_cast<CodedValueDomain>(networkDomain);
        const QList<CodedValue> codedValues = codedValueDomain.codedValues();

        // get the coded value using the value as the index for the list of coded values
        const QString codedValueName = codedValues[attributeExpression->value().toInt()].name();

        return QString("`%1` %2 `%3`").arg(networkAttribute->name(), operatorAsString, codedValueName);
      }
      else
      {
        if (otherNetworkAttribute)
        {
          return QString("`%1` %2 `%3`").arg(networkAttribute->name(), operatorAsString, otherNetworkAttribute->name());
        }
        return QString("`%1` %2 `%3`").arg(networkAttribute->name(), operatorAsString, attributeExpression->value().toString());
      }
    }
    case UtilityTraceConditionType::UtilityCategoryComparison:
    {
      const UtilityCategoryComparison* comparisonExpression = static_cast<UtilityCategoryComparison*>(expression);

      return QString("`%1` %2").arg(comparisonExpression->category()->name(), (comparisonExpression->comparisonOperator() == UtilityCategoryComparisonOperator::Exists) ? "Exists" : "DoesNotExist");
    }
    case UtilityTraceConditionType::UtilityTraceAndCondition:
    {
      const UtilityTraceAndCondition* andExpression = static_cast<UtilityTraceAndCondition*>(expression);

      return QString("(%1) AND\n (%2)").arg(expressionToString(andExpression->leftExpression()), expressionToString(andExpression->rightExpression()));
    }
    case UtilityTraceConditionType::UtilityTraceOrCondition:
    {
      const UtilityTraceOrCondition* orExpression = static_cast<UtilityTraceOrCondition*>(expression);
      return QString("(%1) OR\n (%2)").arg(expressionToString(orExpression->leftExpression()), expressionToString(orExpression->rightExpression()));
    }
    default:
      return QString("Unknown trace conditional expression");
  }
}

QString ConfigureSubnetworkTrace::comparisonOperatorToString(const UtilityAttributeComparisonOperator& comparisonOperator)
{
  switch (comparisonOperator)
  {
    case UtilityAttributeComparisonOperator::Equal:
      return QString("Equal");
    case UtilityAttributeComparisonOperator::NotEqual:
      return QString("NotEqual");
    case UtilityAttributeComparisonOperator::GreaterThan:
      return QString("GreaterThan");
    case UtilityAttributeComparisonOperator::GreaterThanEqual:
      return QString("GreaterThanEqual");
    case UtilityAttributeComparisonOperator::LessThan:
      return QString("LessThan");
    case UtilityAttributeComparisonOperator::LessThanEqual:
      return QString("LessThanEqual");
    case UtilityAttributeComparisonOperator::IncludesTheValues:
      return QString("IncludesTheValues");
    case UtilityAttributeComparisonOperator::DoesNotIncludeTheValues:
      return QString("DoesNotIncludeTheValues");
    case UtilityAttributeComparisonOperator::IncludesAny:
      return QString("IncludesAny");
    case UtilityAttributeComparisonOperator::DoesNotIncludeAny:
      return QString("DoesNotIncludeAny");
    default:
      return QString("Unknown comparison operator");
  }
}

QVariant ConfigureSubnetworkTrace::convertToDataType(const QVariant& value, const Esri::ArcGISRuntime::UtilityNetworkAttributeDataType& dataType)
{
  switch (dataType)
  {
    case UtilityNetworkAttributeDataType::Integer:
    {
      // inconsistent results when using QVariant.toInt() on a
      // QString that doesn't contain an Integer dataType.
      // e.g. QVariant(QString("123.321")).toInt();
      return static_cast<int>(value.toDouble());
    }
    case UtilityNetworkAttributeDataType::Float:
    {
      return value.toFloat();
    }
    case UtilityNetworkAttributeDataType::Double:
    {
      return value.toDouble();
    }
    case UtilityNetworkAttributeDataType::Boolean:
    {
      return value.toBool();
    }
    default:
      return QVariant();
  }
}

void ConfigureSubnetworkTrace::codedValueOrInputText(const QString& currentText)
{
  // Update the UI to show the correct value entry for the attribute.
  if (m_networkDefinition)
  {
    const Domain domain = m_networkDefinition->networkAttribute(currentText)->domain();
    if (!domain.isEmpty() && (domain.domainType() == DomainType::CodedValueDomain))
    {
      m_valueSelectionListModel.clear();
      const CodedValueDomain codedValueDomain = static_cast<CodedValueDomain>(domain);

      const auto values = codedValueDomain.codedValues();
      for (const CodedValue& codedValue: values)
        m_valueSelectionListModel.append(codedValue.name());

      m_textFieldVisible = false;
    }
    else
    {
      m_textFieldVisible = true;
    }
    emit valueSelectionListModelChanged();
    emit textFieldVisibleChanged();
  }
}

void ConfigureSubnetworkTrace::addCondition(const QString& selectedAttribute, int selectedOperator, const QVariant& selectedValue)
{
  // NOTE: You may also create a UtilityCategoryComparison with UtilityNetworkDefinition.Categories and UtilityCategoryComparisonOperator.

  UtilityNetworkAttribute* selectedNetworkAttribute = m_networkDefinition->networkAttribute(selectedAttribute);
  const QVariant convertedSelectedValue = convertToDataType(selectedValue, selectedNetworkAttribute->dataType());

  if (convertedSelectedValue.isNull())
  {
    m_dialogText = "Unknow network attribute data type";
    emit dialogTextChanged();
    emit showDialog();
    return;
  }

  const UtilityAttributeComparisonOperator selectedOperatorEnum = static_cast<UtilityAttributeComparisonOperator>(selectedOperator);

  // NOTE: You may also create a UtilityNetworkAttributeComparison with another NetworkAttribute.
  UtilityTraceConditionalExpression* expression = new UtilityNetworkAttributeComparison(selectedNetworkAttribute, selectedOperatorEnum, convertedSelectedValue, this);

  UtilityTraceConditionalExpression* otherExpression = static_cast<UtilityTraceConditionalExpression*>(m_traceConfiguration->traversability()->barriers());

  // NOTE: You may also combine expressions with UtilityTraceAndCondition
  UtilityTraceConditionalExpression* combineExpressions = new UtilityTraceOrCondition(otherExpression, expression, this);

  m_expressionBuilder = expressionToString(combineExpressions);
  emit expressionBuilderChanged();

  if (m_traceConfiguration)
    m_traceConfiguration->traversability()->setBarriers(combineExpressions);
}

void ConfigureSubnetworkTrace::changeIncludeBarriersState(bool includeBarriers)
{
  if (m_traceConfiguration)
    m_traceConfiguration->setIncludeBarriers(includeBarriers);
}

void ConfigureSubnetworkTrace::changeIncludeContainersState(bool includeContainers)
{
  if (m_traceConfiguration)
    m_traceConfiguration->setIncludeContainers(includeContainers);
}

void ConfigureSubnetworkTrace::reset()
{
  // Reset the barrier condition to the initial value.
  m_traceConfiguration->traversability()->setBarriers(m_initialExpression);
  m_expressionBuilder.clear();
  m_expressionBuilder = expressionToString(static_cast<UtilityTraceConditionalExpression*>(m_initialExpression));
  emit expressionBuilderChanged();
}

void ConfigureSubnetworkTrace::trace()
{
  if (!m_utilityNetwork || !m_utilityElementStartingLocation)
  {
    return;
  }

  m_busy = true;
  emit busyChanged();
  const QList<UtilityElement*> startingLocations {m_utilityElementStartingLocation};
  // Create utility trace parameters for the starting location.
  m_traceParams = new UtilityTraceParameters(UtilityTraceType::Subnetwork, startingLocations, this);
  m_traceParams->setTraceConfiguration(m_traceConfiguration);

  // trace the network
  m_utilityNetwork->traceAsync(m_traceParams).then(this, [this](QList<UtilityTraceResult*>)
  {
    onTraceCompleted_();
  });
}

void ConfigureSubnetworkTrace::onTraceCompleted_()
{
  if (m_utilityNetwork->traceResult()->isEmpty())
  {
    m_dialogText = "No results returned";
    emit dialogTextChanged();
    emit showDialog();
    return;
  }
  // Get the first result.
  UtilityTraceResult* result = m_utilityNetwork->traceResult()->at(0);

  const QList<UtilityElement*> elements = static_cast<UtilityElementTraceResult*>(result)->elements(this);

  // Display the number of elements found by the trace.

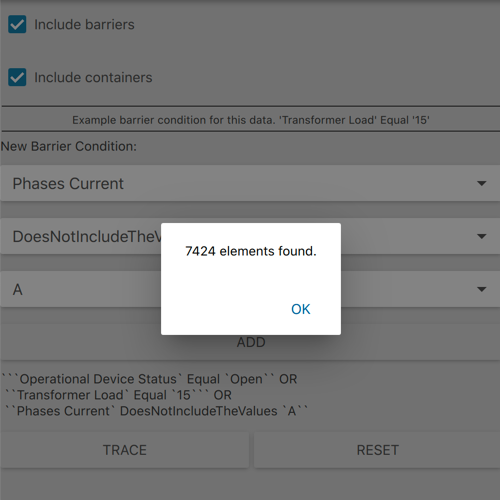

  m_dialogText = QString("%1 elements found.").arg(elements.length());
  m_busy = false;
  emit dialogTextChanged();
  emit showDialog();
  emit busyChanged();
}

void ConfigureSubnetworkTrace::onUtilityNetworkLoaded(const Error& e)
{
  if (!e.isEmpty())
  {
    m_dialogText = QString("%1 - %2").arg(e.message(), e.additionalMessage());
    m_busy = false;
    emit dialogTextChanged();
    emit showDialog();
    emit busyChanged();
    return;
  }

  m_busy = false;
  emit busyChanged();
  m_networkDefinition = m_utilityNetwork->definition();

  // Build the choice lists for network attribute comparison.
  const auto attributes = m_networkDefinition->networkAttributes();
  for (UtilityNetworkAttribute* networkAttribute : attributes)
  {
    if (!networkAttribute->isSystemDefined())
      m_attributeListModel.append(networkAttribute->name());
  }
  emit attributeListModelChanged();

  // Create a default starting location.
  const UtilityNetworkSource* networkSource = m_networkDefinition->networkSource(m_deviceTableName);
  const UtilityAssetGroup* assetGroup = networkSource->assetGroup(m_assetGroupName);
  UtilityAssetType* assetType = assetGroup->assetType(m_assetTypeName);
  m_utilityElementStartingLocation = m_utilityNetwork->createElementWithAssetType(assetType, m_gloabId);

  QList<UtilityTerminal*> terminals = m_utilityElementStartingLocation->assetType()->terminalConfiguration()->terminals();

  // Set the terminal for this location. (For our case, we use the 'Load' terminal.)
  auto terminal = std::find_if(terminals.begin(), terminals.end(), [](UtilityTerminal* terminal)
  {
      return terminal->name() == "Load";
  });

  m_utilityElementStartingLocation->setTerminal(static_cast<UtilityTerminal*>(*terminal));

  // Get a default trace configuration from a tier to update the UI.
  const UtilityDomainNetwork* domainNetwork = m_networkDefinition->domainNetwork(m_domainNetworkName);
  const UtilityTier* utilityTierSource = domainNetwork->tier(m_tierName);

  // Set the trace configuration.
  m_traceConfiguration = utilityTierSource->defaultTraceConfiguration();

  m_initialExpression = m_traceConfiguration->traversability()->barriers();

  if (m_initialExpression)
  {
    m_expressionBuilder = expressionToString(static_cast<UtilityTraceConditionalExpression*>(m_initialExpression));
    emit expressionBuilderChanged();
  }

  // Set the traversability scope.
  utilityTierSource->defaultTraceConfiguration()->traversability()->setScope(UtilityTraversabilityScope::Junctions);
}

ConfigureSubnetworkTrace::~ConfigureSubnetworkTrace() = default;

void ConfigureSubnetworkTrace::init()
{
  qmlRegisterType<ConfigureSubnetworkTrace>("Esri.Samples", 1, 0, "ConfigureSubnetworkTraceSample");
}

void ConfigureSubnetworkTrace::handleArcGISAuthenticationChallenge(ArcGISAuthenticationChallenge* challenge)
{
  TokenCredential::createWithChallengeAsync(challenge, "viewer01", "I68VGU^nMurF", {}, this).then(this, [challenge](TokenCredential* tokenCredential)
  {
    challenge->continueWithCredential(tokenCredential);
  }).onFailed(this, [challenge](const ErrorException& e)
  {
    challenge->continueWithError(e.error());
  });
}

// [WriteFile Name=ConfigureSubnetworkTrace, Category=UtilityNetwork]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef CONFIGURESUBNETWORKTRACE_H
#define CONFIGURESUBNETWORKTRACE_H

// ArcGIS Maps SDK headers
#include "Authentication/ArcGISAuthenticationChallengeHandler.h"
#include "UtilityNetworkAttribute.h"
#include "UtilityNetworkAttributeComparison.h"

// Qt headers
#include <QUrl>
#include <QUuid>

namespace Esri::ArcGISRuntime
{
class Credential;
class Error;
class UtilityElement;
class UtilityNetwork;
class UtilityNetworkDefinition;
class UtilityTerminal;
class UtilityTier;
class UtilityTraceCondition;
class UtilityTraceConditionalExpression;
class UtilityTraceConfiguration;
class UtilityTraceParameters;
}

namespace Esri::ArcGISRuntime::Authentication
{
  class ArcGISAuthenticationChallenge;
}

class ConfigureSubnetworkTrace : public Esri::ArcGISRuntime::Authentication::ArcGISAuthenticationChallengeHandler
{
  Q_OBJECT

  Q_PROPERTY(bool busy MEMBER m_busy NOTIFY busyChanged)
  Q_PROPERTY(bool textFieldVisible MEMBER m_textFieldVisible NOTIFY textFieldVisibleChanged)
  Q_PROPERTY(QString dialogText MEMBER m_dialogText NOTIFY dialogTextChanged)
  Q_PROPERTY(QString expressionBuilder MEMBER m_expressionBuilder NOTIFY expressionBuilderChanged)
  Q_PROPERTY(QStringList attributeListModel MEMBER m_attributeListModel NOTIFY attributeListModelChanged)
  Q_PROPERTY(QStringList conditionBarrierExpressionListModel MEMBER m_conditionBarrierExpressionListModel NOTIFY conditionBarrierExpressionChanged)
  Q_PROPERTY(QStringList valueSelectionListModel MEMBER m_valueSelectionListModel NOTIFY valueSelectionListModelChanged)

public:
  explicit ConfigureSubnetworkTrace(QObject* parent = nullptr);
  ~ConfigureSubnetworkTrace();

  static void init();

  Q_INVOKABLE void addCondition(const QString& selectedAttribute, int selectedOperator, const QVariant& selectedValue);
  Q_INVOKABLE void changeIncludeBarriersState(bool includeBarriers);
  Q_INVOKABLE void changeIncludeContainersState(bool includeContainers);
  Q_INVOKABLE void codedValueOrInputText(const QString& currentText);
  Q_INVOKABLE void reset();
  Q_INVOKABLE void trace();

signals:
  void attributeListModelChanged();
  void busyChanged();
  void conditionBarrierExpressionChanged();
  void dialogTextChanged();
  void showDialog();
  void expressionBuilderChanged();
  void textFieldVisibleChanged();
  void valueSelectionListModelChanged();

private slots:
  void onUtilityNetworkLoaded(const Esri::ArcGISRuntime::Error& e);

private:
  void onTraceCompleted_();

  static QString comparisonOperatorToString(const Esri::ArcGISRuntime::UtilityAttributeComparisonOperator& comparisonOperator);
  static QString expressionToString(Esri::ArcGISRuntime::UtilityTraceConditionalExpression* expression);
  static QVariant convertToDataType(const QVariant& value, const Esri::ArcGISRuntime::UtilityNetworkAttributeDataType& dataType);

  void handleArcGISAuthenticationChallenge(Esri::ArcGISRuntime::Authentication::ArcGISAuthenticationChallenge* challenge) override;

  Esri::ArcGISRuntime::UtilityElement* m_utilityElementStartingLocation = nullptr;
  Esri::ArcGISRuntime::UtilityNetwork* m_utilityNetwork = nullptr;
  Esri::ArcGISRuntime::UtilityNetworkDefinition* m_networkDefinition = nullptr;
  Esri::ArcGISRuntime::UtilityTraceCondition* m_initialExpression = nullptr;
  Esri::ArcGISRuntime::UtilityTraceConfiguration* m_traceConfiguration = nullptr;
  Esri::ArcGISRuntime::UtilityTraceParameters* m_traceParams = nullptr;

  QStringList m_attributeListModel;
  QStringList m_conditionBarrierExpressionListModel;
  QStringList m_valueSelectionListModel;

  bool m_busy = true;
  bool m_textFieldVisible = true;
  const QString m_assetGroupName = "Circuit Breaker";
  const QString m_assetTypeName = "Three Phase";
  const QString m_deviceTableName = "Electric Distribution Device";
  const QString m_domainNetworkName = "ElectricDistribution";
  const QString m_tierName = "Medium Voltage Radial";
  const QUrl m_featureLayerUrl = QUrl("https://sampleserver7.arcgisonline.com/server/rest/services/UtilityNetwork/NapervilleElectric/FeatureServer");
  const QUuid m_gloabId = QUuid("{1CAF7740-0BF4-4113-8DB2-654E18800028}");
  QString m_dialogText;
  QString m_expressionBuilder;

};

#endif // CONFIGURESUBNETWORKTRACE_H

// [WriteFile Name=ConfigureSubnetworkTrace, Category=UtilityNetwork]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import QtQuick.Shapes
import Esri.Samples

Item {
    readonly property var comparisonOperatorModel: ["Equal","NotEqual","GreaterThan","GreaterThanEqual","LessThan","LessThanEqual","IncludesTheValues","DoesNotIncludeTheValues","IncludesAny","DoesNotIncludeAny"]

    Rectangle {
        id: rootRectangle
        anchors.fill: parent
        color: "lightgrey"

        ScrollView {
            id: scrollView
            anchors.fill: parent

            ColumnLayout {
                id: controlItemsLayout
                anchors.left: parent.left
                anchors.right: parent.right

                CheckBox {
                    text: qsTr("Include barriers")
                    Layout.fillWidth: true
                    enabled: !busyIndicator.visible
                    checkState: Qt.Checked
                    onCheckStateChanged: model.changeIncludeBarriersState(checked);
                }

                CheckBox {
                    text: qsTr("Include containers")
                    Layout.fillWidth: true
                    enabled: !busyIndicator.visible
                    checkState: Qt.Checked
                    onCheckStateChanged: model.changeIncludeContainersState(checked);
                }

                Shape {
                    height: 2
                    ShapePath {
                        strokeWidth: 1
                        strokeColor: "black"
                        strokeStyle: ShapePath.SolidLine
                        startX: 2; startY: 0
                        PathLine { x: controlItemsLayout.width - 2 ; y: 0 }
                    }
                }

                Text {
                    text: qsTr("Example barrier condition for this data. 'Transformer Load' Equal '15'")
                    font.pixelSize: 11
                    Layout.minimumWidth: rootRectangle.width
                    horizontalAlignment: Text.AlignHCenter
                    enabled: !model.busy
                }

                Shape {
                    height: 2
                    ShapePath {
                        strokeWidth: 1
                        strokeColor: "black"
                        strokeStyle: ShapePath.SolidLine
                        startX: 2; startY: 0
                        PathLine { x: controlItemsLayout.width - 2 ; y: 0 }
                    }
                }

                Text {
                    text: qsTr("New Barrier Condition:")
                    Layout.fillWidth: true
                }

                ComboBox {
                    id: networkAttributeComboBox
                    model: model.attributeListModel ? model.attributeListModel : null
                    Layout.fillWidth: true
                    enabled: !busyIndicator.visible

                    onModelChanged: currentIndex = 0;

                    onCurrentTextChanged: model.codedValueOrInputText(currentText);
                }

                ComboBox {
                    id: comparisonOperatorComboBox
                    model: comparisonOperatorModel
                    Layout.fillWidth: true
                    enabled: !busyIndicator.visible
                }

                RowLayout {
                    enabled: !model.busy
                    ComboBox {
                        id: valueSelectionComboBox
                        Layout.fillWidth: true
                        enabled: !busyIndicator.visible
                        visible: !model.textFieldVisible
                        model: model.valueSelectionListModel
                    }

                    TextField {
                        id: inputTextField
                        Layout.minimumHeight: valueSelectionComboBox.height
                        Layout.fillWidth: true
                        visible: model.textFieldVisible
                        validator: DoubleValidator {}
                        color: "black"
                        placeholderText: qsTr("Enter value here")
                        placeholderTextColor: "black"
                        selectByMouse: true
                        background: Rectangle {
                            anchors.centerIn: parent
                            height: parent.height
                            width: parent.width
                            color: "white"
                        }
                    }
                }

                Button {
                    text: qsTr("Add")
                    Layout.fillWidth: true
                    enabled: !busyIndicator.visible
                    onClicked: {
                        if (model.textFieldVisible) {
                            if (inputTextField.text)
                                model.addCondition(networkAttributeComboBox.currentText, comparisonOperatorComboBox.currentIndex, inputTextField.text);
                            return;
                        } else {
                            model.addCondition(networkAttributeComboBox.currentText, comparisonOperatorComboBox.currentIndex, valueSelectionComboBox.currentIndex);
                        }
                    }
                }

                ScrollView {
                    Layout.fillWidth: true
                    Layout.maximumWidth: rootRectangle.width
                    Layout.minimumHeight: 50
                    Layout.maximumHeight: .15 * rootRectangle.height
                    clip: true
                    Row {
                        anchors.fill: parent
                        Text {
                            text: model.expressionBuilder
                        }
                    }
                }

                RowLayout {
                    enabled: !model.busy
                    Button {
                        text: qsTr("Trace")
                        Layout.fillWidth: true
                        enabled: !busyIndicator.visible
                        onClicked: model.trace();
                    }

                    Button {
                        text: qsTr("Reset")
                        Layout.fillWidth: true
                        enabled: !busyIndicator.visible
                        onClicked: model.reset();
                    }
                }
            }
        }
    }

    Dialog {
        id: dialog
        modal: true
        standardButtons: Dialog.Ok
        x: (parent.width - width) / 2
        y: (parent.height - height) / 2

        Text {
            text: model.dialogText
            anchors.centerIn: parent
        }
    }

    BusyIndicator {
        id: busyIndicator
        anchors.centerIn: parent
        visible: model.busy
    }

    ConfigureSubnetworkTraceSample {
        id: model

        onShowDialog: dialog.open();
    }
}

// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "ConfigureSubnetworkTrace.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("ConfigureSubnetworkTrace"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  ConfigureSubnetworkTrace::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/UtilityNetwork/ConfigureSubnetworkTrace/main.qml"));

  return app.exec();
}

// Copyright 2020 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    ConfigureSubnetworkTrace {
        anchors.fill: parent
    }
}
