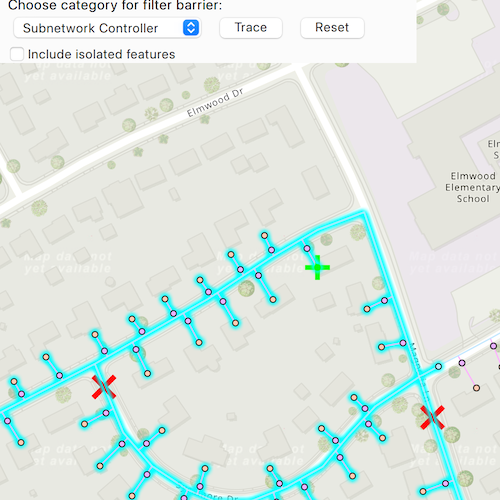

Perform valve isolation trace

// [WriteFile Name=PerformValveIsolationTrace, Category=UtilityNetwork]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "PerformValveIsolationTrace.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"
#include "Authentication/AuthenticationManager.h"
#include "Authentication/ArcGISAuthenticationChallenge.h"
#include "Authentication/TokenCredential.h"
#include "ArcGISFeature.h"
#include "ArcGISFeatureListModel.h"
#include "Error.h"
#include "ErrorException.h"
#include "FeatureLayer.h"
#include "GeometryEngine.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "IdentifyLayerResult.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Point.h"
#include "Polyline.h"
#include "QueryParameters.h"
#include "ServiceFeatureTable.h"
#include "SimpleMarkerSymbol.h"
#include "SimpleRenderer.h"
#include "SymbolTypes.h"
#include "UtilityAssetGroup.h"
#include "UtilityAssetType.h"
#include "UtilityCategory.h"
#include "UtilityCategoryComparison.h"
#include "UtilityDomainNetwork.h"
#include "UtilityElement.h"
#include "UtilityElementTraceResult.h"
#include "UtilityNetwork.h"
#include "UtilityNetworkDefinition.h"
#include "UtilityNetworkListModel.h"
#include "UtilityNetworkSource.h"
#include "UtilityNetworkTypes.h"
#include "UtilityTerminal.h"
#include "UtilityTerminalConfiguration.h"
#include "UtilityTier.h"
#include "UtilityTraceConfiguration.h"
#include "UtilityTraceFilter.h"
#include "UtilityTraceParameters.h"
#include "UtilityTraceResultListModel.h"

// Qt headers
#include <QFuture>
#include <QUuid>

// Other headers
#include "TaskCanceler.h"

using namespace Esri::ArcGISRuntime;
using namespace Esri::ArcGISRuntime::Authentication;

namespace
{
const QString domainNetworkName = QStringLiteral("Pipeline");
const QString tierName = QStringLiteral("Pipe Distribution System");
const QString networkSourceName = QStringLiteral("Gas Device");
const QString assetGroupName = QStringLiteral("Meter");
const QString assetTypeName = QStringLiteral("Customer");
const QString globalId = QStringLiteral("{98A06E95-70BE-43E7-91B7-E34C9D3CB9FF}");
const QString sampleServer7Username = QStringLiteral("viewer01");
const QString sampleServer7Password = QStringLiteral("I68VGU^nMurF");
}

namespace
{
// Convenient RAII template struct that deletes all pointers in a given container.
template <typename T>
struct ScopedCleanup
{
  ScopedCleanup(const QList<T*>& list) : results(list) { }
  ~ScopedCleanup() { qDeleteAll(results); }
  const QList<T*>& results;
};
}

PerformValveIsolationTrace::PerformValveIsolationTrace(QObject* parent /* = nullptr */):
  ArcGISAuthenticationChallengeHandler(parent),
  m_map(new Map(QUrl("https://sampleserver7.arcgisonline.com/portal/home/item.html?id=f439b4724bb54ac088a2c21eaf70da7b"), this)),
  m_startingLocationOverlay(new GraphicsOverlay(this)),
  m_filterBarriersOverlay(new GraphicsOverlay(this)),
  m_graphicParent(new QObject()),
  m_taskCanceler(std::make_unique<TaskCanceler>())
{
  ArcGISRuntimeEnvironment::authenticationManager()->setArcGISAuthenticationChallengeHandler(this);

  // disable UI while loading utility network
  m_tasksRunning = true;
  emit tasksRunningChanged();

  connect(m_map, &Map::doneLoading, this, [this](const Error& error)
  {
    if (!error.isEmpty() || m_map->utilityNetworks()->isEmpty())
    {
      return;
    }

    m_utilityNetwork = m_map->utilityNetworks()->first();
    m_utilityNetwork->load();
    connectSignals();
  });
}

PerformValveIsolationTrace::~PerformValveIsolationTrace() = default;

void PerformValveIsolationTrace::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<PerformValveIsolationTrace>("Esri.Samples", 1, 0, "PerformValveIsolationTraceSample");
}

MapQuickView* PerformValveIsolationTrace::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void PerformValveIsolationTrace::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  connect(m_mapView, &MapQuickView::mouseClicked, this, [this](QMouseEvent& mouseEvent)
  {
    if (m_map->loadStatus() != LoadStatus::Loaded)
      return;

    constexpr double tolerance = 10.0;
    constexpr bool returnPopups = false;
    m_clickPoint = m_mapView->screenToLocation(mouseEvent.position().x(), mouseEvent.position().y());
    m_taskCanceler->addTask(m_mapView->identifyLayersAsync(mouseEvent.position(), tolerance, returnPopups).then(this, [this](const QList<IdentifyLayerResult*>& results)
    {
      // handle the identify results
      onIdentifyLayersCompleted_(results);
    }));
  });

  // apply renderers
  SimpleMarkerSymbol* startingPointSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Cross, Qt::green, 25, this);
  m_startingLocationOverlay->setRenderer(new SimpleRenderer(startingPointSymbol, this));

  SimpleMarkerSymbol* filterBarrierSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::X, Qt::red, 25, this);
  m_filterBarriersOverlay->setRenderer(new SimpleRenderer(filterBarrierSymbol, this));

  m_mapView->graphicsOverlays()->append(m_startingLocationOverlay);
  m_mapView->graphicsOverlays()->append(m_filterBarriersOverlay);

  emit mapViewChanged();
}

QStringList PerformValveIsolationTrace::categoriesList() const
{
  if (!m_utilityNetwork)
    return { };

  if (m_utilityNetwork->loadStatus() != LoadStatus::Loaded)
    return { };

  const QList<UtilityCategory*> categories = m_utilityNetwork->definition()->categories();
  QStringList strList;
  for (UtilityCategory* category : categories)
  {
    strList << category->name();
  }
  return strList;
}

void PerformValveIsolationTrace::performTrace()
{
  if (m_selectedIndex < 0)
    return;

  // disable UI while trace is run
  m_tasksRunning = true;
  emit tasksRunningChanged();

  for (Layer* layer : *m_map->operationalLayers())
  {
    // clear previous selection from the feature layers
    FeatureLayer* featureLayer = dynamic_cast<FeatureLayer*>(layer);
   if (featureLayer)
     featureLayer->clearSelection();
  }

  const QList<UtilityCategory*> categories = m_utilityNetwork->definition()->categories();

  // get the selected utility category
  if (categories[m_selectedIndex] != nullptr)
  {
    // set whether to include isolated features
    m_traceConfiguration->setIncludeIsolatedFeatures(m_isolateFeatures);

    UtilityTraceParameters* traceParameters = new UtilityTraceParameters(UtilityTraceType::Isolation, QList<UtilityElement*> {m_startingLocation}, this);
    traceParameters->setTraceConfiguration(m_traceConfiguration);

    // reset trace configuration filter barriers
    m_traceConfiguration->setFilter(new UtilityTraceFilter(this));

    // set the user selected filter barriers otherwise
    // set the category comparison to the barriers of the configuration's trace filter
    if (!m_filterBarriers.empty())
      traceParameters->setFilterBarriers(m_filterBarriers);
    else
    {
      UtilityCategory* selectedCategory = categories[m_selectedIndex];
      UtilityCategoryComparison* categoryComparison = new UtilityCategoryComparison(selectedCategory, UtilityCategoryComparisonOperator::Exists, this);
      traceParameters->traceConfiguration()->filter()->setBarriers(categoryComparison);
    }

    m_taskCanceler->addTask(m_utilityNetwork->traceAsync(traceParameters).then(this, [this](QList<UtilityTraceResult*>)
    {
      onTraceCompleted_();
    }));
  }
}

void PerformValveIsolationTrace::onTraceCompleted_()
{
  // local paret to clean up UtilityElementTraceResult when we leave scope.
  QObject localParent;

  m_tasksRunning = false;
  emit tasksRunningChanged();

  UtilityTraceResultListModel* utilityTraceResultList = m_utilityNetwork->traceResult();

  if (utilityTraceResultList->isEmpty())
  {
    m_noResults = true;
    emit noResultsChanged();
    return;
  }

  UtilityElementTraceResult* utilityElementTraceResult = dynamic_cast<UtilityElementTraceResult*>(utilityTraceResultList->at(0));
  if (utilityElementTraceResult)
  {
    // given local parent to clean up once we leave scope
    utilityElementTraceResult->setParent(&localParent);

    const QList<UtilityElement*> utilityElementList = utilityElementTraceResult->elements(this);

    // A convenience wrapper that deletes the contents of utilityElementList when we leave scope.
    ScopedCleanup<UtilityElement> utilityElementListCleanUp(utilityElementList);

    if (utilityElementList.empty())
    {
      m_noResults = true;
      emit noResultsChanged();
      return;
    }

    // iterate through the map's features
    for (Layer* layer : *m_map->operationalLayers())
    {
      FeatureLayer* featureLayer = dynamic_cast<FeatureLayer*>(layer);
      if (featureLayer)
      {
        // create query parameters to find features whose network source names match layer's feature table name
        QueryParameters queryParameters;
        QList<qint64> objectIds = {};

        for (UtilityElement* utilityElement : utilityElementList)
        {
          const QString networkSourceName = utilityElement->networkSource()->name();
          const QString featureTableName = featureLayer->featureTable()->tableName();
          if (networkSourceName == featureTableName)
            objectIds.append(utilityElement->objectId());
        }
        queryParameters.setObjectIds(objectIds);
        m_taskCanceler->addTask(featureLayer->selectFeaturesAsync(queryParameters, SelectionMode::New));
      }
    }
  }
}

void PerformValveIsolationTrace::performReset()
{
  m_filterBarriersOverlay->graphics()->clear();
  m_filterBarriers.clear();
  m_traceConfiguration->setFilter(new UtilityTraceFilter(this));
  m_graphicParent.reset(new QObject());

  for (Layer* layer : *m_map->operationalLayers())
  {
    // clear previous selection from the feature layers
    FeatureLayer* featureLayer = dynamic_cast<FeatureLayer*>(layer);
   if (featureLayer)
     featureLayer->clearSelection();
  }
}

void PerformValveIsolationTrace::connectSignals()
{
  connect(m_utilityNetwork, &UtilityNetwork::doneLoading, this, [this](const Error& error)
  {
    m_tasksRunning = false;
    emit tasksRunningChanged();

    if (!error.isEmpty())
    {
      qDebug() << error.message() << error.additionalMessage();
      return;
    }

    if (m_utilityNetwork->loadStatus() != LoadStatus::Loaded)
      return;

    // get a trace configuration from a tier
    UtilityNetworkDefinition* networkDefinition = m_utilityNetwork->definition();
    UtilityDomainNetwork* domainNetwork = networkDefinition->domainNetwork(domainNetworkName);
    if (domainNetwork)
    {
      UtilityTier* tier = domainNetwork->tier(tierName);
      if (tier)
        m_traceConfiguration = tier->defaultTraceConfiguration();
    }

    if (!m_traceConfiguration)
      return;

    // create a trace filter
    m_traceConfiguration->setFilter(new UtilityTraceFilter(this));

    // get a default starting location
    UtilityNetworkSource* networkSource = networkDefinition->networkSource(networkSourceName);
    if (networkSource)
    {
      UtilityAssetGroup* assetGroup = networkSource->assetGroup(assetGroupName);
      if (assetGroup)
      {
        UtilityAssetType* assetType = assetGroup->assetType(assetTypeName);
        if (assetType)
          m_startingLocation = m_utilityNetwork->createElementWithAssetType(assetType, QUuid(globalId), nullptr, this);
      }
    }

    if (!m_startingLocation)
      return;

    // display starting location
    m_taskCanceler->addTask(m_utilityNetwork->featuresForElementsAsync(QList<UtilityElement*> {m_startingLocation}).then(this, [this](QList<ArcGISFeature*>)
    {
      // display starting location
      ArcGISFeatureListModel* elementFeaturesList = m_utilityNetwork->featuresForElementsResult();
      const Point startingLocationGeometry = geometry_cast<Point>(elementFeaturesList->first()->geometry());
      Graphic* graphic = new Graphic(startingLocationGeometry, m_graphicParent.get());
      m_startingLocationOverlay->graphics()->append(graphic);

      constexpr double scale = 3000.0;
      m_taskCanceler->addTask(m_mapView->setViewpointCenterAsync(startingLocationGeometry, scale));
      m_tasksRunning = false;
      emit tasksRunningChanged();
    }));

    // populate the combo box choices
    m_categoriesList = categoriesList();
    emit categoriesListChanged();
  });
}

bool PerformValveIsolationTrace::noResults() const
{
  return m_noResults;
}

bool PerformValveIsolationTrace::tasksRunning() const
{
  return m_tasksRunning;
}

void PerformValveIsolationTrace::onIdentifyLayersCompleted_(const QList<IdentifyLayerResult*>& results)
{
  // A convenience wrapper that deletes the contents of results when we leave scope.
  ScopedCleanup<IdentifyLayerResult> resultsScopedCleanup(results);

  // could not identify location
  if (results.isEmpty())
    return;

  const IdentifyLayerResult* result = results[0];
  ArcGISFeature* feature = static_cast<ArcGISFeature*>(std::as_const(result)->geoElements()[0]);
  m_element = m_utilityNetwork->createElementWithArcGISFeature(feature);

  const UtilityNetworkSourceType elementSourceType = m_element->networkSource()->sourceType();

  if (elementSourceType == UtilityNetworkSourceType::Junction)
  {
    const QList<UtilityTerminal*> terminals = m_element->assetType()->terminalConfiguration()->terminals();

    if (terminals.size() > 1)
    {
      m_terminals.clear();
      for (UtilityTerminal* terminal : terminals)
      {
        m_terminals.append(terminal->name());
      }
      emit terminalsChanged();
      return;
    }
  }
  else if (elementSourceType == UtilityNetworkSourceType::Edge)
  {
    if (feature->geometry().geometryType() == GeometryType::Polyline)
    {
      const Polyline line = geometry_cast<Polyline>(GeometryEngine::removeZ(feature->geometry()));
      // Set how far the element is along the edge.
      const double fraction = GeometryEngine::fractionAlong(line, m_clickPoint, -1);
      m_element->setFractionAlongEdge(fraction);
    }
  }

  m_filterBarriersOverlay->graphics()->append(new Graphic(m_clickPoint, m_graphicParent.get()));
  m_filterBarriers.append(m_element);
}

void PerformValveIsolationTrace::selectedTerminal(int index)
{
  UtilityTerminal* selectedTerminal = m_element->assetType()->terminalConfiguration()->terminals().at(index);
  m_element->setTerminal(selectedTerminal);

  m_filterBarriersOverlay->graphics()->append(new Graphic(m_clickPoint, m_graphicParent.get()));
  m_filterBarriers.append(m_element);
}

void PerformValveIsolationTrace::handleArcGISAuthenticationChallenge(ArcGISAuthenticationChallenge* challenge)
{
  TokenCredential::createWithChallengeAsync(challenge, sampleServer7Username, sampleServer7Password, {}, this).then(this, [challenge](TokenCredential* tokenCredential)
  {
    challenge->continueWithCredential(tokenCredential);
  }).onFailed(this, [challenge](const ErrorException& e)
  {
    challenge->continueWithError(e.error());
  });
}

// [WriteFile Name=PerformValveIsolationTrace, Category=UtilityNetwork]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef PERFORMVALVEISOLATIONTRACE_H
#define PERFORMVALVEISOLATIONTRACE_H

// Qt headers
#include <QUuid>

// ArcGIS Maps SDK headers
#include "Authentication/ArcGISAuthenticationChallengeHandler.h"
#include "Point.h"

namespace Esri::ArcGISRuntime
{
class ArcGISFeature;
class FeatureLayer;
class GraphicsOverlay;
class Map;
class MapQuickView;
class UtilityCategory;
class UtilityElement;
class UtilityNetwork;
class UtilityTraceConfiguration;
class UtilityTraceParameters;
class IdentifyLayerResult;
}

namespace Esri::ArcGISRuntime::Authentication
{
  class ArcGISAuthenticationChallenge;
}

Q_MOC_INCLUDE("MapQuickView.h")
Q_MOC_INCLUDE("IdentifyLayerResult.h")

class TaskCanceler;

class PerformValveIsolationTrace : public Esri::ArcGISRuntime::Authentication::ArcGISAuthenticationChallengeHandler
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(QStringList categoriesList READ categoriesList NOTIFY categoriesListChanged)
  Q_PROPERTY(int selectedIndex MEMBER m_selectedIndex NOTIFY selectedIndexChanged)
  Q_PROPERTY(bool isolateFeatures MEMBER m_isolateFeatures NOTIFY isolateFeaturesChanged)
  Q_PROPERTY(bool tasksRunning READ tasksRunning NOTIFY tasksRunningChanged)
  Q_PROPERTY(bool noResults READ noResults NOTIFY noResultsChanged)
  Q_PROPERTY(QStringList terminals MEMBER m_terminals NOTIFY terminalsChanged)

public:
  explicit PerformValveIsolationTrace(QObject* parent = nullptr);
  ~PerformValveIsolationTrace();

  static void init();
  Q_INVOKABLE void performTrace();
  Q_INVOKABLE void performReset();
  Q_INVOKABLE void selectedTerminal(int index);

signals:
  void mapViewChanged();
  void categoriesListChanged();
  void selectedIndexChanged();
  void isolateFeaturesChanged();
  void tasksRunningChanged();
  void noResultsChanged();
  void terminalsChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);
  QStringList categoriesList() const;
  bool tasksRunning() const;
  bool noResults() const;
  void connectSignals();
  void onIdentifyLayersCompleted_(const QList<Esri::ArcGISRuntime::IdentifyLayerResult*>& results);
  void onTraceCompleted_();

  void handleArcGISAuthenticationChallenge(Esri::ArcGISRuntime::Authentication::ArcGISAuthenticationChallenge* challenge) override;

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_startingLocationOverlay = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_filterBarriersOverlay = nullptr;
  Esri::ArcGISRuntime::UtilityElement* m_startingLocation = nullptr;
  Esri::ArcGISRuntime::UtilityElement* m_element = nullptr;
  Esri::ArcGISRuntime::UtilityNetwork* m_utilityNetwork = nullptr;
  Esri::ArcGISRuntime::UtilityTraceConfiguration* m_traceConfiguration = nullptr;
  Esri::ArcGISRuntime::Point m_clickPoint;
  QList<Esri::ArcGISRuntime::UtilityElement*> m_filterBarriers;
  QStringList m_terminals;
  QScopedPointer<QObject> m_graphicParent;
  QStringList m_categoriesList;
  std::unique_ptr<TaskCanceler> m_taskCanceler;
  int m_selectedIndex = -1;
  bool m_isolateFeatures = false;
  bool m_tasksRunning = false;
  bool m_traceRunning = false;
  bool m_noResults = false;
};

#endif // PERFORMVALVEISOLATIONTRACE_H

// [WriteFile Name=PerformValveIsolationTrace, Category=UtilityNetwork]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples
import QtQuick.Layouts

Item {
    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    ColumnLayout {
        anchors {
            left: parent.left
            top: parent.top
        }

        Rectangle {
            id: backgroundRect
            color: "#FBFBFB"
            height: childrenRect.height
            width: row.width * 1.25

            RowLayout {
                id: titleRow
                anchors {
                    left: row.left
                    top: parent.top
                }
                Rectangle {
                    color: backgroundRect.color
                    width: childrenRect.width
                    height: childrenRect.height
                    Text {
                        text: "Choose category for filter barrier:"
                        font.pixelSize: 14
                    }
                }
            }

            RowLayout {
                id: row
                anchors {
                    horizontalCenter: parent.horizontalCenter
                    top: titleRow.bottom
                }
                ComboBox {
                    id: comboBox
                    enabled: !sampleModel.tasksRunning
                    Layout.minimumWidth: 200
                    model: sampleModel.categoriesList
                    onCurrentIndexChanged: {
                        sampleModel.selectedIndex = currentIndex;
                    }
                }
                Button {
                    text: "Trace"
                    onClicked: {
                        sampleModel.performTrace();
                    }
                    enabled: !sampleModel.tasksRunning
                }
                Button {
                    text: "Reset"
                    onClicked: {
                        sampleModel.performReset();
                    }
                    enabled: !sampleModel.tasksRunning
                }
            }

            RowLayout {
                id: checkBoxRow
                anchors {
                    top: row.bottom
                    left: row.left
                }

                CheckBox {
                    text: "Include isolated features"
                    enabled: !sampleModel.tasksRunning
                    leftPadding: 0
                    onCheckedChanged: {
                        sampleModel.isolateFeatures = checked;
                    }
                }
            }
        }
    }

    TerminalPickerView {
        id: terminalPickerView
        visible: sampleModel.terminals.length > 0
    }

    BusyIndicator {
        id: busyIndicator
        anchors.centerIn: parent
        running: sampleModel.tasksRunning
    }

    Dialog {
        id: messageDialog
        visible: sampleModel.noResults
        title: "Isolation trace returned no elements."
        standardButtons: Dialog.Ok
        anchors.centerIn: parent
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    PerformValveIsolationTraceSample {
        id: sampleModel
        mapView: view
    }
}

import QtQuick
import QtQuick.Layouts
import QtQuick.Controls

Dialog {
    id: terminalPickerView
    modal: true
    standardButtons: Dialog.Ok | Dialog.Cancel
    x: (parent.width - width) / 2
    y: (parent.height - height) / 2

    ColumnLayout {
        Text {
            text: qsTr("Select the terminal for this junction.")
            Layout.alignment: Qt.AlignHCenter
        }

        ComboBox {
            id: terminalSelection
            model: sampleModel.terminals
            Layout.alignment: Qt.AlignHCenter
        }
    }

    onAccepted: sampleModel.selectedTerminal(terminalSelection.currentIndex);
}

// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "PerformValveIsolationTrace.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("PerformValveIsolationTrace"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  PerformValveIsolationTrace::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/UtilityNetwork/PerformValveIsolationTrace/main.qml"));

  return app.exec();
}

// Copyright 2020 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    PerformValveIsolationTrace {
        anchors.fill: parent
    }
}
