Local server geoprocessing

// [WriteFile Name=LocalServerGeoprocessing, Category=LocalServer]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "LocalServerGeoprocessing.h"

// ArcGIS Maps SDK headers
#include "ArcGISMapImageLayer.h"
#include "ArcGISTiledLayer.h"
#include "Basemap.h"
#include "Envelope.h"
#include "GeoprocessingDouble.h"
#include "GeoprocessingJob.h"
#include "GeoprocessingParameter.h"
#include "GeoprocessingParameters.h"
#include "GeoprocessingTask.h"
#include "GeoprocessingTypes.h"
#include "LayerListModel.h"
#include "LocalGeoprocessingService.h"
#include "LocalServer.h"
#include "LocalServerTypes.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MapViewTypes.h"
#include "TaskTypes.h"
#include "TileCache.h"
#include "Viewpoint.h"

// Qt headers
#include <QDir>
#include <QFuture>
#include <QTemporaryDir>

using namespace Esri::ArcGISRuntime;

// constructor
LocalServerGeoprocessing::LocalServerGeoprocessing(QQuickItem* parent) :
  QQuickItem(parent)
{
  // Create a temporary directory for the local server if one has not already been created
  if (!LocalServer::appDataPath().isEmpty() && !LocalServer::tempDataPath().isEmpty())
    return;

  // create temp/data path
  const QString tempPath = LocalServerGeoprocessing::shortestTempPath() + "/EsriQtTemp";

  // create the directory
  m_tempDir = std::make_unique<QTemporaryDir>(tempPath);

  // set the temp & app data path for the local server
  LocalServer::instance()->setTempDataPath(m_tempDir->path());
  LocalServer::instance()->setAppDataPath(m_tempDir->path());
}

// destructor
LocalServerGeoprocessing::~LocalServerGeoprocessing() = default;

void LocalServerGeoprocessing::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<LocalServerGeoprocessing>("Esri.Samples", 1, 0, "LocalServerGeoprocessingSample");
}

void LocalServerGeoprocessing::componentComplete()
{
  QQuickItem::componentComplete();

  QString dataPath = QDir::homePath() + "/ArcGIS/Runtime/Data";

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");
  m_mapView->setWrapAroundMode(WrapAroundMode::Disabled);

  // Create a map using the topographic BaseMap
  m_map = new Map(BasemapStyle::ArcGISLightGray, this);

  // Set map to map view
  m_mapView->setMap(m_map);

  TileCache* tileCache = new TileCache(dataPath + "/tpkx/RasterHillshade.tpkx", this);
  m_tiledLayer = new ArcGISTiledLayer(tileCache, this);
  m_map->operationalLayers()->append(m_tiledLayer);

  // create a gp service
  m_localGPService = new LocalGeoprocessingService(dataPath + "/gpkx/Contour.gpkx", this);
  m_localGPService->setServiceType(GeoprocessingServiceType::AsynchronousSubmitWithMapServerResult);

  if (LocalServer::instance()->isInstallValid())
  {
    connectSignals();
    if (LocalServer::instance()->status() == LocalServerStatus::Started)
      m_localGPService->start();
    else
      LocalServer::start();
  }
}

void LocalServerGeoprocessing::connectSignals()
{
  connect (m_tiledLayer, &ArcGISTiledLayer::loadStatusChanged, this, [this](LoadStatus status)
  {
    if (status == LoadStatus::Loaded)
    {
      m_mapView->setViewpointAsync(Viewpoint(m_tiledLayer->fullExtent()));
    }
  });

  // start the gp service once local server has started
  connect(LocalServer::instance(), &LocalServer::statusChanged, this, [this]()
  {
    if (LocalServer::status() == LocalServerStatus::Started)
    {
      // start the service
      m_localGPService->start();
      m_isReady = false;
      emit isReadyChanged();
    }
  });

  // local gp service status
  connect(m_localGPService, &LocalGeoprocessingService::statusChanged, this, [this]()
  {
    if (m_localGPService->status() == LocalServerStatus::Started)
    {
      m_gpTask = new GeoprocessingTask(QUrl(m_localGPService->url().toString() + "/Contour"), this);
      m_isReady = true;
      emit isReadyChanged();
    }
  });
}

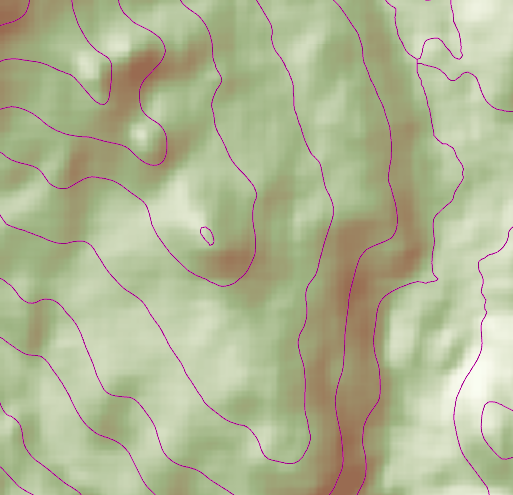

void LocalServerGeoprocessing::generateContours(double interval)
{
  m_isReady = false;
  emit isReadyChanged();
  GeoprocessingParameters gpParams(GeoprocessingExecutionType::AsynchronousSubmit);
  QMap<QString, GeoprocessingParameter*> inputs = gpParams.inputs();
  inputs.insert("ContourInterval", new GeoprocessingDouble(interval, this));
  gpParams.setInputs(inputs);

  GeoprocessingJob* gpJob = m_gpTask->createJob(gpParams);

  connect(gpJob, &GeoprocessingJob::statusChanged, this, [this, gpJob](JobStatus jobStatus)
  {
    if (jobStatus == JobStatus::Succeeded)
    {
      QString url = m_localGPService->url().toString().replace("GPServer", "MapServer/jobs/" + gpJob->serverJobId());
      ArcGISMapImageLayer* mapImageLayer = new ArcGISMapImageLayer(QUrl(url), this);
      m_map->operationalLayers()->append(mapImageLayer);
      m_isReady = true;
      emit isReadyChanged();
    }
  });

  gpJob->start();
}

void LocalServerGeoprocessing::clearResults()
{
  if (m_mapView->map()->operationalLayers()->size() > 1)
    m_mapView->map()->operationalLayers()->removeAt(1);
}

QString LocalServerGeoprocessing::shortestTempPath()
{
  // get tmp and home paths
  const QString tmpPath = QDir::tempPath();
  const QString homePath = QDir::homePath();

  // return whichever is shorter, temp or home path
  if (homePath.length() > tmpPath.length())
    return tmpPath;
  else
    return homePath;
}

// [WriteFile Name=LocalServerGeoprocessing, Category=LocalServer]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef LOCAL_SERVER_GEOPROCESSING_H
#define LOCAL_SERVER_GEOPROCESSING_H

// Qt headers
#include <QQuickItem>
#include <QStringListModel>

// STL headers
#include <memory>

namespace Esri::ArcGISRuntime
{
class Map;
class MapQuickView;
class LocalServer;
class LocalGeoprocessingService;
class ArcGISTiledLayer;
class GeoprocessingTask;
}

class QTemporaryDir;

class LocalServerGeoprocessing : public QQuickItem
{
  Q_OBJECT

  Q_PROPERTY(bool isReady MEMBER m_isReady NOTIFY isReadyChanged)

public:
  explicit LocalServerGeoprocessing(QQuickItem* parent = nullptr);
  ~LocalServerGeoprocessing() override;

  void componentComplete() override;

  static void init();
  Q_INVOKABLE void generateContours(double interval);
  Q_INVOKABLE void clearResults();

signals:
  void isReadyChanged();

private:
  void connectSignals();
  static QString shortestTempPath();

private:
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::ArcGISTiledLayer* m_tiledLayer = nullptr;
  Esri::ArcGISRuntime::LocalGeoprocessingService* m_localGPService = nullptr;
  Esri::ArcGISRuntime::GeoprocessingTask* m_gpTask = nullptr;
  bool m_isReady = false;
  std::unique_ptr<QTemporaryDir> m_tempDir;
};

#endif // LOCAL_SERVER_GEOPROCESSING_H

// [WriteFile Name=LocalServerFeatureLayer, Category=LocalServer]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

LocalServerGeoprocessingSample {
    id: localServerGeoprocessingSample
    width: 800
    height: 600

    // Create MapQuickView here, and create its Map etc. in C++ code
    MapView {
        anchors.fill: parent
        objectName: "mapView"
        // set focus to enable keyboard navigation
        focus: true

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }

        Rectangle {
            id: actionAreaRect
            anchors {
                margins: 15
                top: parent.top
                left: parent.left
            }
            width: parent.width * 0.3
            height: parent.height * 0.30
            color: isReady ? "black" : "silver"
            opacity: 0.7
            radius: 5

            Column {
                id: contentColumn
                spacing: 5
                anchors.fill: parent
                anchors.margins: 5
                visible: isReady

                Text {
                    text: qsTr("Specify the interval, or distance, between contour lines and click the 'Generate Contours' button.")
                    width: parent.width
                    wrapMode: Text.WordWrap
                    color: "white"
                    font.pixelSize: 12
                }

                Rectangle {
                    width: parent.width
                    height: 35
                    radius: 5

                    Text {
                        anchors {
                            left: parent.left
                            verticalCenter: parent.verticalCenter
                            margins: 5
                        }
                        width: 40
                        text: qsTr("Interval: ")
                        font.bold: true
                        font.pixelSize: 14
                    }

                    TextField {
                        id: intervalText
                        anchors {
                            right: parent.right
                            verticalCenter: parent.verticalCenter
                            margins: 5
                        }
                        width: 100
                        text: "200"
                        selectByMouse: true
                        validator: DoubleValidator {bottom: 100; top: 500}
                    }
                }

                Button {
                    width: parent.width
                    text: "Generate Contours"
                    height: 35
                    font.pixelSize: 14
                    font.bold: true
                    onClicked: {
                        generateContours(intervalText.text);
                    }
                }

                Button {
                    width: parent.width
                    text: "Clear Results"
                    height: 35
                    font.pixelSize: 14
                    font.bold: true
                    onClicked: {
                        clearResults();
                    }
                }

            }

            BusyIndicator {
                id: busyIndicator
                anchors.verticalCenter: parent.verticalCenter
                anchors.horizontalCenter: parent.horizontalCenter
                width: 22
                height: width
                running: !isReady
            }
        }
    }
}

// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "LocalServerGeoprocessing.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>
#include <QSettings>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("LocalServerGeoprocessing"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  LocalServerGeoprocessing::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/LocalServer/LocalServerGeoprocessing/LocalServerGeoprocessing.qml"));

  view.show();

  return app.exec();
}
