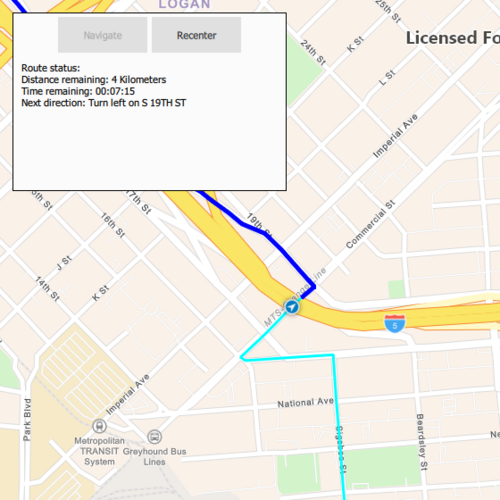

Navigate a route with rerouting

// [WriteFile Name=NavigateARouteWithRerouting, Category=Routing]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "NavigateARouteWithRerouting.h"

// ArcGIS Maps SDK headers
#include "DirectionManeuverListModel.h"
#include "Error.h"
#include "ErrorException.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "LinearUnit.h"
#include "Location.h"
#include "LocationDisplay.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MapViewTypes.h"
#include "NavigationTypes.h"
#include "Point.h"
#include "Polyline.h"
#include "ReroutingParameters.h"
#include "Route.h"
#include "RouteParameters.h"
#include "RouteResult.h"
#include "RouteTask.h"
#include "RouteTracker.h"
#include "RouteTrackerLocationDataSource.h"
#include "SimpleLineSymbol.h"
#include "SimpleMarkerSymbol.h"
#include "SimulatedLocationDataSource.h"
#include "SimulationParameters.h"
#include "SpatialReference.h"
#include "Stop.h"
#include "SymbolTypes.h"
#include "TrackingDistance.h"
#include "TrackingProgress.h"
#include "TrackingStatus.h"
#include "VoiceGuidance.h"

// Qt headers
#include <QFileInfo>
#include <QFuture>
#include <QList>
#include <QStandardPaths>
#include <QTime>
#include <QUrl>
#include <QUuid>
#include <QtTextToSpeech/QTextToSpeech>

// STL headers
#include <memory>

using namespace Esri::ArcGISRuntime;

namespace  {
const Point conventionCenterPoint(-117.160386727066026, 32.706608204740171, SpatialReference::wgs84());
const Point aerospaceMuseumPoint(-117.146679999797271, 32.730351428946854, SpatialReference::wgs84());

const QString tourPolyineJson("{\"paths\":[[[ -117.160386727066026, 32.706608204740171 ], [ -117.160205336548898, 32.706508733108137 ], [ -117.16002394693011, 32.706409261365152 ], [ -117.159842556412997, 32.706309788755419 ], [ -117.159651667110055, 32.706216667017223 ], [ -117.159454444684357, 32.706127778166461 ], [ -117.159257222258688, 32.706038889227095 ], [ -117.159059999833019, 32.705950000199223 ], [ -117.158902856642044, 32.705835713852132 ], [ -117.158739999267553, 32.705720000231665 ], [ -117.158576363053726, 32.705604545733003 ], [ -117.158417272315205, 32.70549090901352 ], [ -117.158256250198832, 32.705376874547866 ], [ -117.158087499876075, 32.70526125028416 ], [ -117.157918750451643, 32.70514562511471 ], [ -117.1577500001289, 32.705029999795485 ], [ -117.157600000341063, 32.704940000101111 ], [ -117.157425000438906, 32.704823332883613 ], [ -117.157250000536706, 32.704706666269544 ], [ -117.15707875020253, 32.70459250003033 ], [ -117.156909999879787, 32.704480000413547 ], [ -117.156741250455326, 32.704367499899007 ], [ -117.156569643489959, 32.704254999998568 ], [ -117.156393750662403, 32.704142500712138 ], [ -117.156217857834818, 32.70403000128394 ], [ -117.156041965007248, 32.703917501713846 ], [ -117.155866072179691, 32.703805002001992 ], [ -117.155690179352078, 32.703692502148236 ], [ -117.155514286524522, 32.703580002152705 ], [ -117.155338393696923, 32.7034675020153 ], [ -117.155162499971055, 32.703355001736114 ], [ -117.154986607143471, 32.703242501315046 ], [ -117.154810714315886, 32.703130000752203 ], [ -117.154635517682649, 32.703016896826178 ], [ -117.154463104030171, 32.702901379868429 ], [ -117.154290690377692, 32.702785862761147 ], [ -117.154118275826903, 32.702670345504323 ], [ -117.153945862174425, 32.702554828097959 ], [ -117.153773448521946, 32.702439310542076 ], [ -117.153599428681744, 32.702323429238 ], [ -117.153423000458261, 32.702207001250933 ], [ -117.153246571336439, 32.702090573867849 ], [ -117.15307014311297, 32.701974145576926 ], [ -117.152893714889458, 32.701857717134175 ], [ -117.152717285767665, 32.701741289295413 ], [ -117.152540857544182, 32.701624860548854 ], [ -117.152364428422359, 32.701508432406285 ], [ -117.152188000198905, 32.701392003355934 ], [ -117.152011571077097, 32.701275574909566 ], [ -117.151835142853614, 32.701159145555422 ], [ -117.15165871463013, 32.701042716049322 ], [ -117.151482285508337, 32.70092628714734 ], [ -117.151305857284839, 32.700809857337454 ], [ -117.151133333139583, 32.700694999722828 ], [ -117.150966666009978, 32.700582500484039 ], [ -117.150799999778684, 32.700470000347529 ], [ -117.150666666434319, 32.700606666276805 ], [ -117.150550000431735, 32.700739999832187 ], [ -117.150413637069931, 32.700887727693875 ], [ -117.150277272809774, 32.701035455311022 ], [ -117.150140909447984, 32.701183182683579 ], [ -117.150004546086151, 32.70133090905572 ], [ -117.149866667266465, 32.701474445066133 ], [ -117.149727777842074, 32.701615186178799 ], [ -117.149588889315993, 32.701755927069449 ], [ -117.149449999891601, 32.701896667738154 ], [ -117.14931111046721, 32.702037408184886 ], [ -117.149171785359911, 32.702179286074646 ], [ -117.149030713927701, 32.702325715147047 ], [ -117.148889642495448, 32.702472143979179 ], [ -117.148748571063251, 32.702618572571104 ], [ -117.148607499631026, 32.702765000922703 ], [ -117.148466428198816, 32.702911428278099 ], [ -117.148324285076455, 32.703055714638857 ], [ -117.148181427793475, 32.703198572087189 ], [ -117.148038571408776, 32.703341429306768 ], [ -117.147895714125781, 32.703484287053563 ], [ -117.147752856842757, 32.703627143815801 ], [ -117.147609999559762, 32.70377000034928 ], [ -117.147775789035336, 32.703888421897091 ], [ -117.147941578510924, 32.704006842531832 ], [ -117.148107367986498, 32.704125263765263 ], [ -117.148270999708757, 32.704241999926992 ], [ -117.148426000417771, 32.704352000065626 ], [ -117.148584000601517, 32.704464000191109 ], [ -117.148754000480821, 32.704584000655537 ], [ -117.148924000360154, 32.704704000958593 ], [ -117.149094000239444, 32.704824001100256 ], [ -117.149264000118777, 32.704944000324637 ], [ -117.149407499697205, 32.705072500228539 ], [ -117.149343333036455, 32.705169047379755 ], [ -117.14912666657645, 32.705166666300379 ], [ -117.14891000011643, 32.705164285976849 ], [ -117.148693333656425, 32.705161904897288 ], [ -117.148478888730111, 32.70516111120412 ], [ -117.148273333531876, 32.705166666300379 ], [ -117.148064000019531, 32.705171999918136 ], [ -117.147848999934354, 32.705177000184506 ], [ -117.147633999849205, 32.705181999694666 ], [ -117.147418999764071, 32.705186999960468 ], [ -117.147200769337161, 32.705185384606324 ], [ -117.146977692499263, 32.705173846577395 ], [ -117.146754615661365, 32.70516230779107 ], [ -117.146708461120397, 32.705286154077442 ], [ -117.146700768846614, 32.705466923690707 ], [ -117.146693076572859, 32.705647692937767 ], [ -117.146683999995219, 32.705830000815943 ], [ -117.146673999949485, 32.706013334065815 ], [ -117.146663999903751, 32.706196666939007 ], [ -117.146664285567994, 32.70638142881964 ], [ -117.146671428072821, 32.706567143490375 ], [ -117.146678571475945, 32.706752857018657 ], [ -117.146740000071702, 32.706929999956024 ], [ -117.146814999516465, 32.707105000372742 ], [ -117.146889999859525, 32.707279999690257 ], [ -117.146924210400499, 32.70746421055955 ], [ -117.146958420941473, 32.707648421804457 ], [ -117.146992631482419, 32.707832631913085 ], [ -117.147028333226785, 32.708011666927277 ], [ -117.14706999978462, 32.708169999740647 ], [ -117.147123125252193, 32.708315313142343 ], [ -117.147188749878651, 32.708491876248765 ], [ -117.147254375403406, 32.70866843900572 ], [ -117.147320000029879, 32.708845002169127 ], [ -117.14738562465628, 32.709021564227307 ], [ -117.147451250181092, 32.709198125936041 ], [ -117.147516874807508, 32.709374687295316 ], [ -117.14752833371729, 32.709551667052253 ], [ -117.147520000046384, 32.709710000156058 ], [ -117.147520000046384, 32.709893333747829 ], [ -117.147520000046384, 32.710076666962848 ], [ -117.147520000046384, 32.71026200054947 ], [ -117.147520000046384, 32.710448667076598 ], [ -117.147520000046384, 32.710635333213204 ], [ -117.147515909118582, 32.710823182620821 ], [ -117.147509090905601, 32.71101181922716 ], [ -117.147502272692577, 32.711200455434678 ], [ -117.147495454479568, 32.711389091999187 ], [ -117.147485142718423, 32.71157742885061 ], [ -117.14746085676471, 32.711764573341057 ], [ -117.147436571709335, 32.711951716683039 ], [ -117.147412285755621, 32.712138859632439 ], [ -117.147387999801936, 32.712326002189215 ], [ -117.147363713848208, 32.712513145109241 ], [ -117.147339428792819, 32.712700286880825 ], [ -117.147316521753055, 32.712886522016262 ], [ -117.147299130369177, 32.713069131040328 ], [ -117.147281738985257, 32.71325173969052 ], [ -117.147264347601379, 32.713434348722721 ], [ -117.147246956217472, 32.713616956625302 ], [ -117.147232058556796, 32.713802941936294 ], [ -117.147218823677719, 32.713991177701793 ], [ -117.147205587900316, 32.714179413825953 ], [ -117.147192353021239, 32.71436764955282 ], [ -117.147179117243851, 32.714555884126625 ], [ -117.147165882364774, 32.714744119059084 ], [ -117.147152647485697, 32.714932352838417 ], [ -117.147153636530803, 32.715120909708922 ], [ -117.147158182006137, 32.715309546296893 ], [ -117.147162727481486, 32.715498182485916 ], [ -117.147167272956835, 32.715686818275991 ], [ -117.147173404856957, 32.715875319889243 ], [ -117.147181915495963, 32.716063619303895 ], [ -117.147190425236644, 32.716251918321021 ], [ -117.14719893587565, 32.716440216940612 ], [ -117.147207446514642, 32.716628515162668 ], [ -117.147215957153648, 32.716816812987197 ], [ -117.147224467792654, 32.717005110414192 ], [ -117.147232978431632, 32.717193407443645 ], [ -117.147241489070623, 32.717381704075564 ], [ -117.147249999709629, 32.717570000309962 ], [ -117.147249999709629, 32.717738750619532 ], [ -117.147332500087032, 32.717837500042386 ], [ -117.147538750581333, 32.717831250407393 ], [ -117.147756000047934, 32.717830000329201 ], [ -117.147976000155978, 32.717833999974772 ], [ -117.148195999365697, 32.717839000287256 ], [ -117.148399999580192, 32.717848889054309 ], [ -117.148599999596726, 32.717859999933836 ], [ -117.148792857108432, 32.717859999933836 ], [ -117.149002857170714, 32.717855714600553 ], [ -117.149221110953832, 32.717848889054309 ], [ -117.149426667050406, 32.717843333236125 ], [ -117.149629999816653, 32.717840000198528 ], [ -117.149834794141881, 32.717839725846488 ], [ -117.150058766600068, 32.717838356353404 ], [ -117.150282739058298, 32.717836986104565 ], [ -117.150506712414838, 32.717835616611495 ], [ -117.150730684873039, 32.717834246362614 ], [ -117.150954657331255, 32.717832876869451 ], [ -117.151178629789484, 32.71783150662052 ], [ -117.151402602247686, 32.717830137127372 ], [ -117.151626575604226, 32.717828766878398 ], [ -117.151850548062413, 32.717827397385207 ], [ -117.152074520520642, 32.717826027136198 ], [ -117.152298492978844, 32.717824657642915 ], [ -117.152522466335384, 32.717823287393841 ], [ -117.152746438793599, 32.717821917900579 ], [ -117.1529704112518, 32.717820547651478 ], [ -117.153186000631806, 32.717819999702947 ], [ -117.153393000321032, 32.717819999702947 ], [ -117.153598000360432, 32.717819999702947 ], [ -117.153680000376198, 32.717931250560419 ], [ -117.153680000376198, 32.718116667591957 ], [ -117.153680000376198, 32.71830208423809 ], [ -117.153680000376198, 32.718487500498668 ], [ -117.153680000376198, 32.71867291637377 ], [ -117.153680000376198, 32.718853999719613 ], [ -117.153691764713159, 32.719040589315924 ], [ -117.153706471032677, 32.719228825364496 ], [ -117.153721176453885, 32.719417061015754 ], [ -117.153735882773404, 32.719605296269705 ], [ -117.153750588194583, 32.719793531126342 ], [ -117.153765294514116, 32.719981765585658 ], [ -117.153779999935324, 32.720169999647716 ], [ -117.153724444524883, 32.720347777996373 ], [ -117.15365916664814, 32.720522916848374 ], [ -117.153554999804427, 32.720687501074849 ], [ -117.153450833859011, 32.720852084241734 ], [ -117.153346667015299, 32.721016667104912 ], [ -117.153242500171572, 32.721181250420067 ], [ -117.153129999656983, 32.721337142933685 ], [ -117.153004999983494, 32.721480000582972 ], [ -117.152880000310034, 32.721622857247624 ], [ -117.152759999761116, 32.72175500006324 ], [ -117.152636666462485, 32.721883333669965 ], [ -117.152503333118148, 32.722016666414483 ], [ -117.152369999773768, 32.722149999715342 ], [ -117.152266296460738, 32.722315741775319 ], [ -117.152162592249397, 32.722481484282923 ], [ -117.152058888936367, 32.722647225726703 ], [ -117.15195518472504, 32.722812966862485 ], [ -117.151851481411995, 32.722978708445886 ], [ -117.151747778098965, 32.723144448965456 ], [ -117.151644073887638, 32.723310189177035 ], [ -117.151540370574594, 32.723475929836226 ], [ -117.151436666363239, 32.723641669431601 ], [ -117.151332963050237, 32.723807408718947 ], [ -117.151234999971862, 32.72397250002998 ], [ -117.151160000527099, 32.724135000367234 ], [ -117.151080000161144, 32.724297500408319 ], [ -117.150996667045533, 32.724460000153258 ], [ -117.150913333929878, 32.724623889395701 ], [ -117.150829999915885, 32.724793333722438 ], [ -117.150746666800273, 32.724962778482904 ], [ -117.150663333684619, 32.725132222165605 ], [ -117.150569142632122, 32.725297714582261 ], [ -117.150467713853416, 32.725460572230027 ], [ -117.150366285972964, 32.725623430335979 ], [ -117.150264857194259, 32.7257862873888 ], [ -117.150163428415524, 32.725949144144138 ], [ -117.150062000535129, 32.726112000602008 ], [ -117.149960571756395, 32.726274857518128 ], [ -117.149810286304302, 32.726402571732081 ], [ -117.149627428838329, 32.726506857771184 ], [ -117.149444571372356, 32.726611143688253 ], [ -117.149261713906355, 32.726715429483335 ], [ -117.149078857338722, 32.726819715156495 ], [ -117.148895999872721, 32.726924000707605 ], [ -117.148713142406748, 32.727028286136743 ], [ -117.148527500163411, 32.727107499935954 ], [ -117.148341999853869, 32.727179999922392 ], [ -117.148156999905936, 32.727254999741994 ], [ -117.147970000308177, 32.727333332937185 ], [ -117.147782499450514, 32.727412499611347 ], [ -117.147604782144612, 32.727511304068443 ], [ -117.147441738818856, 32.727639565155108 ], [ -117.1472786954931, 32.727767826057253 ], [ -117.147115652167315, 32.727896086774876 ], [ -117.146952608841573, 32.728024347307972 ], [ -117.14683238101891, 32.728179524297857 ], [ -117.146722856622844, 32.728341429031481 ], [ -117.14661333312506, 32.728503334226737 ], [ -117.146503809627319, 32.728665238372294 ], [ -117.146433750018303, 32.728838750495896 ], [ -117.146389999369021, 32.729020001365825 ], [ -117.146346249618063, 32.72920125111154 ], [ -117.146302499867119, 32.729382501244444 ], [ -117.146258749217793, 32.729563750253142 ], [ -117.146400000313093, 32.729589999948736 ], [ -117.146600000329613, 32.729668571401881 ], [ -117.146679999797271, 32.729808571287677 ], [ -117.146679999797271, 32.729989523956149 ], [ -117.146679999797271, 32.730170477013012 ], [ -117.146679999797271, 32.730351428946854 ]]],\"spatialReference\":{\"wkid\":4326,\"latestWkid\":4326}}");

QString defaultDataPath()
{
  QString dataPath;

#ifdef Q_OS_IOS
  dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
  dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
#endif

  return dataPath;
}
}

NavigateARouteWithRerouting::NavigateARouteWithRerouting(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISNavigation, this))
{
  m_routeOverlay = new GraphicsOverlay(this);

  //setup route task
  const QString folderLocation = QString("%1/ArcGIS/Runtime/Data/tpkx/san_diego").arg(defaultDataPath());
  if (!QFileInfo::exists(folderLocation))
  {
    qWarning() << "Please download required data.";
    return;
  }
  const QString geodatabaseLocation = folderLocation + QString("/sandiego.geodatabase");
  m_routeTask = new RouteTask(geodatabaseLocation, "Streets_ND", this);
  m_speaker = new QTextToSpeech(this);
}

NavigateARouteWithRerouting::~NavigateARouteWithRerouting() = default;

void NavigateARouteWithRerouting::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<NavigateARouteWithRerouting>("Esri.Samples", 1, 0, "NavigateARouteWithReroutingSample");
}

MapQuickView* NavigateARouteWithRerouting::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void NavigateARouteWithRerouting::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  m_mapView->graphicsOverlays()->append(m_routeOverlay);

  connect(m_routeTask, &RouteTask::doneLoading, this, [this](const Error& error)
  {
    if (error.isEmpty())
      initializeRoute();
    else
      qDebug() << error.message() << error.additionalMessage();
  });
  m_routeTask->load();

  // add graphics for the predefined stops
  SimpleMarkerSymbol* stopSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Diamond, Qt::red, 20, this);
  m_routeOverlay->graphics()->append(new Graphic(conventionCenterPoint, stopSymbol, this));
  m_routeOverlay->graphics()->append(new Graphic(aerospaceMuseumPoint, stopSymbol, this));

  emit mapViewChanged();
}

void NavigateARouteWithRerouting::initializeRoute()
{
  // Asynchronously create default parameters then solve the initial route using methods that utililze QFuture
  m_routeTask->createDefaultParametersAsync()
      .then(this, [this](RouteParameters defaultParameters)
            {
              // set values for parameters
              defaultParameters.setReturnStops(true);
              defaultParameters.setReturnDirections(true);
              defaultParameters.setReturnRoutes(true);
              defaultParameters.setOutputSpatialReference(SpatialReference::wgs84());

              Stop stop1(conventionCenterPoint);
              Stop stop2(aerospaceMuseumPoint);

              QList<Stop> stopsList = {stop1, stop2};
              defaultParameters.setStops(stopsList);

              m_routeParameters = defaultParameters;

              m_routeTask->solveRouteAsync(defaultParameters)
                  .then(this, [this](const RouteResult& routeResult)
                        {
                          if (routeResult.isEmpty() || routeResult.routes().empty())
                            return;

                          m_routeResult = routeResult;
                          m_route = std::as_const(m_routeResult).routes()[0];

                          m_directionManeuvers = m_route.directionManeuvers(this)->directionManeuvers();

                          // adjust viewpoint to enclose the route with a 100 DPI padding
                          m_mapView->setViewpointGeometryAsync(m_route.routeGeometry(), 100);
                          // create graphics to show the route traversed and route ahead
                          m_routeAheadGraphic = new Graphic(m_route.routeGeometry(), new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, Qt::blue, 5, this), this);
                          m_routeTraveledGraphic = new Graphic(Geometry(), new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, Qt::cyan, 3, this), this);
                          m_routeOverlay->graphics()->append(m_routeAheadGraphic);
                          m_routeOverlay->graphics()->append(m_routeTraveledGraphic);

                          m_navigationEnabled = true;
                          emit navigationEnabledChanged();
                        })
                  // Handle any errors that arise from solving the route
                  .onFailed(this, [](const ErrorException& e)
                            {
                              qWarning() << "Solve route failed" << e.error().message() << e.error().additionalMessage();
                            });
            })
      // Handle any errors that arise from creating default parameters
      .onFailed(this, [](const ErrorException& e)
                {
                  qWarning() << "Create default parameters failed" << e.error().message() << e.error().additionalMessage();
                });
}

bool NavigateARouteWithRerouting::navigationEnabled() const
{
  return m_navigationEnabled;
}

bool NavigateARouteWithRerouting::recenterEnabled() const
{
  return m_recenterEnabled;
}

void NavigateARouteWithRerouting::startNavigation()
{
  // disable the navigation button
  m_navigationEnabled = false;
  emit navigationEnabledChanged();

  m_directionManeuvers = m_route.directionManeuvers(this)->directionManeuvers();

  // create a route tracker
  m_routeTracker = new RouteTracker(m_routeResult, 0, this);

  connectRouteTrackerSignals();

  // enable the RouteTracker to know when the QTextToSpeech engine is ready
  m_routeTracker->setSpeechEngineReadyFunction([speaker = m_speaker]() -> bool
  {
    return speaker->state() == QTextToSpeech::State::Ready;
  });

  // enable "recenter" button when location display is moved from nagivation mode
  connect(m_mapView->locationDisplay(), &LocationDisplay::autoPanModeChanged, this, [this](LocationDisplayAutoPanMode autoPanMode)
  {
    m_recenterEnabled = autoPanMode != LocationDisplayAutoPanMode::Navigation;
    emit recenterEnabledChanged();
  });

  connect(m_mapView->locationDisplay(), &LocationDisplay::locationChanged, this, [this](const Location& location)
  {
    auto future = m_routeTracker->trackLocationAsync(location);
    Q_UNUSED(future);
  });

  // turn on map view's navigation mode
  m_mapView->locationDisplay()->setAutoPanMode(LocationDisplayAutoPanMode::Navigation);
  RouteTrackerLocationDataSource* dataSource = new RouteTrackerLocationDataSource(m_routeTracker, this);
  m_mapView->locationDisplay()->setDataSource(dataSource);

  ReroutingParameters* rerouteParameters = new ReroutingParameters(m_routeTask, m_routeParameters, this);
  rerouteParameters->setStrategy(ReroutingStrategy::ToNextWaypoint);
  rerouteParameters->setVisitFirstStopOnStart(false);

  auto future = m_routeTracker->enableReroutingAsync(rerouteParameters);
  Q_UNUSED(future);

  double velocity = 40.0;
  double horizontalAccuracy = 0.0;
  double verticalAccuracy = 0.0;

  // add a data source for the location display
  SimulationParameters* simulationParameters = new SimulationParameters(QDateTime::currentDateTime(), velocity, horizontalAccuracy, verticalAccuracy, this);
  m_simulatedLocationDataSource = new SimulatedLocationDataSource(this);
  m_simulatedLocationDataSource->setLocationsWithPolyline(geometry_cast<Polyline>(Geometry::fromJson(tourPolyineJson)), simulationParameters);
  m_mapView->locationDisplay()->setDataSource(m_simulatedLocationDataSource);
  m_simulatedLocationDataSource->start();
}

void NavigateARouteWithRerouting::connectRouteTrackerSignals()
{
  connect(m_routeTracker, &RouteTracker::newVoiceGuidance, this, [this](VoiceGuidance* rawVoiceGuidance)
  {
    auto voiceGuidance = std::unique_ptr<VoiceGuidance>(rawVoiceGuidance);
    m_speaker->say(voiceGuidance->text());
  });

  connect(m_routeTracker, &RouteTracker::trackingStatusChanged, this, [this](TrackingStatus* rawTrackingStatus)
  {
    auto trackingStatus = std::unique_ptr<TrackingStatus>(rawTrackingStatus);
    QString textString("Route status: \n");
    if (trackingStatus->destinationStatus() == DestinationStatus::NotReached || trackingStatus->destinationStatus() == DestinationStatus::Approaching)
    {
      if (trackingStatus->isOnRoute())
      {
        textString += "Distance remaining: " + trackingStatus->routeProgress()->remainingDistance()->displayText() + " " +
            trackingStatus->routeProgress()->remainingDistance()->displayTextUnits().pluralDisplayName() + "\n";
        QTime time = QTime::fromMSecsSinceStartOfDay(trackingStatus->routeProgress()->remainingTime() * 60 * 1000); // convert time to milliseconds
        textString += "Time remaining: " + time.toString("hh:mm:ss") + "\n";

        // display next direction
        if (m_directionManeuvers.size() > 0)
        {
          if (trackingStatus->currentManeuverIndex() + 1 < m_directionManeuvers.length())
          {
            textString += "Next direction: " + m_directionManeuvers[trackingStatus->currentManeuverIndex() + 1].directionText() + "\n";
          }
        }
        m_routeTraveledGraphic->setGeometry(trackingStatus->routeProgress()->traversedGeometry());
        m_routeAheadGraphic->setGeometry(trackingStatus->routeProgress()->remainingGeometry());
      }
    }
    else if (trackingStatus->destinationStatus() == DestinationStatus::Reached)
    {
      textString += "Destination reached.\n";

      // set the route geometries to reflect the completed route
      m_routeAheadGraphic->setGeometry(Geometry());
      m_routeTraveledGraphic->setGeometry(trackingStatus->routeResult().routes()[0].routeGeometry());

      // navigate to next stop, if available
      if (trackingStatus->remainingDestinationCount() > 1)
      {
        auto future = m_routeTracker->switchToNextDestinationAsync();
        Q_UNUSED(future);
      }
      else
      {
        m_simulatedLocationDataSource->stop();
        m_navigationEnabled = true;
        emit navigationEnabledChanged();
      }
    }
    m_textString = textString;
    emit textStringChanged();
  });

  connect(m_routeTracker, &RouteTracker::rerouteCompleted, this, [this](TrackingStatus* rawTrackingStatus)
  {
    // When a reroute is completed, clear the previous graphics overlay and append the new ones for the new path
    m_routeOverlay->graphics()->clear();

    // Use the updated route to get the new direction maneuvers list
    m_directionManeuvers = rawTrackingStatus->routeResult().routes().at(0).directionManeuvers(this)->directionManeuvers();

    // Since we cleared the routeOverlay above, re-add the graphics for the predefined stops
    SimpleMarkerSymbol* stopSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Diamond, Qt::red, 20, this);
    m_routeOverlay->graphics()->append(new Graphic(conventionCenterPoint, stopSymbol, this));
    m_routeOverlay->graphics()->append(new Graphic(aerospaceMuseumPoint, stopSymbol, this));

    // Add the new routeAhead and routeTraveled graphics to the overlay
    m_routeOverlay->graphics()->append(m_routeAheadGraphic);
    m_routeOverlay->graphics()->append(m_routeTraveledGraphic);
  });
}

QString NavigateARouteWithRerouting::textString() const
{
  return m_textString;
}

void NavigateARouteWithRerouting::recenterMap()
{
  m_mapView->locationDisplay()->setAutoPanMode(LocationDisplayAutoPanMode::Navigation);
}

// [WriteFile Name=NavigateARouteWithRerouting, Category=Routing]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef NAVIGATEAROUTEWITHREROUTING_H
#define NAVIGATEAROUTEWITHREROUTING_H

// ArcGIS Maps SDK headers
#include "DirectionManeuver.h"
#include "Route.h"
#include "RouteParameters.h"
#include "RouteResult.h"

// Qt headers
#include <QObject>

class QTextToSpeech;

namespace Esri
{
namespace ArcGISRuntime
{
class Graphic;
class GraphicsOverlay;
class Map;
class MapQuickView;
class RouteParameters;
class RouteTask;
class RouteTracker;
class SimulatedLocationDataSource;
}
}

Q_MOC_INCLUDE("MapQuickView.h")

class NavigateARouteWithRerouting : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(bool navigationEnabled READ navigationEnabled NOTIFY navigationEnabledChanged)
  Q_PROPERTY(bool recenterEnabled READ recenterEnabled NOTIFY recenterEnabledChanged)
  Q_PROPERTY(QString textString READ textString NOTIFY textStringChanged)

public:
  explicit NavigateARouteWithRerouting(QObject* parent = nullptr);
  ~NavigateARouteWithRerouting();

  static void init();
  Q_INVOKABLE void startNavigation();
  Q_INVOKABLE void recenterMap();

signals:
  void mapViewChanged();
  void navigationEnabledChanged();
  void recenterEnabledChanged();
  void textStringChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);

  bool navigationEnabled() const;
  bool recenterEnabled() const;
  QString textString() const;
  void initializeRoute();
  void connectRouteTrackerSignals();

  Esri::ArcGISRuntime::Graphic* m_routeAheadGraphic = nullptr;
  Esri::ArcGISRuntime::Graphic* m_routeTraveledGraphic = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_routeOverlay = nullptr;
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::RouteTask* m_routeTask = nullptr;
  Esri::ArcGISRuntime::Route m_route;
  Esri::ArcGISRuntime::RouteResult m_routeResult;
  Esri::ArcGISRuntime::RouteTracker* m_routeTracker = nullptr;
  Esri::ArcGISRuntime::SimulatedLocationDataSource* m_simulatedLocationDataSource = nullptr;
  bool m_navigationEnabled = false;
  bool m_recenterEnabled = false;
  QString m_textString = "";
  Esri::ArcGISRuntime::RouteParameters m_routeParameters;
  QList<Esri::ArcGISRuntime::DirectionManeuver> m_directionManeuvers;
  QTextToSpeech* m_speaker = nullptr;
};

#endif // NAVIGATEAROUTEWITHREROUTING_H

// [WriteFile Name=NavigateARouteWithRerouting, Category=Routing]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import Esri.Samples
import QtQuick.Controls
import QtQuick.Layouts

Item {

    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set and keep the focus on MapView to enable keyboard navigation
            forceActiveFocus();
        }
        Rectangle {
            id: backBox
            anchors {
                top: parent.top
                left: parent.left
                margins: 20
            }
            z: 1
            width: buttonRow.width * 1.5
            height: 200
            color: "#FBFBFB"
            border.color: "black"

            RowLayout {
                id: buttonRow
                anchors {
                    top: parent.top
                    horizontalCenter: parent.horizontalCenter
                    margins: 5
                }
                Button {
                    text: "Navigate"
                    enabled: model.navigationEnabled
                    onClicked: {
                        model.startNavigation();
                    }
                }
                Button {
                    text: "Recenter"
                    enabled: model.recenterEnabled
                    onClicked: {
                        model.recenterMap();
                    }
                }
            }

            Rectangle {
                anchors {
                    top: buttonRow.bottom
                    left: parent.left
                    margins: 5
                }
                width: parent.width
                Text {
                    padding: 5
                    width: parent.width
                    wrapMode: Text.Wrap
                    text: model.textString
                }
            }
        }
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    NavigateARouteWithReroutingSample {
        id: model
        mapView: view
    }
}

// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "NavigateARouteWithRerouting.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("NavigateARouteWithRerouting"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  NavigateARouteWithRerouting::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/Routing/NavigateARouteWithRerouting/main.qml"));

  return app.exec();
}

// Copyright 2022 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    NavigateARouteWithRerouting {
        anchors.fill: parent
    }
}
