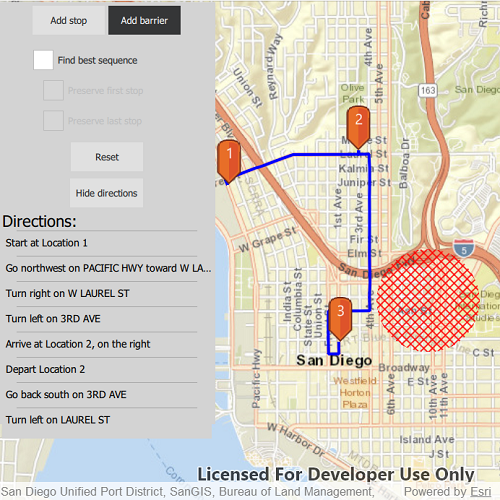

Route around barriers

// [WriteFile Name=RouteAroundBarriers, Category=Routing]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "RouteAroundBarriers.h"

// ArcGIS Maps SDK headers
#include "CompositeSymbol.h"
#include "DirectionManeuverListModel.h"
#include "Error.h"
#include "GeometryEngine.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "PictureMarkerSymbol.h"
#include "Point.h"
#include "Polygon.h"
#include "PolygonBarrier.h"
#include "Polyline.h"
#include "Route.h"
#include "RouteResult.h"
#include "RouteTask.h"
#include "SimpleFillSymbol.h"
#include "SimpleLineSymbol.h"
#include "SimpleRenderer.h"
#include "Stop.h"
#include "SymbolTypes.h"
#include "TextSymbol.h"
#include "Viewpoint.h"

// Qt headers
#include <QDir>
#include <QFuture>
#include <QUuid>

using namespace Esri::ArcGISRuntime;

namespace
{
const QUrl pinUrl("qrc:/Samples/Routing/RouteAroundBarriers/orange_symbol.png");
const QUrl routeTaskUrl("https://sampleserver6.arcgisonline.com/arcgis/rest/services/NetworkAnalysis/SanDiego/NAServer/Route");
}

RouteAroundBarriers::RouteAroundBarriers(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISStreets, this)),
  m_routeOverlay(new GraphicsOverlay(this)),
  m_stopsOverlay(new GraphicsOverlay(this)),
  m_barriersOverlay(new GraphicsOverlay(this))
{
  // create symbols for displaying the barriers and the route line
  m_barrierSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle::DiagonalCross, Qt::red, this);
  SimpleLineSymbol* routeLineSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, Qt::blue, 3, this);

  SimpleRenderer* routeRenderer = new SimpleRenderer(routeLineSymbol, this);
  m_routeOverlay->setRenderer(routeRenderer);

  m_pinSymbol = new PictureMarkerSymbol(pinUrl, this);
  m_pinSymbol->setHeight(50);
  m_pinSymbol->setWidth(50);
  m_pinSymbol->setOffsetY(m_pinSymbol->height() / 2);

  // create route task
  m_routeTask = new RouteTask(routeTaskUrl, this);
}

RouteAroundBarriers::~RouteAroundBarriers() = default;

void RouteAroundBarriers::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<RouteAroundBarriers>("Esri.Samples", 1, 0, "RouteAroundBarriersSample");
}

MapQuickView* RouteAroundBarriers::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void RouteAroundBarriers::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  m_mapView->setViewpointAsync(Viewpoint(32.727, -117.1750, 40000));

  // add the graphics overlays to the MapView
  m_mapView->graphicsOverlays()->append(m_routeOverlay);
  m_mapView->graphicsOverlays()->append(m_stopsOverlay);
  m_mapView->graphicsOverlays()->append(m_barriersOverlay);

  connectRouteSignals();
  m_routeTask->load();
  emit mapViewChanged();
}

void RouteAroundBarriers::connectRouteSignals()
{
  connect(m_routeTask, &RouteTask::doneLoading, this, [this](const Error& loadError)
  {
    if (!loadError.isEmpty())
    {
      qDebug() << loadError.message() << loadError.additionalMessage();
    }
    m_routeTask->createDefaultParametersAsync().then(this, [this](const RouteParameters& defaultParameters)
    {
      m_routeParameters = defaultParameters;

      // set flags to return stops and directions
      m_routeParameters.setReturnStops(true);
      m_routeParameters.setReturnDirections(true);
    });
  });

  connect(m_mapView, &MapQuickView::mouseClicked, this, [this](QMouseEvent& e)
  {
    const Point clickedPoint = m_mapView->screenToLocation(e.position().x(), e.position().y());
    if (m_addStops)
    {
      // add stop to list of stops
      const Stop stopPoint(clickedPoint);
      m_stopsList << stopPoint;

      // create a marker symbol and graphics, and add the graphics to the graphics overlay
      TextSymbol* textSymbol = new TextSymbol(QString::number(m_stopsList.size()), Qt::white, 16,
                                              HorizontalAlignment::Center, VerticalAlignment::Bottom, this);
      textSymbol->setOffsetY(m_pinSymbol->height() / 2);
      CompositeSymbol* newStopSymbol = new CompositeSymbol(QList<Symbol*>{m_pinSymbol, textSymbol}, this);

      Graphic* stopGraphic = new Graphic(clickedPoint, newStopSymbol, this);
      m_stopsOverlay->graphics()->append(stopGraphic);

      createAndDisplayRoute();
    }
    else if (m_addBarriers)
    {
      // add barrier to list
      const Polygon barrierPolygon = GeometryEngine::buffer(clickedPoint, 500);
      const PolygonBarrier barrier(barrierPolygon);
      m_barriersList << barrier;

      Graphic* barrierGraphic = new Graphic(barrierPolygon, m_barrierSymbol, this);
      m_barriersOverlay->graphics()->append(barrierGraphic);

      createAndDisplayRoute();
    }
  });
}

void RouteAroundBarriers::createAndDisplayRoute()
{
  if (m_stopsList.size() > 1)
  {
    // clear the previous route, if it exists
    if (m_routeOverlay)
      m_routeOverlay->graphics()->clear();

    // clear the directions list
    if (m_directions)
    {
      delete m_directions;
      m_directions = nullptr;
    }

    m_routeParameters.setStops(m_stopsList);
    m_routeParameters.setPolygonBarriers(m_barriersList);
    m_routeParameters.setFindBestSequence(m_findBestSequence);
    m_routeParameters.setPreserveFirstStop(m_preserveFirstStop);
    m_routeParameters.setPreserveLastStop(m_preserveLastStop);

    m_routeTask->solveRouteAsync(m_routeParameters).then(this, [this](const RouteResult& routeResult)
    {
      if (routeResult.isEmpty())
        return;

      const Route route = std::as_const(routeResult).routes()[0];
      const Geometry routeGeometry = route.routeGeometry();
      Graphic* routeGraphic = new Graphic(routeGeometry, this);
      m_routeOverlay->graphics()->append(routeGraphic);

      m_directions = route.directionManeuvers(this);
      emit directionsChanged();
    });
  }
}

void RouteAroundBarriers::clearRouteAndGraphics()
{
  // clear stops from route parameters and stops list
  m_routeParameters.clearStops();
  m_stopsList.clear();

  // clear barriers
  m_routeParameters.clearPolygonBarriers();
  m_barriersList.clear();

  // clear directions list
  if (m_directions)
  {
    delete m_directions;
    m_directions = nullptr;
    emit directionsChanged();
  }

  // delete graphics from overlay, then clear graphics overlays
  for (GraphicsOverlay* overlay : *m_mapView->graphicsOverlays())
  {
    if (overlay)
    {
      for (Graphic* graphic : *overlay->graphics())
      {
        delete graphic;
      }
      overlay->graphics()->clear();
    }
  }
}

void RouteAroundBarriers::clearDirections()
{
  if (m_directions)
  {
    delete m_directions;
    m_directions = nullptr;
    emit directionsChanged();
  }
}

// [WriteFile Name=RouteAroundBarriers, Category=Routing]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef ROUTEAROUNDBARRIERS_H
#define ROUTEAROUNDBARRIERS_H

// ArcGIS Maps SDK headers
#include "PolygonBarrier.h"
#include "RouteParameters.h"
#include "Stop.h"

// Qt headers
#include <QObject>

namespace Esri::ArcGISRuntime
{
class GraphicsOverlay;
class Map;
class MapQuickView;
class PictureMarkerSymbol;
class RouteTask;
class SimpleFillSymbol;
}

class QAbstractListModel;

Q_MOC_INCLUDE("MapQuickView.h")
Q_MOC_INCLUDE("QAbstractListModel")

class RouteAroundBarriers : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(bool addStops MEMBER m_addStops NOTIFY addStopsChanged)
  Q_PROPERTY(bool addBarriers MEMBER m_addBarriers NOTIFY addBarriersChanged)
  Q_PROPERTY(bool findBestSequence MEMBER m_findBestSequence NOTIFY findBestSequenceChanged)
  Q_PROPERTY(bool preserveFirstStop MEMBER m_preserveFirstStop NOTIFY preserveFirstStopChanged)
  Q_PROPERTY(bool preserveLastStop MEMBER m_preserveLastStop NOTIFY preserveLastStopChanged)
  Q_PROPERTY(QAbstractListModel* directions MEMBER m_directions NOTIFY directionsChanged)

public:
  explicit RouteAroundBarriers(QObject* parent = nullptr);
  ~RouteAroundBarriers();

  static void init();

  Q_INVOKABLE void createAndDisplayRoute();
  Q_INVOKABLE void clearRouteAndGraphics();
  Q_INVOKABLE void clearDirections();

signals:
  void mapViewChanged();
  void addStopsChanged();
  void addBarriersChanged();
  void findBestSequenceChanged();
  void preserveFirstStopChanged();
  void preserveLastStopChanged();
  void directionsChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);
  void connectRouteSignals();

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_routeOverlay = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_stopsOverlay = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_barriersOverlay = nullptr;
  Esri::ArcGISRuntime::PictureMarkerSymbol* m_pinSymbol = nullptr;
  Esri::ArcGISRuntime::RouteParameters m_routeParameters;
  Esri::ArcGISRuntime::RouteTask* m_routeTask = nullptr;
  Esri::ArcGISRuntime::SimpleFillSymbol* m_barrierSymbol = nullptr;

  QList<Esri::ArcGISRuntime::Stop> m_stopsList;
  QList<Esri::ArcGISRuntime::PolygonBarrier> m_barriersList;
  QAbstractListModel* m_directions = nullptr;
  bool m_addStops = true;
  bool m_addBarriers = false;
  bool m_findBestSequence = false;
  bool m_preserveFirstStop = false;
  bool m_preserveLastStop = false;
};

#endif // ROUTEAROUNDBARRIERS_H

// [WriteFile Name=RouteAroundBarriers, Category=Routing]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples
import QtQuick.Layouts

Item {
    id: rootItem
    readonly property int checkBoxPadding: 20

    ButtonGroup {
        buttons: buttonsRow.children
    }

    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }

        ColumnLayout {
            spacing: 0
            Layout.alignment: Qt.AlignTop

            Rectangle {
                id: backBox
                z: 1
                Layout.alignment: Qt.AlignLeft
                Layout.margins: 3
                Layout.bottomMargin: 0
                implicitWidth: grid.implicitWidth
                height: childrenRect.height
                color: "lightgrey"

                GridLayout {
                    id: grid
                    anchors.horizontalCenter: parent.horizontalCenter
                    rows: 4
                    columns: 1
                    rowSpacing: 10
                    columnSpacing: 2
                    Row {
                        id: buttonsRow
                        Layout.alignment: Qt.AlignHCenter
                        spacing: 5
                        padding: 5
                        Button {
                            id: stopButton
                            text: "Add stop"
                            checked: true
                            highlighted: checked
                            onClicked: {
                                checked = true;
                            }
                            onCheckedChanged: {
                                sampleModel.addStops = checked;
                            }
                        }
                        Button {
                            id: barrierButton
                            text: "Add barrier"
                            highlighted: checked;
                            onClicked: {
                                checked = true;
                            }
                            onCheckedChanged: {
                                sampleModel.addBarriers = checked;
                            }
                        }
                    }

                    Column {
                        spacing: 2

                        CheckBox {
                            id: bestSequenceBox
                            text: "Find best sequence"
                            onCheckedChanged: {
                                sampleModel.findBestSequence = checked;
                                sampleModel.createAndDisplayRoute();
                            }
                        }
                        CheckBox {
                            id: firstStopBox
                            text: "Preserve first stop"
                            leftPadding: checkBoxPadding
                            enabled: bestSequenceBox.checked
                            onCheckedChanged: {
                                sampleModel.preserveFirstStop = checked;
                                sampleModel.createAndDisplayRoute();
                            }
                        }
                        CheckBox {
                            id: lastStopBox
                            text: "Preserve last stop"
                            leftPadding: checkBoxPadding
                            enabled: bestSequenceBox.checked
                            onCheckedChanged: {
                                sampleModel.preserveLastStop = checked;
                                sampleModel.createAndDisplayRoute();
                            }
                        }
                    }

                    Row {
                        Layout.alignment: Qt.AlignHCenter
                        Button {
                            id: resetButton
                            text: "Reset"
                            onClicked: {
                                sampleModel.clearRouteAndGraphics();
                                sampleModel.clearDirections();
                            }
                        }
                    }

                    Row {
                        Layout.alignment: Qt.AlignHCenter
                        Button {
                            text: "Hide directions"
                            onClicked: {
                                if (text === "Hide directions") {
                                    directionsView.delegate = blankDelegate;
                                    text = "Show directions";
                                } else {
                                    directionsView.delegate = directionDelegate;
                                    text = "Hide directions";
                                }
                            }
                        }
                    }
                }
            }

            // Create window for displaying the route directions
            Rectangle {
                id: directionWindow
                Layout.alignment: Qt.AlignBottom
                Layout.topMargin: 0
                visible: true
                Layout.preferredWidth: backBox.width
                Layout.preferredHeight: 300
                Layout.margins: 3
                color: "lightgrey"

                ScrollView {
                    anchors.fill: parent

                    ListView {
                        id: directionsView
                        anchors {
                            fill: parent
                            margins: 5
                        }
                        header: Text {
                            text: "Directions:"
                            font.pixelSize: 22
                            bottomPadding: 8
                        }

                        // set the model to the DirectionManeuverListModel returned from the route
                        model: sampleModel.directions
                        delegate: directionDelegate
                    }
                }
            }
        }
    }

    Component {
        id: blankDelegate
        Rectangle {
            width: parent.width
            height: 35
            color: directionWindow.color
        }
    }

    Component {
        id: directionDelegate
        Rectangle {
            id: rect
            width: parent ? parent.width : 0
            height: 35
            color: directionWindow.color

            Rectangle {
                anchors {
                    top: parent.top;
                    left: parent.left;
                    right: parent.right;
                    topMargin: -8
                    leftMargin: 20
                    rightMargin: 20
                }
                color: "darkgrey"
                height: 1
            }

            Text {
                text: directionText
                anchors {
                    fill: parent
                    leftMargin: 5
                }
                elide: Text.ElideRight
                font.pixelSize: 14
            }
        }
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    RouteAroundBarriersSample {
        id: sampleModel
        mapView: view
    }
}

// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "RouteAroundBarriers.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("RouteAroundBarriers"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  RouteAroundBarriers::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/Routing/RouteAroundBarriers/main.qml"));

  return app.exec();
}

// Copyright 2020 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    RouteAroundBarriers {
        anchors.fill: parent
    }
}
