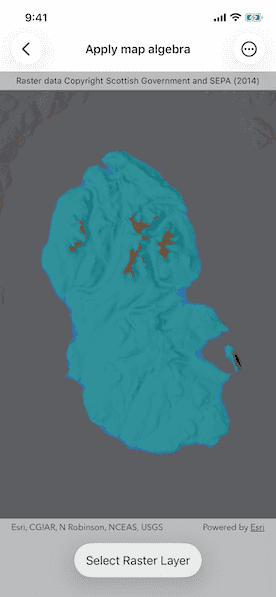

Apply map algebra

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
// Copyright 2026 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct ApplyMapAlgebraView: View {
    /// The model for the sample.
    @State private var model = Model()
    /// The error shown in the error alert.
    @State private var error: (any Error)?
    /// A Boolean value indicating whether the categorize button is tapped to
    /// perform the map algebra analysis.
    @State private var categorizeButtonIsTapped = false
    /// A Boolean value indicating whether the map algebra analysis is
    /// successful with a result raster layer.
    @State private var resultsLayerIsAvailable = false

    var body: some View {
        MapView(map: model.map)
            .overlay(alignment: .top) {
                Text("Raster data copyright Scottish Government and SEPA (2014)")
                    .font(.caption)
                    .frame(maxWidth: .infinity)
                    .padding(.vertical, 6)
                    .background(.thinMaterial, ignoresSafeAreaEdges: .horizontal)
            }
            .task(id: categorizeButtonIsTapped) {
                guard categorizeButtonIsTapped else { return }
                defer { categorizeButtonIsTapped = false }
                do {
                    // Performs the map algebra analysis to categorize
                    // geomorphic areas based on elevation, and creates a
                    // raster layer with the results.
                    if let raster = try await model.performAnalysis(fromFilesAt: [.arranElevation]) {
                        let resultsLayer = model.makeGeomorphicCategorizationRasterLayer(raster: raster)
                        model.map.addOperationalLayer(resultsLayer)
                        model.selectRasterLayer(resultsLayer)
                        withAnimation {
                            resultsLayerIsAvailable = true
                        }
                    }
                } catch {
                    self.error = error
                }
            }
            .toolbar {
                ToolbarItem(placement: .bottomBar) {
                    if resultsLayerIsAvailable {
                        Menu("Select Raster Layer") {
                            ForEach(model.map.operationalLayers.filter { $0 is RasterLayer }, id: \.id) { layer in
                                Button(layer.name) {
                                    model.selectRasterLayer(layer as! RasterLayer)
                                }
                            }
                        }
                    } else {
                        Button {
                            categorizeButtonIsTapped = true
                        } label: {
                            if model.isPerformingAnalysis {
                                ProgressView()
                            }
                            Text("Categorize")
                        }
                        .disabled(model.isPerformingAnalysis)
                    }
                }
            }
            .errorAlert(presentingError: $error)
    }
}

private extension ApplyMapAlgebraView {
    @Observable
    class Model {
        /// A map with a hillshade dark basemap style and an elevation raster layer.
        let map: Map = {
            let map = Map(basemapStyle: .arcGISHillshadeDark)
            // Sets an initial viewpoint over the Isle of Arran, Scotland.
            map.initialViewpoint = Viewpoint(
                center: Point(latitude: 55.584612, longitude: -5.234218),
                scale: 500_000
            )

            // Creates a raster layer from a raster elevation file.
            let rasterLayer = RasterLayer(
                raster: Raster(fileURL: .arranElevation)
            )
            // Creates a stretch renderer to visualize the elevation raster layer
            // using the surface preset color ramp.
            let stretchParams = MinMaxStretchParameters(
                minValues: [0],
                maxValues: [874.0]
            )
            let colorRamp = ColorRamp(preset: .surface, size: 256)
            let stretchRenderer = StretchRenderer(
                parameters: stretchParams,
                gammas: [1.0],
                estimatesStatistics: false,
                colorRamp: colorRamp
            )
            rasterLayer.renderer = stretchRenderer
            rasterLayer.opacity = 0.5
            map.addOperationalLayer(rasterLayer)

            return map
        }()

        /// A Boolean value indicating whether the map algebra analysis is
        /// being performed.
        private(set) var isPerformingAnalysis = false

        /// Applies the map algebra to the elevation raster and creates a new
        /// raster layer with the results.
        /// - Parameter urls: One or more raster file paths.
        /// - Returns: A new raster containing the results of the analysis.
        @MainActor
        func performAnalysis(fromFilesAt urls: [URL]) async throws -> Raster? {
            isPerformingAnalysis = true
            defer { isPerformingAnalysis = false }

            // Creates a continuous field from the elevation raster file.
            let elevationField = try await ContinuousField.field(
                fromFilesAt: urls,
                bandIndex: 0
            )
            // Creates a continuous field function from the elevation field.
            let continuousFieldFunction = ContinuousFieldFunction.function(withResult: elevationField)
            // Masks out values below sea level to categorize only land.
            let elevationFieldFunction = continuousFieldFunction.mask(
                selection: continuousFieldFunction.isGreaterThanOrEqualTo(0)
            )
            // Rounds elevation values down to the lower 10m interval, then
            // convert to a discrete field function.
            let tenMeterBinField = ((elevationFieldFunction / 10).floor() * 10)
                .toDiscreteFieldFunction()

            // Creates boolean fields for each geomorphic category based on
            // the nearest 10m interval field.

            // Category: Raised shore line areas.
            let isRaisedShoreline = tenMeterBinField
                .isGreaterThanOrEqualTo(0)
                .logicalAnd(
                    with: tenMeterBinField.isLess(than: 10)
                )

            // Category: Ice covered areas.
            // Note: Operator overloads are available on some operators
            // (e.g. /, *, +, -) to allow for more concise syntax when
            // chaining operations. Instead of using logicalAnd, the
            // operator overloads can also be used to combine boolean fields,
            // as shown below.
            let isIceCovered = (tenMeterBinField .>= 10) .& (tenMeterBinField .< 600)

            // Category: Ice free high ground.
            let isIceFreeHighGround = tenMeterBinField .>= 600

            // Assigns values to the geomorphic categories and evaluate.
            // Raised shoreline=1, ice covered=2, ice-free high ground=3.
            let geomorphicCategoryFieldFunction = tenMeterBinField
                .replaceIf(isRaisedShoreline, with: 1)
                .replaceIf(isIceCovered, with: 2)
                .replaceIf(isIceFreeHighGround, with: 3)
            let geomorphicCategoryField = try await geomorphicCategoryFieldFunction.evaluate()

            // Creates a temporary directory.
            let temporaryDirectoryURL = try FileManager.default
                .url(
                    for: .itemReplacementDirectory,
                    in: .userDomainMask,
                    appropriateFor: .arranElevation,
                    create: true
                )
                .appendingPathComponent(
                    "geomorphic",
                    isDirectory: true
                )
            if FileManager.default.fileExists(atPath: temporaryDirectoryURL.path) {
                try FileManager.default.removeItem(at: temporaryDirectoryURL)
            }
            try FileManager.default.createDirectory(
                at: temporaryDirectoryURL,
                withIntermediateDirectories: true
            )

            // Exports the discrete field to files in GeoTIFF format.
            let exportedFiles = try await geomorphicCategoryField.export(
                toFilesInDirectory: temporaryDirectoryURL,
                filenamePrefix: "geomorphicCategorization"
            )

            guard let fileURL = exportedFiles.first else { return nil }
            let geomorphicRaster = Raster(fileURL: fileURL)
            return geomorphicRaster
        }

        /// Creates a raster layer with a colormap renderer to visualize the
        /// different geomorphic categories.
        /// - Parameter raster: The raster containing the geomorphic
        /// categorization results.
        /// - Returns: A raster layer with a colormap renderer to visualize the
        /// different geomorphic categories.
        func makeGeomorphicCategorizationRasterLayer(raster: Raster) -> RasterLayer {
            let layer = RasterLayer(raster: raster)
            // Creates a renderer for the different geomorphic categories.
            let colormap = Colormap(colorMappings: [
                1: .systemBlue,     // raised shoreline
                2: .systemTeal,     // ice covered
                3: .brown           // ice-free high ground
            ])
            let colormapRenderer = ColormapRenderer(colormap: colormap)
            layer.renderer = colormapRenderer
            layer.opacity = 0.5
            return layer
        }

        /// Makes a raster layer visible in the map's operational layers and
        /// hide all other raster layers.
        /// - Parameter rasterLayer: The raster layer to make visible.
        func selectRasterLayer(_ rasterLayer: RasterLayer) {
            for case let layer as RasterLayer in map.operationalLayers {
                layer.isVisible = layer === rasterLayer
            }
        }
    }
}

private extension URL {
    /// Arran elevation GeoTIFF raster.
    static var arranElevation: URL {
        Bundle.main.url(forResource: "arran", withExtension: "tif", subdirectory: "arran")!
    }
}
