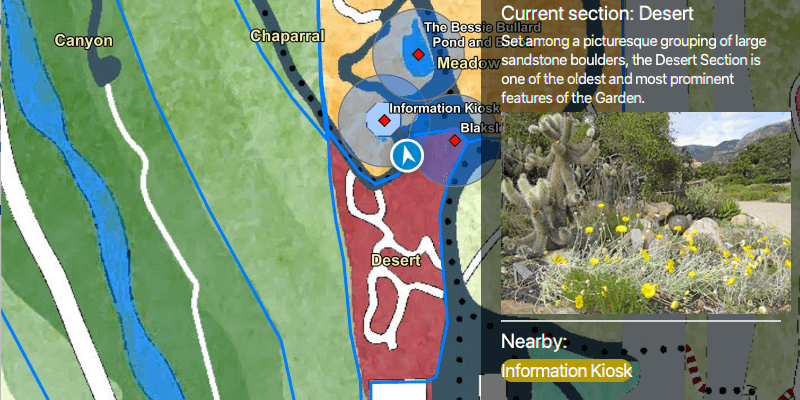

Set up location driven Geotriggers

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
module com.esri.samples.set_up_location_driven_geotriggers {
  // require ArcGIS Maps SDK for Java module
  requires com.esri.arcgisruntime;

  // handle SLF4J http://www.slf4j.org/codes.html#StaticLoggerBinder
  requires org.slf4j.nop;

  // require JavaFX modules that the application uses
  requires javafx.graphics;
  requires javafx.controls;
  requires javafx.fxml;

  // require other modules that the application uses
  requires org.apache.commons.io;

  // make all @FXML annotated objects reflectively accessible to the javafx.fxml module
  opens com.esri.samples.set_up_location_driven_geotriggers to javafx.fxml;

  exports com.esri.samples.set_up_location_driven_geotriggers;
}

/*
 * Copyright 2021 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.samples.set_up_location_driven_geotriggers;

import java.io.IOException;
import java.io.InputStream;
import java.nio.charset.StandardCharsets;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.Calendar;
import java.util.HashSet;
import java.util.List;
import java.util.concurrent.ExecutionException;

import javafx.fxml.FXML;
import javafx.geometry.Insets;
import javafx.scene.control.Alert;
import javafx.scene.control.Label;
import javafx.scene.image.Image;
import javafx.scene.image.ImageView;
import javafx.scene.layout.VBox;

import com.esri.arcgisruntime.arcade.ArcadeExpression;
import com.esri.arcgisruntime.concurrent.ListenableFuture;
import com.esri.arcgisruntime.data.ArcGISFeature;
import com.esri.arcgisruntime.data.Attachment;
import com.esri.arcgisruntime.data.ServiceFeatureTable;
import com.esri.arcgisruntime.geometry.Geometry;
import com.esri.arcgisruntime.geometry.Polyline;
import com.esri.arcgisruntime.geometry.SpatialReferences;
import com.esri.arcgisruntime.geotriggers.FeatureFenceParameters;
import com.esri.arcgisruntime.geotriggers.FenceGeotrigger;
import com.esri.arcgisruntime.geotriggers.FenceGeotriggerNotificationInfo;
import com.esri.arcgisruntime.geotriggers.FenceNotificationType;
import com.esri.arcgisruntime.geotriggers.FenceRuleType;
import com.esri.arcgisruntime.geotriggers.GeotriggerMonitor;
import com.esri.arcgisruntime.geotriggers.LocationGeotriggerFeed;
import com.esri.arcgisruntime.layers.FeatureLayer;
import com.esri.arcgisruntime.location.LocationDataSource;
import com.esri.arcgisruntime.location.SimulatedLocationDataSource;
import com.esri.arcgisruntime.location.SimulationParameters;
import com.esri.arcgisruntime.mapping.ArcGISMap;
import com.esri.arcgisruntime.mapping.view.LocationDisplay;
import com.esri.arcgisruntime.mapping.view.MapView;
import com.esri.arcgisruntime.portal.Portal;
import com.esri.arcgisruntime.portal.PortalItem;

import org.apache.commons.io.IOUtils;

public class SetUpLocationDrivenGeotriggersController {

  @FXML private MapView mapView;
  @FXML private ImageView gardenSectionImageView;
  @FXML private Label currentGardenSectionTitle;
  @FXML private Label currentGardenSectionDescription;
  @FXML private Label pointsOfInterestTitle;
  @FXML private VBox vBox;

  private GeotriggerMonitor gardenSectionGeotriggerMonitor;
  private GeotriggerMonitor gardenPOIGeotriggerMonitor;
  private HashSet<String> names;
  private SimulatedLocationDataSource simulatedLocationDataSource;

  public void initialize() throws IOException {

    // instantiate a new hashset to store unique names of nearby features visited
    names = new HashSet<>();

    // create a map with a predefined tile basemap, feature styles and labels in the Santa Barbara Botanic Garden and set it to the map view
    Portal portal = new Portal("https://www.arcgis.com/");
    ArcGISMap map = new ArcGISMap(new PortalItem(portal, "6ab0e91dc39e478cae4f408e1a36a308"));
    mapView.setMap(map);

    // initialize the simulated location display
    initializeSimulatedLocationDisplay();

    // once the map has loaded, obtain service feature tables from its list of operational layers
    map.addDoneLoadingListener(() -> {

      // get the garden section feature table from the map's list of feature layers
      FeatureLayer gardenSectionFeatureLayer = (FeatureLayer) map.getOperationalLayers().get(0);
      ServiceFeatureTable gardenSectionFeatureTable = (ServiceFeatureTable) gardenSectionFeatureLayer.getFeatureTable();
      // get the points of interest feature table from the map's list of feature layers
      FeatureLayer gardenPOISectionFeatureLayer = (FeatureLayer) map.getOperationalLayers().get(2);
      ServiceFeatureTable gardenPOIFeatureTable = (ServiceFeatureTable) gardenPOISectionFeatureLayer.getFeatureTable();
      // set view insets to the map view when the map has loaded
      mapView.setViewInsets(new Insets(0, vBox.getWidth(), 0, 0));

      // once the simulated location data source has started, set up and start the location display and handle geotriggers
      simulatedLocationDataSource.addStatusChangedListener( statusChangedEvent -> {
        System.out.println(statusChangedEvent.getStatus());
        if (statusChangedEvent.getStatus() == LocationDataSource.Status.STARTED) {

          // create, configure and start a location display that follows the simulated location data source
          setUpAndStartLocationDisplay();

          // create feature fence parameters for the garden section, and for the garden points of interest with a buffer of 10m
          FeatureFenceParameters featureFenceParametersGardenSection = new FeatureFenceParameters(gardenSectionFeatureTable);
          FeatureFenceParameters featureFenceParametersPOI = new FeatureFenceParameters(gardenPOIFeatureTable, 10);

          // define an arcade expression that returns the value for the "name" field of the feature that triggered the monitor
          ArcadeExpression arcadeExpression = new ArcadeExpression("$fenceFeature.name");
          // create a location geotrigger feed from the simulated location data source
          LocationGeotriggerFeed locationGeotriggerFeed = new LocationGeotriggerFeed(simulatedLocationDataSource);

          // create fence geotriggers for each of the service feature tables
          FenceGeotrigger fenceGeotriggerGardenSection = new FenceGeotrigger(locationGeotriggerFeed, FenceRuleType.ENTER_OR_EXIT,
            featureFenceParametersGardenSection, arcadeExpression, "Section Geotrigger");
          FenceGeotrigger fenceGeotriggerPOI = new FenceGeotrigger(locationGeotriggerFeed, FenceRuleType.ENTER_OR_EXIT,
            featureFenceParametersPOI, arcadeExpression, "POI Geotrigger");

          // create geotrigger monitors from the fence geotriggers
          gardenSectionGeotriggerMonitor = new GeotriggerMonitor(fenceGeotriggerGardenSection);
          gardenPOIGeotriggerMonitor = new GeotriggerMonitor(fenceGeotriggerPOI);
          List<GeotriggerMonitor> geotriggerMonitors = new ArrayList<>(Arrays.asList(
            gardenSectionGeotriggerMonitor, gardenPOIGeotriggerMonitor));

          // for each geotrigger monitor, add a notification event listener, and start the monitor
          geotriggerMonitors.forEach(monitor -> {

            monitor.addGeotriggerMonitorNotificationEventListener(notificationEvent -> {
              // fence geotrigger notification info provides access to the feature that triggered the notification
              var fenceGeotriggerNotificationInfo = (FenceGeotriggerNotificationInfo) notificationEvent.getGeotriggerNotificationInfo();

              // get the name of the fence feature and geotrigger
              String fenceFeatureName = fenceGeotriggerNotificationInfo.getMessage();
              String geoTriggerName = fenceGeotriggerNotificationInfo.getGeotriggerMonitor().getGeotrigger().getName();

              // determine the notification type on the notification info (entered or exited)
              FenceNotificationType fenceNotificationType = fenceGeotriggerNotificationInfo.getFenceNotificationType();
              // get a reference to the fence feature that triggered the notification
              ArcGISFeature fenceFeature = (ArcGISFeature) fenceGeotriggerNotificationInfo.getFenceGeoElement();

              // when entering a given geofence, add the feature's information to the UI
              if (fenceNotificationType == FenceNotificationType.ENTERED) {

                // add the description from the feature's attributes to the UI
                handleAddingFeatureInfoToUI(fenceFeature, fenceFeatureName, geoTriggerName);

              } else if (fenceNotificationType == FenceNotificationType.EXITED) {
                // when exiting a given geofence, remove its information from the UI
                handleRemovingFeatureInfoFromUI(fenceFeatureName, geoTriggerName);
              }

            });

            // start the geotrigger monitor
            monitor.startAsync();

          });
        } else if (statusChangedEvent.getStatus() == LocationDataSource.Status.FAILED_TO_START) {
          new Alert(Alert.AlertType.ERROR, "Simulated data location source failed to start").show();
        }
      });
      simulatedLocationDataSource.startAsync();
    });
  }

  /**
   * Creates and starts a simulated location data source based on a json file containing a set polyline data path.
   */
  private void initializeSimulatedLocationDisplay() throws IOException {

    // read a json string which contains a set of points collected along a walking route
    String polylineData = IOUtils.toString(getClass().getResourceAsStream(
      "/set_up_location_driven_geotriggers/polyline_data.json"), StandardCharsets.UTF_8);
    // create a polyline representing a walking route from the json string
    Polyline locations = (Polyline) Geometry.fromJson(polylineData, SpatialReferences.getWgs84());

    // create a new simulated location data source to replicate the path walked around the garden
    simulatedLocationDataSource = new SimulatedLocationDataSource();
    // set the location of the simulated location data source with simulation parameters with a velocity of 2m/s
    simulatedLocationDataSource.setLocations(
      locations, new SimulationParameters(Calendar.getInstance(), 2.0, 0.0, 0.0));

    // disable map view interaction, the location display will automatically center on the mock device location
    mapView.setEnableMousePan(false);
    mapView.setEnableKeyboardNavigation(false);

  }

  /**
   * Gets information from the fence geotrigger notification information and the fence feature itself and adds the information
   * to the UI either as a formatted string or as an image.
   *
   * @param fenceFeature                    the feature
   */
  private void handleAddingFeatureInfoToUI(ArcGISFeature fenceFeature, String fenceFeatureName, String geoTriggerName) {

    // fetch the fence feature's attachments
    ListenableFuture<List<Attachment>> attachmentsFuture = fenceFeature.fetchAttachmentsAsync();
    // listen for fetch attachments to complete
    attachmentsFuture.addDoneListener(() -> {
      // get the feature attachments
      try {
        List<Attachment> attachments = attachmentsFuture.get();
        if (!attachments.isEmpty()) {
          // get the first (and only) attachment for the feature, which is an image
          Attachment imageAttachment = attachments.get(0);
          // fetch the attachment's data
          ListenableFuture<InputStream> attachmentDataFuture = imageAttachment.fetchDataAsync();
          // listen for fetch data to complete
          attachmentDataFuture.addDoneListener(() -> {
            // get the attachments data as an input stream
            try {
              InputStream attachmentInputStream = attachmentDataFuture.get();
              // save the input stream to a temporary directory and get a reference to its URI
              Image imageFromStream = new Image(attachmentInputStream);
              attachmentInputStream.close();

              // if the geotrigger notification was from entering a garden section, populate the garden section part of the UI
              if (geoTriggerName.equals(gardenSectionGeotriggerMonitor.getGeotrigger().getName())) {
                // add details to the UI
                currentGardenSectionTitle.setText(fenceFeatureName);
                // get the first sentence of the description to display in the UI
                String firstSentenceOfDescription = fenceFeature.getAttributes().get("description").toString().split("\\.")[0];
                currentGardenSectionDescription.setText(firstSentenceOfDescription + ".");
                gardenSectionImageView.setImage(imageFromStream);

                // if the geotrigger notification was from entering a POI buffer, populate the POI part of the UI
              } else if (geoTriggerName.equals(gardenPOIGeotriggerMonitor.getGeotrigger().getName())) {
                // add details to the UI
                names.add(fenceFeatureName);
                String str = String.join(", ", names);
                pointsOfInterestTitle.setText(str);
              }

            } catch (Exception exception) {
              exception.printStackTrace();
              new Alert(Alert.AlertType.ERROR, "Error getting attachment").show();
            }
          });
        } else new Alert(Alert.AlertType.ERROR, "No attachments to display").show();
      } catch (InterruptedException | ExecutionException e) {
        e.printStackTrace();
        new Alert(Alert.AlertType.ERROR, "Error getting fence feature attachments").show();
      }
    });

  }

  /**
   * Removes the name of the fence feature being exited from the collection of feature names, and updates the label on the UI.
   */
  private void handleRemovingFeatureInfoFromUI(String fenceFeatureName, String geoTriggerName) {

    // if exiting a garden section, reset the UI to inform the user they are walking on a path
    if (geoTriggerName.equals(gardenSectionGeotriggerMonitor.getGeotrigger().getName())) {
      currentGardenSectionTitle.setText("On the path");
      currentGardenSectionDescription.setText("You are walking between sections");
      gardenSectionImageView.setImage(null);

      // if exiting a POI buffer, remove the name of the buffer from the list displayed and handle UI for if no features are nearby
    } else if (geoTriggerName.equals(gardenPOIGeotriggerMonitor.getGeotrigger().getName())) {
      names.remove(fenceFeatureName);
      String str = String.join(", ", names);
      pointsOfInterestTitle.setText(str);
      if (names.isEmpty()) {
        pointsOfInterestTitle.setText("No features nearby");
      }
    }

  }

  /**
   * Creates and sets up a location display from the simulated location data source, and starts it.
   */
  private void setUpAndStartLocationDisplay() {
    // configure the map view's location display to follow the simulated location data source
    LocationDisplay locationDisplay = mapView.getLocationDisplay();
    locationDisplay.setLocationDataSource(simulatedLocationDataSource);
    locationDisplay.setAutoPanMode(LocationDisplay.AutoPanMode.RECENTER);
    locationDisplay.setInitialZoomScale(1000);
    // start the location display
    locationDisplay.startAsync();
  }

  /**
   * Disposes application resources.
   */
  void terminate() {
    if (mapView != null) {
      simulatedLocationDataSource.stopAsync();
      gardenPOIGeotriggerMonitor.stop();
      gardenSectionGeotriggerMonitor.stop();
      mapView.dispose();
    }
  }

}

/*
 * Copyright 2021 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.set_up_location_driven_geotriggers;

import java.io.IOException;

import javafx.application.Application;
import javafx.fxml.FXMLLoader;
import javafx.scene.Parent;
import javafx.scene.Scene;
import javafx.stage.Stage;

public class SetUpLocationDrivenGeotriggersSample extends Application {

  private static SetUpLocationDrivenGeotriggersController controller;
  @Override
  public void start(Stage stage) throws IOException {
    // set up the scene
    FXMLLoader loader = new FXMLLoader(getClass().getResource("/set_up_location_driven_geotriggers/main.fxml"));
    Parent root = loader.load();
    controller = loader.getController();
    Scene scene = new Scene(root);

    // set up the stage
    stage.setTitle("Set Up Location Driven Geotriggers");
    stage.setWidth(800);
    stage.setHeight(700);
    stage.setScene(scene);
    stage.show();
  }

  /**
   * Stops and releases all resources used in application.
   */
  @Override
  public void stop() {
    controller.terminate();
  }

  /**
   * Opens and runs application.
   *
   * @param args arguments passed to this application
   */
  public static void main(String[] args) {

    Application.launch(args);
  }
}
