Open mobile map package

View inMAUIUWPWPFWinUIView on GitHub

Display a map from a mobile map package.

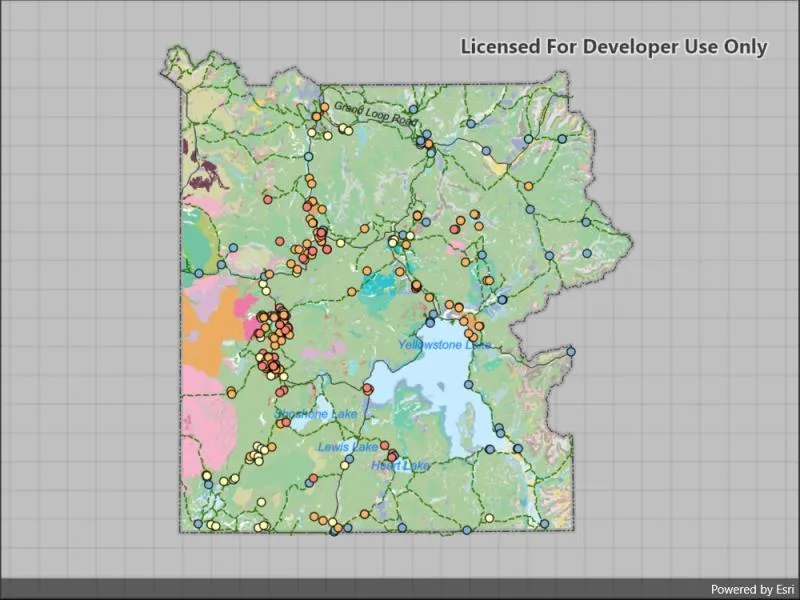

Image of open mobile map package

Use case

An .mmpk file is an archive containing the data (specifically, basemaps and features) used to display an offline map.

How to use the sample

When the sample opens, it will automatically display the map in the mobile map package. Pan and zoom to observe the data from the mobile map package.

How it works

  1. Create a MobileMapPackage specifying the path to the .mmpk file.
  2. Load the mobile map package with mmpk.LoadAsync().
  3. After it successfully loads, get the map from the .mmpk and add it to the map view: mapView.Map = package.Maps.First();.

Relevant API

  • MapView
  • MobileMapPackage

About the data

This sample shows points of interest within a Yellowstone Mobile Map Package hosted on ArcGIS Online.

Tags

mmpk, mobile map package, offline

Sample Code

OpenMobileMap.xaml.csOpenMobileMap.xaml.csOpenMobileMap.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Mapping;

namespace ArcGIS.Samples.OpenMobileMap
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Open mobile map package",
        category: "Map",
        description: "Display a map from a mobile map package.",
        instructions: "When the sample opens, it will automatically display the map in the mobile map package. Pan and zoom to observe the data from the mobile map package.",
        tags: new[] { "mmpk", "mobile map package", "offline" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("e1f3a7254cb845b09450f54937c16061")]
    public partial class OpenMobileMap : ContentPage
    {
        public OpenMobileMap()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Get the path to the mobile map package.
            string filepath = DataManager.GetDataFolder("e1f3a7254cb845b09450f54937c16061", "Yellowstone.mmpk");

            try
            {
                // Open the map package.
                MobileMapPackage myMapPackage = await MobileMapPackage.OpenAsync(filepath);

                // Load the package.
                await myMapPackage.LoadAsync();

                // Display the first map in the package.
                MyMapView.Map = myMapPackage.Maps.First();
            }
            catch (Exception e)
            {
                await Application.Current.MainPage.DisplayAlert("Error", e.ToString(), "OK");
            }
        }
    }
}
