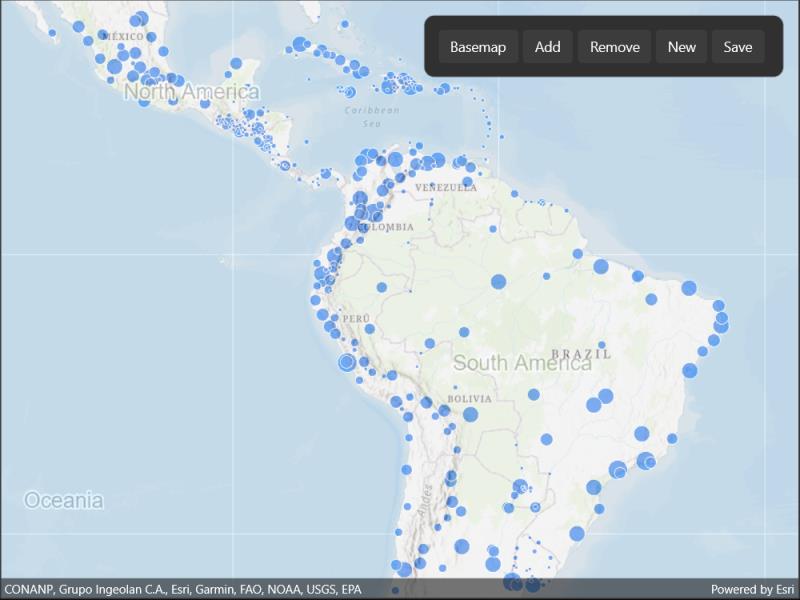

Create and save map

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage x:Class="ArcGIS.Samples.AuthorMap.AuthorMap"
             xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:esriUI="clr-namespace:Esri.ArcGISRuntime.Maui;assembly=Esri.ArcGISRuntime.Maui">
    <Grid Style="{DynamicResource EsriSampleContainer}">
        <esriUI:MapView x:Name="MyMapView" Style="{DynamicResource EsriSampleGeoView}" />
        <ActivityIndicator x:Name="SaveMapProgressBar"
                           Grid.RowSpan="2"
                           Grid.ColumnSpan="2"
                           HeightRequest="40"
                           IsRunning="True"
                           IsVisible="False" />
        <Border MinimumWidthRequest="360" Style="{DynamicResource EsriSampleControlPanel}">
            <ScrollView Orientation="Horizontal">
                <HorizontalStackLayout Padding="5" Spacing="5">
                    <Button Clicked="Basemap_Clicked" Text="Basemap" />
                    <Button Clicked="Add_Clicked" Text="Add" />
                    <Button Clicked="Remove_Clicked" Text="Remove" />
                    <Button Clicked="NewMapButtonClick" Text="New" />
                    <Button Clicked="ShowSaveMapUI" Text="Save" />
                </HorizontalStackLayout>
            </ScrollView>
        </Border>
    </Grid>
</ContentPage>

// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Helpers;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Portal;
using Esri.ArcGISRuntime.UI;

namespace ArcGIS.Samples.AuthorMap
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Create and save map",
        category: "Map",
        description: "Create and save a map as an ArcGIS `PortalItem` (i.e. web map).",
        instructions: "1. Select the basemap and layers you'd like to add to your map.",
        tags: new[] { "ArcGIS Online", "OAuth", "portal", "publish", "share", "web map" })]
    [ArcGIS.Samples.Shared.Attributes.ClassFile("SaveMapPage.xaml.cs", "SaveMapPage.xaml", "Helpers/ArcGISLoginPrompt.cs")]
    [ArcGIS.Samples.Shared.Attributes.XamlFiles()]
    public partial class AuthorMap : ContentPage
    {
        private const string ArcGISOnlineUrl = "https://www.arcgis.com/sharing/rest";

        // String array to store names of the available basemaps.
        private Dictionary<string, BasemapStyle> _basemaps = new Dictionary<string, BasemapStyle>
        {
            {"Light Gray", BasemapStyle.ArcGISLightGray },
            {"Topographic", BasemapStyle.ArcGISTopographic },
            {"Streets", BasemapStyle.ArcGISStreets },
            {"Imagery", BasemapStyle.ArcGISImageryStandard },
            {"Ocean", BasemapStyle.ArcGISOceans },
        };

        // Dictionary of operational layer names and URLs.
        private Dictionary<string, string> _operationalLayerUrls = new Dictionary<string, string>
        {
            {"World Elevations", "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Elevation/WorldElevations/MapServer"},
            {"World Cities", "https://sampleserver6.arcgisonline.com/arcgis/rest/services/SampleWorldCities/MapServer/" },
            {"US Census Data", "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Census/MapServer"}
        };

        public AuthorMap()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            ArcGISLoginPrompt.SetChallengeHandler();
            bool loggedIn = await ArcGISLoginPrompt.EnsureAGOLCredentialAsync();

            // Show a plain gray map in the map view.
            if (loggedIn)
            {
                MyMapView.Map = new Map(BasemapStyle.ArcGISLightGray);
            }
            else MyMapView.Map = new Map();
        }

        private void ShowSaveMapUI(object sender, EventArgs e)
        {
            // Create a SaveMapPage page for getting user input for the new web map item.
            SaveMapPage mapInputForm = new SaveMapPage();

            // If an existing map, show the UI for updating the item.
            Item mapItem = MyMapView.Map.Item;
            if (mapItem != null)
            {
                mapInputForm.ShowForUpdate(mapItem.Title, mapItem.Description, mapItem.Tags.ToArray());
            }

            // Handle the save button click event on the page.
            mapInputForm.OnSaveClicked += SaveMapAsync;

            // Navigate to the SaveMapPage UI.
            Shell.Current.Navigation.PushAsync(mapInputForm);
        }

        // Event handler to get information entered by the user and save the map.
        private async void SaveMapAsync(object sender, SaveMapEventArgs e)
        {
            // Get the current map
            Map myMap = MyMapView.Map;

            try
            {
                // Make sure the user is logged in to ArcGIS Online.
                bool loggedIn = await ArcGISLoginPrompt.EnsureAGOLCredentialAsync();
                if (!loggedIn) return;

                // Load the current map before saving to portal.
                await myMap.LoadAsync();

                // Show the progress bar so the user knows work is happening.
                SaveMapProgressBar.IsVisible = true;

                // Get information entered by the user for the new portal item properties.
                string title = e.MapTitle;
                string description = e.MapDescription;
                string[] tags = e.Tags;

                // Apply the current extent as the map's initial extent.
                myMap.InitialViewpoint = MyMapView.GetCurrentViewpoint(ViewpointType.BoundingGeometry);

                // Export the current map view for the item's thumbnail.
                RuntimeImage thumbnailImage = await MyMapView.ExportImageAsync();

                // See if the map has already been saved (has an associated portal item).
                if (myMap.Item == null)
                {
                    // Get the ArcGIS Online portal (will use credential from login above).
                    ArcGISPortal agsOnline = await ArcGISPortal.CreateAsync(new Uri(ArcGISOnlineUrl));

                    // Save the current state of the map as a portal item in the user's default folder.
                    await myMap.SaveAsAsync(agsOnline, null, title, description, tags, thumbnailImage);

                    // Report a successful save.
                    await Application.Current.Windows[0].Page.DisplayAlert("Map Saved", "Saved '" + title + "' to ArcGIS Online!", "OK");
                }
                else
                {
                    // This is not the initial save, call SaveAsync to save changes to the existing portal item.
                    await myMap.SaveAsync();

                    // Get the file stream from the new thumbnail image.
                    Stream imageStream = await thumbnailImage.GetEncodedBufferAsync();

                    // Update the item thumbnail.
                    ((PortalItem)myMap.Item).SetThumbnail(imageStream);
                    await myMap.SaveAsync();

                    // Report update was successful.
                    await Application.Current.Windows[0].Page.DisplayAlert("Updates Saved", "Saved changes to '" + myMap.Item.Title + "'", "OK");
                }
            }
            catch (Exception ex)
            {
                // Show the exception message.
                await Application.Current.Windows[0].Page.DisplayAlert("Unable to save map", ex.Message, "OK");
            }
            finally
            {
                // Hide the progress bar.
                SaveMapProgressBar.IsVisible = false;
            }
        }

        private void NewMapButtonClick(object sender, EventArgs e)
        {
            // Create a new map (will not have an associated PortalItem).
            MyMapView.Map = new Map(BasemapStyle.ArcGISLightGray);
            MyMapView.Map.Basemap.LoadAsync();
        }

        private async void Basemap_Clicked(object sender, EventArgs e)
        {
            try
            {
                string selectionName = await Application.Current.Windows[0].Page.DisplayActionSheet("Select basemap", "Cancel", null, _basemaps.Keys.ToArray());

                if (selectionName == "Cancel") return;

                MyMapView.Map.Basemap = new Basemap(_basemaps[selectionName]);
                await MyMapView.Map.Basemap.LoadAsync();
            }
            // Do nothing with cancellation exception from action sheet.
            catch
            {
            }
        }

        private async void Add_Clicked(object sender, EventArgs e)
        {
            try
            {
                string[] inMapNames = MyMapView.Map.OperationalLayers.Select(l => l.Name).ToArray();
                string[] optionNames = _operationalLayerUrls.Where(l => !inMapNames.Contains(l.Key)).Select(l => l.Key).ToArray();
                string selectionName = await Application.Current.Windows[0].Page.DisplayActionSheet("Select layer to add", "Cancel", null, optionNames);

                if (selectionName == "Cancel") return;

                // Add the layer.
                Uri layerUri = new Uri(_operationalLayerUrls[selectionName]);

                // Create and add a new map image layer
                var layer = new ArcGISMapImageLayer(layerUri);
                layer.Name = selectionName;
                layer.Opacity = 0.5;
                MyMapView.Map.OperationalLayers.Add(layer);
            }
            // Do nothing with cancellation exception from action sheet.
            catch
            {
            }
        }

        private async void Remove_Clicked(object sender, EventArgs e)
        {
            try
            {
                string selectionName = await Application.Current.Windows[0].Page.DisplayActionSheet("Select layer to remove", "Cancel", null, MyMapView.Map.OperationalLayers.Select(l => l.Name).ToArray());

                if (selectionName == "Cancel") return;

                Layer layer = MyMapView.Map.OperationalLayers.Single(l => l.Name == selectionName);
                MyMapView.Map.OperationalLayers.Remove(layer);
            }
            // Do nothing with cancellation exception from action sheet.
            catch
            {
            }
        }
    }
}

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage x:Class="ArcGIS.Samples.AuthorMap.SaveMapPage"
             xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml">
    <Grid x:Name="SaveMapUI"
          ColumnDefinitions="auto,auto"
          ColumnSpacing="10"
          HorizontalOptions="Center"
          RowDefinitions="auto,auto,auto,auto"
          RowSpacing="10"
          VerticalOptions="Center">
        <Label Grid.Row="0"
               Grid.Column="0"
               Text="Title:"
               VerticalTextAlignment="Center" />
        <Entry x:Name="MapTitleEntry"
               Grid.Row="0"
               Grid.Column="1"
               Placeholder="Required" />
        <Label Grid.Row="1"
               Grid.Column="0"
               Text="Description:"
               VerticalTextAlignment="Center" />
        <Entry x:Name="MapDescriptionEntry"
               Grid.Row="1"
               Grid.Column="1"
               Placeholder="Required" />
        <Label Grid.Row="2"
               Grid.Column="0"
               Text="Tags:"
               VerticalTextAlignment="Center" />
        <Entry x:Name="MapTagsEntry"
               Grid.Row="2"
               Grid.Column="1"
               Text="ArcGIS, Webmap" />
        <Button Grid.Row="3"
                Grid.Column="0"
                Clicked="CancelButtonClicked"
                Text="Cancel" />
        <Button x:Name="SaveMapButton"
                Grid.Row="3"
                Grid.Column="1"
                Clicked="SaveButtonClicked"
                Text="Save" />
    </Grid>
</ContentPage>

namespace ArcGIS.Samples.AuthorMap
{
    public partial class SaveMapPage : ContentPage
    {
        // Raise an event so the listener can access input values when the form has been completed
        public event EventHandler<SaveMapEventArgs> OnSaveClicked;

        public SaveMapPage()
        {
            InitializeComponent();
        }

        // If updating an existing map item, show the existing item info and disable changing info
        public void ShowForUpdate(string title, string description, string[] tags)
        {
            // Item title
            MapTitleEntry.Text = title;
            MapTitleEntry.IsEnabled = false;

            // Item description
            MapDescriptionEntry.Text = description;
            MapDescriptionEntry.IsEnabled = false;

            // Item tags
            MapTagsEntry.Text = string.Join(",", tags);
            MapTagsEntry.IsEnabled = false;

            // Show 'Update' rather than 'Save' for button text
            SaveMapButton.Text = "Update";
        }

        // A click handler for the save map button
        private void SaveButtonClicked(object sender, EventArgs e)
        {
            try
            {
                // Get information for the new portal item
                string title = MapTitleEntry.Text;
                string description = MapDescriptionEntry.Text;
                string[] tags = MapTagsEntry.Text.Split(',');

                // Make sure all required info was entered
                if (string.IsNullOrEmpty(title) || string.IsNullOrEmpty(description) || tags.Length == 0)
                {
                    throw new Exception("Please enter a title, description, and some tags to describe the map.");
                }

                // Create a new OnSaveMapEventArgs object to store the information entered by the user
                SaveMapEventArgs mapSavedArgs = new SaveMapEventArgs(title, description, tags);

                // Raise the OnSaveClicked event so the main activity can handle the event and save the map
                OnSaveClicked?.Invoke(this, mapSavedArgs);

                // Close the dialog
                Navigation.PopAsync();
            }
            catch (Exception ex)
            {
                // Show the exception message (dialog will stay open so user can try again)
                DisplayAlert("Error", ex.Message, "OK");
            }
        }

        private void CancelButtonClicked(object sender, EventArgs e)
        {
            // If the user cancels, just navigate back to the previous page
            Navigation.PopAsync();
        }
    }

    // Custom EventArgs class for containing portal item properties when saving a map
    public class SaveMapEventArgs : EventArgs
    {
        // Portal item title
        public string MapTitle { get; set; }

        // Portal item description
        public string MapDescription { get; set; }

        // Portal item tags
        public string[] Tags { get; set; }

        public SaveMapEventArgs(string title, string description, string[] tags) : base()
        {
            MapTitle = title;
            MapDescription = description;
            Tags = tags;
        }
    }
}
