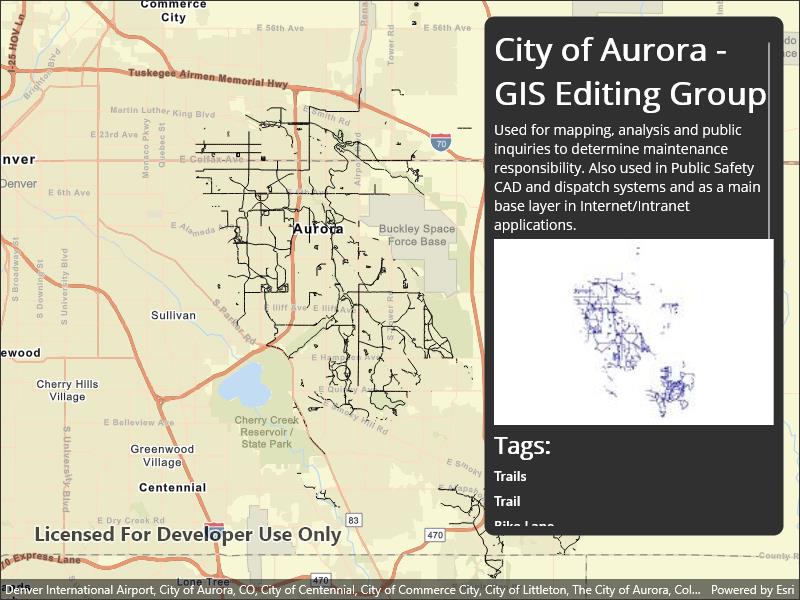

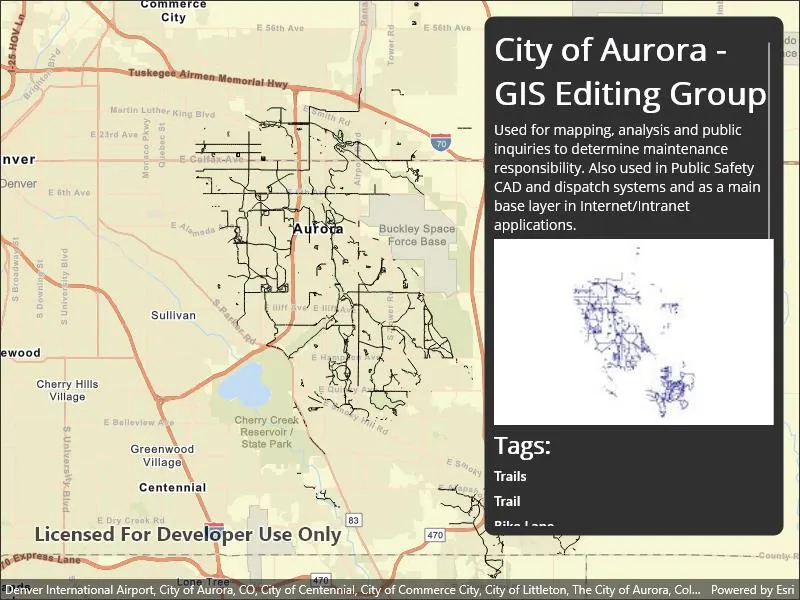

Read shapefile metadata

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Mapping;

namespace ArcGIS.Samples.ReadShapefileMetadata
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Read shapefile metadata",
        category: "Data",
        description: "Read a shapefile and display its metadata.",
        instructions: "The shapefile's metadata will be displayed when you open the sample.",
        tags: new[] { "credits", "description", "metadata", "package", "shape file", "shapefile", "summary", "symbology", "tags", "visualization" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("d98b3e5293834c5f852f13c569930caa")]
    public partial class ReadShapefileMetadata : ContentPage
    {
        public ReadShapefileMetadata()
        {
            InitializeComponent();

            // Open a shapefile stored locally and add it to the map as a feature layer.
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Create a new map to display in the map view with a streets basemap.
            var streetMap = new Map(BasemapStyle.ArcGISStreets);

            // Get the path to the downloaded shapefile.
            string filepath = GetShapefilePath();

            try
            {
                // Open the shapefile.
                ShapefileFeatureTable myShapefile = await ShapefileFeatureTable.OpenAsync(filepath);

                // Read metadata about the shapefile and display it in the UI.
                ShapefileInfo fileInfo = myShapefile.Info;
                InfoList.BindingContext = fileInfo;

                // Read the thumbnail image data into a byte array.
                Stream imageStream = await fileInfo.Thumbnail.GetEncodedBufferAsync();
                byte[] imageData = new byte[imageStream.Length];
                imageStream.Read(imageData, 0, imageData.Length);

                // Create a new image source from the thumbnail data.
                ImageSource streamImageSource = ImageSource.FromStream(() => new MemoryStream(imageData));

                // Create a new image to display the thumbnail.
                var image = new Image()
                {
                    Source = streamImageSource,
                    Margin = new Thickness(10)
                };

                // Show the thumbnail image in a UI control.
                ShapefileThumbnailImage.Source = image.Source;

                // Create a feature layer to display the shapefile.
                var newFeatureLayer = new FeatureLayer(myShapefile);
                await newFeatureLayer.LoadAsync();

                // Zoom the map to the extent of the shapefile.
                MyMapView.SpatialReferenceChanged += async (s, e) =>
                {
                    await MyMapView.SetViewpointGeometryAsync(newFeatureLayer.FullExtent);
                };

                // Add the feature layer to the map.
                streetMap.OperationalLayers.Add(newFeatureLayer);

                // Show the map in the MapView.
                MyMapView.Map = streetMap;
            }
            catch (Exception e)
            {
                await Application.Current.MainPage.DisplayAlert("Error", e.ToString(), "OK");
            }
        }

        private static string GetShapefilePath()
        {
            return DataManager.GetDataFolder("d98b3e5293834c5f852f13c569930caa", "TrailBikeNetwork.shp");
        }
    }
}
