Perform valve isolation trace

View inMAUIUWPWPFWinUIView on GitHub

Run a filtered trace to locate operable features that will isolate an area from the flow of network resources.

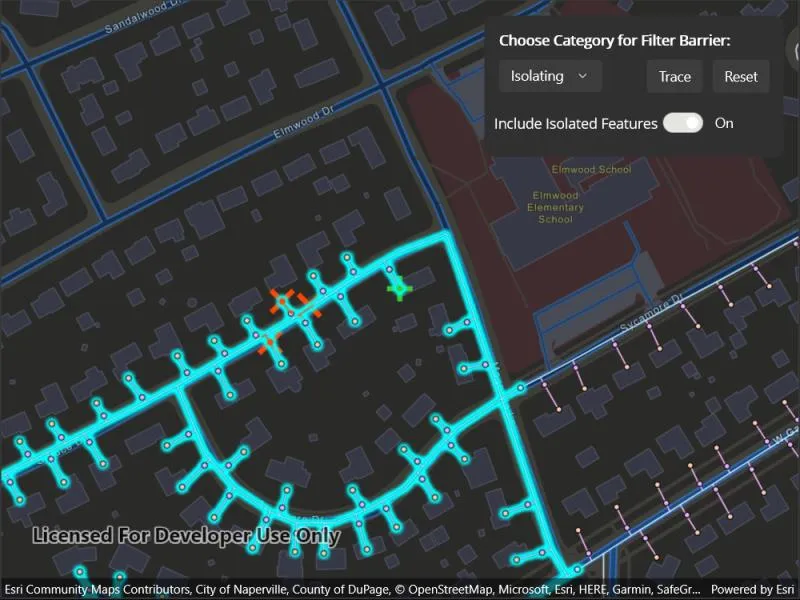

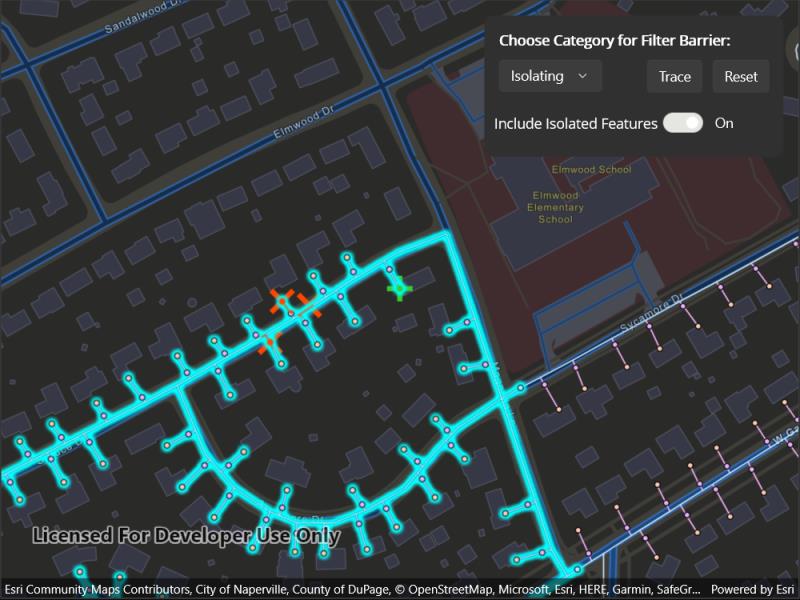

Image of a utility network with an isolation trace applied to it

Use case

Determine the set of operable features required to stop a network's resource, effectively isolating an area of the network. For example, you can choose to return only accessible and operable valves: ones that are not paved over or rusted shut.

How to use the sample

Tap on one or more features to use as filter barriers or create and set the configuration's filter barriers by selecting a category. Check or uncheck 'Include Isolated Features'. Tap 'Trace' to run a subnetwork-based isolation trace. Tap 'Reset' to clear filter barriers.

How it works

  1. Create a MapView and subscribe to its GeoViewTapped event.
  2. Create and load a ServiceGeodatabase with a feature service URL and get tables by their layer IDs.
  3. Create a Map that contains FeatureLayer(s) created from the ServiceGeodatabase's tables.
  4. Create and load a UtilityNetwork with the same feature service URL and this Map.
  5. Create UtilityTraceParameters with UtilityTraceType.Isolation and a starting location from a given asset type and global ID.
  6. Get a default UtilityTraceConfiguration from a given tier in a domain network to set UtilityTraceParameters.TraceConfiguration.
  7. Add a GraphicsOverlay with a Graphic that represents this starting location; and another GraphicsOverlay for filter barriers.
  8. Populate the choice list for the 'Filter Barrier: Category exists' from UtilityNetworkDefinition.Categories.
  9. When the MapView is tapped, identify which features are at the tap location and add a Graphic that represents a filter barrier.
  10. Create a UtilityElement for the identified feature and add this UtilityElement to a collection of filter barriers.
    • If the element is a junction with more than one terminal, display a terminal picker. Then set the junction's Terminal property with the selected terminal.
    • If an edge, set its FractionAlongLine property using GeometryEngine.FractionAlong.
  11. If 'Trace' is tapped without filter barriers:
    • Create a new UtilityCategoryComparison with the selected category and UtilityCategoryComparisonOperator.Exists.
    • Create a new UtilityTraceFilter with this condition as Barriers to set Filter and update IncludeIsolatedFeatures properties of the default configuration from step 5.
    • Run a UtilityNetwork.TraceAsync.
    If 'Trace' is tapped with filter barriers:
    • Update IncludeIsolatedFeatures property of the default configuration from step 5.
    • Run a UtilityNetwork.TraceAsync.
  12. For every FeatureLayer in the map, select the features returned with GetFeaturesForElementsAsync from the elements matching their NetworkSource.FeatureTable with the layer's FeatureTable.

Relevant API

  • FractionAlong
  • ServiceGeodatabase
  • UtilityCategory
  • UtilityCategoryComparison
  • UtilityCategoryComparisonOperator
  • UtilityDomainNetwork
  • UtilityElement
  • UtilityElementTraceResult
  • UtilityNetwork
  • UtilityNetworkDefinition
  • UtilityTerminal
  • UtilityTier
  • UtilityTraceFilter
  • UtilityTraceParameters
  • UtilityTraceResult
  • UtilityTraceType

About the data

The Naperville gas network feature service contains a utility network used to run the isolation trace shown in this sample. Authentication is required and handled within the sample code.

Additional information

Using utility network on ArcGIS Enterprise 10.8 requires an ArcGIS Enterprise member account licensed with the Utility Network user type extension. Please refer to the utility network services documentation.

Tags

category comparison, condition barriers, filter barriers, isolated features, network analysis, subnetwork trace, trace configuration, trace filter, utility network

Sample Code

PerformValveIsolationTrace.xaml.csPerformValveIsolationTrace.xaml.csPerformValveIsolationTrace.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Security;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;
using Esri.ArcGISRuntime.UtilityNetworks;

namespace ArcGIS.Samples.PerformValveIsolationTrace
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Perform valve isolation trace",
        category: "Utility network",
        description: "Run a filtered trace to locate operable features that will isolate an area from the flow of network resources.",
        instructions: "Tap on one or more features to use as filter barriers or create and set the configuration's filter barriers by selecting a category. Check or uncheck 'Include Isolated Features'. Tap 'Trace' to run a subnetwork-based isolation trace. Tap 'Reset' to clear filter barriers.",
        tags: new[] { "category comparison", "condition barriers", "filter barriers", "isolated features", "network analysis", "subnetwork trace", "trace configuration", "trace filter", "utility network" })]
    public partial class PerformValveIsolationTrace : ContentPage
    {
        // Feature service for an electric utility network in Naperville, Illinois.
        private const string FeatureServiceUrl = "https://sampleserver7.arcgisonline.com/server/rest/services/UtilityNetwork/NapervilleGas/FeatureServer";
        private const int LineLayerId = 3;
        private const int DeviceLayerId = 0;
        private UtilityNetwork _utilityNetwork;

        // For creating the default trace configuration.
        private const string DomainNetworkName = "Pipeline";
        private const string TierName = "Pipe Distribution System";
        private UtilityTraceConfiguration _configuration;

        // For creating the default starting location.
        private const string NetworkSourceName = "Gas Device";
        private const string AssetGroupName = "Meter";
        private const string AssetTypeName = "Customer";
        private const string GlobalId = "{98A06E95-70BE-43E7-91B7-E34C9D3CB9FF}";
        private UtilityElement _startingLocation;

        private UtilityTraceParameters _parameters;
        private GraphicsOverlay _barrierOverlay;

        // Task completion source for the user selected terminal.
        private TaskCompletionSource<string> _terminalCompletionSource = null;

        public PerformValveIsolationTrace()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // As of ArcGIS Enterprise 10.8.1, using utility network functionality requires a licensed user. The following login for the sample server is licensed to perform utility network operations.
            AuthenticationManager.Current.ChallengeHandler = new ChallengeHandler(async (info) =>
            {
                try
                {
                    // WARNING: Never hardcode login information in a production application. This is done solely for the sake of the sample.
                    string sampleServer7User = "viewer01";
                    string sampleServer7Pass = "I68VGU^nMurF";

                    return await AuthenticationManager.Current.GenerateCredentialAsync(info.ServiceUri, sampleServer7User, sampleServer7Pass);
                }
                catch (Exception ex)
                {
                    System.Diagnostics.Debug.WriteLine(ex.Message);
                    return null;
                }
            });

            try
            {
                // Disable the UI.
                FilterOptions.IsVisible = false;

                // Create and load a service geodatabase that matches utility network.
                ServiceGeodatabase serviceGeodatabase = await ServiceGeodatabase.CreateAsync(new Uri(FeatureServiceUrl));

                // Create a map with layers in this utility network.
                MyMapView.Map = new Map(BasemapStyle.ArcGISStreetsNight);
                MyMapView.Map.OperationalLayers.Add(new FeatureLayer(serviceGeodatabase.GetTable(LineLayerId)));
                MyMapView.Map.OperationalLayers.Add(new FeatureLayer(serviceGeodatabase.GetTable(DeviceLayerId)));

                // Create and load the utility network.
                _utilityNetwork = await UtilityNetwork.CreateAsync(new Uri(FeatureServiceUrl), MyMapView.Map);

                // Get a trace configuration from a tier.
                UtilityDomainNetwork domainNetwork = _utilityNetwork.Definition.GetDomainNetwork(DomainNetworkName) ?? throw new ArgumentException(DomainNetworkName);
                UtilityTier tier = domainNetwork.GetTier(TierName) ?? throw new ArgumentException(TierName);
                _configuration = tier.GetDefaultTraceConfiguration();

                // Create a trace filter.
                _configuration.Filter = new UtilityTraceFilter();

                // Get a default starting location.
                UtilityNetworkSource networkSource = _utilityNetwork.Definition.GetNetworkSource(NetworkSourceName) ?? throw new ArgumentException(NetworkSourceName);
                UtilityAssetGroup assetGroup = networkSource.GetAssetGroup(AssetGroupName) ?? throw new ArgumentException(AssetGroupName);
                UtilityAssetType assetType = assetGroup.GetAssetType(AssetTypeName) ?? throw new ArgumentException(AssetTypeName);
                Guid globalId = Guid.Parse(GlobalId);
                _startingLocation = _utilityNetwork.CreateElement(assetType, globalId);

                // Create a graphics overlay.
                GraphicsOverlay overlay = new GraphicsOverlay();
                MyMapView.GraphicsOverlays.Add(overlay);

                // Display starting location.
                IEnumerable<ArcGISFeature> elementFeatures = await _utilityNetwork.GetFeaturesForElementsAsync(new List<UtilityElement> { _startingLocation });
                MapPoint startingLocationGeometry = elementFeatures.FirstOrDefault().Geometry as MapPoint;
                Symbol symbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle.Cross, System.Drawing.Color.LimeGreen, 25d);
                Graphic graphic = new Graphic(startingLocationGeometry, symbol);
                overlay.Graphics.Add(graphic);

                // Create a graphics overlay for barriers.
                _barrierOverlay = new GraphicsOverlay();
                MyMapView.GraphicsOverlays.Add(_barrierOverlay);

                // Create the utility trace parameters.
                _parameters = new UtilityTraceParameters(UtilityTraceType.Isolation, new[] { _startingLocation });

                // Set the starting viewpoint.
                await MyMapView.SetViewpointAsync(new Viewpoint(startingLocationGeometry, 3000));

                // Build the choice list for categories populated with the `Name` property of each `UtilityCategory` in the `UtilityNetworkDefinition`.
                CategoryPicker.ItemsSource = _utilityNetwork.Definition.Categories.ToList();
                CategoryPicker.SelectedItem = _utilityNetwork.Definition.Categories.First();

                // Enable the UI.
                FilterOptions.IsVisible = true;
            }
            catch (Exception ex)
            {
                await Application.Current.MainPage.DisplayAlert(ex.GetType().Name, ex.Message, "OK");
            }
            finally
            {
                LoadingIndicator.IsVisible = false;
            }
        }

        private async void OnTrace(object sender, EventArgs e)
        {
            try
            {
                LoadingIndicator.IsVisible = true;

                // Clear previous selection from the layers.
                MyMapView.Map.OperationalLayers.OfType<FeatureLayer>().ToList().ForEach(layer => layer.ClearSelection());

                if (CategoryPicker.SelectedItem is UtilityCategory category)
                {
                    // NOTE: UtilityNetworkAttributeComparison or UtilityCategoryComparison with Operator.DoesNotExists
                    // can also be used. These conditions can be joined with either UtilityTraceOrCondition or UtilityTraceAndCondition.
                    UtilityCategoryComparison categoryComparison = new UtilityCategoryComparison(category, UtilityCategoryComparisonOperator.Exists);

                    // Add the filter barrier.
                    _configuration.Filter = new UtilityTraceFilter() { Barriers = categoryComparison };
                }

                // Set the include isolated features property.
                _configuration.IncludeIsolatedFeatures = IncludeIsolatedFeatures.IsToggled;

                // Build parameters for isolation trace.
                UtilityTraceParameters parameters = new UtilityTraceParameters(UtilityTraceType.Isolation, new[] { _startingLocation });
                parameters.TraceConfiguration = _configuration;

                // Get the trace result from trace.
                IEnumerable<UtilityTraceResult> traceResult = await _utilityNetwork.TraceAsync(parameters);
                UtilityElementTraceResult elementTraceResult = traceResult?.FirstOrDefault() as UtilityElementTraceResult;

                // Select all the features from the result.
                if (elementTraceResult?.Elements?.Count > 0)
                {
                    foreach (FeatureLayer layer in MyMapView.Map.OperationalLayers.OfType<FeatureLayer>())
                    {
                        IEnumerable<UtilityElement> elements = elementTraceResult.Elements.Where(element => element.NetworkSource.Name == layer.FeatureTable.TableName);
                        IEnumerable<Feature> features = await _utilityNetwork.GetFeaturesForElementsAsync(elements);
                        layer.SelectFeatures(features);
                    }
                }
            }
            catch (Exception ex)
            {
                await Application.Current.MainPage.DisplayAlert(ex.GetType().Name, ex.Message, "OK");
            }
            finally
            {
                LoadingIndicator.IsVisible = false;
            }
        }

        private void OnReset(object sender, EventArgs e)
        {
            _parameters.Barriers.Clear();
            _barrierOverlay.Graphics.Clear();
            foreach (FeatureLayer layer in MyMapView.Map.OperationalLayers.OfType<FeatureLayer>())
            {
                layer.ClearSelection();
            }
        }

        private async Task<UtilityTerminal> GetTerminalAsync(IEnumerable<UtilityTerminal> terminals)
        {
            // Load the terminals into a DisplayActionSheet and await the user's selection.
            var terminalArray = terminals.Select(x => x.Name).ToArray();
            string choice = await Application.Current.MainPage.DisplayActionSheet("Choose junction.", "Cancel", null, terminalArray);
            if (terminalArray.Contains(choice))
            {
                return terminals.Single(x => x.Name == choice);
            }
            else
            {
                throw new OperationCanceledException();
            }
        }

        private void Terminal_Selected(object sender, EventArgs e)
        {
            _terminalCompletionSource.TrySetResult(TerminalPicker.SelectedItem as string);
        }

        private async void OnGeoViewTapped(object sender, Esri.ArcGISRuntime.Maui.GeoViewInputEventArgs e)
        {
            try
            {
                LoadingIndicator.IsVisible = true;

                // Identify the feature to be used.
                IEnumerable<IdentifyLayerResult> identifyResult = await MyMapView.IdentifyLayersAsync(e.Position, 10.0, false);
                ArcGISFeature feature = identifyResult?.FirstOrDefault()?.GeoElements?.FirstOrDefault() as ArcGISFeature;
                if (feature == null) { return; }

                // Create element from the identified feature.
                UtilityElement element = _utilityNetwork.CreateElement(feature);

                if (element.NetworkSource.SourceType == UtilityNetworkSourceType.Junction)
                {
                    // Select terminal for junction feature.
                    IEnumerable<UtilityTerminal> terminals = element.AssetType.TerminalConfiguration?.Terminals;
                    if (terminals?.Count() > 1)
                    {
                        element.Terminal = await GetTerminalAsync(terminals);
                    }
                }
                else if (element.NetworkSource.SourceType == UtilityNetworkSourceType.Edge)
                {
                    // Compute how far tapped location is along the edge feature.
                    if (feature.Geometry is Polyline line)
                    {
                        // Remove elevation data, FractionAlong only supports 2D lines.
                        line = line.RemoveZ() as Polyline;
                        double fraction = line.FractionAlong(e.Location, -1);

                        // Check for rare edge case where the fraction is invalid.
                        if (double.IsNaN(fraction)) { return; }

                        // Set the fraction of the utility element.
                        element.FractionAlongEdge = fraction;
                    }
                }

                // Check whether starting location or barrier is added to update the right collection and symbology.
                _parameters.Barriers.Add(element);
                Symbol symbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle.X, System.Drawing.Color.OrangeRed, 25d);

                // Add a graphic for the new utility element.
                Graphic traceLocationGraphic = new Graphic(feature.Geometry as MapPoint ?? e.Location, symbol);
                _barrierOverlay.Graphics.Add(traceLocationGraphic);
            }
            catch (OperationCanceledException)
            {
                return;
            }
            catch (Exception ex)
            {
                await Application.Current.MainPage.DisplayAlert(ex.GetType().Name, ex.Message, "OK");
            }
            finally
            {
                LoadingIndicator.IsVisible = false;
            }
        }
    }
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
