Surface placement

View inMAUIUWPWPFWinUIView on GitHub

Position graphics relative to a surface using different surface placement modes.

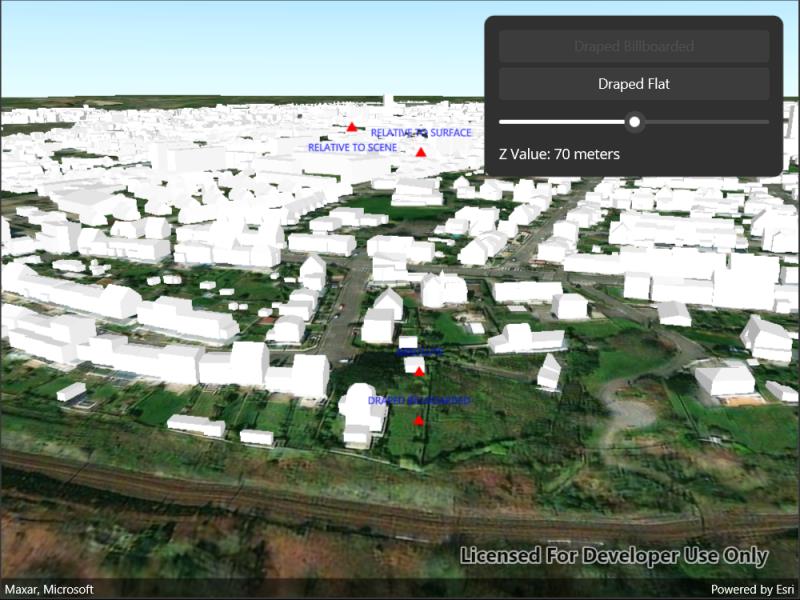

Image of surface placement

Use case

Depending on the use case, data might be displayed at an absolute height (e.g. flight data recorded with altitude information), at a relative height to the terrain (e.g. transmission lines positioned relative to the ground), at a relative height to objects in the scene (e.g. extruded polygons, integrated mesh scene layer), or draped directly onto the terrain (e.g. location markers, area boundaries).

How to use the sample

The application loads a scene showing four points that use individual surface placement modes (Absolute, Relative, Relative to Scene, and either Draped Billboarded or Draped Flat). Use the toggle to change the draped mode and the slider to dynamically adjust the Z value of the graphics. Explore the scene by zooming in/out and by panning around to observe the effects of the surface placement rules.

How it works

  1. Create a GraphicsOverlay for each placement mode, setting SceneProperties.SurfacePlacement:
    • Absolute, position graphic using only its Z value.
    • Relative, position graphic using its Z value plus the elevation of the surface.
    • DrapedBillboarded, position graphic upright on the surface and always facing the camera, not using its z value.
    • DrapedFlat, position graphic flat on the surface, not using its z value.
    • RelativeToScene, position graphic using its Z value plus the altitude values of the scene.
  2. Add graphics to the graphics overlay, GraphicsOverlayGraphics.Add(Graphic).
  3. Add each graphics overlay to the scene view by calling SceneView.GraphicsOverlays.Add(overlay).

Relevant API

  • Graphic
  • GraphicsOverlay
  • SceneProperties
  • SceneProperties.SurfacePlacement
  • Surface

About the data

The scene launches with a view of Brest, France. Four points are shown hovering with positions defined by each of the different surface placement modes.

Additional information

This sample uses an elevation service to add elevation/terrain to the scene. Graphics are positioned relative to that surface for the DrapedBillboarded, DrapedFlat, and Relative surface placement modes. It also uses a scene layer containing 3D models of buildings. Graphics are positioned relative to that scene layer for the RelativeToScene surface placement mode.

Tags

3D, absolute, altitude, draped, elevation, floating, relative, scenes, sea level, surface placement

Sample Code

SurfacePlacements.xaml.csSurfacePlacements.xaml.csSurfacePlacements.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;

using Color = System.Drawing.Color;

namespace ArcGIS.Samples.SurfacePlacements
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Surface placement",
        category: "GraphicsOverlay",
        description: "Position graphics relative to a surface using different surface placement modes.",
        instructions: "The application loads a scene showing four points that use individual surface placement modes (Absolute, Relative, Relative to Scene, and either Draped Billboarded or Draped Flat). Use the toggle to change the draped mode and the slider to dynamically adjust the Z value of the graphics. Explore the scene by zooming in/out and by panning around to observe the effects of the surface placement rules.",
        tags: new[] { "3D", "absolute", "altitude", "draped", "elevation", "floating", "relative", "scenes", "sea level", "surface placement" })]
    public partial class SurfacePlacements : ContentPage
    {
        private GraphicsOverlay _drapedBillboardedOverlay;
        private GraphicsOverlay _drapedFlatOverlay;

        public SurfacePlacements()
        {
            InitializeComponent();
            Initialize();
        }

        private void Initialize()
        {
            // Create new Scene.
            Scene myScene = new Scene
            {
                // Set the Scene's basemap property.
                Basemap = new Basemap(BasemapStyle.ArcGISImageryStandard)
            };

            // Create a camera with coordinates showing layer data.
            Camera camera = new Camera(48.389124348393182, -4.4595173327138591, 140, 322, 74, 0);

            // Assign the Scene to the SceneView.
            MySceneView.Scene = myScene;

            // Create ElevationSource from elevation data Uri.
            ArcGISTiledElevationSource elevationSource = new ArcGISTiledElevationSource(
                new Uri("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"));

            // Create scene layer from the Brest, France scene server.
            var sceneLayer = new ArcGISSceneLayer(new Uri("https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/Buildings_Brest/SceneServer"));
            MySceneView.Scene.OperationalLayers.Add(sceneLayer);

            // Add elevationSource to BaseSurface's ElevationSources.
            MySceneView.Scene.BaseSurface.ElevationSources.Add(elevationSource);

            // Set view point of scene view using camera.
            MySceneView.SetViewpointCameraAsync(camera);

            // Create overlays with elevation modes.
            _drapedBillboardedOverlay = new GraphicsOverlay();
            _drapedBillboardedOverlay.SceneProperties.SurfacePlacement = SurfacePlacement.DrapedBillboarded;
            MySceneView.GraphicsOverlays.Add(_drapedBillboardedOverlay);

            _drapedFlatOverlay = new GraphicsOverlay();
            _drapedFlatOverlay.SceneProperties.SurfacePlacement = SurfacePlacement.DrapedFlat;

            GraphicsOverlay relativeToSceneOverlay = new GraphicsOverlay();
            relativeToSceneOverlay.SceneProperties.SurfacePlacement = SurfacePlacement.RelativeToScene;
            MySceneView.GraphicsOverlays.Add(relativeToSceneOverlay);

            GraphicsOverlay relativeToSurfaceOverlay = new GraphicsOverlay();
            relativeToSurfaceOverlay.SceneProperties.SurfacePlacement = SurfacePlacement.Relative;
            MySceneView.GraphicsOverlays.Add(relativeToSurfaceOverlay);

            GraphicsOverlay absoluteOverlay = new GraphicsOverlay();
            absoluteOverlay.SceneProperties.SurfacePlacement = SurfacePlacement.Absolute;
            MySceneView.GraphicsOverlays.Add(absoluteOverlay);

            // Create point for graphic location.
            MapPoint sceneRelatedPoint = new MapPoint(-4.4610562, 48.3902727, 70, camera.Location.SpatialReference);
            MapPoint surfaceRelatedPoint = new MapPoint(-4.4609257, 48.3903965, 70, camera.Location.SpatialReference);

            // Create a red triangle symbol.
            var triangleSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle.Triangle, Color.FromArgb(255, 255, 0, 0), 10);

            // Create a text symbol for each elevation mode.
            TextSymbol drapedBillboardedText = new TextSymbol("DRAPED BILLBOARDED", Color.FromArgb(255, 0, 0, 255), 10,
                Esri.ArcGISRuntime.Symbology.HorizontalAlignment.Center,
                Esri.ArcGISRuntime.Symbology.VerticalAlignment.Middle);
            drapedBillboardedText.OffsetY += 20;

            TextSymbol drapedFlatText = new TextSymbol("DRAPED FLAT", Color.FromArgb(255, 0, 0, 255), 10,
                Esri.ArcGISRuntime.Symbology.HorizontalAlignment.Center,
                Esri.ArcGISRuntime.Symbology.VerticalAlignment.Middle);
            drapedFlatText.OffsetY += 20;

            TextSymbol relativeToSurfaceText = new TextSymbol("RELATIVE TO SURFACE", Color.FromArgb(255, 0, 0, 255), 10,
                Esri.ArcGISRuntime.Symbology.HorizontalAlignment.Center,
                Esri.ArcGISRuntime.Symbology.VerticalAlignment.Middle);
            relativeToSurfaceText.OffsetY += 20;

            TextSymbol relativeToSceneText = new TextSymbol("RELATIVE TO SCENE", Color.FromArgb(255, 0, 0, 255), 10,
                Esri.ArcGISRuntime.Symbology.HorizontalAlignment.Center,
                Esri.ArcGISRuntime.Symbology.VerticalAlignment.Middle);
            relativeToSceneText.OffsetY -= 20;

            TextSymbol absoluteText = new TextSymbol("ABSOLUTE", Color.FromArgb(255, 0, 0, 255), 10,
                Esri.ArcGISRuntime.Symbology.HorizontalAlignment.Center,
                Esri.ArcGISRuntime.Symbology.VerticalAlignment.Middle);
            absoluteText.OffsetY += 20;

            // Add the point graphic and text graphic to the corresponding graphics overlay.
            _drapedBillboardedOverlay.Graphics.Add(new Graphic(surfaceRelatedPoint, triangleSymbol));
            _drapedBillboardedOverlay.Graphics.Add(new Graphic(surfaceRelatedPoint, drapedBillboardedText));

            _drapedFlatOverlay.Graphics.Add(new Graphic(surfaceRelatedPoint, triangleSymbol));
            _drapedFlatOverlay.Graphics.Add(new Graphic(surfaceRelatedPoint, drapedFlatText));

            relativeToSceneOverlay.Graphics.Add(new Graphic(sceneRelatedPoint, triangleSymbol));
            relativeToSceneOverlay.Graphics.Add(new Graphic(sceneRelatedPoint, relativeToSceneText));

            relativeToSurfaceOverlay.Graphics.Add(new Graphic(surfaceRelatedPoint, triangleSymbol));
            relativeToSurfaceOverlay.Graphics.Add(new Graphic(surfaceRelatedPoint, relativeToSurfaceText));

            absoluteOverlay.Graphics.Add(new Graphic(surfaceRelatedPoint, triangleSymbol));
            absoluteOverlay.Graphics.Add(new Graphic(surfaceRelatedPoint, absoluteText));
        }

        private void BillboardedClicked(object sender, EventArgs e)
        {
            MySceneView.GraphicsOverlays.Remove(_drapedFlatOverlay);
            MySceneView.GraphicsOverlays.Add(_drapedBillboardedOverlay);

            BillboardedButton.IsEnabled = false;
            FlatButton.IsEnabled = true;
        }

        private void FlatClicked(object sender, EventArgs e)
        {
            MySceneView.GraphicsOverlays.Remove(_drapedBillboardedOverlay);
            MySceneView.GraphicsOverlays.Add(_drapedFlatOverlay);

            BillboardedButton.IsEnabled = true;
            FlatButton.IsEnabled = false;
        }

        private void ZSlider_ValueChanged(object sender, ValueChangedEventArgs e)
        {
            // Ensure that the SceneView has loaded.
            if (MySceneView == null) return;

            foreach (GraphicsOverlay overlay in MySceneView.GraphicsOverlays)
            {
                foreach (Graphic graphic in overlay.Graphics)
                {
                    graphic.Geometry = GeometryEngine.SetZ(graphic.Geometry, e.NewValue);
                }
            }

            // Update Z value in the UI.
            ValueLabel.Text = $"Z Value: {(int)e.NewValue} meters";
        }
    }
}
