Animate 3D graphic

View inMAUIUWPWPFWinUIView on GitHub

An OrbitGeoElementCameraController follows a graphic while the graphic's position and rotation are animated.

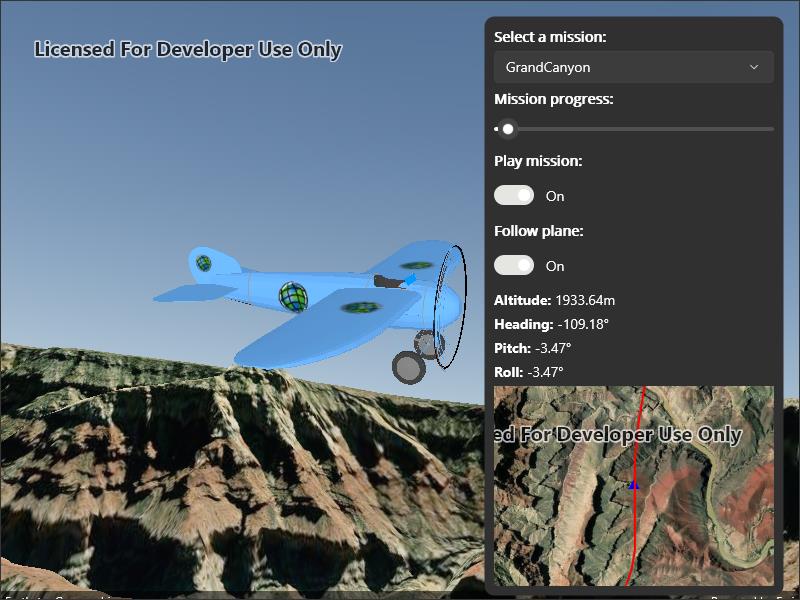

Image of animate 3D graphic

Use case

Visualize movement through a 3D landscape.

How to use the sample

Animation Controls:

  • Select a mission -- select a flight path
  • Play/Pause -- toggles playing and stopping the animation
  • Follow/Don't follow -- toggles the camera's free cam mode and follow
  • Mission progress -- shows how far along the route the plane is. Slide to change keyframe in animation
  • Flight speed -- controls speed of animation

How it works

  1. Create a GraphicsOverlay and add it to the SceneView.
  2. Create a ModelSceneSymbol object.
  3. Create a Graphic object and set its geometry to a Point.
  4. Set the ModelSceneSymbol object to the graphic.
  5. Add heading, pitch, and roll attributes to the graphic. Get the attributes from the graphic with Graphic.attributes.
  6. Create a SimpleRenderer object and set its expression properties.
  7. Add graphic and a renderer to the graphics overlay.
  8. Create a OrbitGeoElementCameraController which is set to target the graphic.
  9. Assign the camera controller to the SceneView.
  10. Update the graphic's location, heading, pitch, and roll.

Relevant API

  • Camera
  • GlobeCameraController
  • Graphic
  • GraphicsOverlay
  • ModelSceneSymbol
  • OrbitGeoElementCameraController
  • Renderer
  • Scene
  • SceneProperties
  • SceneView
  • SurfacePlacement

Offline data

This sample downloads the following items from ArcGIS Online automatically:

Tags

animation, camera, heading, pitch, roll, rotation, visualize

Sample Code

Animate3DGraphic.xaml.csAnimate3DGraphic.xaml.csAnimate3DGraphic.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;
using System.Diagnostics;
using System.Globalization;

using Colors = System.Drawing.Color;
using PointCollection = Esri.ArcGISRuntime.Geometry.PointCollection;

namespace ArcGIS.Samples.Animate3DGraphic
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Animate 3D graphic",
        category: "GraphicsOverlay",
        description: "An `OrbitGeoElementCameraController` follows a graphic while the graphic's position and rotation are animated.",
        instructions: "Animation Controls:",
        tags: new[] { "animation", "camera", "heading", "pitch", "roll", "rotation", "visualize" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("290f0c571c394461a8b58b6775d0bd63", "e87c154fb9c2487f999143df5b08e9b1", "5a9b60cee9ba41e79640a06bcdf8084d", "12509ffdc684437f8f2656b0129d2c13", "681d6f7694644709a7c830ec57a2d72b")]
    public partial class Animate3DGraphic : ContentPage
    {
        // URL to the elevation service - provides terrain elevation.
        private readonly Uri _elevationServiceUrl = new Uri("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer");

        // Graphic for highlighting the route in the inset map.
        private Graphic _routeGraphic;

        // Graphic for highlighting the airplane in the inset map.
        private Graphic _plane2D;

        // Graphic for showing the 3D plane model in the scene.
        private Graphic _plane3D;

        // Camera controller for centering the camera on the airplane.
        private OrbitGeoElementCameraController _orbitCameraController;

        // Timer control enables stopping and starting frame-by-frame animation.
        private bool _animationTimer;

        // Number of frames in the mission animation.
        private int _frameCount;

        // Index of current frame in the animation.
        private int _keyframe;

        // Dictionary of mission file names and the corresponding portal item IDs.
        private readonly Dictionary<string, string> _missionToItemId = new Dictionary<string, string>
        {
            {"GrandCanyon","290f0c571c394461a8b58b6775d0bd63"},
            {"Hawaii", "e87c154fb9c2487f999143df5b08e9b1"},
            {"Pyrenees", "5a9b60cee9ba41e79640a06bcdf8084d"},
            {"Snowdon", "12509ffdc684437f8f2656b0129d2c13"}
        };

        // Array of frames for the current mission.
        // A MissionFrame contains the position of the plane for a single moment in the animation.
        private MissionFrame[] _missionData;

        public Animate3DGraphic()
        {
            InitializeComponent();

            // Create the UI, setup the control references and execute initialization.
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Apply appropriate basemap styles to geoviews.
            InsetMapView.Map = new Map(BasemapStyle.ArcGISImageryStandard);
            MySceneView.Scene = new Scene(BasemapStyle.ArcGISImageryStandard);

            // Update the mission selection UI.
            MissionSelectionBox.ItemsSource = _missionToItemId.Keys.ToList();
            MissionSelectionBox.SelectedIndex = 0;

            // Wire up the selection change event to call the ChangeMission method.
            // This method resets the animation and starts a new mission.
            MissionSelectionBox.SelectedIndexChanged += async (sender, args) => { await ChangeMission(MissionSelectionBox.SelectedItem.ToString()); };

            // Apply the elevation source.
            var surface = new Surface();
            var elevationSource = new ArcGISTiledElevationSource(_elevationServiceUrl);
            surface.ElevationSources.Add(elevationSource);
            MySceneView.Scene.BaseSurface = surface;

            // Create and add the graphics overlay.
            var sceneOverlay = new GraphicsOverlay
            {
                SceneProperties = { SurfacePlacement = SurfacePlacement.Absolute }
            };
            MySceneView.GraphicsOverlays.Add(sceneOverlay);

            // Create a renderer to handle updating plane's orientation.
            var renderer3D = new SimpleRenderer();
            RendererSceneProperties renderProperties = renderer3D.SceneProperties;

            // Use expressions to keep the renderer properties updated as parameters of the rendered object.
            renderProperties.HeadingExpression = "[HEADING]";
            renderProperties.PitchExpression = "[PITCH]";
            renderProperties.RollExpression = "[ROLL]";

            // Apply the renderer to the scene view's overlay.
            sceneOverlay.Renderer = renderer3D;

            // Create renderer to symbolize plane and update plane orientation in the inset map.
            var renderer2D = new SimpleRenderer();

            // Create the symbol that will be used for the plane.
            var plane2DSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle.Triangle, Colors.Blue, 10);

            // Apply the symbol to the renderer.
            renderer2D.Symbol = plane2DSymbol;

            // Apply a rotation expression to the renderer.
            renderer2D.RotationExpression = "[ANGLE]";

            // Update the inset map with a new GraphicsOverlay based on the renderer.
            var insetMapOperlay = new GraphicsOverlay
            {
                Renderer = renderer2D
            };
            InsetMapView.GraphicsOverlays.Add(insetMapOperlay);

            // Create placeholder graphic for showing the mission route in the inset map.
            var routeSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, Colors.Red, 2);
            _routeGraphic = new Graphic { Symbol = routeSymbol };
            insetMapOperlay.Graphics.Add(_routeGraphic);

            // Create the plane graphic; this is symbolized as a blue triangle because of renderer implemented above.
            // Create the attribute dictionary.
            var plane2DAttributes = new Dictionary<string, object>();
            // Set the angle for the plane graphic.
            plane2DAttributes["ANGLE"] = 0f;
            // Create the graphic from the attributes and the initial point.
            _plane2D = new Graphic(new MapPoint(0, 0, SpatialReferences.Wgs84), plane2DAttributes);
            // Add the plane graphic to the inset map via the overlay.
            insetMapOperlay.Graphics.Add(_plane2D);

            try
            {
                // Create the model graphic for the plane.
                // Get the path to the 3D model.
                string modelPath = GetModelPath();
                // Create the scene symbol from the path to the model.
                ModelSceneSymbol plane3DSymbol = await ModelSceneSymbol.CreateAsync(new Uri(modelPath), 1.0);
                // Create the graphic with an initial location and the plane symbol.
                _plane3D = new Graphic(new MapPoint(0, 0, 0, SpatialReferences.Wgs84), plane3DSymbol);
                // Add the plane to the overlay.
                sceneOverlay.Graphics.Add(_plane3D);

                // Create the orbit camera controller to follow the plane.
                _orbitCameraController = new OrbitGeoElementCameraController(_plane3D, 20.0)
                {
                    CameraPitchOffset = 75.0
                };
                MySceneView.CameraController = _orbitCameraController;

                // Start a timer to animate the plane.
                // The timespan is the length of the timer interval in milliseconds; this controls the animation speed (fps).
                Dispatcher.StartTimer(new TimeSpan(0, 0, 0, 0, 60), AnimatePlane);

                // Set the initial mission for when the sample loads.
                await ChangeMission(_missionToItemId.Keys.First());
            }
            catch (Exception e)
            {
                await Application.Current.MainPage.DisplayAlert("Error", e.ToString(), "OK");
            }
        }

        private async Task ChangeMission(string mission)
        {
            // Stop animating the current mission.
            PlaySwitch.IsToggled = false;

            // Get mission data,
            _missionData = GetMissionData(mission);

            // Draw mission route on the inset.
            // Create a collection of points to hold the mission.
            var points = new PointCollection(SpatialReferences.Wgs84);
            // Add all of the points from the mission to the point collection.
            points.AddPoints(_missionData.Select(m => m.ToMapPoint()));
            // Create a polyline to symbolize the route from the point collection.
            var route = new Polyline(points);
            // Update the route graphic's geometry with the newly created route polyline.
            _routeGraphic.Geometry = route;
            // Update the inset map's scale.
            await InsetMapView.SetViewpointScaleAsync(100000);

            // Update animation parameters.
            _frameCount = _missionData.Length;
            _keyframe = 0;

            // Play the animation and follow the plane.
            PlaySwitch.IsToggled = true;
            FollowSwitch.IsToggled = true;
        }

        private MissionFrame[] GetMissionData(string mission)
        {
            // Get the path to the file.
            string filePath = GetMissionFilePath(mission);

            // Read the file text.
            string fileContents = File.ReadAllText(filePath);

            // Split the file contents into a list of lines.
            return fileContents.Split('\n')
                // Then for each line, create a MissionFrame object.
                .Select(MissionFrame.Create)
                // Then remove any null MissionFrames.
                .Where(missionPart => missionPart != null)
                // Finally return that list of MissionFrames as an array.
                .ToArray();
        }

        private string GetMissionFilePath(string mission)
        {
            string itemId = _missionToItemId[mission];
            string filename = mission + ".csv";

            return DataManager.GetDataFolder(itemId, filename);
        }

        private bool AnimatePlane()
        {
            // Skip doing anything if animation is paused, or if inset map view is closed.
            if (!_animationTimer || double.IsNaN(InsetMapView.MapScale)) { return true; }

            // Get the next position; % prevents going out of bounds even if the keyframe value is
            // changed unexpectedly (e.g., due to user interaction with the progress slider).
            MissionFrame currentFrame = _missionData[_keyframe % _frameCount];

            // Update the UI.
            double missionProgress = _keyframe / (double)_frameCount;

            try
            {
                // This is needed because the event could be running on a non-UI thread.
                Microsoft.Maui.ApplicationModel.MainThread.BeginInvokeOnMainThread(() =>
                {
                    // Update the progress slider; temporarily remove event subscription to avoid feedback loop.
                    MissionProgressBar.ValueChanged -= MissionProgressBar_ValueChanged;
                    MissionProgressBar.Value = missionProgress * 100;
                    MissionProgressBar.ValueChanged += MissionProgressBar_ValueChanged;

                    // Update stats display.
                    AltitudeLabel.Text = $"{currentFrame.Elevation:F}m";
                    HeadingLabel.Text = $"{currentFrame.Heading:F}\u00b0";
                    PitchLabel.Text = $"{currentFrame.Pitch:F}\u00b0";
                    RollLabel.Text = $"{currentFrame.Pitch:F}\u00b0";
                });
            }
            // This exception is thrown sometimes as a catastrophic error when closing the app (E_UNEXPECTED).
            catch (System.Runtime.InteropServices.COMException) {}

            // Update plane's position.
            _plane3D.Geometry = currentFrame.ToMapPoint();
            _plane3D.Attributes["HEADING"] = currentFrame.Heading;
            _plane3D.Attributes["PITCH"] = currentFrame.Pitch;
            _plane3D.Attributes["ROLL"] = currentFrame.Roll;

            // Set plane symbol position.
            _plane2D.Geometry = currentFrame.ToMapPoint();

            // Update inset's viewpoint and heading.
            var vp = new Viewpoint(currentFrame.ToMapPoint(), (double)InsetMapView.MapScale, 360 + currentFrame.Heading);
            InsetMapView.SetViewpoint(vp);

            // Update the keyframe to advance animation.
            _keyframe++;

            // Restart the animation if it has finished.
            if (_keyframe >= _frameCount)
            {
                _keyframe = 0;
            }

            // Keep the animation event going.
            return true;
        }

        private static string GetModelPath()
        {
            return DataManager.GetDataFolder("681d6f7694644709a7c830ec57a2d72b", "Bristol.dae");
        }

        #region Control event handlers

        private void PlaySwitch_Toggled(object sender, ToggledEventArgs e)
        {
            // Stop or play the animation.
            _animationTimer = PlaySwitch.IsToggled;
        }

        private void FollowSwitch_Toggled(object sender, ToggledEventArgs e)
        {
            // Setting the scene view's camera controller to null has the effect of resetting the value to the default.
            MySceneView.CameraController = FollowSwitch.IsToggled ? _orbitCameraController : null;
        }

        private void MissionProgressBar_ValueChanged(object sender, ValueChangedEventArgs e)
        {
            // Stop the animation.
            PlaySwitch.IsToggled = false;

            // Get a reference to the slider that sent the event.
            var sliderControl = (Slider)sender;

            // Get the new mission progress.
            double missionProgress = sliderControl.Value / 100.0;

            // Update the keyframe based on the progress.
            _keyframe = (int)(missionProgress * _frameCount);

            // Restart the animation
            PlaySwitch.IsToggled = true;
        }

        #endregion Control event handlers

        /// <summary>
        /// Private helper class represents a single frame in the animation.
        /// </summary>
        private class MissionFrame
        {
            private double Longitude { get; }
            private double Latitude { get; }
            public double Elevation { get; }
            public double Heading { get; }
            public double Pitch { get; }
            public double Roll { get; }

            /// <summary>
            /// Private constructor ensures that only the factory method (Create) can be called.
            /// </summary>
            /// <param name="missionLine">A string describing a single frame in the mission animation.</param>
            private MissionFrame(string missionLine)
            {
                // Split the string into a list of entries (columns).
                // Example line: -156.3666517,20.6255059,999.999908,83.77659,0.000105,-47.766567.
                string[] missionFrameParameters = missionLine.Split(',');

                // Throw if the line isn't valid.
                if (missionFrameParameters.Length != 6)
                {
                    throw new Exception("Invalid mission part definition");
                }

                // Populate the object's properties from the array of parameters.
                Longitude = Convert.ToDouble(missionFrameParameters[0], CultureInfo.InvariantCulture);
                Latitude = Convert.ToDouble(missionFrameParameters[1], CultureInfo.InvariantCulture);
                Elevation = Convert.ToDouble(missionFrameParameters[2], CultureInfo.InvariantCulture);
                Heading = Convert.ToDouble(missionFrameParameters[3], CultureInfo.InvariantCulture);
                Pitch = Convert.ToDouble(missionFrameParameters[4], CultureInfo.InvariantCulture);
                Roll = Convert.ToDouble(missionFrameParameters[5], CultureInfo.InvariantCulture);
            }

            /// <summary>
            /// Creates a new MissionFrame.
            /// The private constructor + static construction method allows
            /// for keeping the exception-handling logic for the constructor
            /// internal to the class.
            /// </summary>
            /// <param name="missionLine">A string describing a single frame in the mission animation.</param>
            /// <returns>Constructed MissionFrame or null if the line is invalid.</returns>
            public static MissionFrame Create(string missionLine)
            {
                try
                {
                    return new MissionFrame(missionLine);
                }
                catch (Exception ex)
                {
                    Debug.WriteLine(ex.Message);
                    return null;
                }
            }

            public MapPoint ToMapPoint()
            {
                return new MapPoint(Longitude, Latitude, Elevation, SpatialReferences.Wgs84);
            }
        }
    }
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
