Hillshade renderer

View inMAUIUWPWPFWinUIView on GitHub

Apply a hillshade renderer to a raster.

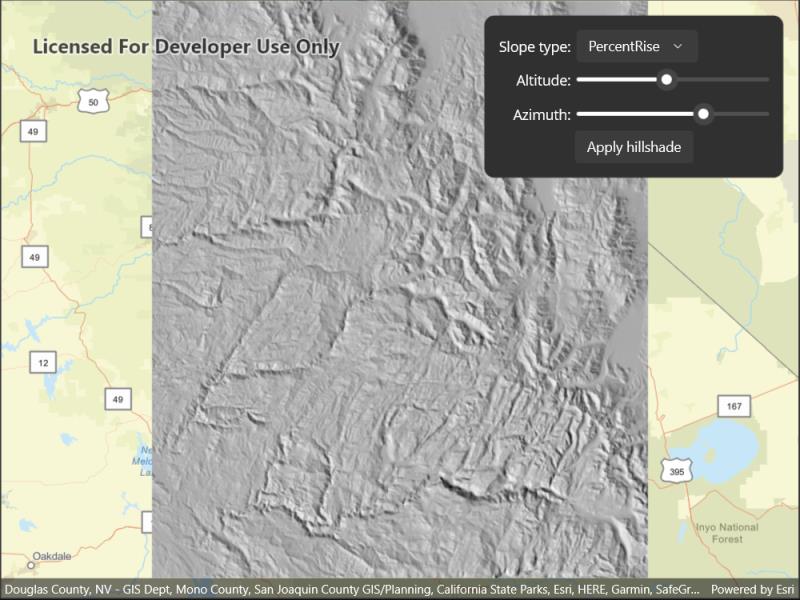

Image of hillshade renderer

Use case

An environmental agency may track coastal erosion by comparing images of an area taken over a a longer period of time with hillshade renderers applied.

How to use the sample

Choose and adjust the settings to update the hillshade renderer on the raster layer. The sample allows you to change the Altitude, Azimuth, and Slope Type.

How it works

  1. Create a Raster from a grayscale raster file.
  2. Create a RasterLayer from the raster.
  3. Create a Basemap from the raster layer and set it to the map.
  4. Create a HillshadeRenderer, specifying the slope type and other properties, new HillshadeRenderer(Altitude, Azimuth, ZFactor, SlopeType, PixelSizeFactor, PixelSizePower, OutputBitDepth).
  5. Set the hillshade renderer to be used on the raster layer with rasterLayer.Renderer.

Relevant API

  • Basemap
  • HillshadeRenderer
  • Raster
  • RasterLayer

Offline data

This sample uses a digital elevation map from ArcGIS Online.

Tags

altitude, angle, azimuth, raster, slope, visualization

Sample Code

RasterHillshade.xaml.csRasterHillshade.xaml.csRasterHillshade.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Rasters;

namespace ArcGIS.Samples.RasterHillshade
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Hillshade renderer",
        category: "Layers",
        description: "Apply a hillshade renderer to a raster.",
        instructions: "Choose and adjust the settings to update the hillshade renderer on the raster layer. The sample allows you to change the Altitude, Azimuth, and Slope Type.",
        tags: new[] { "altitude", "angle", "azimuth", "raster", "slope", "visualization" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("134d60f50e184e8fa56365f44e5ce3fb")]
    public partial class RasterHillshade : ContentPage
    {
        // Constant to store a z-factor (conversion constant) applied to the hillshade.
        // If needed, this can be used to convert z-values to the same unit as the x/y coordinates or to apply a vertical exaggeration.
        private const double ZFactor = 1.0;

        // Constants to store the Pixel Size Power and Pixel Size Factor values.
        // Use these to account for altitude changes (scale) as the viewer zooms in and out (recommended when using worldwide datasets).
        private const double PixelSizePower = 1.0;
        private const double PixelSizeFactor = 1.0;

        // Constant to store the bit depth (pixel depth), which determines the range of values that the hillshade raster can store.
        private const int PixelBitDepth = 8;

        // Store a reference to the layer
        private RasterLayer _rasterLayer;

        // Store a dictionary of slope types
        private Dictionary<string, SlopeType> _slopeTypeValues = new Dictionary<string, SlopeType>();

        public RasterHillshade()
        {
            InitializeComponent();

            // Call a function to set up the map
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Create a map with a streets basemap
            Map map = new Map(BasemapStyle.ArcGISStreets);

            // Get the file name for the local raster dataset
            string filepath = GetRasterPath();

            // Load the raster file
            Raster rasterFile = new Raster(filepath);

            try
            {
                // Create and load a new raster layer to show the image
                _rasterLayer = new RasterLayer(rasterFile);
                await _rasterLayer.LoadAsync();

                // Enable the apply renderer button when the layer loads.
                ApplyHillshadeButton.IsEnabled = true;

                // Create a viewpoint with the raster's full extent
                Viewpoint fullRasterExtent = new Viewpoint(_rasterLayer.FullExtent);

                // Set the initial viewpoint for the map
                map.InitialViewpoint = fullRasterExtent;

                // Add the layer to the map
                map.OperationalLayers.Add(_rasterLayer);

                // Add the map to the map view
                MyMapView.Map = map;

                // Add slope type values to the dictionary and picker
                foreach (object slope in Enum.GetValues(typeof(SlopeType)))
                {
                    _slopeTypeValues.Add(Enum.GetName((SlopeType)slope), (SlopeType)slope);
                }
                SlopeTypePicker.ItemsSource = Enum.GetNames(typeof(SlopeType));

                // Select the "Scaled" slope type enum
                SlopeTypePicker.SelectedIndex = 2;
            }
            catch (Exception e)
            {
                await Application.Current.MainPage.DisplayAlert("Error", e.ToString(), "OK");
            }
        }

        private void ApplyHillshadeButton_Click(object sender, EventArgs e)
        {
            // Get the current parameter values
            double altitude = AltitudeSlider.Value;
            double azimuth = AzimuthSlider.Value;
            SlopeType typeOfSlope = _slopeTypeValues[SlopeTypePicker.SelectedItem.ToString()];

            // Create a hillshade renderer that uses the values selected by the user
            HillshadeRenderer hillshadeRenderer = new HillshadeRenderer(altitude, azimuth, ZFactor, typeOfSlope, PixelSizeFactor, PixelSizePower, PixelBitDepth);

            // Apply the new renderer to the raster layer
            _rasterLayer.Renderer = hillshadeRenderer;
        }

        private static string GetRasterPath()
        {
            return DataManager.GetDataFolder("134d60f50e184e8fa56365f44e5ce3fb", "srtm-hillshade", "srtm.tiff");
        }
    }
}
