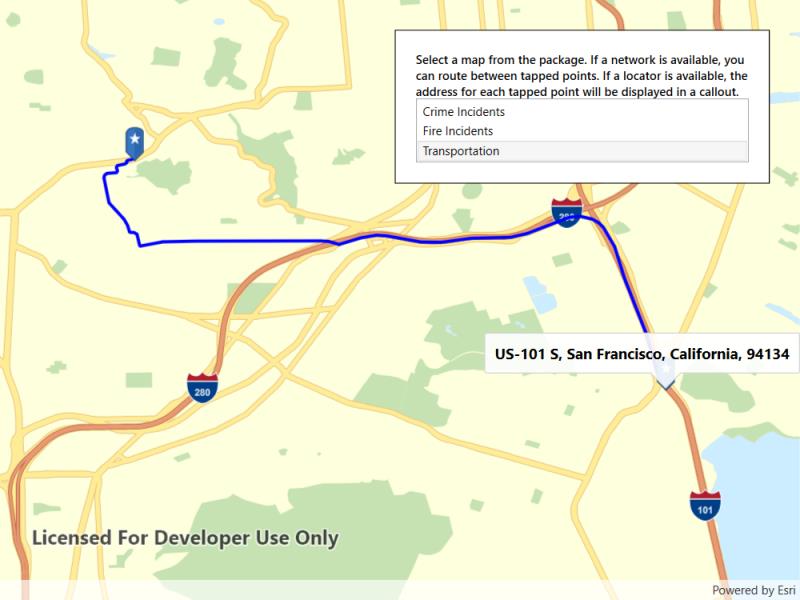

Mobile map (search and route)

<UserControl x:Class="ArcGIS.WPF.Samples.MobileMapSearchAndRoute.MobileMapSearchAndRoute"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:esri="http://schemas.esri.com/arcgis/runtime/2013">
    <Grid>
        <esri:MapView x:Name="MyMapView" />
        <Border Style="{StaticResource BorderStyle}">
            <StackPanel>
                <TextBlock FontWeight="SemiBold"
                           Text="Select a map from the package. If a network is available, you can route between tapped points. If a locator is available, the address for each tapped point will be displayed in a callout."
                           TextWrapping="Wrap" />
                <ListBox ItemsSource="{Binding Maps}" SelectionChanged="Map_Selected">
                    <ListBox.ItemContainerStyle>
                        <Style TargetType="ListBoxItem" BasedOn="{StaticResource CalciteListBoxItemStyle}">
                            <Setter Property="HorizontalContentAlignment" Value="Stretch" />
                        </Style>
                    </ListBox.ItemContainerStyle>
                    <ListBox.ItemTemplate>
                        <DataTemplate DataType="esri:Map">
                            <StackPanel>
                                <TextBlock VerticalAlignment="Center"
                                           Text="{Binding Item.Name}"
                                           TextAlignment="Left" />
                            </StackPanel>
                        </DataTemplate>
                    </ListBox.ItemTemplate>
                </ListBox>
            </StackPanel>
        </Border>
    </Grid>
</UserControl>

// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.Tasks.Geocoding;
using Esri.ArcGISRuntime.Tasks.NetworkAnalysis;
using Esri.ArcGISRuntime.UI;
using Esri.ArcGISRuntime.UI.Controls;
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.IO;
using System.Linq;
using System.Reflection;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;

namespace ArcGIS.WPF.Samples.MobileMapSearchAndRoute
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Mobile map (search and route)",
        category: "Map",
        description: "Display maps and use locators to enable search and routing offline using a Mobile Map Package.",
        instructions: "A list of maps from a mobile map package will be displayed. If the map contains transportation networks, the list item will have a navigation icon. Click on a map in the list to open it. If a locator task is available, click on the map to reverse geocode the location's address. If transportation networks are available, a route will be calculated between geocode locations.",
        tags: new[] { "disconnected", "field mobility", "geocode", "network", "network analysis", "offline", "routing", "search", "transportation" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("260eb6535c824209964cf281766ebe43")]
    public partial class MobileMapSearchAndRoute
    {
        // Hold references to map resources for easy access.
        public ObservableCollection<Map> Maps { get; set; }

        private LocatorTask _packageLocator;
        private TransportationNetworkDataset _networkDataset;

        // Overlays for use in visualizing routes.
        private GraphicsOverlay _routeOverlay;
        private GraphicsOverlay _waypointOverlay;

        // Track the start and end point for route calculation.
        private MapPoint _startPoint;
        private MapPoint _endPoint;

        public MobileMapSearchAndRoute()
        {
            Maps = new ObservableCollection<Map>();
            InitializeComponent();
            DataContext = this;
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Get the path to the package on disk.
            string filePath = DataManager.GetDataFolder("260eb6535c824209964cf281766ebe43", "SanFrancisco.mmpk");

            // Open the map package.
            MobileMapPackage package = await OpenMobileMapPackage(filePath);

            // Populate the list of maps.
            foreach (Map map in package.Maps)
            {
                await map.LoadAsync();
                Maps.Add(map);
            }

            // Get the locator task from the package.
            _packageLocator = package.LocatorTask;

            // Create and add an overlay for showing a route.
            _routeOverlay = new GraphicsOverlay();
            _routeOverlay.Renderer = new SimpleRenderer
            {
                Symbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, System.Drawing.Color.Blue, 3)
            };
            MyMapView.GraphicsOverlays.Add(_routeOverlay);

            // Create and add an overlay for showing waypoints/stops.
            _waypointOverlay = new GraphicsOverlay();
            MyMapView.GraphicsOverlays.Add(_waypointOverlay);

            // Enable tap-to-reverse geocode and tap-to-route.
            MyMapView.GeoViewTapped += MapView_Tapped;
        }

        private async Task<MobileMapPackage> OpenMobileMapPackage(string path)
        {
            // Open the package.
            MobileMapPackage package = await MobileMapPackage.OpenAsync(path);

            // Load the package.
            await package.LoadAsync();

            // Return the opened package.
            return package;
        }

        private async void MapView_Tapped(object sender, GeoViewInputEventArgs e)
        {
            // Handle routing.
            try
            {
                await ProcessRouteRequest(e.Location);
            }
            catch (Exception exception)
            {
                Console.WriteLine(exception);
                MessageBox.Show("Couldn't geocode or route.", "Error");
            }
        }

        private async Task ShowGeocodeResult(MapPoint tappedPoint)
        {
            // Reverse geocode to get an address.
            IReadOnlyList<GeocodeResult> results = await _packageLocator.ReverseGeocodeAsync(tappedPoint);

            // Process the address into usable strings.
            string address = results.First().Label;

            // Show the address in a callout.
            MyMapView.ShowCalloutAt(tappedPoint, new CalloutDefinition(address));
        }

        private async Task ProcessRouteRequest(MapPoint tappedPoint)
        {
            // Clear any existing overlays.
            _routeOverlay.Graphics.Clear();
            MyMapView.DismissCallout();

            // Return if there is no network available for routing.
            if (_networkDataset == null)
            {
                await ShowGeocodeResult(tappedPoint);
                return;
            }

            // Set the start point if it hasn't been set.
            if (_startPoint == null)
            {
                _startPoint = tappedPoint;

                await ShowGeocodeResult(tappedPoint);

                // Show the start point.
                _waypointOverlay.Graphics.Add(await GraphicForPoint(_startPoint));

                return;
            }

            if (_endPoint == null)
            {
                await ShowGeocodeResult(tappedPoint);

                // Show the end point.
                _endPoint = tappedPoint;
                _waypointOverlay.Graphics.Add(await GraphicForPoint(_endPoint));

                // Create the route task from the local network dataset.
                RouteTask routingTask = await RouteTask.CreateAsync(_networkDataset);

                // Configure route parameters for the route between the two tapped points.
                RouteParameters routingParameters = await routingTask.CreateDefaultParametersAsync();
                List<Stop> stops = new List<Stop> { new Stop(_startPoint), new Stop(_endPoint) };
                routingParameters.SetStops(stops);

                // Get the first route result.
                RouteResult result = await routingTask.SolveRouteAsync(routingParameters);
                Route firstRoute = result.Routes.First();

                // Show the route on the map. Note that symbology for the graphics overlay is defined in Initialize().
                Polyline routeLine = firstRoute.RouteGeometry;
                _routeOverlay.Graphics.Add(new Graphic(routeLine));

                return;
            }

            // Reset graphics and route.
            _routeOverlay.Graphics.Clear();
            _waypointOverlay.Graphics.Clear();
            _startPoint = null;
            _endPoint = null;
        }

        private void Map_Selected(object sender, SelectionChangedEventArgs e)
        {
            // Clear existing overlays.
            MyMapView.DismissCallout();
            _waypointOverlay.Graphics.Clear();
            _routeOverlay.Graphics.Clear();

            try
            {
                // Get the selected map.
                Map selectedMap = e.AddedItems[0] as Map;

                // Show the map in the view.
                MyMapView.Map = selectedMap;

                // Get the transportation network if there is one. Will be set to null otherwise.
                _networkDataset = selectedMap.TransportationNetworks.FirstOrDefault();
            }
            catch (Exception exception)
            {
                Console.WriteLine(exception);
                MessageBox.Show(exception.ToString());
            }
        }

        private async Task<Graphic> GraphicForPoint(MapPoint point)
        {
            // Hold a reference to the picture marker symbol.
            PictureMarkerSymbol pinSymbol;

            // Get current assembly that contains the image.
            Assembly currentAssembly = Assembly.GetExecutingAssembly();

            // Get the resource name of the blue pin star image
            string resourceStreamName = this.GetType().Assembly.GetManifestResourceNames().Single(str => str.EndsWith("pin_star_blue.png"));

            // Load the resource stream
            using (Stream resourceStream = this.GetType().Assembly.
                       GetManifestResourceStream(resourceStreamName))
            {

                // Create new symbol using asynchronous factory method from stream.
                pinSymbol = await PictureMarkerSymbol.CreateAsync(resourceStream);
                pinSymbol.Width = 60;
                pinSymbol.Height = 60;
                // The image is a pin; offset the image so that the pinpoint
                //     is on the point rather than the image's true center.
                pinSymbol.LeaderOffsetX = 30;
                pinSymbol.OffsetY = 14;
            }

            return new Graphic(point, pinSymbol);
        }
    }
}
