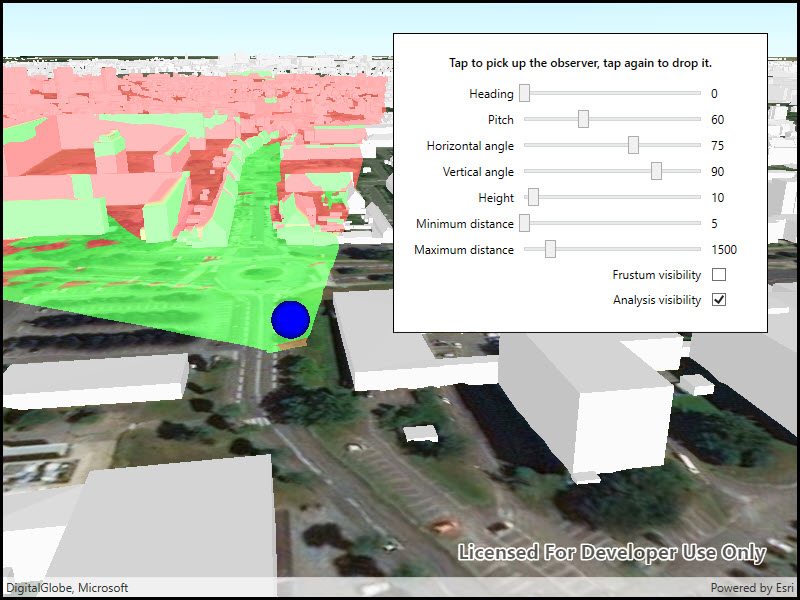

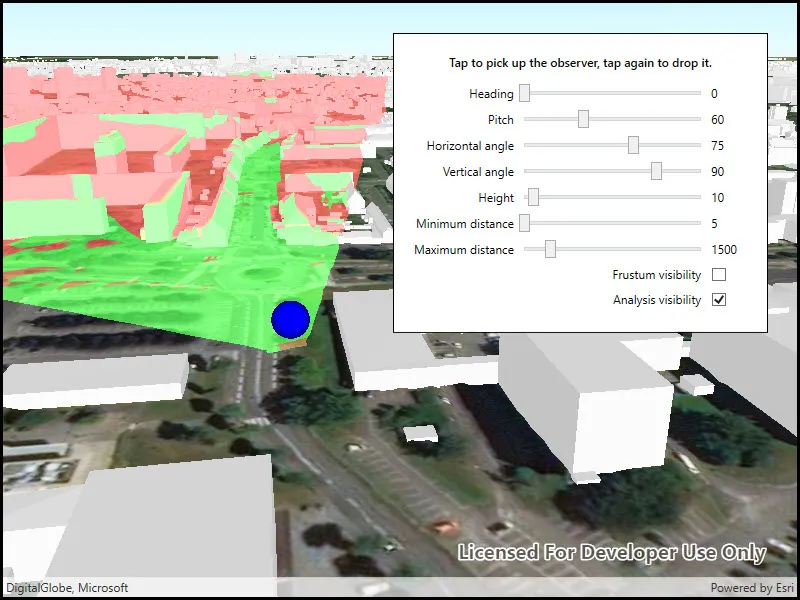

Show exploratory viewshed from point in scene

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;
using Esri.ArcGISRuntime.UI.Controls;
using Esri.ArcGISRuntime.UI.GeoAnalysis;
using System;
using System.Drawing;
using System.Windows;
using System.Windows.Input;
using Point = System.Windows.Point;

namespace ArcGIS.WPF.Samples.ShowExploratoryViewshedFromPointInScene
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Show exploratory viewshed from point in scene",
        category: "Analysis",
        description: "Perform an exploratory viewshed analysis from a defined vantage point.",
        instructions: "Use the sliders to change the properties (heading, pitch, etc.) of the exploratory viewshed and see them updated in real time. Click on the map to move the exploratory viewshed.",
        tags: new[] { "3D", "exploratory viewshed", "frustum", "scene", "visibility analysis" })]
    public partial class ShowExploratoryViewshedFromPointInScene
    {
        // Hold the URL to the elevation source.
        private readonly Uri _localElevationImageService = new Uri("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer");

        // Hold the URL to the buildings scene layer.
        private readonly Uri _buildingsUrl = new Uri("https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/Buildings_Brest/SceneServer/layers/0");

        // Hold a reference to the viewshed analysis.
        private ExploratoryLocationViewshed _viewshed;

        // Hold a reference to the analysis overlay that will hold the viewshed analysis.
        private AnalysisOverlay _analysisOverlay;

        // Graphics overlay for viewpoint symbol.
        private GraphicsOverlay _viewpointOverlay;

        // Symbol for viewpoint.
        private SimpleMarkerSceneSymbol _viewpointSymbol;

        // Flag indicating if the viewshed will move with the mouse.
        private bool _subscribedToMouseMoves;

        // Height of the viewpoint above the ground.
        private double _viewHeight;

        public ShowExploratoryViewshedFromPointInScene()
        {
            InitializeComponent();

            // Initialize the sample.
            Initialize();
        }

        private void Initialize()
        {
            _viewHeight = HeightSlider.Value;

            // Create the scene with the imagery basemap.
            Scene myScene = new Scene(BasemapStyle.ArcGISImageryStandard);
            MySceneView.Scene = myScene;

            // Add the surface elevation.
            Surface mySurface = new Surface();
            mySurface.ElevationSources.Add(new ArcGISTiledElevationSource(_localElevationImageService));
            myScene.BaseSurface = mySurface;

            // Add the scene layer.
            ArcGISSceneLayer sceneLayer = new ArcGISSceneLayer(_buildingsUrl);
            myScene.OperationalLayers.Add(sceneLayer);

            // Create the MapPoint representing the initial location.
            MapPoint initialLocation = new MapPoint(-4.5, 48.4, 46 + _viewHeight);

            // Create the location viewshed analysis.
            _viewshed = new ExploratoryLocationViewshed(
                initialLocation,
                HeadingSlider.Value,
                PitchSlider.Value,
                HorizontalAngleSlider.Value,
                VerticalAngleSlider.Value,
                MinimumDistanceSlider.Value,
                MaximumDistanceSlider.Value);

            // Create a camera based on the initial location.
            Camera camera = new Camera(initialLocation, 200.0, 20.0, 70.0, 0.0);

            // Create a symbol for the viewpoint.
            _viewpointSymbol = SimpleMarkerSceneSymbol.CreateSphere(Color.Blue, 10, SceneSymbolAnchorPosition.Center);

            // Add the symbol to the viewpoint overlay.
            _viewpointOverlay = new GraphicsOverlay
            {
                SceneProperties = new LayerSceneProperties(SurfacePlacement.Absolute)
            };
            _viewpointOverlay.Graphics.Add(new Graphic(initialLocation, _viewpointSymbol));

            // Apply the camera to the scene view.
            MySceneView.SetViewpointCamera(camera);

            // Create an analysis overlay for showing the viewshed analysis.
            _analysisOverlay = new AnalysisOverlay();

            // Add the viewshed analysis to the overlay.
            _analysisOverlay.Analyses.Add(_viewshed);

            // Add the analysis overlay to the SceneView.
            MySceneView.AnalysisOverlays.Add(_analysisOverlay);

            // Add the graphics overlay
            MySceneView.GraphicsOverlays.Add(_viewpointOverlay);

            // Update the frustum outline Color.
            // The frustum outline shows the volume in which the viewshed analysis is performed.
            ExploratoryViewshed.FrustumOutlineColor = Color.Blue;

            // Subscribe to tap events. This enables the 'pick up' and 'drop' workflow for moving the viewpoint.
            MySceneView.GeoViewTapped += MySceneViewOnGeoViewTapped;
        }

        private void MySceneViewOnGeoViewTapped(object sender, GeoViewInputEventArgs geoViewInputEventArgs)
        {
            // The viewshed observer is picked up and moving. Drop it.
            if (_subscribedToMouseMoves)
            {
                MySceneView.MouseMove -= MySceneViewOnMouseMove;
            }
            // The viewshed observer is currently pinned. Pick it up.
            else
            {
                MySceneView.MouseMove += MySceneViewOnMouseMove;
            }

            // Toggle the viewshed movement flag.
            _subscribedToMouseMoves = !_subscribedToMouseMoves;
        }

        private void MySceneViewOnMouseMove(object sender, MouseEventArgs mouseEventArgs)
        {
            // Get the mouse position.
            Point cursorSceenPoint = mouseEventArgs.GetPosition(MySceneView);

            // Get the corresponding MapPoint.
            MapPoint onMapLocation = MySceneView.ScreenToBaseSurface(cursorSceenPoint);

            // Return if the MapPoint is null. This might happen if mouse leaves SceneView area.
            if (onMapLocation == null)
            {
                return;
            }

            // Adjust the Z value of the MapPoint to reflect the selected height.
            onMapLocation = new MapPoint(onMapLocation.X, onMapLocation.Y, onMapLocation.Z + _viewHeight);

            // Update the viewshed.
            _viewshed.Location = onMapLocation;

            // Update the viewpoint symbol.
            _viewpointOverlay.Graphics.Clear();
            _viewpointOverlay.Graphics.Add(new Graphic(onMapLocation, _viewpointSymbol));
        }

        private void HandleSettingsChange(object sender, RoutedEventArgs e)
        {
            // Return if viewshed hasn't been created yet. This happens when the sample is starting.
            if (_viewshed == null)
            {
                return;
            }
            // Calculate the difference between the old and new height.
            double difference = HeightSlider.Value - _viewHeight;

            // Update the view height value to the new value.
            _viewHeight = HeightSlider.Value;

            // Move the viewshed to the new height.
            _viewshed.Location = new MapPoint(_viewshed.Location.X, _viewshed.Location.Y, _viewshed.Location.Z + difference);

            // Update the viewshed settings.
            _viewshed.Heading = HeadingSlider.Value;
            _viewshed.Pitch = PitchSlider.Value;
            _viewshed.HorizontalAngle = HorizontalAngleSlider.Value;
            _viewshed.VerticalAngle = VerticalAngleSlider.Value;
            _viewshed.MinDistance = MinimumDistanceSlider.Value;
            _viewshed.MaxDistance = MaximumDistanceSlider.Value;

            // Update visibility of the viewshed analysis.
            _viewshed.IsVisible = (bool)AnalysisVisibilityCheck.IsChecked;

            // Update visibility of the frustum. Note that the frustum will be invisible
            //     regardless of this setting if the viewshed analysis is not visible.
            _viewshed.IsFrustumOutlineVisible = (bool)FrustumVisibilityCheck.IsChecked;

            // Update the viewpoint graphic.
            _viewpointOverlay.Graphics.Clear();
            _viewpointOverlay.Graphics.Add(new Graphic(_viewshed.Location, _viewpointSymbol));
        }
    }
}
