Detecting Mussel Farms using Deep Learning

  • 🔬 Data Science
  • 🥠 Deep Learning and Object Detection

Introduction

Mussels are aquatic animals with bivalved hard shells that are consumed by millions of people around the world. Mussels grow in fresh water rivers or lakes near their openings to saline waters of the ocean, as well as in some coastal intertidal regions. Mussel aquaculture involves floating rafts that have ropes suspended in the water on which the mussels are cultured. The farmers collect mussel seeds from nearby rocky shores during low tides and attach them to the ropes in their rafts. Later, these ropes are covered with mesh socks that collect the mussels once they are ripe.


Mussels growing on a rocky shore

Spain is one of the biggest producer of mussels in the world. The Galicia region in Spain accounts for almost 90 percent of the mussel aquaculture in the country. Our study area for this notebook is Ria de Arousa, which is the biggest mussel farming area in Galicia region.


Mussel Farms in Ria de Arousa, Spain

Monitoring of such aquacultures is an important aspect of maintaining the aquatic ecosystems. While sustainable farming can help the ecosystem, it's exploitation can degrade the environment quality and biodiversity. Therefore, it is important to monitor the growth of mussel farms in a region and their expansion into fragile areas. While physical surveys can be arduous and time consuming, satellite imagery and deep learning can help in monitoring mussel farming with much less effort. These analysis can also be helpful in comparing changes over longer periods of time.

In this notebook, we will train a deep learning model to detect mussel farms in high-resolution imagery of the Ria De Arousa region of Spain.

Export training data

Input
# Connect to GIS
from arcgis.gis import GIS
gis = GIS("home")

The following imagery layer contains high resolution imagery of a part of the Ria De Arousa region. The spatial resolution of the imagery is 30 cm, and it contains 3 bands: Red, Green, and Blue. It is used as the 'Input Raster' for exporting the training data.

Input
training_raster = gis.content.get('f2b92eed10394e5eb3c7f135861937d9')
training_raster
Output
mussel_farm_training_imagery
Training Imagery for Mussel Farm DetectionImagery Layer by demos_deldev
Last Modified: December 13, 2021
0 comments, 0 views

The following feature layer contains the bounding boxes for a few mussel farms in the Ria de Arousa region. It is used as the 'Input Feature Class' for exporting the training data.

Input
training_feature_layer = gis.content.get('ff6a48b3391c4a24b807af0eb08bb6c1')
training_feature_layer
Output
MusselFarms
Feature layer with bounding boxes around mussel farms.Feature Layer Collection by api_data_owner
Last Modified: December 16, 2021
0 comments, 1 views

Training data can be exported by using the 'Export Training Data For Deep Learning' tool available in ArcGIS Pro and ArcGIS Enterprise. For this example, we prepared the training data in the 'PASCAL Visual Object Classes' format, using a 'chip_size' of 448px and a 'cell_size' of 0.3m, in ArcGIS Pro. The 'Input Raster' and the 'Input Feature Class' have been made available to export the required training data. We have also provided the exported training data in the next section, if you wish to skip this step.


Export Training Data for Deep Learning

Train the model

Necessary imports

Input
import os
import glob
import zipfile
from pathlib import Path
from arcgis.learn import prepare_data, MMDetection

Get training data

We have already exported the data that can be directly used by following the steps below:

Input
training_data = gis.content.get('57cb821dedca4c5598e81c8d2d510c91')
training_data
Output
musselfarm_detection_training_data
Training data for Mussel Farm Detection sample notebookImage Collection by api_data_owner
Last Modified: December 10, 2021
0 comments, 0 views
Input
filepath = training_data.download(file_name=training_data.name)
Input
import zipfile
with zipfile.ZipFile(filepath, 'r') as zip_ref:
    zip_ref.extractall(Path(filepath).parent)
Input
data_path = Path(os.path.join(os.path.splitext(filepath)[0]))

Prepare data

We will specify the path to our training data and a few hyperparameters.

  • path: path of the folder/list of folders containing training data.
  • batch_size: Number of images your model will train on each step inside an epoch. Depends on the memory of your graphic card.
  • chip_size: The same as the tile size used while exporting the dataset.
Input
data = prepare_data(path, batch_size=4, chip_size=448)

Visualize training data

To get a sense of what the training data looks like, the show_batch() method will randomly pick a few training chips and visualize them.

Input
data.show_batch(rows=2)

Load model architecture

Through the integration of the MMDetection library, arcgis.learn allows the use of the Dynamic RCNN model, along with many other models. For more in-depth information on how to use MMDetection, please see Use MMDetection with arcgis.learn.

Input
MMDetection.supported_models
Output
['atss',
 'carafe',
 'cascade_rcnn',
 'cascade_rpn',
 'dcn',
 'detectors',
 'double_heads',
 'dynamic_rcnn',
 'empirical_attention',
 'fcos',
 'foveabox',
 'fsaf',
 'ghm',
 'hrnet',
 'libra_rcnn',
 'nas_fcos',
 'pafpn',
 'pisa',
 'regnet',
 'reppoints',
 'res2net',
 'sabl',
 'vfnet']
Input
model = MMDetection(data, 'dynamic_rcnn')

Find an optimal learning rate

Learning rate is one of the most important hyperparameters in model training. The ArcGIS API for Python provides a learning rate finder that automatically chooses the optimal learning rate for you.

Input
lr = model.lr_find()
lr
Output
5.248074602497728e-05

Fit the model

Next, we will train the model for a few epochs with the learning rate found above. Given the small size of the training dataset, we can train the model for 10 epochs.

Input
model.fit(10, lr=lr)
epoch train_loss valid_loss time
0 0.470889 0.450983 02:34
1 0.394933 0.357216 02:23
2 0.343201 0.337205 02:23
3 0.328651 0.334981 02:24
4 0.328875 0.333780 02:23
5 0.298451 0.316607 02:24
6 0.271269 0.329459 02:22
7 0.291253 0.290861 02:21
8 0.252018 0.266310 02:21
9 0.268863 0.271536 02:20

As we can see, the training and validation losses were decreasing until the 9th epoch, before increasing slightly in the last epoch. As such, there could be room for more training.

Visualize results in validation set

It is a good practice to see the results of the model viz-a-viz ground truth. The code below picks random samples and shows us ground truth and model predictions, side by side. This enables us to preview the results of the model we trained.

Input
model.show_results()

Accuracy assessment

arcgis.learn provides the average_precision_score() method that computes the average precision of the model on the validation set for each class.

Input
model.average_precision_score()
100.00% [41/41 00:04<00:00]
Output
{'MusselFarm': 0.8765481875716432}

Save the model

We will save the trained model as a 'Deep Learning Package' ('.dlpk' format). The Deep Learning package is the standard format used to deploy deep learning models on the ArcGIS platform.

We will use the save() method to save the trained model. By default, it will be saved to the 'models' sub-folder within our training data folder.

Input
model.save('musselfarms_mmd_dynamic_rcnn_10ep')

Deploy the model and detect mussel farms

We can now use the saved model to detect mussel farms in the entire Ria De Arousa region. Here, we have provided only a sample raster for Ria De Arousa. The following imagery layer contains high resolution imagery of a part of the Ria De Arousa region. The spatial resolution of the imagery is 30 cm and contains 3 bands: Red, Green, and Blue.

Input
sample_inference_raster = gis.content.get('d6f035f5de504c86855e0ee70e83ad0e')
sample_inference_raster
Output
mussel_farm_detection_test_imagery
Test imagery for Mussel Farm DetectionImagery Layer by demos_deldev
Last Modified: December 13, 2021
0 comments, 0 views

Model Builder

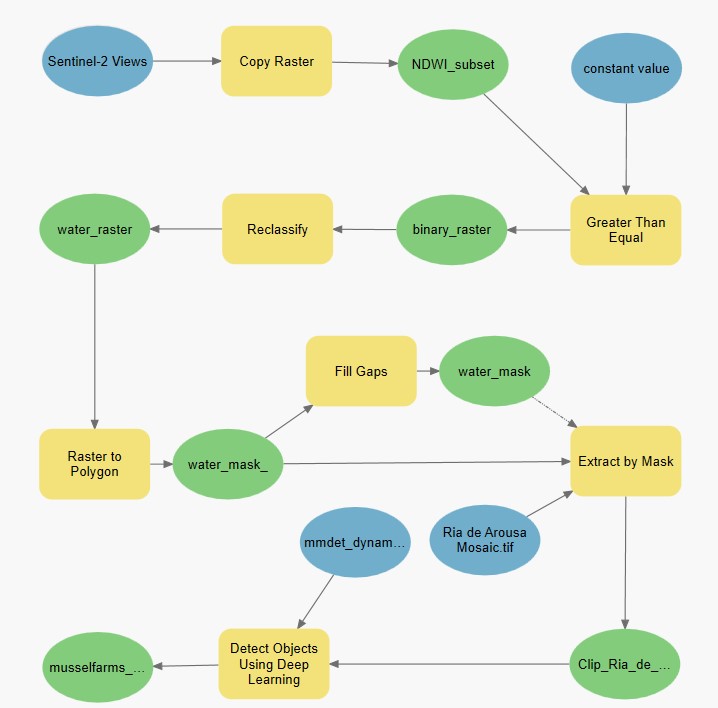

To save time and resources, we will only run the model on the water body and not the surrounding land masses, as the mussel farms are only found in water. To extract a raster with only the water body, we created a water mask using the Sentinel-2 Views NDWI. The following model builder can be used to create a water mask and detect the mussel farms.

Input
model_builder = gis.content.get('2647a386f5a04917b74cc4f40a48f57f')
model_builder
Output
Model Builder for Mussel Farm Detection
Model Builder for Mussel Farm DetectionGeoprocessing Sample by api_data_owner
Last Modified: December 16, 2021
0 comments, 0 views

Tools used:

  • Copy Raster: Copies a region of the Sentinel-2 Views NDWI hosted imagery and creates a subset to be processed further.
  • Greater Than Equal: Creates a binary raster with water pixels as 1 and others as 0.
  • Reclassify: Reclassifies the other pixels (value 0) in the binary raster as 'No Data'.
  • Raster to Polygon: Converts the raster into a feature layer with polygons representing the water mask.
  • Fill Gaps: Fills gaps smaller than 1500 square meters (approximate maximum area of a mussel farm) in the water mask.
  • Extract By Mask: Uses the water mask to clip the original raster and create a new raster containing only the water body.
  • Detect Objects Using Deep learning: Detects mussel farms on the clipped raster using the model we trained earlier.

Model Builder

We can use the following step if we want to detect mussel farms in any given imagery containing only the water body, without running the model builder. In this step, we will generate a feature layer with detected mussel farms using the 'Detect Objects Using Deep Learning' tool available in both ArcGIS Pro and ArcGIS Enterprise.


Detect Objects Using Deep Learning

Results

The model was run on the entire Ria De Arousa region and the results can be viewed here.

Input
fc = gis.content.get('477d756f79e4400fa91c5b220406d98c')
fc
Output
musselfarms_detected
Mussel Farms detected in Ria de Arousa, SpainFeature Layer Collection by demos_deldev
Last Modified: September 07, 2021
0 comments, 16 views
Input
from arcgis.mapping import WebMap
wm_item = gis.content.get('36714d14f80649e99aaf702f3cec6455')
Input
wm = WebMap(wm_item)
wm.add_layer(fc)
wm

Conclusion

In this notebook, we saw how we can use deep learning and high-resolution satellite imagery to detect mussel farms. This can be an important task for monitoring and conservation purposes. We used a small sample as training data with one of the object detection models available through the MMDetection integration in arcgis.learn. We trained the deep learning model for a few iterations and then deployed it to detect all the mussel farms in the Ria De Arousa region. To save time and resources we used a model builder that clipped out a raster containing only the water body. This clipped raster was used to detect the farms. The results are highly accurate and almost all the mussel farms in the region have been detected.
