Lunar Craters Detection using Deep Learning

  • 🔬 Data Science
  • 🥠 Deep Learning

Introduction

When ground data is not available, crater detection and counting play a vital role in predicting the moons surface age. Further, crater detection is necessary for identifying viable landing sites for lunar landers, as well as for establishing landmarks for navigation on the moon. Traditionally, craters have manually been digitized using visual interpretation, a very time-consuming and inefficient method. However, with the proliferation of deep learning, the process of crater detection is now able to be bolstered by automated detection. This notebook will demonstrate how the ArcGIS API for Python can be used to train a deep learning crater detection model using a Digital Elevation Model (DEM), which can then be deployed in ArcGIS Pro or ArcGIS Enterprise.

Necessary imports

Input
import os
from pathlib import Path

from arcgis import GIS
from arcgis.learn import MaskRCNN, prepare_data

Connect to your GIS

Input
gis = GIS('home')

Export training data

The DEM of the moon will be used as input_raster for the training data and has a spatial resolution of 118m. It can be downloaded from the USGS website.

Input
lunar_dem = gis.content.get('beae2f7947704c938eb957c6deb2fa2b')
lunar_dem
Output
dem_training_raster
dem_training_rasterImagery Layer by demos_deldev
Last Modified: January 14, 2022
0 comments, 0 views

The crater feature layer will be used as the Input Feature Class for the training data.

Feature layer of craters 5-20 km will be used to export training data at 500 and 5000 cell size.

Input
craters_5_20km = gis.content.get('af240e45a3ca445b88d6ec19209d3bb5')
craters_5_20km
Output
craters_diameter_5_20km
The purpose of this shapefile is to provide a catalog of craters greater to or equal to 5 km (kilometers) and less that or equal to 20 km in diameter centered between 60S to 60N latitude and 90E to 180E longitude.Feature Layer Collection by demos_deldev
Last Modified: November 26, 2021
0 comments, 3 views

Feature layer of craters more than 20 km will be used to export training data at 10000 cell size.

Input
craters_more_than_20km = gis.content.get('36272e93ec4547abba495c797a4fb921')
craters_more_than_20km
Output
craters_diameter_more_than_20km
craters_diameter_more_than_20kmFeature Layer Collection by demos_deldev
Last Modified: November 26, 2021
0 comments, 4 views

Methodology

The data will be exported in the “RCNN Masks” metadata format, which is available in the Export Training Data For Deep Learning tool. This tool is available in both ArcGIS Pro and ArcGIS Image Server. The various inputs required by the tool are described below:

Input Raster: Lunar DEM

Input Feature Class Or Classified Raster Or Table: The craters feature layer

Tile Size X & Tile Size Y: 256

Stride X & Stride Y: 128

Meta Data Format: 'RCNN Masks', as we are training a MaskRCNN model.

Environments:

  • Cell Size: The data is exported to 3 different cell sizes so that it can learn to detect craters of different diameters. The data is exported at 500, 5000, and 10000.

  • Processing Extent: Default

Note: The training data must be exported in the same output folder for all three cell sizes.

Inside the exported data folder, the 'images' folder contains all of the chips of the DEM, and the 'labels' folder contains the masks of the craters.

Model training

Alternatively, we have provided a subset of training data containing a few samples that follow the same directory structure mentioned above, as well as the raster and crater feature layers used for exporting the training dataset. The provided data can be used directly to run the experiments.

Input
training_data = gis.content.get('0a4e2d4ad7bf41f6973c7e3434faf7d4')
training_data
Output
lunar_craters_detection_from_digital_elevation_models_using_deep_learning_
lunar_craters_detection_from_digital_elevation_models_using_deep_learningImage Collection by api_data_owner
Last Modified: January 14, 2022
0 comments, 6 views
Input
filepath = training_data.download(file_name=training_data.name)
Input
#Extract the data from the zipped image collection
import zipfile
with zipfile.ZipFile(filepath, 'r') as zip_ref:
    zip_ref.extractall(Path(filepath).parent)

Prepare data

Input
output_path = Path(os.path.join(os.path.splitext(filepath)[0]))
Input
data = prepare_data(output_path, batch_size=8)

Visualize a few samples from your training data

To get a sense of what the training data looks like, the arcgis.learn.show_batch() method will randomly select a few training chips and visualize them.

Input
data.show_batch(rows=2)

Load model architecture

The arcgis.learn module provides the MaskRCNN model for instance segmentation tasks. MaskRCNN is based on a pretrained convolutional neural network, like ResNet, that acts as the 'backbone'. More details about MaskRCNN can be found here.

Input
model = MaskRCNN(data)

Tuning for optimal learning rate

Learning rate is one of the most important hyperparameters in model training. ArcGIS API for Python provides a learning rate finder that automatically chooses the optimal learning rate for you.

Input

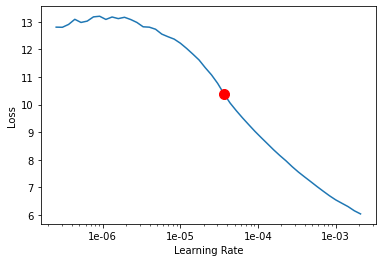

lr = model.lr_find()
lr
Output
3.630780547701014e-05

Fit the model

Next, the model is trained for a few epochs, with early_stopping=True and the learning rate recommended above.

Input
model.fit(100, lr, early_stopping=True)
56.00% [56/100 1:09:59<54:59]
epoch train_loss valid_loss time
0 6.944399 5.095363 01:00
1 3.083338 2.410944 01:04
2 2.264618 2.287425 01:08
3 2.102938 2.249945 01:09
4 2.032436 2.229557 01:15
5 2.009923 2.240452 01:15
6 1.982428 2.191599 01:12
7 1.960892 2.277536 01:17
8 1.991066 2.217761 01:17
9 1.938140 2.132267 01:17
10 1.868605 2.113236 01:19
11 1.777041 2.075418 01:17
12 1.724545 1.980257 01:17
13 1.688391 1.940772 01:17
14 1.644972 1.872948 01:16
15 1.611357 1.864072 01:14
16 1.533023 1.810667 01:17
17 1.539868 1.779850 01:18
18 1.511817 1.776860 01:19
19 1.489522 1.796499 01:18
20 1.478998 1.689595 01:17
21 1.482321 1.747638 01:16
22 1.459265 1.689370 01:15
23 1.395078 1.692547 01:13
24 1.419213 1.637439 01:15
25 1.407691 1.675853 01:13
26 1.384365 1.623085 01:13
27 1.354562 1.620516 01:21
28 1.345968 1.631758 01:13
29 1.368354 1.605378 01:13
30 1.350830 1.616508 01:13
31 1.324633 1.618946 01:12
32 1.297969 1.591982 01:12
33 1.263183 1.649768 01:13
34 1.288492 1.612240 01:13
35 1.299136 1.599925 01:12
36 1.276054 1.604237 01:12
37 1.261739 1.572726 01:12
38 1.270514 1.534423 01:13
39 1.265635 1.531221 01:15
40 1.278750 1.583697 01:15
41 1.257461 1.530308 01:13
42 1.254675 1.585197 01:13
43 1.251033 1.521029 01:13
44 1.240656 1.537336 01:13
45 1.257285 1.528091 01:13
46 1.228090 1.561426 01:22
47 1.197009 1.540503 01:15
48 1.249679 1.507996 01:17
49 1.214384 1.498527 01:14
50 1.208289 1.450118 01:15
51 1.200328 1.509240 01:13
52 1.184823 1.464436 01:19
53 1.176964 1.498307 01:15
54 1.203655 1.480856 01:14
55 1.156613 1.521594 01:14

100.00% [10/10 00:06<00:00]
Epoch 56: early stopping

Here, the model training automatically stopped at the 56th epoch. We can see reasonable results, as both the training and validation losses decreased considerably, indicating that the model is learning to translate between different domains of imagery.

Save the model

Here, we will save the trained model as a 'Deep Learning Package' ('.dlpk'). The Deep Learning Package format is the standard format used when deploying deep learning models on the ArcGIS platform.

Input
model.save("moon_mrcnn_2", publish=True)
Published DLPK Item Id: 81e635734e1b4d558cd51e2cee44833a
Output
WindowsPath('C:/Users/shi10484/AppData/Local/Temp/lunar_craters_detection_from_digital_elevation_models_using_deep_learning/models/moon_mrcnn_2')

Visualize results in validation set

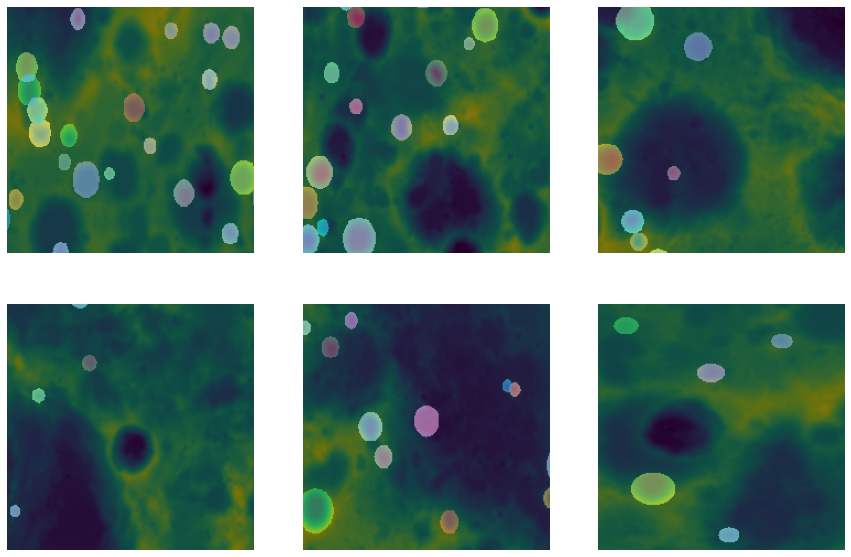

It is a good practice to view the results of the model viz-a-viz the ground truth. The model.show_results() method can be used to display the detected craters. Each detection is visualized as a mask by default.

Input
model.show_results(rows=2, mask_threshold=0.7)

Accuracy assessment

For the accuracy assessment, we can compute the average precision score for the trained model. Average precision will compute the average precision on the validation set for each class. We can compute the average precision score by calling model.average_precision_score. It takes the following parameters:

  • detect_thresh: The probability above which a detection will be considered for computing the average precision.
  • iou_thresh: The intersection over union threshold with the ground truth labels, above which a predicted bounding box will be considered a true positive.
  • mean: If set to False, will return the class-wise average precision. Otherwise will return the mean average precision.
Input
model.average_precision_score()
100.00% [10/10 00:09<00:00]
Output
{'1': 0.4536149187175708}

Model inferencing

After training the MaskRCNN model and saving the weights of the detected crater masks, we can use the Detect Objects Using Deep Learning tool available in ArcGIS Pro and ArcGIS Image Server.

arcpy.ia.DetectObjectsUsingDeepLearning(in_raster="dem_for_inference", out_detected_objects=r"\\detected_craters", in_model_definition=r"\\models\moon_mrcnn_2\moon_mrcnn_2.dlpk", model_arguments ="padding 56;batch_size 4;threshold 0.6;return_bboxes False", run_nms="NMS", confidence_score_field="Confidence", class_value_field="Class", max_overlap_ratio=0, processing_mode="PROCESS_AS_MOSAICKED_IMAGE")

The inferencing above was done on the following cell sizes: 500m (small craters), 5000m (medium-sized craters), and 10,000m (large craters). All of the inferenced outputs were then merged together to get the final feature layer, which consists of all the detected craters.

Results visualization

Finally, after we have used ArcGIS Pro to detect craters in two different areas, we will publish the results to our portal and visualize them as maps.

Input
from arcgis.mapping import WebMap
## Area1 Craters
LunarArea1 = gis.content.get('1a76ed548cfc4e159d860ae253e5ecc3')
map1 = WebMap(LunarArea1)
map1

Input
## Area2 Craters
LunarArea2 = gis.content.get('2ce5ad91fab649c7982dde750cce3390')
map2 = WebMap(LunarArea2)
map2

In the maps above, we can see that the trained MaskRCNN model was able to accurately detect craters of varying sizes. While the training data that was provided to the model contained craters digitized as circle features, the model was even able to learn to detect more accurate, non-circular boundaries of the craters.

Conclusion

This notebook showcased how instance segmentation models, like MaskRCNN, can be used to automatically detect lunar craters using a DEM. We also demonstrated how custom transformations based on the data, irrespective of already present standard transformations, can be added during data preparation to achieve better performance.
