Edit geometries with programmatic reticle tool | ArcGIS Maps SDK for Qt

View on GitHub

Sample viewer app

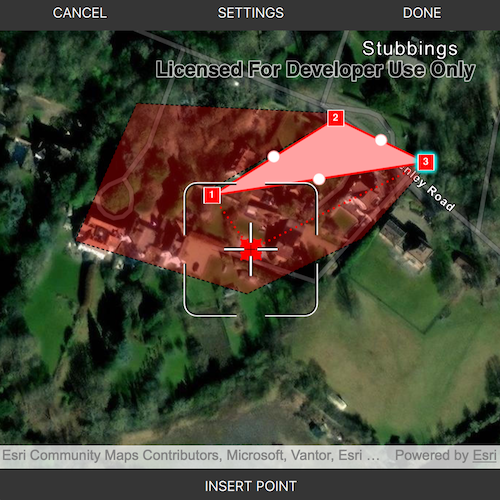

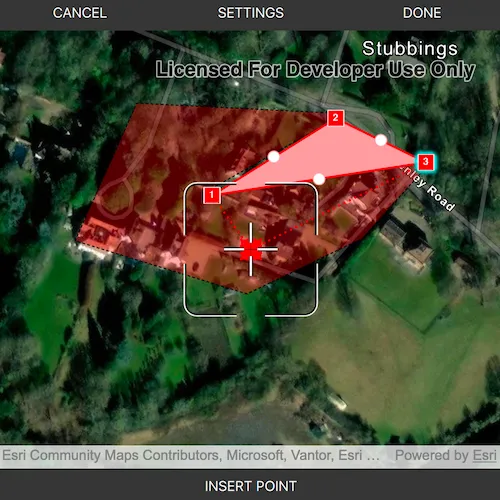

Use the Programmatic Reticle Tool to edit and create geometries with programmatic operations to facilitate customized workflows such as those using buttons rather than tap interactions.

Use case

A field worker can use a button driven workflow to mark important features on a map. They can digitize features like sample or observation locations, fences, pipelines, and building footprints using point, multipoint, polyline, and polygon geometries. To create and edit geometries, workers can use a vertex-based reticle tool to specify vertex locations by panning the map to position the reticle over a feature of interest. Using a button-driven workflow they can then place new vertices or pick up, move and drop existing vertices.

How to use the sample

To create a new geometry, select the geometry type you want to create (i.e. points, multipoints, polyline, or polygon) in the settings view. Press the button to start the geometry editor, pan the map to position the reticle then press the button to place a vertex. To edit an existing geometry, tap the geometry to be edited in the map and perform edits by positioning the reticle over a vertex and pressing the button to pick it up. The vertex can be moved by panning the map and dropped in a new position by pressing the button again.

Vertices can be selected and the viewpoint can be updated to their position by tapping them.

Vertex creation can be disabled using the switch in the settings view. When this switch is toggled off new vertex creation is prevented, existing vertices can be picked up and moved, but mid-vertices cannot be selected or picked up and will not grow when hovered. The feedback vertex and feedback lines under the reticle will also no longer be visible.

Use the buttons in the settings view to undo or redo changes made to the geometry and the cancel and done buttons to discard and save changes, respectively.

How it works

Create a GeometryEditor and set it to the MapQuickView using MapQuickView::setGeometryEditor().
Start the geometry editor using GeometryEditor::start(GeometryType) to create a new geometry or GeometryEditor::start(Geometry) to edit an existing geometry.
- If using the geometry editor to edit an existing geometry, the geometry must be retrieved from the graphics overlay being used to visualize the geometry prior to calling the start method. To do this:
  - Use MapQuickView::identifyGraphicsOverlayAsync(...) to identify graphics at the location of a tap.
  - Find the desired graphic in the result list.
  - Access the geometry associated with the Graphic using Graphic::geometry() - this will be used in the GeometryEditor::start(Geometry) method.
Create a ProgrammaticReticleTool and set the GeometryEditor.setTool.
Add event handlers to listen to GeometryEditor::hoveredElementChanged and GeometryEditor::pickedUpElementChanged signals.
- These signals can be used to determine the effect a button press will have and set the button text accordingly.
Listen to tap events when the geometry editor is active to select and navigate to tapped vertices and mid-vertices.
- To retrieve the tapped element and update the viewpoint:
  - Use MapQuickView::identifyGeometryEditorResultAsync(...) to identify geometry editor elements at the location of the tap.
  - Find the desired element in the result list.
  - Depending on whether the element is a GeometryEditorVertex or GeometryEditorMidVertex, use GeometryEditor::selectVertex(...) or GeometryEditor::selectMidVertex(...) to select it.
  - Update the viewpoint using MapQuickView::setViewpointCenterAsync(...).
Enable and disable the vertex creation preview using ProgrammaticReticleTool::setVertexCreationPreviewEnabled().
- To prevent mid-vertex growth when hovered use ProgrammaticReticleTool::style()->growEffect()->setApplyToMidVertices().
Check to see if undo and redo are possible during an editing session using GeometryEditor::canUndo() and GeometryEditor::canRedo(). If possible, use GeometryEditor::undo() and GeometryEditor::redo().
- A picked up element can be returned to its previous position using GeometryEditor::cancelCurrentAction(). This can be useful to undo a pick up without undoing any change to the geometry. Use the GeometryEditor::pickedUpElement() property to check for a picked up element.
Check whether the currently selected GeometryEditorElement can be deleted (GeometryEditor::selectedElement()->canDelete()). If the element can be deleted, delete using GeometryEditor::deleteSelectedElement().
Call GeometryEditor::stop() to finish the editing session and store the Graphic. The geometry editor does not automatically handle the visualization of a geometry output from an editing session. This must be done manually by propagating the geometry returned into a Graphic added to a GraphicsOverlay.
- To create a new Graphic in the GraphicsOverlay:
  - Using Graphic(Geometry), create a new graphic with the geometry returned by the GeometryEditor::stop() method.
  - Append the Graphic to the GraphicsOverlay using GraphicsOverlay::graphics()->append(graphic).
- To update the geometry underlying an existing Graphic in the GraphicsOverlay:
  - Replace the existing Graphic’s geometry using Graphic::setGeometry() with the geometry returned by the GeometryEditor::stop() method.

Relevant API

Geometry
GeometryEditor
Graphic
GraphicsOverlay
MapView
ProgrammaticReticleTool

Additional information

The sample demonstrates a number of workflows which can be altered depending on desired app functionality:

picking up a hovered element combines selection and pick up, this can be separated into two steps to require selection before pick up.
tapping a vertex or mid-vertex selects it and updates the viewpoint to its position. This could be changed to not update the viewpoint or also pick up the element.

With the hovered and picked up element changed events and the programmatic APIs on the ProgrammaticReticleTool a broad range of editing experiences can be implemented.

Sample Code

EditGeometriesWithProgrammaticReticleTool.cpp

EditGeometriesWithProgrammaticReticleTool.h

EditGeometriesWithProgrammaticReticleTool.qml

GeometryEditorPopup.qml

main.cpp

main.qml

// [WriteFile Name=EditGeometriesWithProgrammaticReticleTool, Category=EditData]
// [Legal]
// Copyright 2025 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "EditGeometriesWithProgrammaticReticleTool.h"

// ArcGIS Maps SDK headers
#include "Envelope.h"
#include "ErrorException.h"
#include "GeometryEditor.h"
#include "GeometryEditorElement.h"
#include "GeometryEditorGrowEffect.h"
#include "GeometryEditorMidVertex.h"
#include "GeometryEditorStyle.h"
#include "GeometryEditorTypes.h"
#include "GeometryEditorVertex.h"
#include "GeometryTypes.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "IdentifyGeometryEditorResult.h"
#include "IdentifyGraphicsOverlayResult.h"
#include "ImmutablePart.h"
#include "ImmutablePartCollection.h"
#include "ImmutablePointCollection.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Multipoint.h"
#include "MultipointBuilder.h"
#include "Point.h"
#include "PointCollection.h"
#include "Polygon.h"
#include "PolygonBuilder.h"
#include "Polyline.h"
#include "PolylineBuilder.h"
#include "ProgrammaticReticleTool.h"
#include "SimpleFillSymbol.h"
#include "SimpleLineSymbol.h"
#include "SimpleMarkerSymbol.h"
#include "SpatialReference.h"
#include "SymbolTypes.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>
#include <QString>

namespace
{
  const QString startGeometryEditorText{"Start geometry editor"};
  const QString dropPointText{"Drop point"};
  const QString pickUpPointText{"Pick up point"};
  const QString insertPointText{"Insert point"};
} // namespace

using namespace Esri::ArcGISRuntime;

EditGeometriesWithProgrammaticReticleTool::EditGeometriesWithProgrammaticReticleTool(QObject* parent /* = nullptr */) :
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISImagery, this)),
  m_graphicsOverlay(new GraphicsOverlay(this)),
  m_pointSymbol(new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Square, QColor(255, 45, 0), 10, this)),
  m_multiPointSymbol(new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Circle, QColor(255, 255, 0), 5, this)),
  m_lineSymbol(new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, QColor(0, 0, 255), 2, this)),
  m_polygonSymbol(new SimpleFillSymbol(SimpleFillSymbolStyle::Solid,
                                       QColor(255, 0, 0, 75),
                                       new SimpleLineSymbol(SimpleLineSymbolStyle::Dash, QColor(0, 0, 0), 1.0, this),
                                       this)),
  m_geometryEditor(new GeometryEditor(this)),
  m_reticleTool(new ProgrammaticReticleTool(this))
{
}

EditGeometriesWithProgrammaticReticleTool::~EditGeometriesWithProgrammaticReticleTool() = default;

void EditGeometriesWithProgrammaticReticleTool::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<EditGeometriesWithProgrammaticReticleTool>("Esri.Samples", 1, 0, "EditGeometriesWithProgrammaticReticleToolSample");
}

// Set the view (created in QML)
void EditGeometriesWithProgrammaticReticleTool::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
  {
    return;
  }

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  m_mapView->setViewpointCenterAsync(Point(-0.775395, 51.523806, SpatialReference::wgs84()), 20000);

  m_mapView->graphicsOverlays()->append(m_graphicsOverlay);

  // Set the geometry editor on the map view
  m_mapView->setGeometryEditor(m_geometryEditor);

  m_geometryEditor->setTool(m_reticleTool);

  emit mapViewChanged();

  createInitialGraphics();
  createConnections();
}

MapQuickView* EditGeometriesWithProgrammaticReticleTool::mapView() const
{
  return m_mapView;
}

void EditGeometriesWithProgrammaticReticleTool::createInitialGraphics()
{
  const QString pinkneysGreenJson =
    R"({"rings":[[[-84843.262719916485,6713749.9329888355],[-85833.376589175183,6714679.7122141244], [-85406.822347959576,6715063.9827222107],[-85184.329997390232,6715219.6195847588], [-85092.653857582554,6715119.5391713539],[-85090.446872787768,6714792.7656492386], [-84915.369168906298,6714297.8798246197],[-84854.295522911285,6714080.907587287], [-84843.262719916485,6713749.9329888355]]],"spatialReference":{"wkid":102100,"latestWkid":3857}})";
  const QString beechLodgeBoundaryJson =
    R"({"paths":[[[-87090.652708065536,6714158.9244240439],[-87247.362370337316,6714232.880689906], [-87226.314032974493,6714605.4697726099],[-86910.499335316243,6714488.006312645], [-86750.82198052686,6714401.1768307304],[-86749.846825938366,6714305.8450344801]]],"spatialReference":{"wkid":102100,"latestWkid":3857}})";
  const QString treeMarkersJson =
    R"({"points":[[-86750.751150056443,6713749.4529355941],[-86879.381793060631,6713437.3335486846], [-87596.503104619667,6714381.7342108283],[-87553.257569537804,6714402.0910389507], [-86831.019903597829,6714398.4128562529],[-86854.105933315877,6714396.1957954112], [-86800.624094892439,6713992.3374453448]],"spatialReference":{"wkid":102100,"latestWkid":3857}})";

  const Polygon pinkneysGreen = geometry_cast<Polygon>(Polygon::fromJson(pinkneysGreenJson));
  const Polyline beechLodgeBoundary = geometry_cast<Polyline>(Polyline::fromJson(beechLodgeBoundaryJson));
  const Multipoint treeMarkers = geometry_cast<Multipoint>(Multipoint::fromJson(treeMarkersJson));

  // Add graphics
  m_graphicsOverlay->graphics()->append({
    new Graphic(pinkneysGreen, m_polygonSymbol, this),
    new Graphic(beechLodgeBoundary, m_lineSymbol, this),
    new Graphic(treeMarkers, m_multiPointSymbol, this),
  });
}

void EditGeometriesWithProgrammaticReticleTool::createConnections()
{
  // Allow user to edit existing graphics by clicking on them
  connect(m_mapView, &MapQuickView::mouseClicked, this, &EditGeometriesWithProgrammaticReticleTool::handleMapTap);

  // Enable or disable buttons when mouse is released (ie after a drag operation)
  connect(m_mapView, &MapQuickView::mouseReleased, this, &EditGeometriesWithProgrammaticReticleTool::setMultifunctionButtonState);

  connect(m_geometryEditor, &GeometryEditor::hoveredElementChanged, this, &EditGeometriesWithProgrammaticReticleTool::setMultifunctionButtonState);
  connect(m_geometryEditor, &GeometryEditor::pickedUpElementChanged, this, &EditGeometriesWithProgrammaticReticleTool::setMultifunctionButtonState);
}

void EditGeometriesWithProgrammaticReticleTool::handleMapTap(const QMouseEvent& mouseEvent)
{
  if (m_geometryEditor->isStarted())
  {
    // If the geometry editor is started, identify the geometry editor result at the tapped position.
    handleMapTapGeNotStarted(mouseEvent);
  }
  else
  {
    // If the geometry editor is not started, identify the graphics in the graphics overlay at the tapped position.
    handleMapTapGeStarted(mouseEvent);
  }
}

void EditGeometriesWithProgrammaticReticleTool::handleMapTapGeNotStarted(const QMouseEvent& mouseEvent)
{
  // Identify the geometry editor result at the tapped position.
  m_mapView->identifyGeometryEditorAsync(mouseEvent.position(), 10, this)
    .then(this,
          [this](IdentifyGeometryEditorResult* result)
  {
    std::unique_ptr<IdentifyGeometryEditorResult> identifyResult(result);
    if (!identifyResult || identifyResult->elements().isEmpty())
    {
      return;
    }
    // Get the first element from the result.
    GeometryEditorElement* element = identifyResult->elements().first();
    element->setParent(this);

    // If the element is a vertex or mid-vertex, set the viewpoint to its position and select it.
    if (GeometryEditorVertex* vertex = dynamic_cast<GeometryEditorVertex*>(element); vertex)
    {
      m_mapView->setViewpointAsync(Viewpoint(Point(vertex->point().x(), vertex->point().y(), vertex->point().spatialReference())));
      m_geometryEditor->selectVertex(vertex->partIndex(), vertex->vertexIndex());
    }
    else if (GeometryEditorMidVertex* midVertex = dynamic_cast<GeometryEditorMidVertex*>(element); midVertex && m_vertexCreationAllowed)
    {
      m_mapView->setViewpointAsync(Viewpoint(Point(midVertex->point().x(), midVertex->point().y(), midVertex->point().spatialReference())));
      m_geometryEditor->selectMidVertex(midVertex->partIndex(), midVertex->segmentIndex());
    }
  })
    .onFailed(this, [this](const ErrorException& error)
  {
    qDebug() << "Error editing! Identify geometry editor failed with error " << error.error().message();
    resetFromEditingSession();
  });
}

void EditGeometriesWithProgrammaticReticleTool::handleMapTapGeStarted(const QMouseEvent& mouseEvent)
{
  // Identify graphics in the graphics overlay using the tapped position.
  m_mapView->identifyGraphicsOverlayAsync(m_graphicsOverlay, mouseEvent.position(), 10, false, this)
    .then(this,
          [this](IdentifyGraphicsOverlayResult* rawResult)
  {
    auto identifyResult = std::unique_ptr<IdentifyGraphicsOverlayResult>(rawResult);
    if (!identifyResult || identifyResult->graphics().isEmpty())
    {
      m_editingGraphic = nullptr;
      return;
    }

    // Try to get the first graphic from the first result.
    m_editingGraphic = identifyResult->graphics().first();

    // Return if no graphic was selected.
    if (m_editingGraphic == nullptr)
    {
      return;
    }

    m_editingGraphic->setParent(this);
    m_editingGraphic->setSelected(true);

    // Hide the selected graphic and start an editing session with a copy of it.
    m_geometryEditor->start(m_editingGraphic->geometry());
    emit geometryEditorStartedChanged();

    // Set the button text to indicate that the editor is active.
    setMultifunctionButtonState();

    // If vertex creation is allowed, set the viewpoint to the center of the selected graphic's geometry.
    // Otherwise, set the viewpoint to the end point of the first part of the geometry.
    if (m_vertexCreationAllowed)
    {
      m_mapView->setViewpointCenterAsync(m_editingGraphic->geometry().extent().center(), m_mapView->mapScale());
    }
    else
    {
      const Geometry geometry = m_editingGraphic->geometry();
      Point targetPoint;
      switch (geometry.geometryType())
      {
        case GeometryType::Polygon:
        {
          if (const Polygon polygon = geometry_cast<Polygon>(geometry); !polygon.parts().isEmpty())
          {
            targetPoint = polygon.parts().part(0).endPoint();
          }
          break;
        }
        case GeometryType::Polyline:
        {
          if (const Polyline polyline = geometry_cast<Polyline>(geometry); !polyline.parts().isEmpty())
          {
            targetPoint = polyline.parts().part(0).endPoint();
          }
          break;
        }
        case GeometryType::Multipoint:
        {
          if (const Multipoint multiPoint = geometry_cast<Multipoint>(geometry); !multiPoint.points().isEmpty())
          {
            targetPoint = multiPoint.points().point(multiPoint.points().size() - 1);
          }
          break;
        }
        case GeometryType::Point:
        {
          targetPoint = geometry_cast<Point>(geometry);
          break;
        }
        default:
          break;
      }
      m_mapView->setViewpointAsync(!targetPoint.isEmpty() ? targetPoint : geometry.extent().center(), m_mapView->mapScale());

      // Hide the selected graphic while editing.
      m_editingGraphic->setVisible(false);
    }
  })
    .onFailed(this, [this](const ErrorException& error)
  {
    qDebug() << "Error editing! Identify failed with error " << error.error().message();
    resetFromEditingSession();
  });
}

void EditGeometriesWithProgrammaticReticleTool::handleMultifunctionButton()
{
  // If the geometry editor is not started, start it with the selected geometry type
  if (!m_geometryEditor->isStarted())
  {
    switch (m_selectedGeometryEditorType)
    {
      case GeometryEditorMode::PointMode:
        m_geometryEditor->start(GeometryType::Point);
        break;
      case GeometryEditorMode::MultipointMode:
        m_geometryEditor->start(GeometryType::Multipoint);
        break;
      case GeometryEditorMode::PolylineMode:
        m_geometryEditor->start(GeometryType::Polyline);
        break;
      case GeometryEditorMode::PolygonMode:
        m_geometryEditor->start(GeometryType::Polygon);
        break;
      default:
        break;
    }
    emit geometryEditorStartedChanged();
    // Set the button text to indicate that the editor is active.
    setMultifunctionButtonState();
    return;
  }

  if (m_vertexCreationAllowed)
  {
    // When vertex creation is allowed vertices and mid-vertices can be picked up, new vertices can be inserted.
    switch (m_reticleState)
    {
      case ReticleState::Default:
        [[fallthrough]];
      case ReticleState::PickedUp:
        m_reticleTool->placeElementAtReticle();
        break;
      case ReticleState::HoveringVertex:
        [[fallthrough]];
      case ReticleState::HoveringMidVertex:
        m_reticleTool->selectElementAtReticle();
        m_reticleTool->pickUpSelectedElement();
        break;
    }
  }
  else
  {
    // When vertex creation is not allowed functionality is limited to picking up and moving existing vertices, mid-vertices cannot be picked up.
    switch (m_reticleState)
    {
      case ReticleState::PickedUp:
        m_reticleTool->placeElementAtReticle();
        break;
      case ReticleState::HoveringVertex:
        m_reticleTool->selectElementAtReticle();
        m_reticleTool->pickUpSelectedElement();
        break;
      default:
        // In edit mode, only picked up vertices can be placed and only vertices can be picked up.
        break;
    }
  }
  setMultifunctionButtonState();
}

void EditGeometriesWithProgrammaticReticleTool::saveEdits()
{
  // Stop the geometry editor and get the resulting geometry
  const Geometry geometry = m_geometryEditor->stop();
  emit geometryEditorStartedChanged();

  if (!geometry.isEmpty())
  {
    if (m_editingGraphic)
    {
      // Update the geometry of the graphic being edited and make it visible again
      m_editingGraphic->setGeometry(geometry);
      m_editingGraphic->setVisible(true);
    }
    else if (Symbol* geometrySymbol = getSymbol(geometry.geometryType()); geometrySymbol)
    {
      // Create a new graphic based on the geometry and add it to the graphics overlay.
      m_graphicsOverlay->graphics()->append(new Graphic(geometry, geometrySymbol, this));
    }
  }
  resetFromEditingSession();
}

Symbol* EditGeometriesWithProgrammaticReticleTool::getSymbol(GeometryType type) const
{
  switch (type)
  {
    case GeometryType::Point:
      return m_pointSymbol;
    case GeometryType::Multipoint:
      return m_multiPointSymbol;
    case GeometryType::Polyline:
      return m_lineSymbol;
    case GeometryType::Polygon:
      return m_polygonSymbol;
    default:
      return nullptr;
  }
}

void EditGeometriesWithProgrammaticReticleTool::discardEdits()
{
  // Stop the geometry editor and discard the geometry.
  m_geometryEditor->stop();
  resetFromEditingSession();
}

void EditGeometriesWithProgrammaticReticleTool::resetFromEditingSession()
{
  // Reset the selected graphic
  if (m_editingGraphic)
  {
    m_editingGraphic->setSelected(false);
    m_editingGraphic->setVisible(true);
    delete m_editingGraphic;
    m_editingGraphic = nullptr;
  }

  // Update the multifunction button text and enable it
  m_multifunctionButtonText = startGeometryEditorText;
  m_multifunctionButtonEnabled = true;

  emit multifunctionButtonTextChanged();
  emit multifunctionButtonEnabledChanged();
  emit canUndoOrRedoChanged();
  emit selectedElementCanDeleteChanged();
  emit geometryEditorStartedChanged();
}

bool EditGeometriesWithProgrammaticReticleTool::vertexCreationAllowed() const
{
  return m_vertexCreationAllowed;
}

void EditGeometriesWithProgrammaticReticleTool::setVertexCreationAllowed(bool allowed)
{
  if (m_vertexCreationAllowed == allowed)
  {
    return;
  }

  m_vertexCreationAllowed = allowed;
  emit vertexCreationAllowedChanged();

  // Toggle the reticle tool's vertex creation preview and grow effect for mid-vertices
  if (m_reticleTool)
  {
    // Update the programmatic reticle tool and geometry editor settings based on the switch state.
    m_reticleTool->setVertexCreationPreviewEnabled(allowed);
    if (GeometryEditorStyle* style = m_reticleTool->style(); style)
    {
      if (GeometryEditorGrowEffect* growEffect = style->growEffect(); growEffect)
      {
        growEffect->setApplyToMidVertices(allowed);
      }
    }
  }

  // If the geometry editor is started, update the button text to reflect the new state.
  if (geometryEditorStarted())
  {
    setMultifunctionButtonState();
  }
}

void EditGeometriesWithProgrammaticReticleTool::setSelectedGeometryType(GeometryEditorMode mode)
{
  if (m_selectedGeometryEditorType != mode)
  {
    m_selectedGeometryEditorType = mode;
    emit selectedGeometryTypeChanged();
  }
}

bool EditGeometriesWithProgrammaticReticleTool::selectedElementCanDelete() const
{
  return m_geometryEditor->selectedElement() && m_geometryEditor->selectedElement()->canDelete();
}

void EditGeometriesWithProgrammaticReticleTool::deleteSelectedElement()
{
  m_geometryEditor->deleteSelectedElement();
  emit selectedElementCanDeleteChanged();
  emit canUndoOrRedoChanged();
}

EditGeometriesWithProgrammaticReticleTool::GeometryEditorMode EditGeometriesWithProgrammaticReticleTool::selectedGeometryType() const
{
  return m_selectedGeometryEditorType;
}

// State checks to control when buttons are enabled
bool EditGeometriesWithProgrammaticReticleTool::geometryEditorStarted() const
{
  return m_geometryEditor->isStarted();
}

bool EditGeometriesWithProgrammaticReticleTool::canUndo() const
{
  return (m_geometryEditor->canUndo() || m_geometryEditor->pickedUpElement());
}

bool EditGeometriesWithProgrammaticReticleTool::canRedo() const
{
  return m_geometryEditor->canRedo();
}

void EditGeometriesWithProgrammaticReticleTool::undoOrCancel()
{
  if (m_geometryEditor->pickedUpElement())
  {
    m_geometryEditor->cancelCurrentAction();
  }
  else if (m_geometryEditor->canUndo())
  {
    m_geometryEditor->undo();
  }
  emit canUndoOrRedoChanged();
  emit selectedElementCanDeleteChanged();
}

void EditGeometriesWithProgrammaticReticleTool::redo()
{
  if (m_geometryEditor->canRedo())
  {
    m_geometryEditor->redo();
    emit canUndoOrRedoChanged();
    emit selectedElementCanDeleteChanged();
  }
}

QString EditGeometriesWithProgrammaticReticleTool::multifunctionButtonText() const
{
  return m_multifunctionButtonText;
}

bool EditGeometriesWithProgrammaticReticleTool::multifunctionButtonEnabled() const
{
  return m_multifunctionButtonEnabled;
}

void EditGeometriesWithProgrammaticReticleTool::setMultifunctionButtonState()
{
  // Update the multifunction button text and state based on the geometry editor state and hovered/picked up elements.
  QString newText;
  bool newEnabled = true;
  ReticleState newReticleState = ReticleState::Default;

  // Picked up elements can be dropped, so the button text indicates that a point can be dropped.
  if (m_geometryEditor->pickedUpElement())
  {
    newText = dropPointText;
    newReticleState = ReticleState::PickedUp;
  }
  // When vertex creation is allowed, the button text changes based on the hovered or picked up element. Vertices and mid-vertices can be picked up.
  else if (m_vertexCreationAllowed)
  {
    if (m_geometryEditor->pickedUpElement())
    {
      newText = dropPointText;
      newReticleState = ReticleState::PickedUp;
    }
    else if (GeometryEditorElement* hoveredElement = dynamic_cast<GeometryEditorElement*>(m_geometryEditor->hoveredElement());
             hoveredElement && (hoveredElement->geometryEditorElementType() == GeometryEditorElementType::GeometryEditorVertex ||
                                hoveredElement->geometryEditorElementType() == GeometryEditorElementType::GeometryEditorMidVertex))
    {
      newText = pickUpPointText;
      newReticleState = (hoveredElement->geometryEditorElementType() == GeometryEditorElementType::GeometryEditorVertex) ?
                          ReticleState::HoveringVertex :
                          ReticleState::HoveringMidVertex;
    }
    else
    {
      newText = insertPointText;
      newReticleState = ReticleState::Default;
    }
  }
  // When vertex creation is not allowed, the button text changes based on the hovered element only.
  else
  {
    GeometryEditorElement* hoveredElement = dynamic_cast<GeometryEditorElement*>(m_geometryEditor->hoveredElement());
    if (hoveredElement && hoveredElement->geometryEditorElementType() == GeometryEditorElementType::GeometryEditorVertex)
    {
      newText = pickUpPointText;
      newReticleState = ReticleState::HoveringVertex;
    }
    else
    {
      newText = pickUpPointText;
      newEnabled = false;
      newReticleState = ReticleState::HoveringMidVertex;
    }
  }

  // If the geometry editor is not started, override with "Start geometry editor"
  if (!m_geometryEditor->isStarted())
  {
    newText = startGeometryEditorText;
    newEnabled = true;
    newReticleState = ReticleState::Default;
  }

  if (m_multifunctionButtonText != newText)
  {
    m_multifunctionButtonText = newText;
    emit multifunctionButtonTextChanged();
  }

  if (m_multifunctionButtonEnabled != newEnabled)
  {
    m_multifunctionButtonEnabled = newEnabled;
    emit multifunctionButtonEnabledChanged();
  }

  m_reticleState = newReticleState;
  emit selectedElementCanDeleteChanged();
  emit canUndoOrRedoChanged();
}

// [WriteFile Name=EditGeometriesWithProgrammaticReticleTool, Category=EditData]
// [Legal]
// Copyright 2025 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef EDITGEOMETRIESWITHPROGRAMMATICRETICLETOOL_H
#define EDITGEOMETRIESWITHPROGRAMMATICRETICLETOOL_H

// Qt headers
#include <QObject>

class QMouseEvent;

namespace Esri::ArcGISRuntime
{
  class GeometryEditor;
  class Graphic;
  class GraphicsOverlay;
  class Map;
  class MapQuickView;
  class ProgrammaticReticleTool;
  class SimpleMarkerSymbol;
  class SimpleLineSymbol;
  class SimpleFillSymbol;
  class Symbol;
  enum class GeometryType;
} // namespace Esri::ArcGISRuntime

Q_MOC_INCLUDE("MapQuickView.h");

class EditGeometriesWithProgrammaticReticleTool : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(bool geometryEditorStarted READ geometryEditorStarted NOTIFY geometryEditorStartedChanged)
  Q_PROPERTY(bool canUndo READ canUndo NOTIFY canUndoOrRedoChanged)
  Q_PROPERTY(bool canRedo READ canRedo NOTIFY canUndoOrRedoChanged)
  Q_PROPERTY(bool vertexCreationAllowed READ vertexCreationAllowed WRITE setVertexCreationAllowed NOTIFY vertexCreationAllowedChanged)
  Q_PROPERTY(GeometryEditorMode selectedGeometryType READ selectedGeometryType WRITE setSelectedGeometryType NOTIFY selectedGeometryTypeChanged)
  Q_PROPERTY(QString multifunctionButtonText READ multifunctionButtonText NOTIFY multifunctionButtonTextChanged)
  Q_PROPERTY(bool multifunctionButtonEnabled READ multifunctionButtonEnabled NOTIFY multifunctionButtonEnabledChanged)
  Q_PROPERTY(bool selectedElementCanDelete READ selectedElementCanDelete NOTIFY selectedElementCanDeleteChanged)

public:
  explicit EditGeometriesWithProgrammaticReticleTool(QObject* parent = nullptr);
  ~EditGeometriesWithProgrammaticReticleTool() override;

  enum class GeometryEditorMode
  {
    PointMode,
    MultipointMode,
    PolygonMode,
    PolylineMode
  };

  Q_ENUM(GeometryEditorMode)

  enum class ReticleState
  {
    Default,
    PickedUp,
    HoveringVertex,
    HoveringMidVertex
  };

  static void init();

  Q_INVOKABLE void handleMultifunctionButton();
  Q_INVOKABLE void undoOrCancel();
  Q_INVOKABLE void redo();
  Q_INVOKABLE void saveEdits();
  Q_INVOKABLE void discardEdits();
  Q_INVOKABLE void deleteSelectedElement();

signals:
  void mapViewChanged();
  void geometryEditorStartedChanged();
  void canUndoOrRedoChanged();
  void vertexCreationAllowedChanged();
  void selectedGeometryTypeChanged();
  void multifunctionButtonTextChanged();
  void multifunctionButtonEnabledChanged();
  void selectedElementCanDeleteChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);

  bool geometryEditorStarted() const;

  bool canUndo() const;
  bool canRedo() const;

  bool vertexCreationAllowed() const;
  void setVertexCreationAllowed(bool allowed);

  GeometryEditorMode selectedGeometryType() const;
  void setSelectedGeometryType(GeometryEditorMode mode);

  QString multifunctionButtonText() const;
  bool multifunctionButtonEnabled() const;

  bool selectedElementCanDelete() const;
  void createInitialGraphics();
  void createConnections();
  void setMultifunctionButtonState();
  void resetFromEditingSession();
  void handleMapTap(const QMouseEvent& mouseEvent);
  Esri::ArcGISRuntime::Symbol* getSymbol(Esri::ArcGISRuntime::GeometryType type) const;

  void handleMapTapGeNotStarted(const QMouseEvent& mouseEvent);
  void handleMapTapGeStarted(const QMouseEvent& mouseEvent);

  bool m_vertexCreationAllowed = true;
  bool m_multifunctionButtonEnabled = true;
  bool m_selectedElementCanDelete = false;
  QString m_multifunctionButtonText = "Start geometry editor";
  ReticleState m_reticleState = ReticleState::Default;
  GeometryEditorMode m_selectedGeometryEditorType = GeometryEditorMode::PointMode;

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;

  Esri::ArcGISRuntime::GraphicsOverlay* m_graphicsOverlay = nullptr;
  Esri::ArcGISRuntime::Graphic* m_editingGraphic = nullptr;

  Esri::ArcGISRuntime::SimpleMarkerSymbol* m_pointSymbol = nullptr;
  Esri::ArcGISRuntime::SimpleMarkerSymbol* m_multiPointSymbol = nullptr;
  Esri::ArcGISRuntime::SimpleLineSymbol* m_lineSymbol = nullptr;
  Esri::ArcGISRuntime::SimpleFillSymbol* m_polygonSymbol = nullptr;

  Esri::ArcGISRuntime::GeometryEditor* m_geometryEditor = nullptr;
  Esri::ArcGISRuntime::ProgrammaticReticleTool* m_reticleTool = nullptr;
};

#endif // EDITGEOMETRIESWITHPROGRAMMATICRETICLETOOL_H

// [WriteFile Name=EditGeometriesWithProgrammaticReticleTool, Category=EditData]
// [Legal]
// Copyright 2025 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick 2.15
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

Item {
    Rectangle {
        id: settings
        width: parent.width
        height: parent.height * 0.07
        color: palette.base
        RowLayout {
            anchors.fill: parent
            Item {
                Layout.fillWidth: true
                Layout.fillHeight: true
                opacity: reticleModel.geometryEditorStarted ? 1.0 : 0.5
                Label {
                    anchors.centerIn: parent
                    text: qsTr("CANCEL")
                }

                MouseArea {
                    anchors.fill: parent
                    enabled: reticleModel.geometryEditorStarted
                    onClicked: reticleModel.discardEdits()
                }
            }

            Item {
                Layout.fillWidth: true
                Layout.fillHeight: true
                Label {
                    anchors.centerIn: parent
                    text: qsTr("SETTINGS")
                }

                MouseArea {
                    anchors.fill: parent
                    onClicked: settingsPopup.visible = true
                }
            }

            Item {
                Layout.fillWidth: true
                Layout.fillHeight: true
                opacity: reticleModel.canUndo ? 1.0 : 0.5
                Label {
                    anchors.centerIn: parent
                    text: qsTr("DONE")
                }

                MouseArea {
                    anchors.fill: parent
                    enabled: reticleModel.canUndo
                    onClicked: reticleModel.saveEdits()
                }
            }
        }
    }

    MapView {
        id: mapView
        anchors.top: settings.bottom
        width: parent.width
        height: parent.height * 0.86
        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    Rectangle {
        width: parent.width
        height: parent.height * 0.07
        color: palette.base
        opacity: reticleModel.multifunctionButtonEnabled ? 1.0 : 0.5
        anchors {
            top: mapView.bottom
            horizontalCenter: parent.horizontalCenter
        }

        Label {
            anchors.centerIn: parent
            text: qsTr(reticleModel.multifunctionButtonText)
            font.capitalization: Font.AllUppercase
            horizontalAlignment: Text.AlignHCenter
            verticalAlignment: Text.AlignVCenter
        }

        MouseArea {
            anchors.fill: parent
            enabled: reticleModel.multifunctionButtonEnabled
            onClicked: reticleModel.handleMultifunctionButton()
        }
    }

    GeometryEditorPopup {
        id: settingsPopup
        reticleModel: reticleModel
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    EditGeometriesWithProgrammaticReticleToolSample {
        id: reticleModel
        mapView: mapView
    }
}

// [WriteFile Name=EditGeometriesWithProgrammaticReticleTool, Category=EditData]
// [Legal]
// Copyright 2025 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick 2.15
import QtQuick.Controls 2.15
import QtQuick.Layouts 1.15

Popup {
  id: settingsPopup
  property var reticleModel
  x: (parent.width - width) / 2
  y: (parent.height - height) / 2
  width: 200
  height: 280
  modal: true
  focus: true
  background: Rectangle { color: palette.base; radius: 10 }
  contentItem: ColumnLayout {
    spacing: 10
    anchors.fill: parent

    // Spacer
    Item {
      height: 3
    }

    ColumnLayout {
      Layout.alignment: Qt.AlignCenter
      enabled: !reticleModel.geometryEditorStarted

      Label {
        text: qsTr("Geometry Type:")
        font.pixelSize: 14
        Layout.alignment: Qt.AlignCenter
      }

      ComboBox {
        id: geometryTypePicker
        Layout.preferredWidth: 140
        model: [qsTr("Point"), qsTr("Multipoint"), qsTr("Polygon"), qsTr("Polyline")]
        onCurrentIndexChanged: reticleModel.selectedGeometryType = currentIndex
        background: Rectangle {
          color: palette.mid
          border.color: "#888"
          border.width: 1
        }
        contentItem: Label {
          text: qsTr(geometryTypePicker.currentText)
          horizontalAlignment: Text.AlignHCenter
          verticalAlignment: Text.AlignVCenter
        }
        Layout.alignment: Qt.AlignCenter
      }
    }

    Rectangle {
      height: 1
      Layout.fillWidth: true
      color: palette.mid
    }

    RowLayout {
      Layout.alignment: Qt.AlignCenter

      Label {
        text: qsTr("Allow Vertex\n Creation:")
        font.pixelSize: 14
      }

      Switch {
        width: 40
        height: 20
        checked: reticleModel.vertexCreationAllowed
        onCheckedChanged: reticleModel.vertexCreationAllowed = checked
      }
    }

    Rectangle {
      height: 1
      Layout.fillWidth: true
      color: palette.mid
    }

    Item {
      opacity: reticleModel.canUndo ? 1.0 : 0.5
      Layout.fillWidth: true
      Layout.fillHeight: true

      Label {
        anchors.centerIn: parent
        text: qsTr("UNDO")
      }

      MouseArea {
        anchors.fill: parent
        onClicked: reticleModel.undoOrCancel()
        enabled: reticleModel.canUndo
      }
    }

    Rectangle {
      height: 1
      Layout.fillWidth: true
      color: palette.mid
    }

    Item {
      Layout.fillWidth: true
      Layout.fillHeight: true
      opacity: reticleModel.canRedo ? 1.0 : 0.5

      Label {
        anchors.centerIn: parent
        text: qsTr("REDO")
      }

      MouseArea {
        anchors.fill: parent
        enabled: reticleModel.canRedo
        onClicked: reticleModel.redo()
      }
    }

    Rectangle {
      height: 1
      Layout.fillWidth: true
      color: palette.mid
    }

    Item {
      Layout.fillWidth: true
      Layout.fillHeight: true
      opacity: reticleModel.selectedElementCanDelete ? 1.0 : 0.5
      Label {
        anchors.centerIn: parent
        text: qsTr("DELETE")
      }

      MouseArea {
        anchors.fill: parent
        enabled: reticleModel.selectedElementCanDelete
        onClicked: reticleModel.deleteSelectedElement()
      }
    }

    Rectangle {
      height: 1
      Layout.fillWidth: true
      color: palette.mid
    }

    Item {
      Layout.fillWidth: true
      Layout.fillHeight: true
      Label {
        anchors.centerIn: parent
        text: qsTr("CLOSE")
      }

      MouseArea {
        anchors.fill: parent
        onClicked: settingsPopup.visible = false
      }
    }

    // Spacer
    Item {
      height: 3
    }
  }
}

// [WriteFile Name=EditGeometriesWithProgrammaticReticleTool, Category=EditData]
// [Legal]
// Copyright 2025 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "EditGeometriesWithProgrammaticReticleTool.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

void setAPIKey(const QGuiApplication& app, QString apiKey);

int main(int argc, char* argv[])
{
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("EditGeometriesWithProgrammaticReticleTool"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");
  setAPIKey(app, accessToken);

  // Initialize the sample
  EditGeometriesWithProgrammaticReticleTool::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/EditData/EditGeometriesWithProgrammaticReticleTool/main.qml"));

  return app.exec();
}

// Use of Esri location services, including basemaps and geocoding,
// requires authentication using either an ArcGIS identity or an API Key.
// 1. ArcGIS identity: An ArcGIS named user account that is a member of an
//    organization in ArcGIS Online or ArcGIS Enterprise.
// 2. API key: API key: a permanent key that grants access to
//    location services and premium content in your applications.
//    Visit your ArcGIS Developers Dashboard to create a new
//    API key or access an existing API key.

void setAPIKey(const QGuiApplication& app, QString apiKey)
{
  if (apiKey.isEmpty())
  {
    // Try parsing API key from command line argument, which uses the following syntax "-k <apiKey>".
    QCommandLineParser cmdParser;
    QCommandLineOption apiKeyArgument(QStringList{"k", "api"}, "The API Key property used to access Esri location services", "apiKeyInput");
    cmdParser.addOption(apiKeyArgument);
    cmdParser.process(app);

    apiKey = cmdParser.value(apiKeyArgument);

    if (apiKey.isEmpty())
    {
      qWarning() << "Use of Esri location services, including basemaps, requires"
                 << "you to authenticate with an ArcGIS identity or set the API Key property.";
      return;
    }
  }

  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(apiKey);
}

// Copyright 2025 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    EditGeometriesWithProgrammaticReticleTool {
        anchors.fill: parent
    }
}
