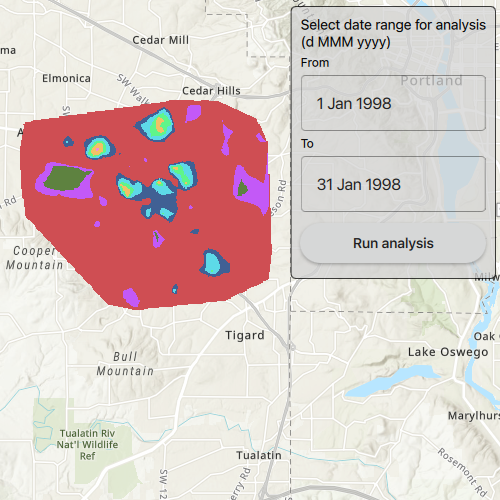

Analyze hotspots

// [WriteFile Name=AnalyzeHotspots, Category=Analysis]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "AnalyzeHotspots.h"

// ArcGIS Maps SDK headers
#include "ArcGISMapImageLayer.h"
#include "Envelope.h"
#include "Error.h"
#include "GeoprocessingJob.h"
#include "GeoprocessingResult.h"
#include "GeoprocessingString.h"
#include "GeoprocessingTask.h"
#include "GeoprocessingTypes.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "TaskTypes.h"

// Qt headers
#include <QFuture>

using namespace Esri::ArcGISRuntime;

AnalyzeHotspots::AnalyzeHotspots(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent)
{
}

AnalyzeHotspots::~AnalyzeHotspots() = default;

void AnalyzeHotspots::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<AnalyzeHotspots>("Esri.Samples", 1, 0, "AnalyzeHotspotsSample");
}

void AnalyzeHotspots::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");

  // Create a map using the topographic basemap
  m_map = new Map(BasemapStyle::ArcGISTopographic, this);

  // Set map to map view
  m_mapView->setMap(m_map);

  // Create the Geoprocessing Task
  m_hotspotTask = new GeoprocessingTask(QUrl("https://sampleserver6.arcgisonline.com/arcgis/rest/services/911CallsHotspot/GPServer/911%20Calls%20Hotspot"), this);

  // Connect to the GP Task's errorOccurred signal
  connect(m_hotspotTask, &GeoprocessingTask::errorOccurred, this, [this](const Error& error)
  {
    emit displayErrorDialog("Geoprocessing Task failed", error.message());
  });
}

void AnalyzeHotspots::executeTaskWithDates(const QString& fromDate, const QString& toDate)
{
  // Create the GP Parameters
  GeoprocessingParameters hotspotParameters = createParameters(fromDate, toDate);

  // Create the GP Job and connect to the status signals
  GeoprocessingJob* job = m_hotspotTask->createJob(hotspotParameters);
  connect(job, &GeoprocessingJob::statusChanged, this, [this, job](JobStatus jobStatus)
  {
    switch (jobStatus)
    {
      case JobStatus::Failed:
        emit displayErrorDialog("Geoprocessing Task failed", !job->error().isEmpty() ? job->error().additionalMessage() : "Unknown error.");
        m_jobInProgress = false;
        m_jobStatus = "Job failed";
        break;
      case JobStatus::Started:
        m_jobInProgress = true;
        m_jobStatus = "Job in progress...";
        break;
      case JobStatus::Paused:
        m_jobInProgress = false;
        m_jobStatus = "Job paused...";
        break;
      case JobStatus::Succeeded:
        m_jobInProgress = false;
        m_jobStatus = "Job succeeded";
        // handle the results
        processResults(job->result());
        break;
      default:
        break;
    }

    // emit signals
    emit jobInProgressChanged();
    emit statusChanged();
  });

  // Start the job
  job->start();
  m_jobInProgress = true;
  emit jobInProgressChanged();
  m_jobStatus = "Job in progress...";
  emit statusChanged();
}

GeoprocessingParameters AnalyzeHotspots::createParameters(const QString& fromDate, const QString& toDate)
{
  // Create the GeoprocessingParameters and set the execution type
  GeoprocessingParameters hotspotParameters = GeoprocessingParameters(GeoprocessingExecutionType::AsynchronousSubmit);

  // create the query string
  QString queryString("(\"DATE\" > date '%1 00:00:00' AND \"DATE\" < date '%2 00:00:00')");
  queryString = queryString.arg(fromDate, toDate);

  // Add query that contains the date range and the days of the week that are used in analysis
  QMap<QString, GeoprocessingParameter*> inputs;
  inputs["Query"] = new GeoprocessingString(queryString, this);
  hotspotParameters.setInputs(inputs);

  // return the GeoprocessingParameters
  return hotspotParameters;
}

void AnalyzeHotspots::processResults(GeoprocessingResult* result)
{
  // Clear the map's operational layers
  m_mapView->map()->operationalLayers()->clear();

  // Extract the layer from the result and add to the map
  m_layer = result->mapImageLayer();
  connect(m_layer, &ArcGISMapImageLayer::doneLoading, this, [this](const Error& error)
  {
    if (error.isEmpty())
    {
      m_mapView->setViewpointGeometryAsync(m_layer->fullExtent());
    }
  });
  m_mapView->map()->operationalLayers()->append(m_layer);
}

// [WriteFile Name=AnalyzeHotspots, Category=Analysis]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef ANALYZEHOTSPOTS_H
#define ANALYZEHOTSPOTS_H

// ArcGIS Maps SDK headers
#include "GeoprocessingParameters.h"

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
    class Map;
    class MapQuickView;
    class GeoprocessingTask;
    class GeoprocessingResult;
    class ArcGISMapImageLayer;
}

class AnalyzeHotspots : public QQuickItem
{
  Q_OBJECT

  Q_PROPERTY(bool jobInProgress MEMBER m_jobInProgress NOTIFY jobInProgressChanged)
  Q_PROPERTY(QString statusText MEMBER m_jobStatus NOTIFY statusChanged)

public:
  explicit AnalyzeHotspots(QQuickItem* parent = nullptr);
  ~AnalyzeHotspots() override;

  void componentComplete() override;
  static void init();

  Q_INVOKABLE void executeTaskWithDates(const QString& fromDate, const QString& toDate);

signals:
  void jobInProgressChanged();
  void statusChanged();
  void displayErrorDialog(const QString& titleText, const QString& detailedText);

private:
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::GeoprocessingTask* m_hotspotTask = nullptr;
  Esri::ArcGISRuntime::ArcGISMapImageLayer* m_layer = nullptr;
  bool m_jobInProgress = false;
  QString m_jobStatus = QStringLiteral("Not started.");

private:
  Esri::ArcGISRuntime::GeoprocessingParameters createParameters(const QString& fromDate, const QString& toDate);
  void processResults(Esri::ArcGISRuntime::GeoprocessingResult* result);
};

#endif // ANALYZEHOTSPOTS_H

// [WriteFile Name=AnalyzeHotspots, Category=Analysis]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
// import Qt.labs.calendar // Calendar is not supported in Qt 6.2
import QtQuick.Layouts
import Esri.Samples

AnalyzeHotspotsSample {
    id: rootRectangle
    clip: true
    width: 800
    height: 600

    property date fromThisDate : Date.fromLocaleDateString(Qt.locale(), "98/01/01", "yy/MM/dd")
    property date toThisDate : Date.fromLocaleDateString(Qt.locale(), "98/01/31", "yy/MM/dd")

    // Declare the MapView
    MapView {
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    onDisplayErrorDialog: {
        messageDialog.title = "Error";
        messageDialog.text = titleText;
        messageDialog.detailedText = detailedText;
        messageDialog.open();
    }

    // Create the settings rectangle to set dates and execute the task
    Rectangle {
        anchors {
            margins: -10
            fill: settingsColumn
        }
        color: "lightgrey"
        radius: 5
        border.color: "black"
        opacity: 0.75
    }

    Column {
        id: settingsColumn
        anchors {
            right: parent.right
            top: parent.top
            margins: 20
        }
        spacing: 5

        Text {
            anchors.horizontalCenter: parent.horizontalCenter
            text: "Select date range for analysis\n(d MMM yyyy)"
            font.pixelSize: 14
        }

        Text {
            text: "From"
            font.pixelSize: 12
        }

        TextField {
            id: fromDate
            width: parent.width
            text: "1 Jan 1998"
            onTextChanged: {
                fromThisDate = Date.fromLocaleString(Qt.locale(), text, "d MMM yyyy")
                validateDates();
            }
            selectByMouse: true
        }

        Text {
            text: "To"
            font.pixelSize: 12
        }

        TextField {
            id: toDate
            width: parent.width
            text: "31 Jan 1998"
            onTextChanged: {
                toThisDate = Date.fromLocaleString(Qt.locale(), text, "d MMM yyyy")
                validateDates();
            }
            selectByMouse: true
        }

        Button {
            width: parent.width
            anchors.horizontalCenter: parent.horizontalCenter
            text: "Run analysis"
            enabled: !jobInProgress && validateDates(fromThisDate, toThisDate)

            onClicked: {
                const fromString = fromThisDate.toLocaleString(Qt.locale(), "yyyy-MM-dd");
                const toString = toThisDate.toLocaleString(Qt.locale(), "yyyy-MM-dd");
                // Run the task
                executeTaskWithDates(fromString, toString);
            }
        }

        Row {
            spacing: 15
            visible: jobInProgress

            BusyIndicator {
                anchors.verticalCenter: parent.verticalCenter
                width: 24
                height: width
            }

            Text {
                anchors.verticalCenter: parent.verticalCenter
                text: statusText
                font.pixelSize: 14
            }
        }
    }

    Dialog {
        id: messageDialog
        modal: true
        x: Math.round(parent.width - width) / 2
        y: Math.round(parent.height - height) / 2
        standardButtons: Dialog.Ok
        title: "Error"
        property alias text : textLabel.text
        property alias detailedText : detailsLabel.text
        ColumnLayout {
            Text {
                id: textLabel
            }
            Text {
                id: detailsLabel
            }
        }
    }

    // function to validate the date ranges provided
    function validateDates() {
        // check if each date is within the period
        if (fromThisDate > toThisDate) {
            return false;
        }

        // check that there is at least one day in between the from and to date
        const oneDay = 86400000;
        if ((toThisDate - fromThisDate) < oneDay) {
            return false;
        }

        return true;
    }
}

// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "AnalyzeHotspots.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("Analyze Hotspots"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  AnalyzeHotspots::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/Analysis/AnalyzeHotspots/AnalyzeHotspots.qml"));

  view.show();

  return app.exec();
}
